Trek
Top Fuel 9.8 GX AXS Gen 3
2026Mountain - Trail
Top Fuel 9.8 GX AXS Gen 3 Data
- Frame
- Carbon
- Suspension
- Fully
- Travel
- Rear: 120mm
- Gears
- 12
- Weight
- 13.28 kg
- Sizes
- S, M, L, Xl, Ml, 2Xl
- Colors
- Carbon Red Smoke, Satin Baja Yellow, Matte Raw Carbon, Pennyflake
Looking for replacement tires?
View verified compatible tires for the 2026 Top Fuel 9.8 GX AXS Gen 3.
Components
Complete component specification list for this variant.
Drivetrain
Rear Shifter
SRAM GX Eagle AXS T-Type
Cassette
SRAM Eagle XG-75
- Number of sprockets
- 12
- Range
- 10-52

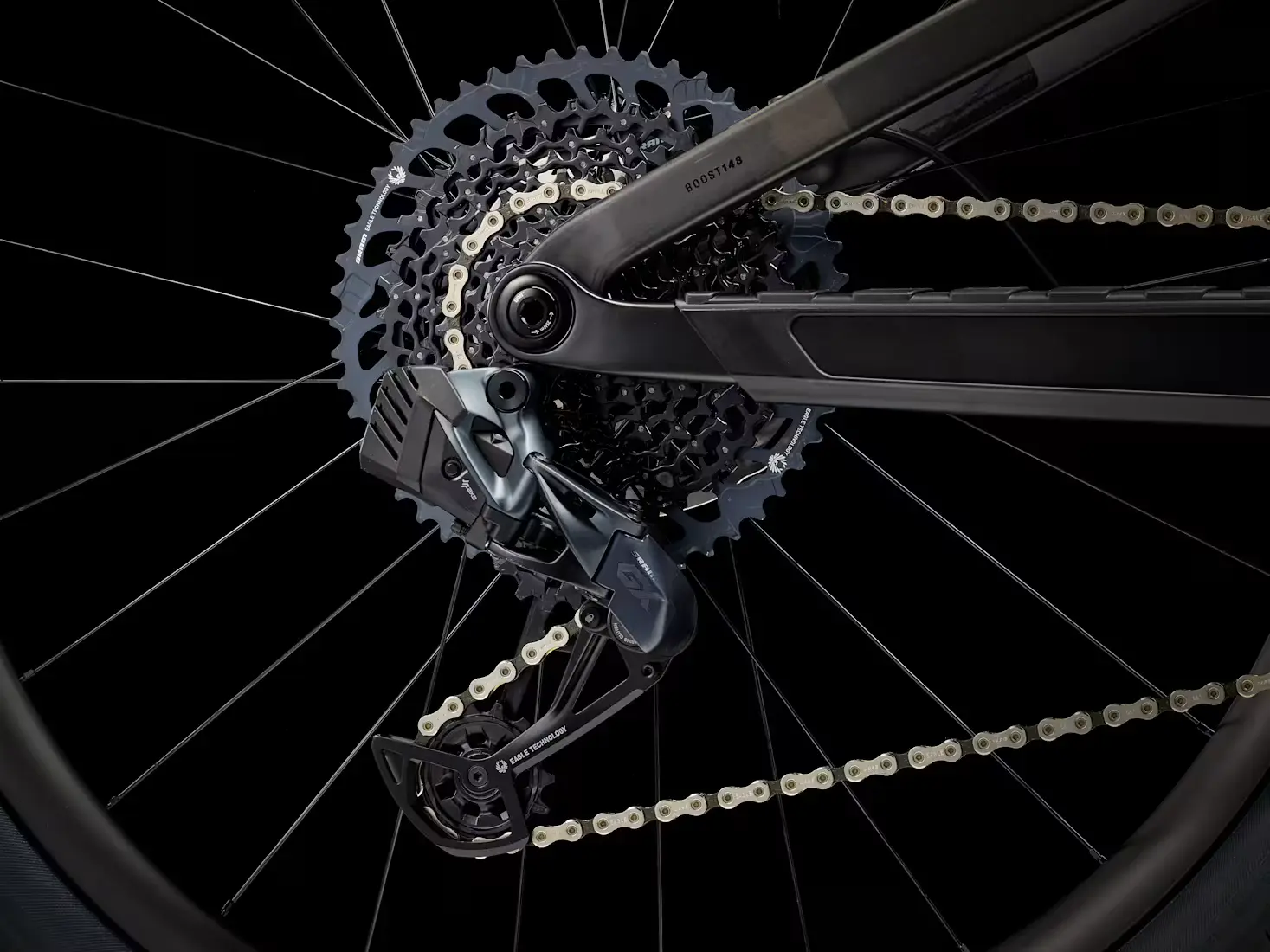

Rear Derailleur
SRAM GX Eagle AXS
Chainring
SRAM GX Eagle
Chain
SRAM GX Eagle

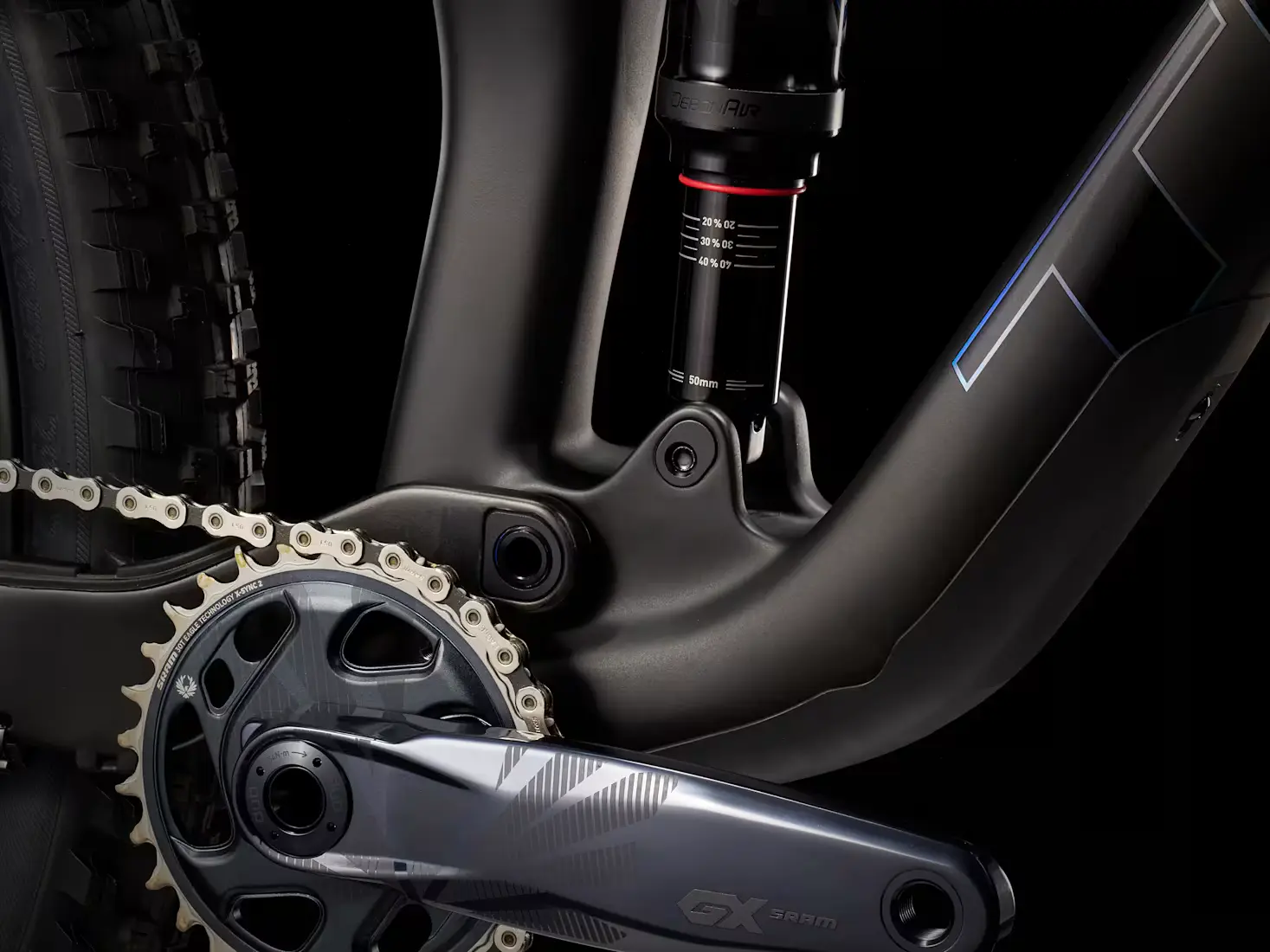

Crank
SRAM GX Eagle

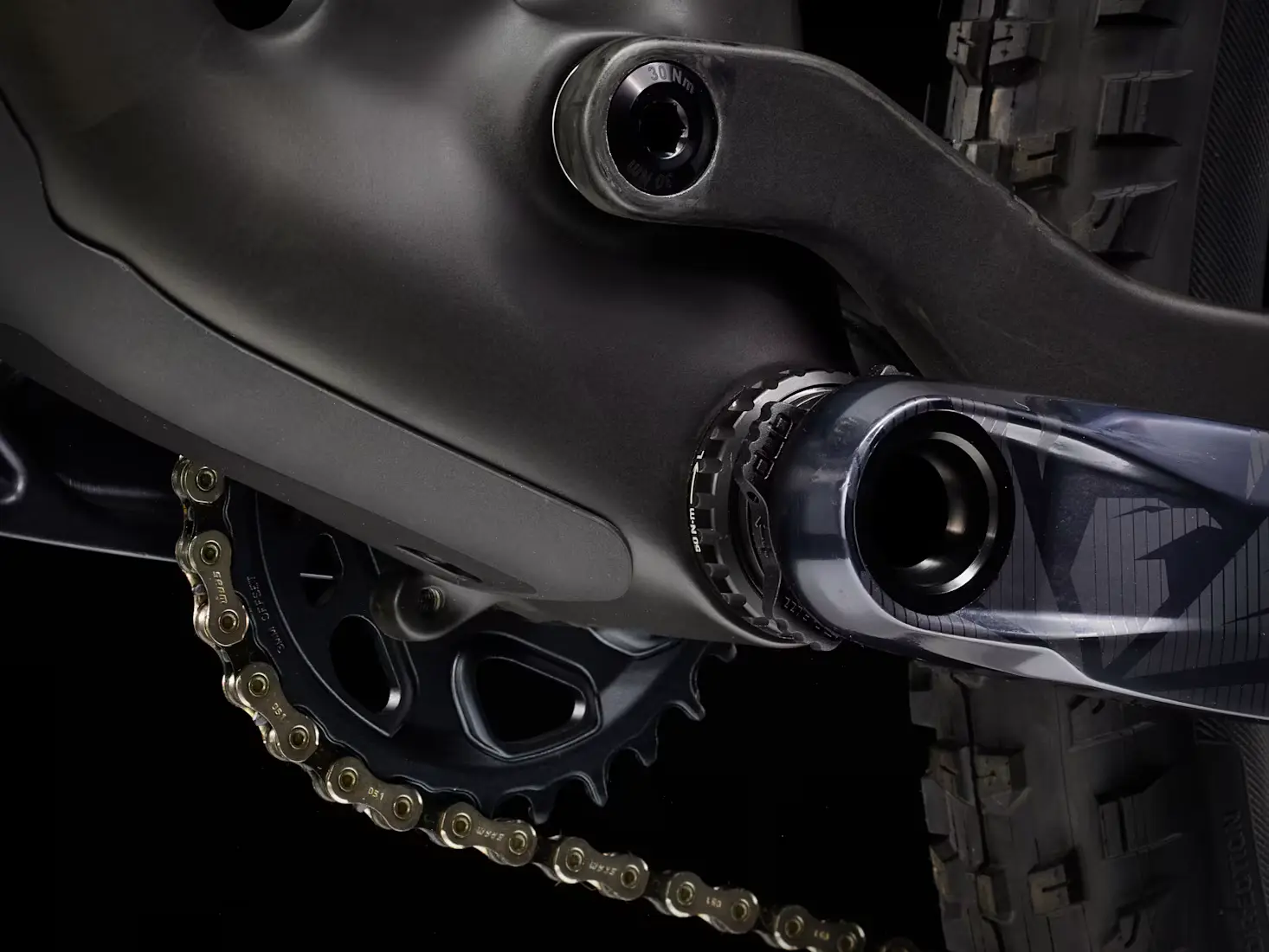

Bottom Bracket
SRAM DUB MTB Wide
Frame

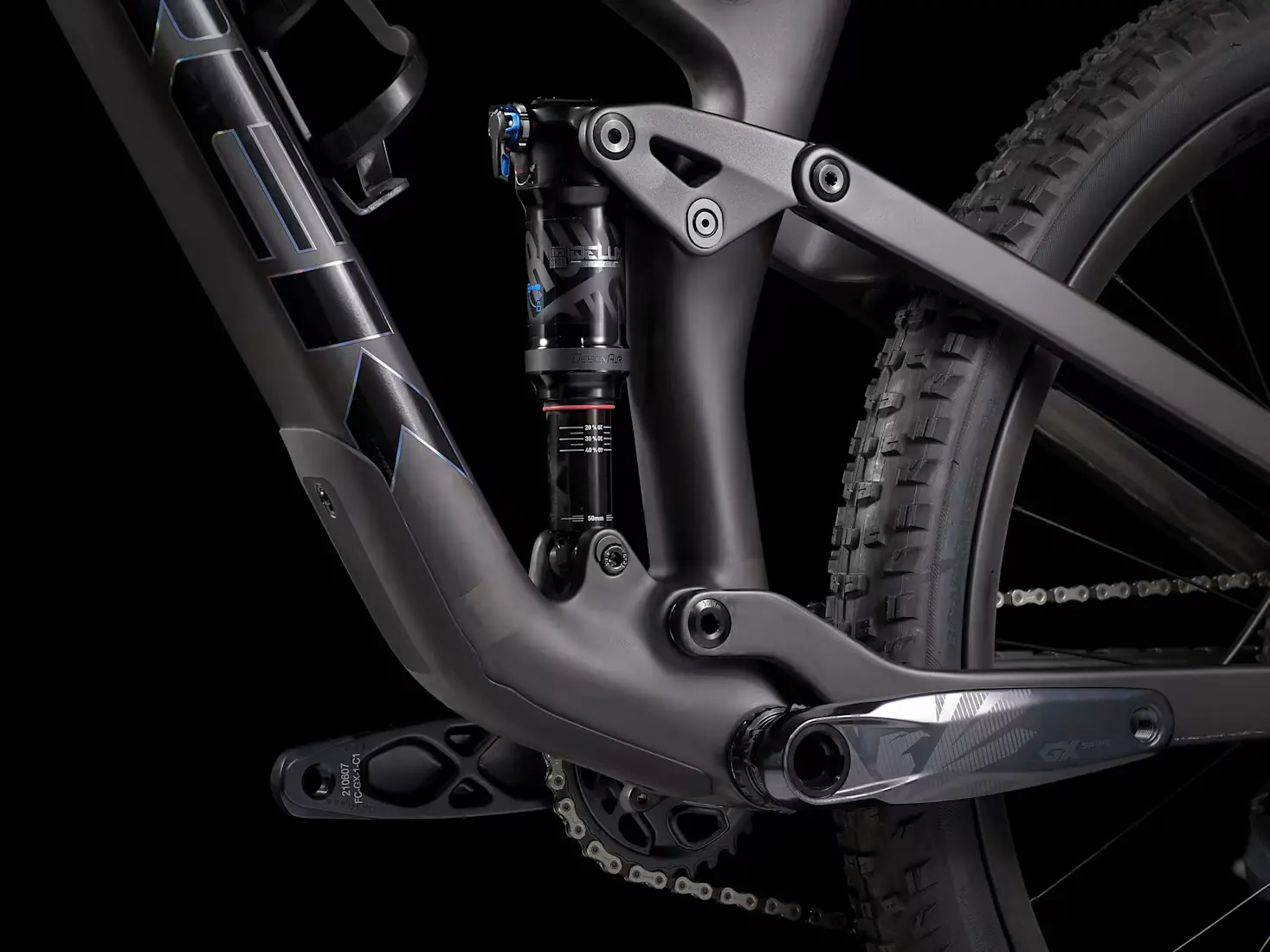

Rear Shock
RockShox Deluxe Ultimate RCT
- Travel
- 120 mm
Frame
OCLV Mountain
- Rear Axle Dimension
- 12x148 mm
- Material
- Carbon
Fork
RockShox Pike Select+
Seat
Saddle
Bontrager Arvada
Seatpost
Bontrager Line Elite Dropper
- Length
- 345 mm
- Diameter
- 34.9 mm
- Dropper post
- 1
- Travel
- 100 mm
Cockpit
Grips
Bontrager XR Trail Elite

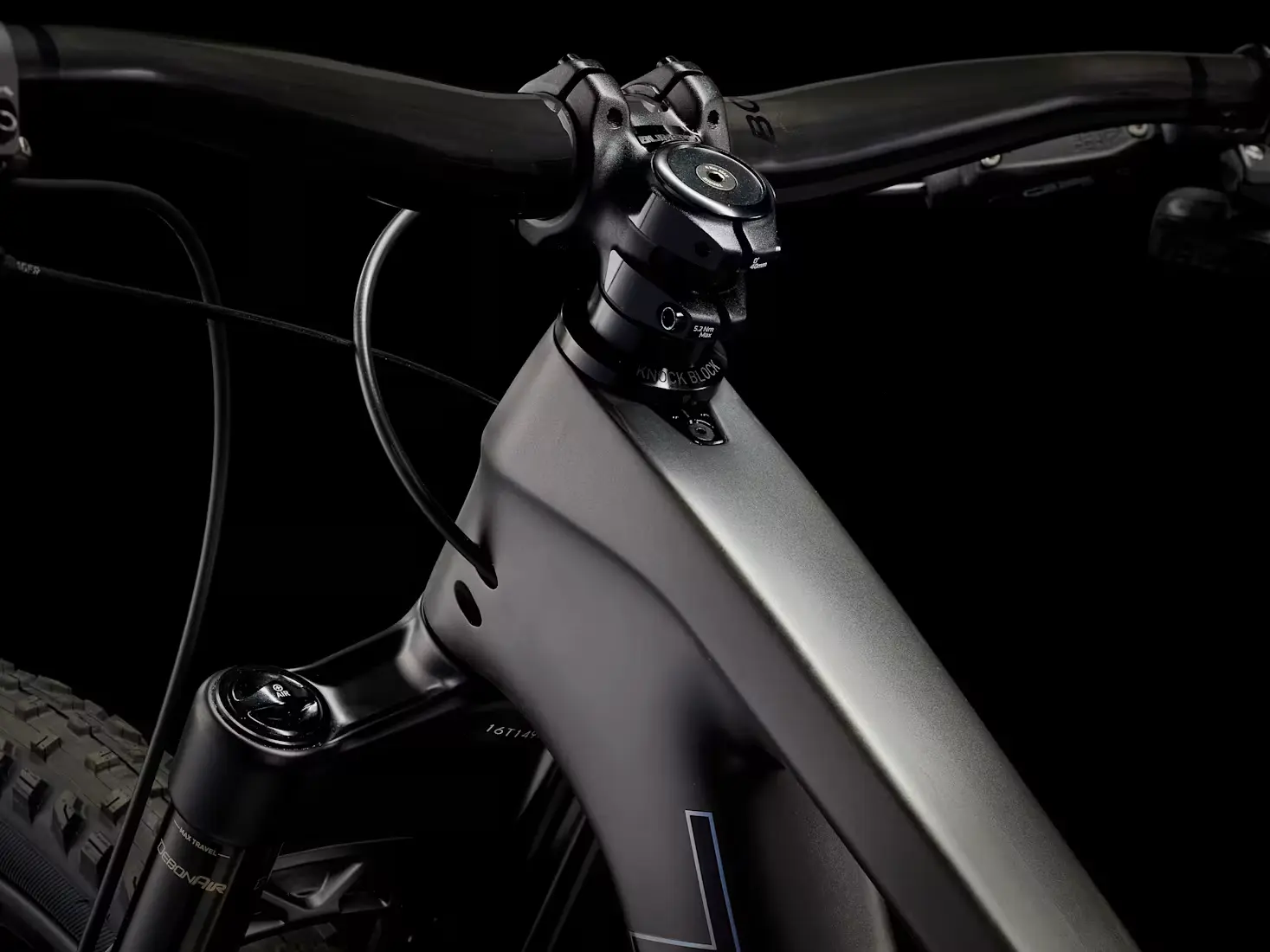

Stem
Bontrager Line Pro
- Length
- 45 mm
- Clamping diameter
- 35 mm
Handlebar
Bontrager Line Pro
- Width
- 750 mm
- Rise
- 15 mm
- Clamping diameter
- 35 mm
- Material
- Carbon
Wheels
Front
Front Wheel
Bontrager Line Elite 30 (27.5", 15x110 mm)
- Size
- 27.5"
- Axle Dimension
- 15x110 mm
- Rotor mount
- 6-bolt
- Material
- Carbon
- Position
- front
Front Tire
Bontrager XR4 Team Issue (27.5", 2.40")
- Size
- 27.5"
- Width
- 2.40"
Rear
Rear Wheel
Bontrager Line Elite 30 (27.5", 12x148 mm)
- Size
- 27.5"
- Axle Dimension
- 12x148 mm
- Rotor mount
- 6-bolt
- Material
- Carbon
- Position
- back

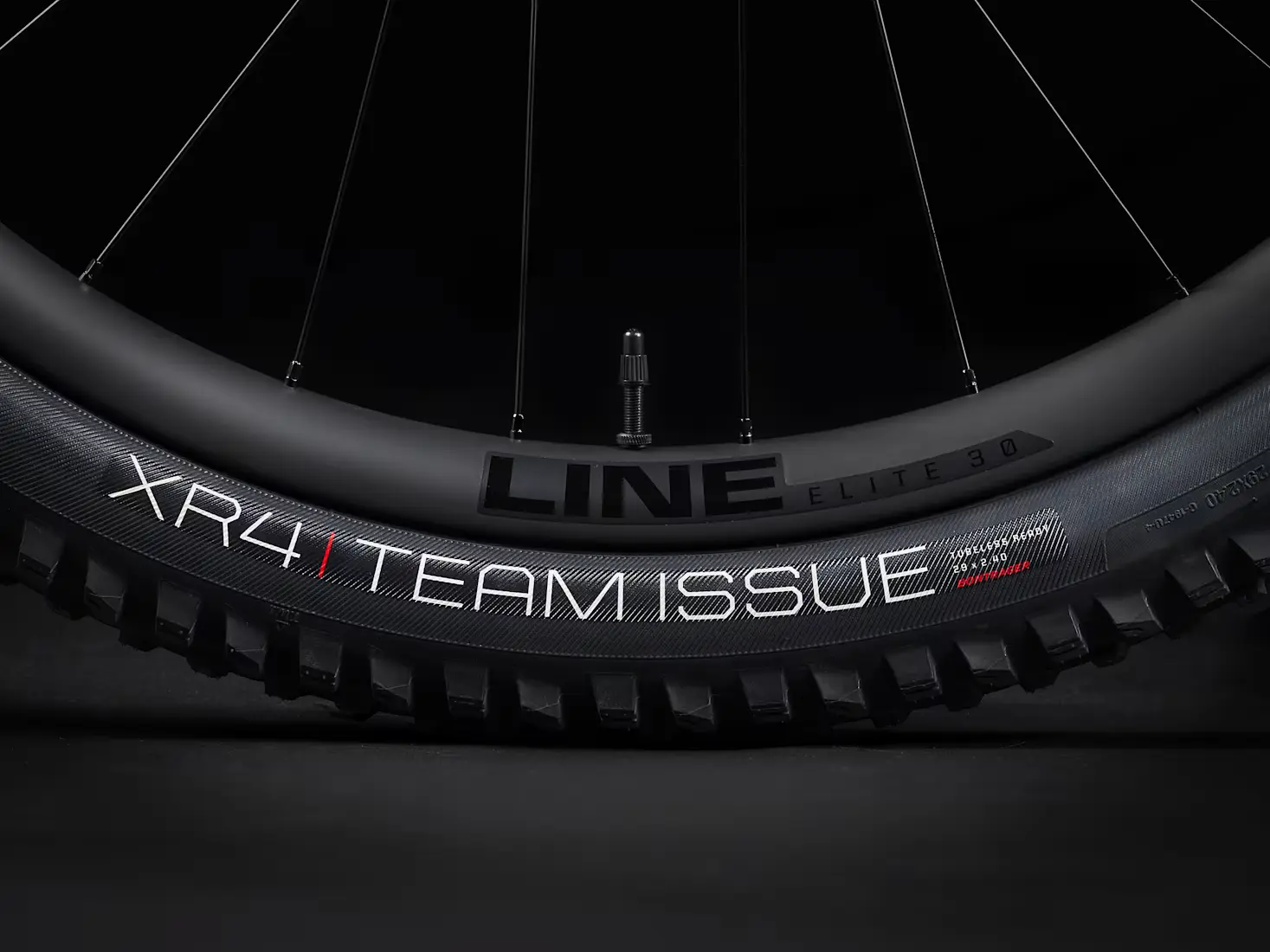

Rear Tire
Bontrager XR4 Team Issue (27.5", 2.40")
- Size
- 27.5"
- Width
- 2.40"
Brakes
Front
Front Brake
SRAM G2 RS
Front Disc
SRAM CenterLine
Rear

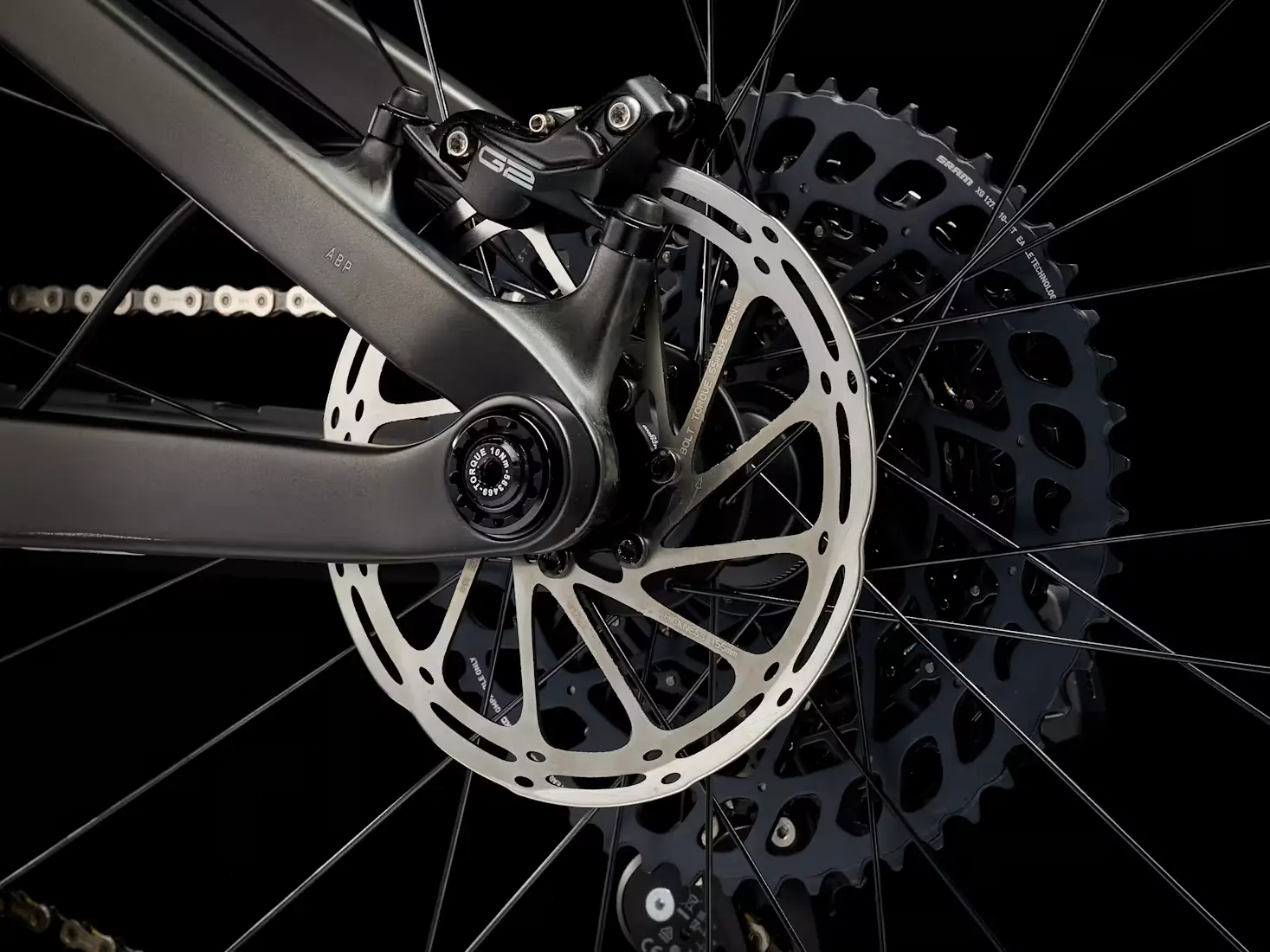

Rear Brake
SRAM G2 RS
Rear Disc
SRAM CenterLine
