Trek
Supercaliber SLR 9.9 XX AXS Gen 2
2026Mountain
Supercaliber SLR 9.9 XX AXS Gen 2 Data
- Frame
- Carbon
- Suspension
- Fully, Full Suspension
- Travel
- Front: 110mm, Rear: 80mm
- Gears
- 12
- Weight
- 9.63 kg
- Sizes
- S, M, L, Xl, Ml
- Colors
- Deep Smoke, Carbon Red Smoke, Argent Drizzle
Looking for replacement tires?
View verified compatible tires for the 2026 Supercaliber SLR 9.9 XX AXS Gen 2.
Components
Complete component specification list for this variant.
Drivetrain

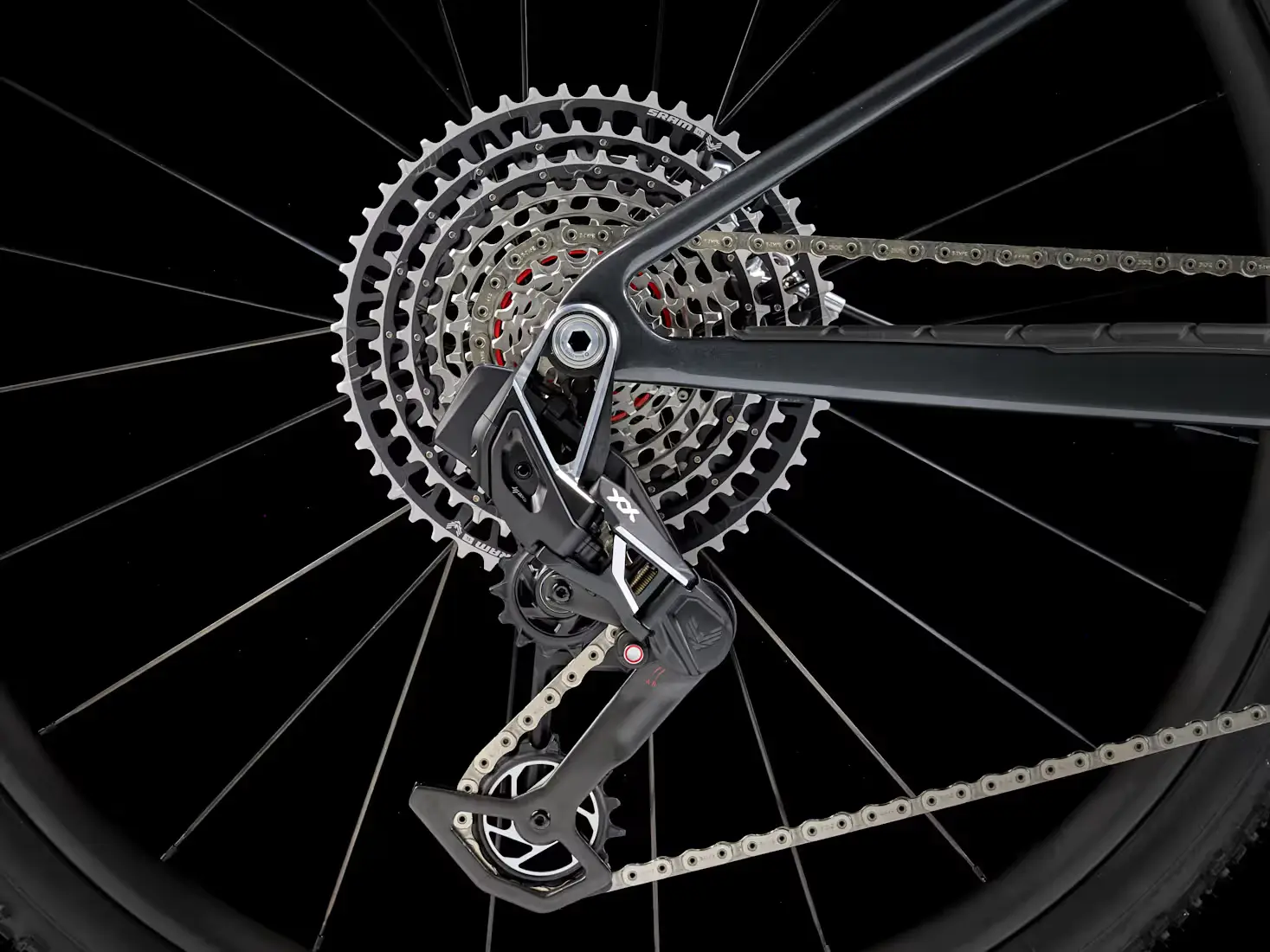

Rear Derailleur
SRAM XX SL Eagle AXS, T-Type
- Gears
- 12
Battery
SRAM AXS battery pack
Chainring
SRAM XX SL Eagle, T
- Gears
- 1
- Ring 1
- 34 Teeth
Rear Shifter
SRAM AXS POD Ultimate, paired with dropper
Cassette
SRAM Eagle XS-99, T-Type, , speed
- Number of sprockets
- 12
- Range
- 10-52
Chain
SRAM XX Eagle, T-Type, speed
- Gears
- 12

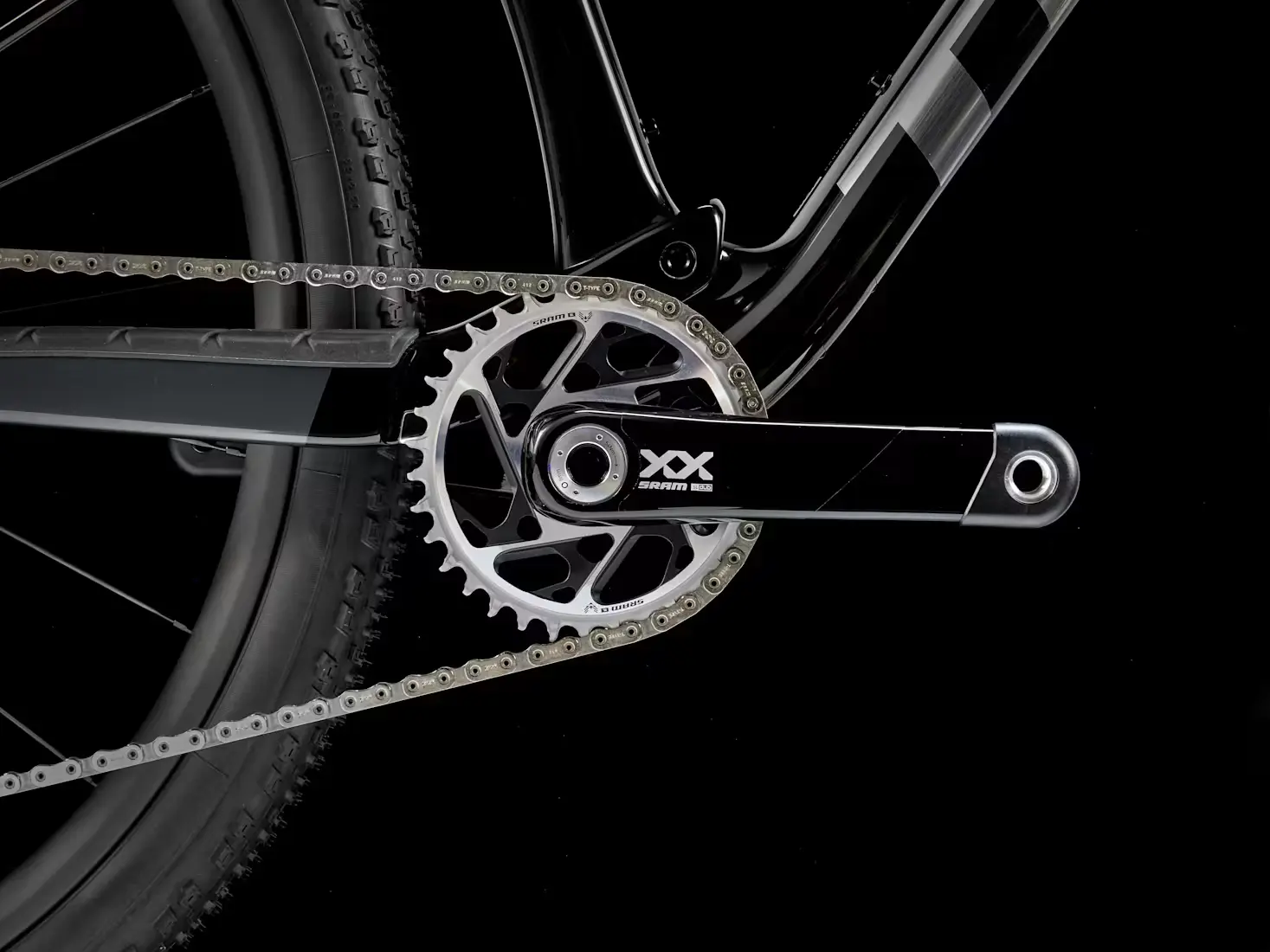

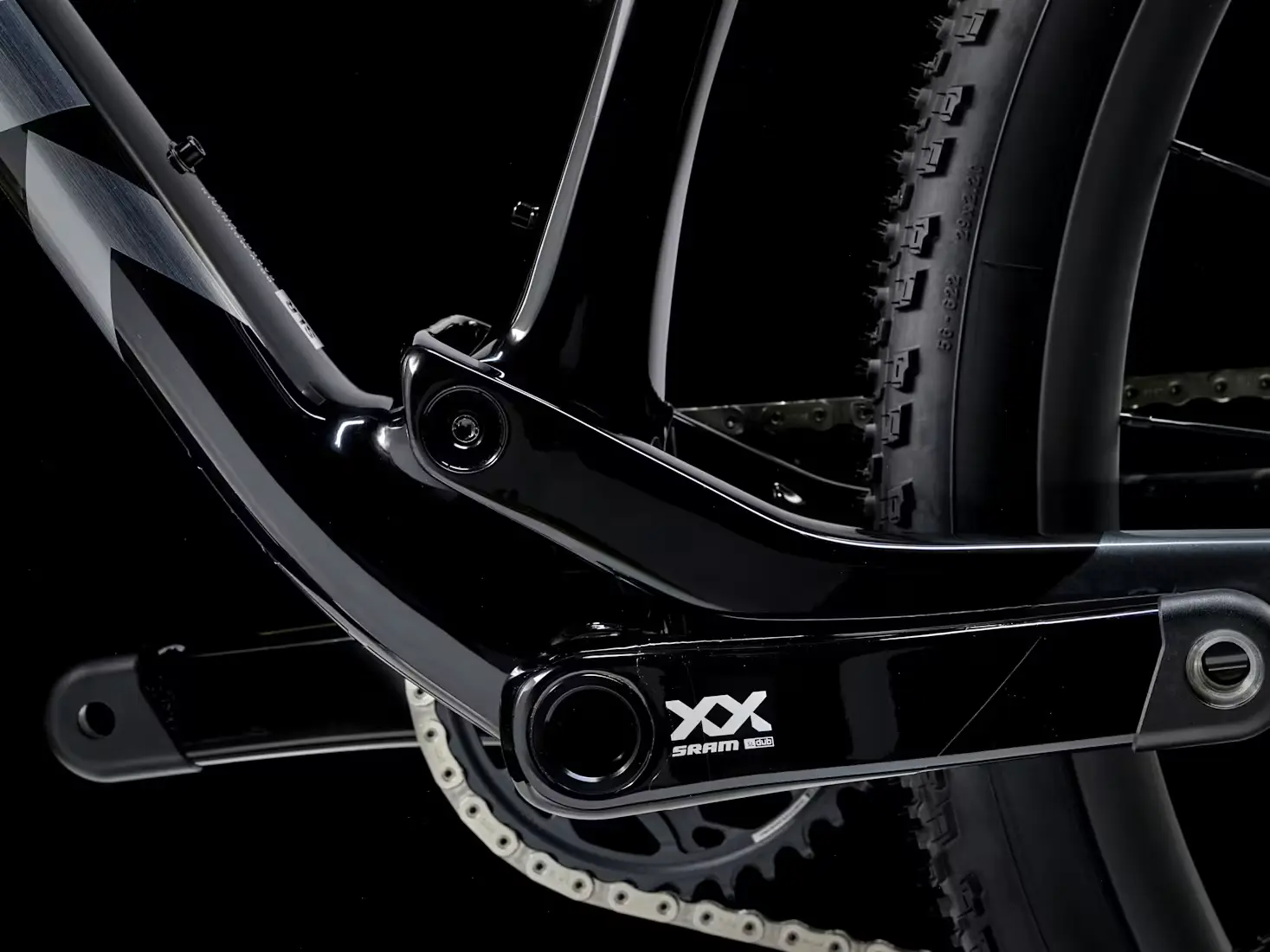

Crank
SRAM XX SL Eagle, T-Type, DUB, 34T ring, 55mm chainline, mm length
- Length
- 170
Bottom Bracket
Pressfit SRAM DUB, 92mm
- Standard
- PressFit
Accessories
Charger
SRAM AXS charger
Wheels
Front

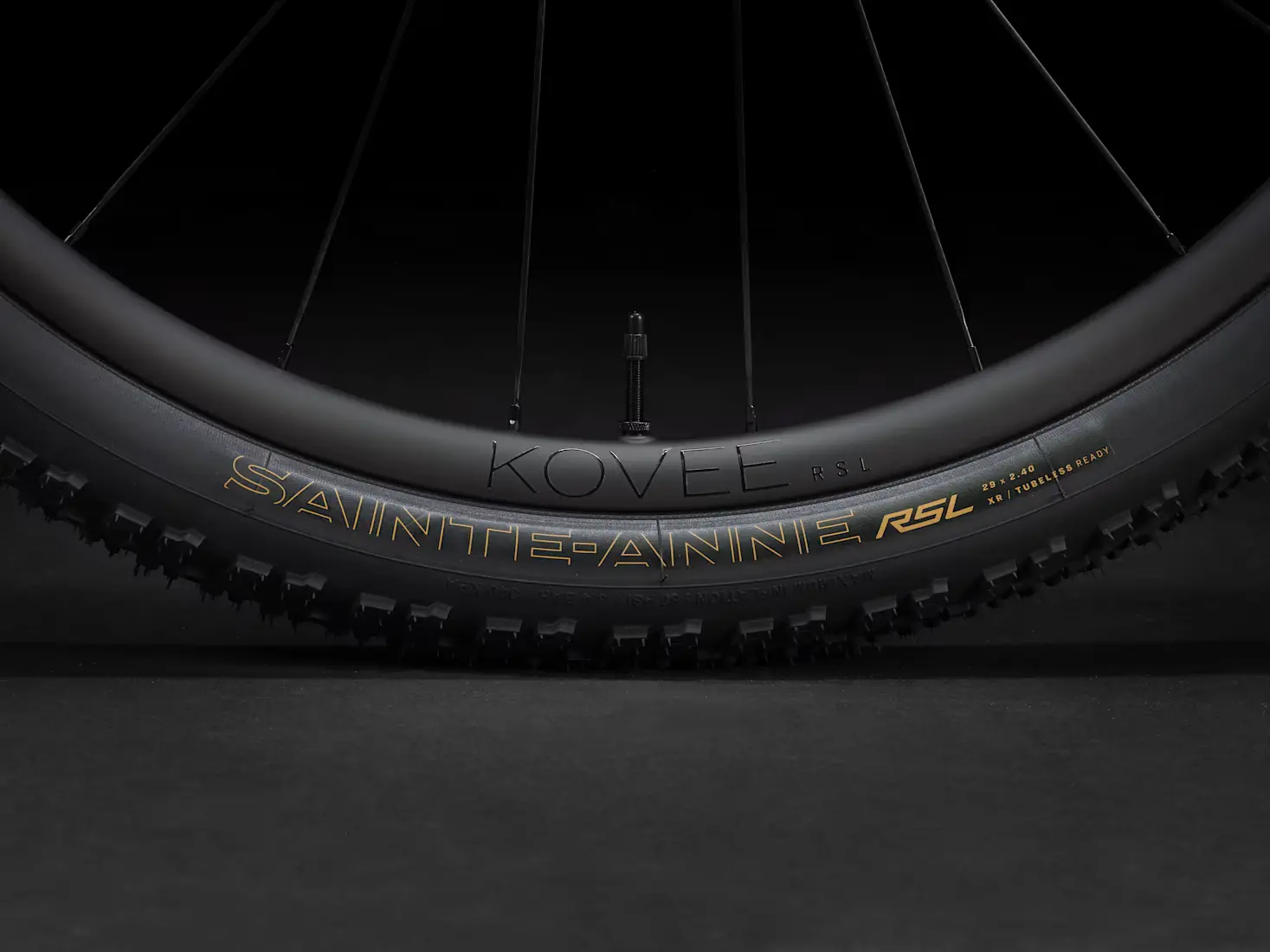

Front Wheel
Bontrager Kovee RSL, OCLV Mountain , Tubeless Ready, , Boost110, 15mm thru axle, (29'', 15x110 mm)
- Size
- 29''
- Axle Dimension
- 15x110 mm
- Rotor mount
- CenterLock
- Material
- Carbon
- Position
- Front
Front Tire
Pirelli Scorpion XC, Tubeless Ready, Team Edition Pro Wall, aramid bead, 120 tpi, 29x (29'', 2.20'')
- Size
- 29''
- Width
- 2.20''
Rear
Rear Wheel
Bontrager Kovee RSL, OCLV Mountain , Tubeless Ready, , Boost148, 12mm thru axle, (29'', 12x148 mm)
- Size
- 29''
- Axle Dimension
- 12x148 mm
- Rotor mount
- CenterLock
- Material
- Carbon
- Position
- Back
Rear Tire
Pirelli Scorpion XC, Tubeless Ready, Team Edition Pro Wall, aramid bead, 120 tpi, 29x (29'', 2.20'')
- Size
- 29''
- Width
- 2.20''
Brakes
Front
Front Brake
Hydraulic SRAM Level Ultimate 4-piston disc
Front Disc
Centerline SRAM X, centerlock, round edge, mm
- Diameter
- 160 mm
Rear
Rear Brake
Hydraulic SRAM Level Ultimate 4-piston disc
Rear Disc
Centerline SRAM X, centerlock, round edge, mm
- Diameter
- 160 mm

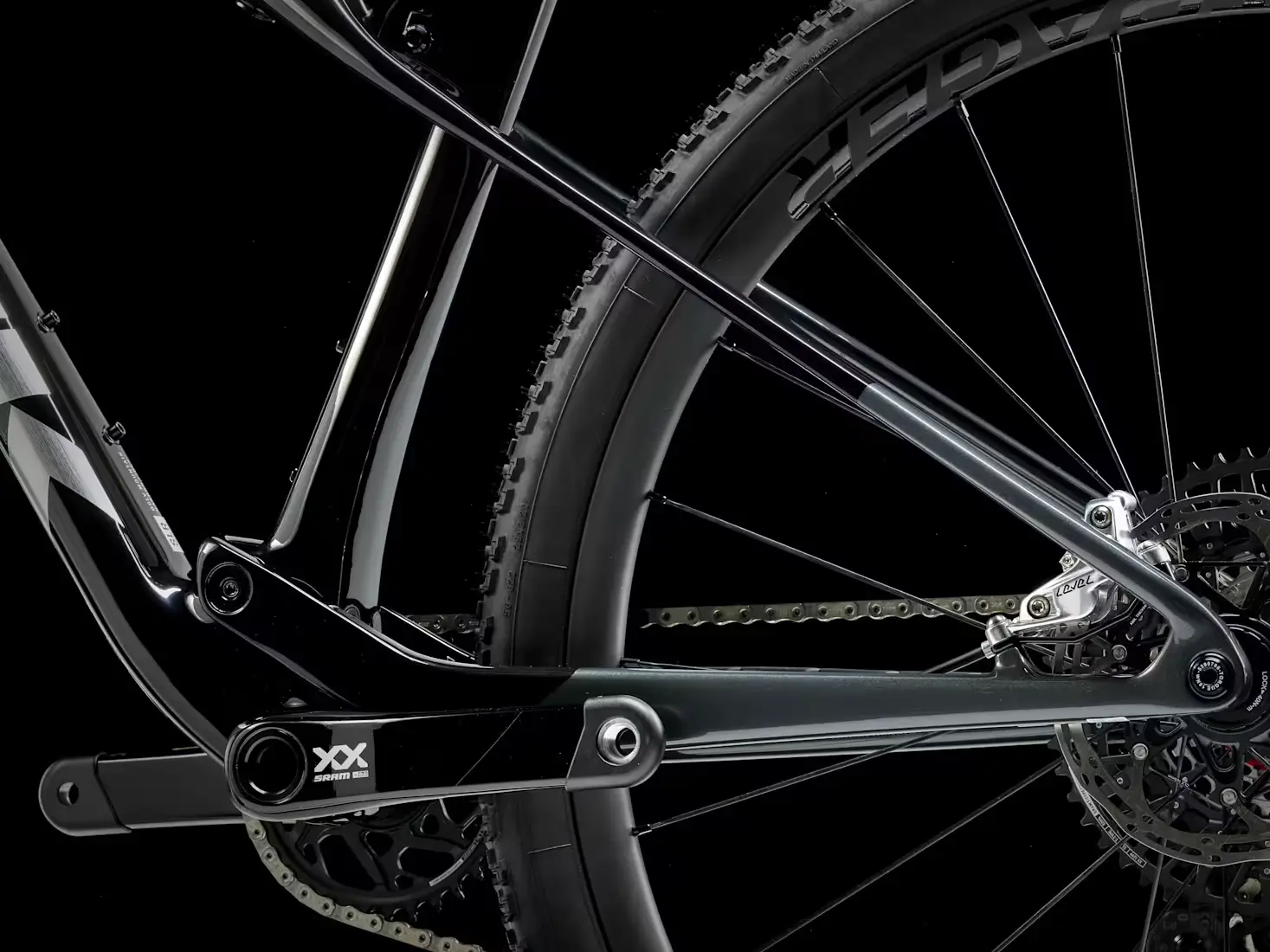

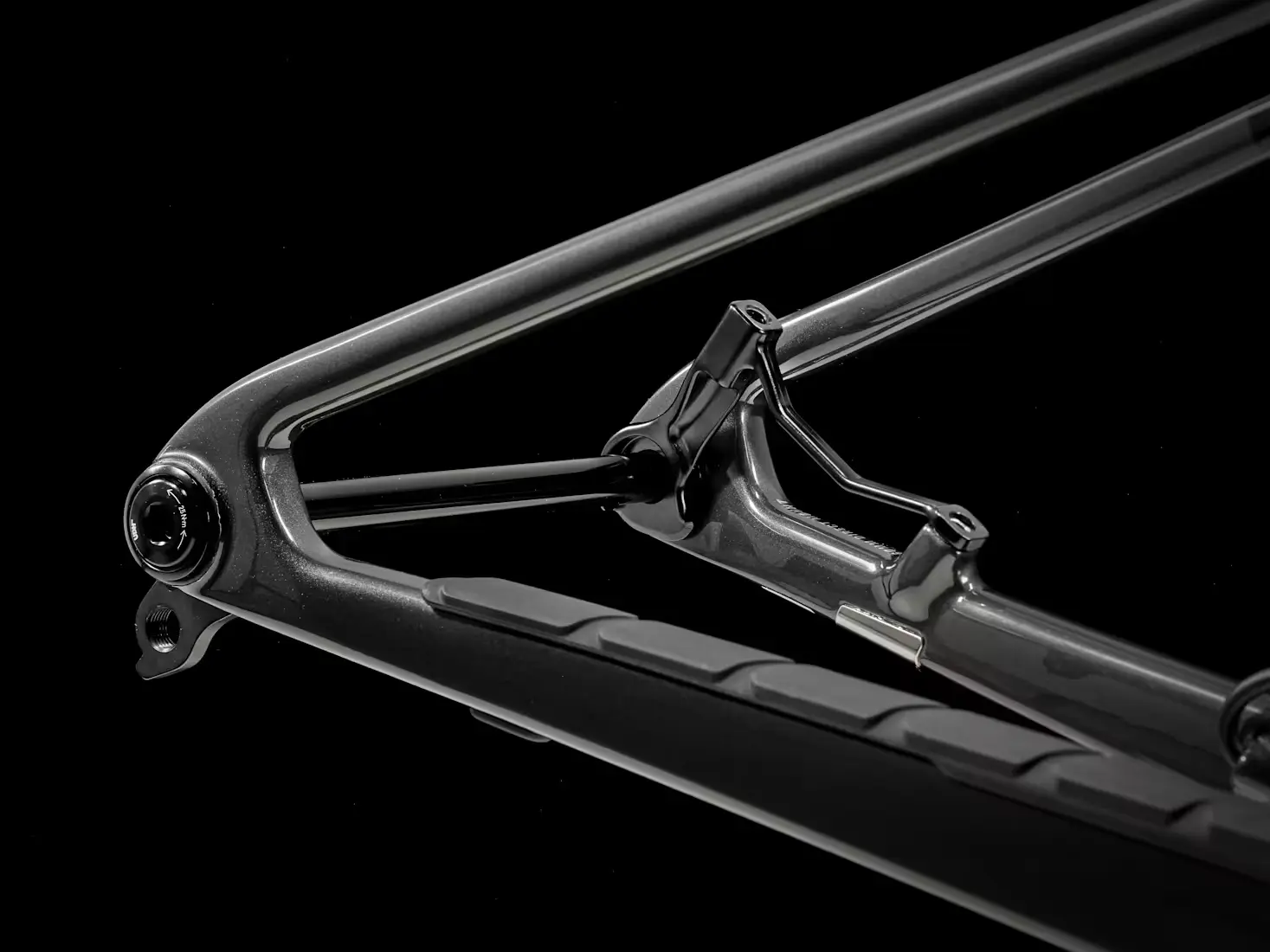

Frame
Frame
OCLV SLR Mountain , IsoStrut, UDH, 80mm travel
- Rear Axle Dimension
- 12x148 mm
- Material
- Carbon

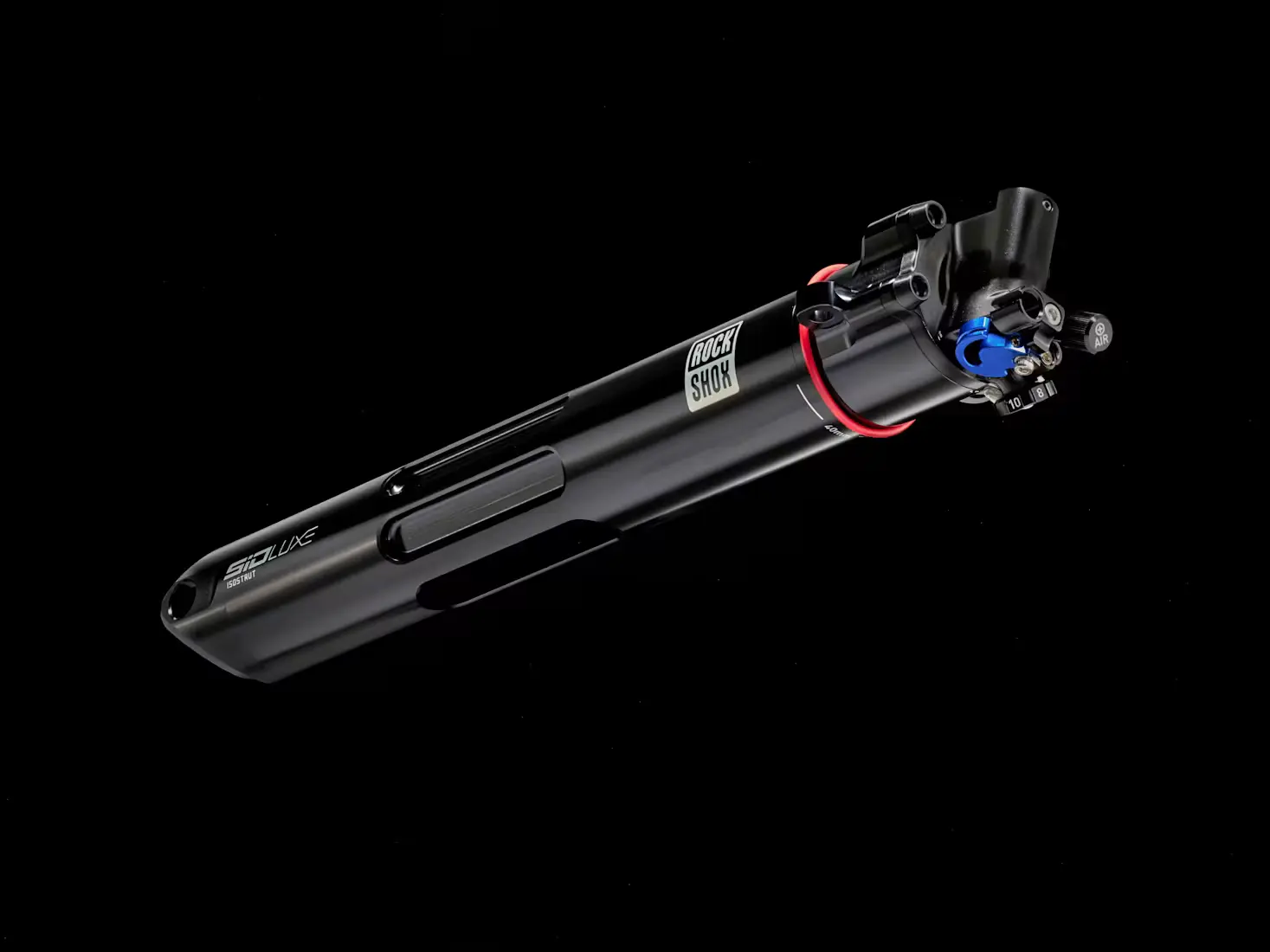

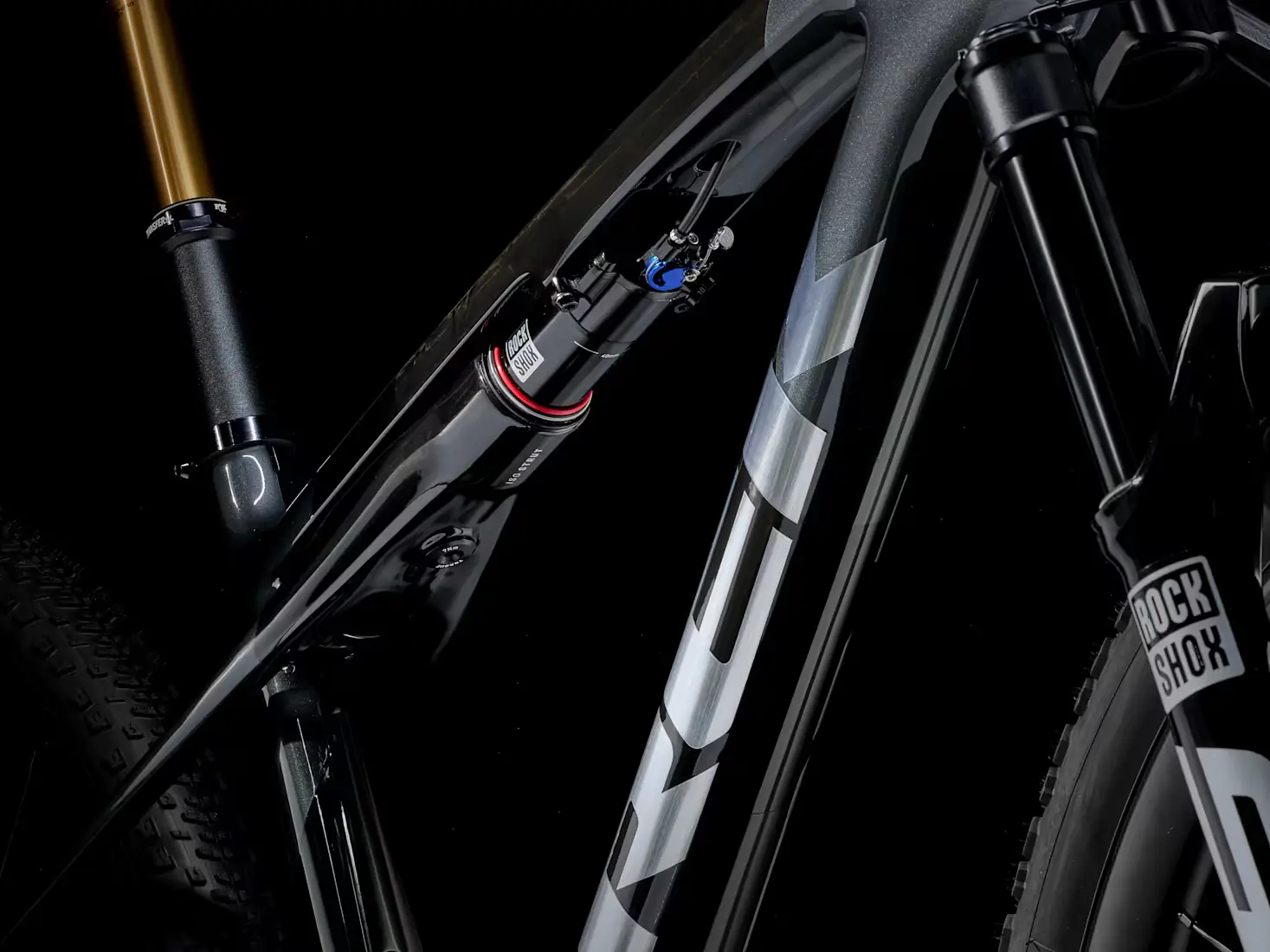

Rear Shock
RockShox Trek IsoStrut, SIDLuxe, 2-position remote damper
- Travel
- 80 mm
Fork
RockShox SID SL Ultimate, DebonAir spring, Charger Race Day damper, dual remote lockout, steerer, mm offset, Boost, 15mm Maxle Stealth, mm travel
- Travel
- 110 mm
- Front Axle Dimension
- 15x110 mm
- Steer tube diameter
- Tapered
- Offset
- 44 mm
Cockpit

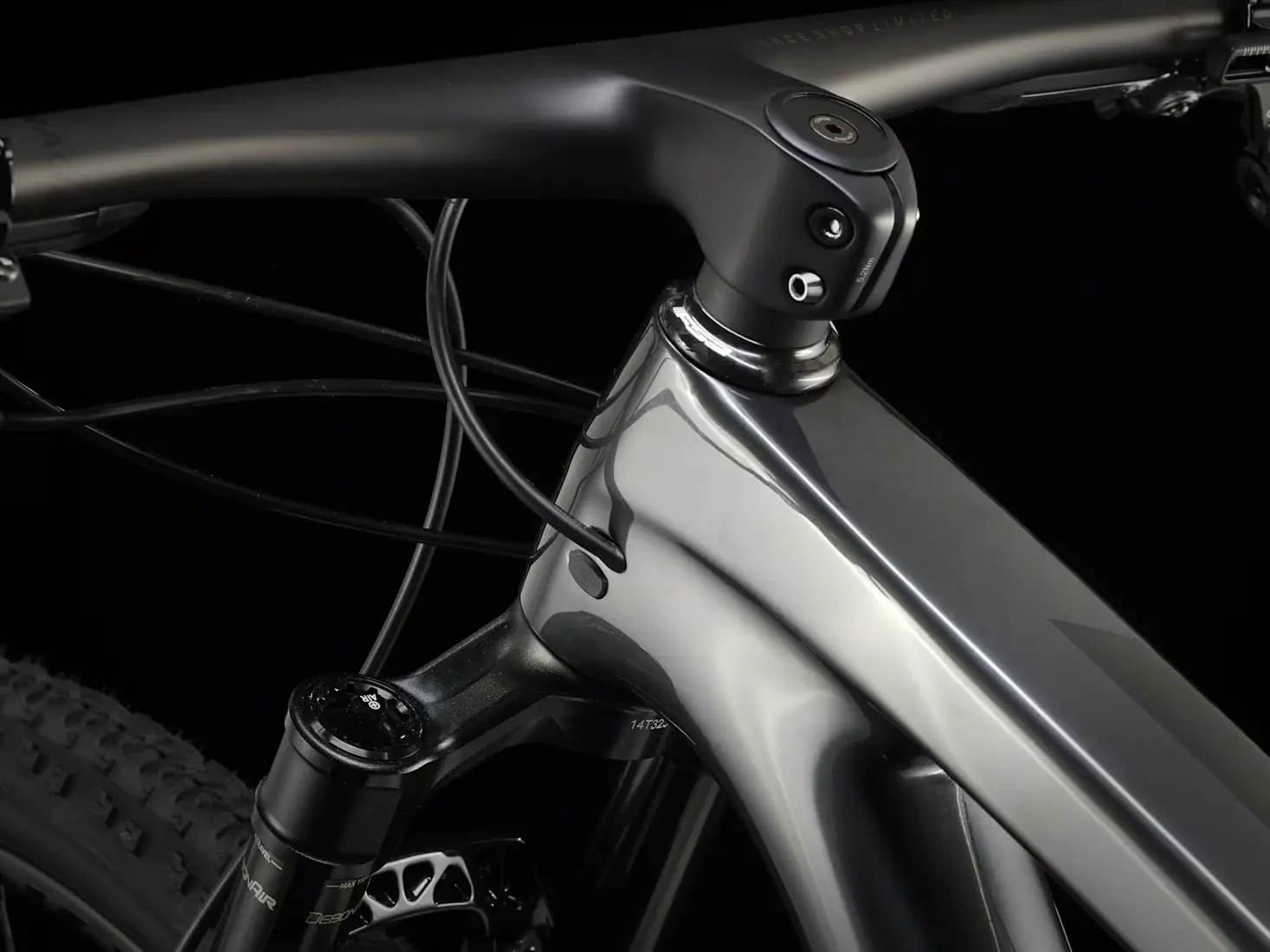

Stem
Integrated Bontrager RSL handlebar/stem, OCLV
- Length
- 70 mm
- Material
- Carbon
Handlebar
Integrated Bontrager RSL handlebar/stem, OCLV
- Width
- 750 mm
- Rise
- 0 mm
- Angle
- -13 °
- Material
- Carbon
Seat
Saddle
Aeolus RSL, carbon rails, 145mm width
Seatpost
Internal Fox Transfer SL, 00mm travel, routing, mm
- Diameter
- 31.6 mm
- Dropper post
- 1
- Travel
- 100 mm
