Trek

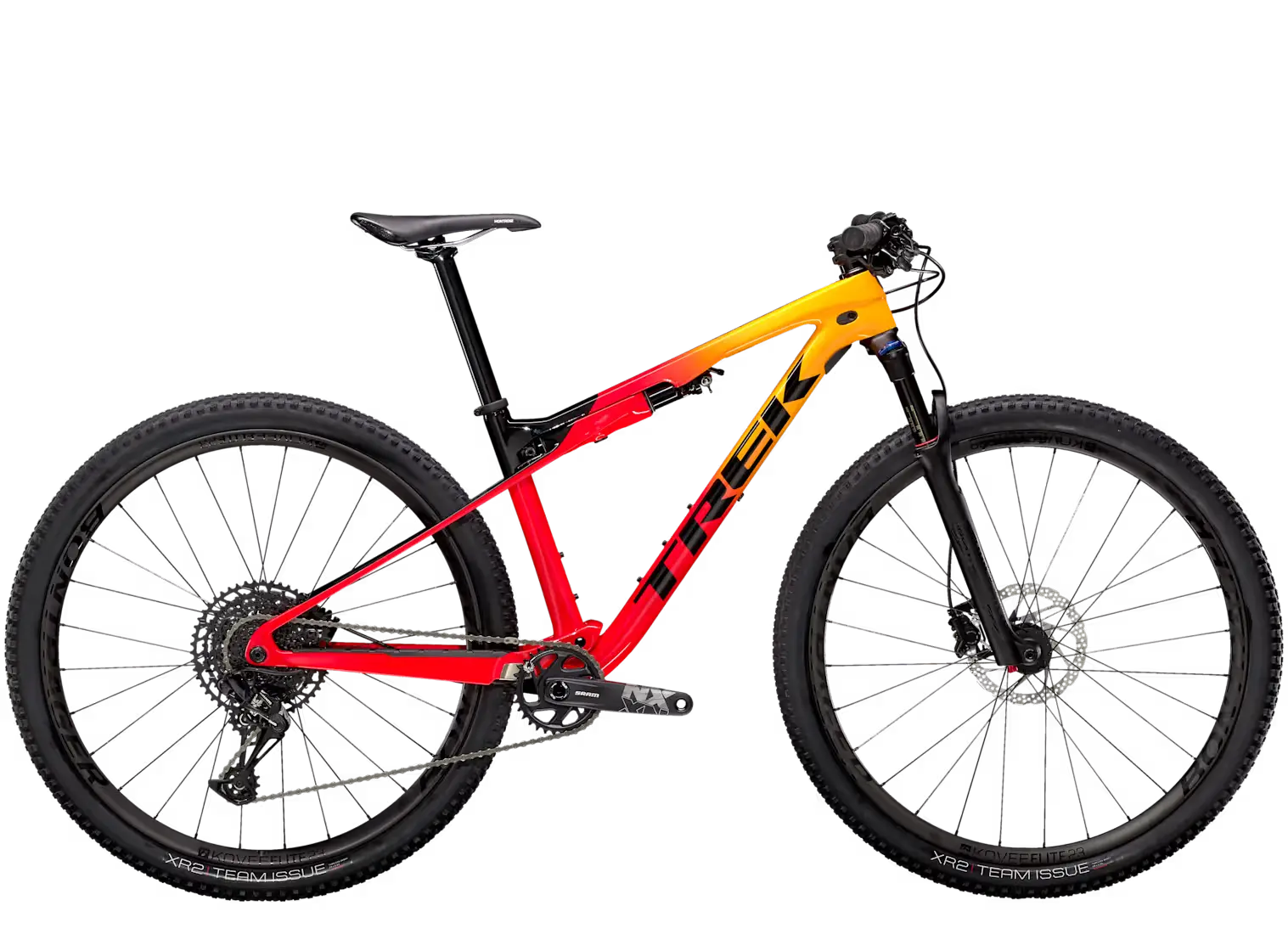

Supercaliber 9.7 Gen 1
2026Mountain
Supercaliber 9.7 Gen 1 Data
- Frame
- Carbon
- Suspension
- Fully, Full Suspension
- Travel
- Front: 100mm, Rear: 60mm
- Gears
- 12
- Weight
- 11.51 kg
- Sizes
- S, M, L, Xl, Ml, 2Xl
- Colors
- Trek Black/Trek White, Marigold To Radioactive Red Fade, Miami Green To Volt Fade
Looking for replacement tires?
View verified compatible tires for the 2026 Supercaliber 9.7 Gen 1.
Components
Complete component specification list for this variant.
Drivetrain

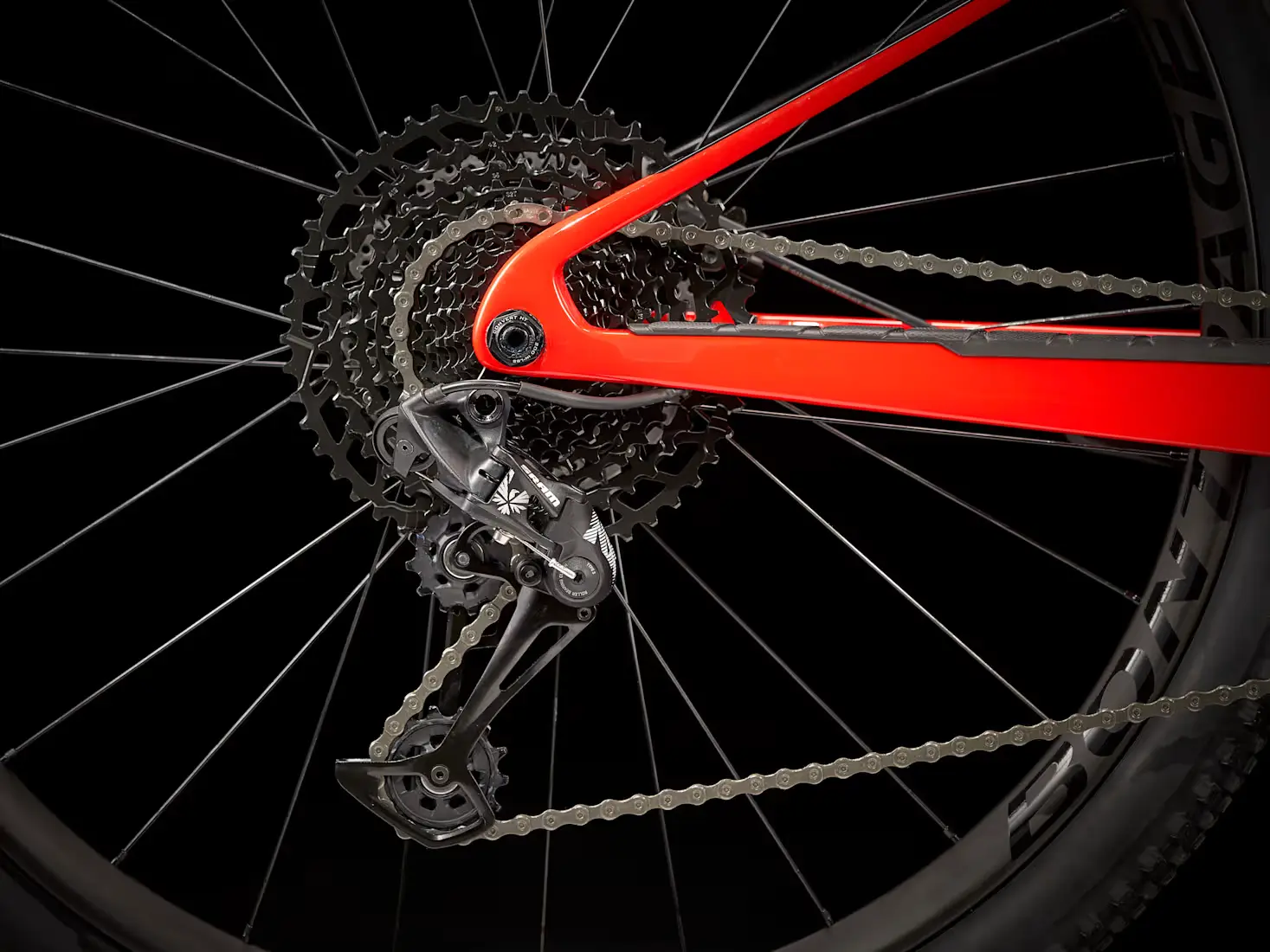

Rear Derailleur
SRAM NX EAGLE
- Gears
- 12
Chain
SRAM NX Eagle
- Gears
- 12
Chainring
SRAM NX Eagle alloy ring
- Ring 1
- 32 Teeth
Cassette
SRAM PG-30 Eagle
- Number of sprockets
- 12
- Range
- 11-50

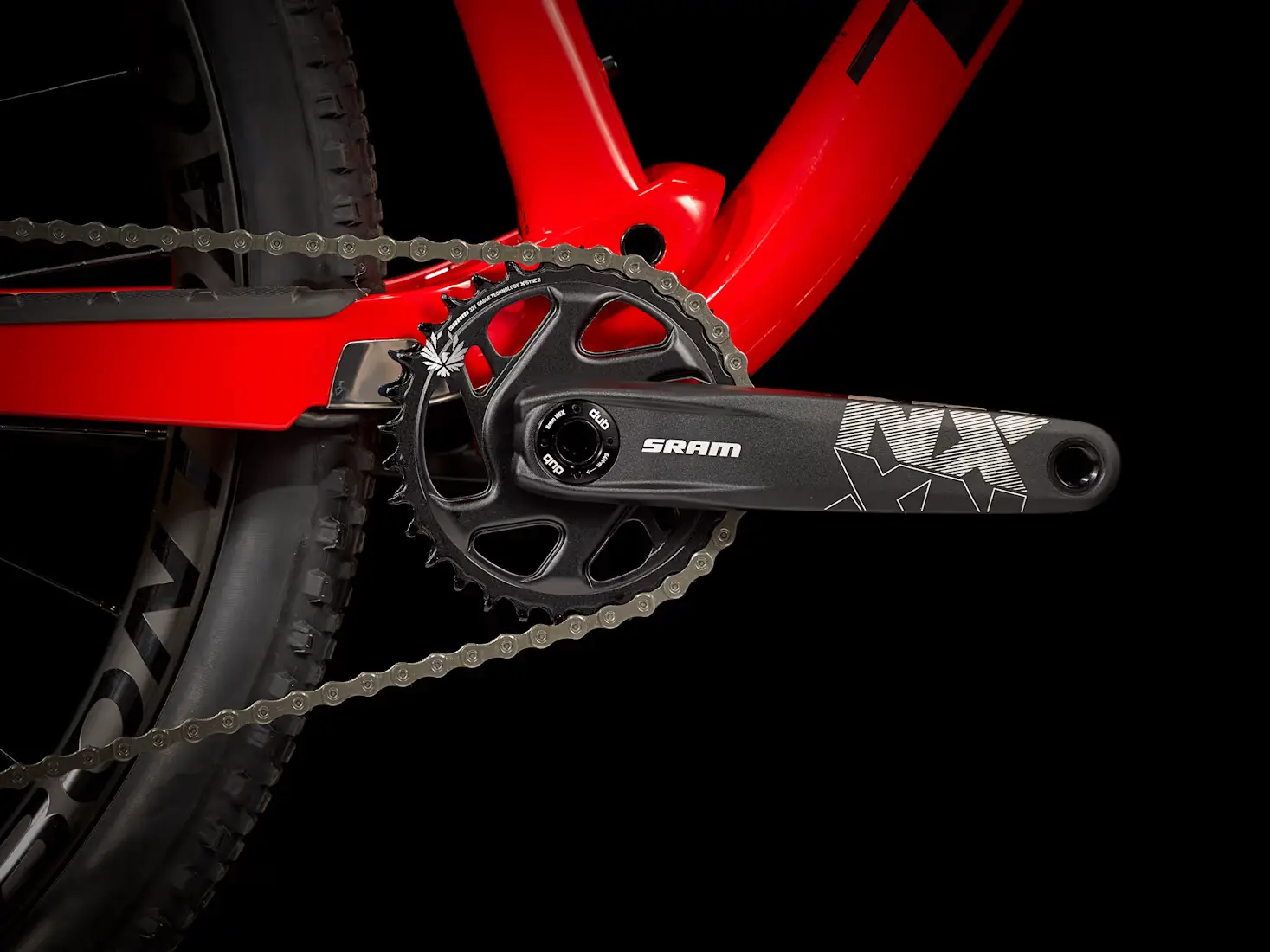

Crank
SRAM NX Eagle, DUB, Boost (52mm chainline)
- Length
- 170

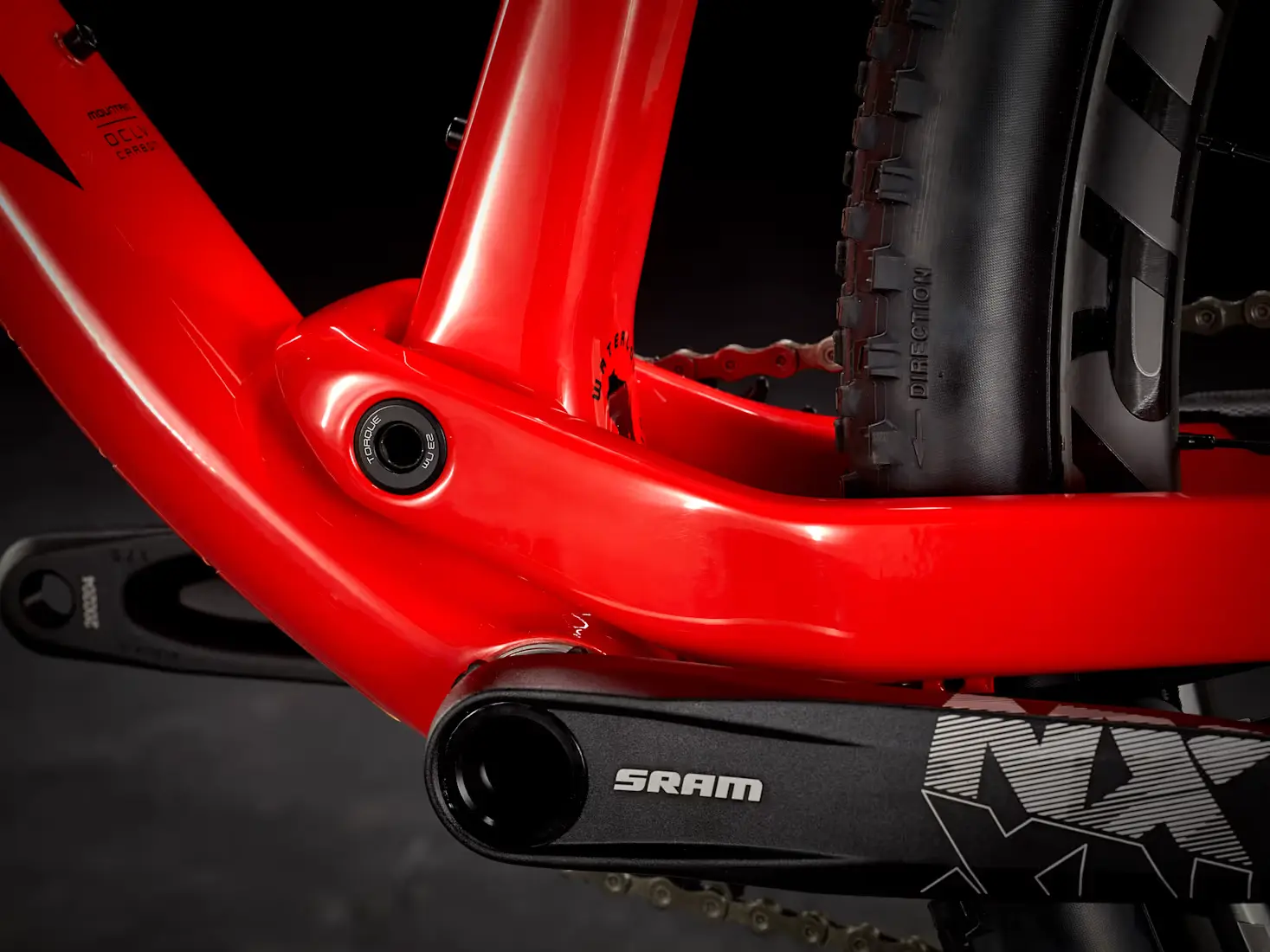

Bottom Bracket
SRAM DUB
- Standard
- PressFit 92
Rear Shifter
SRAM NX Eagle
Frame

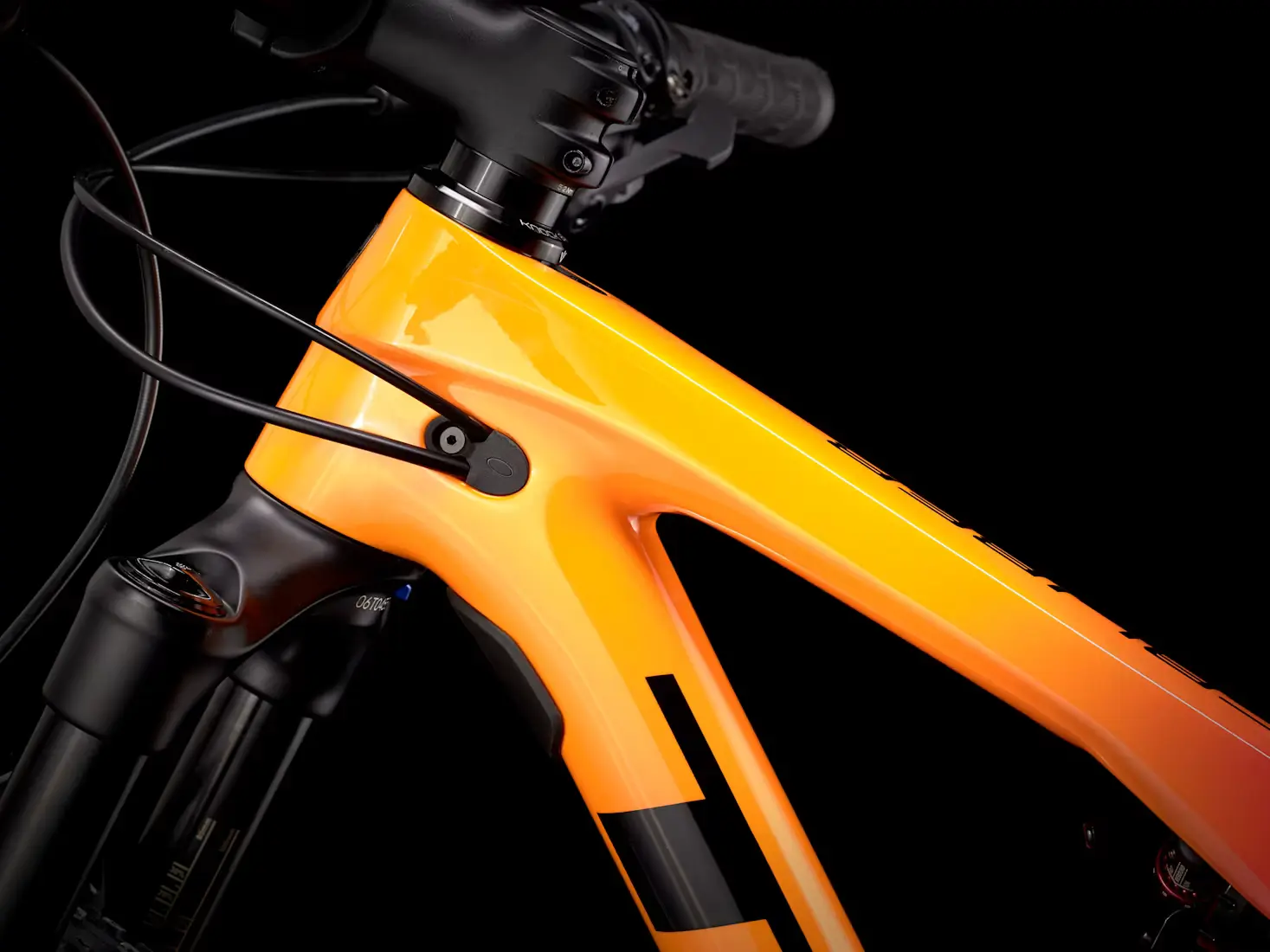

Frame
OCLV Mountain
- Rear Axle Dimension
- 12x148 mm
- Material
- Carbon

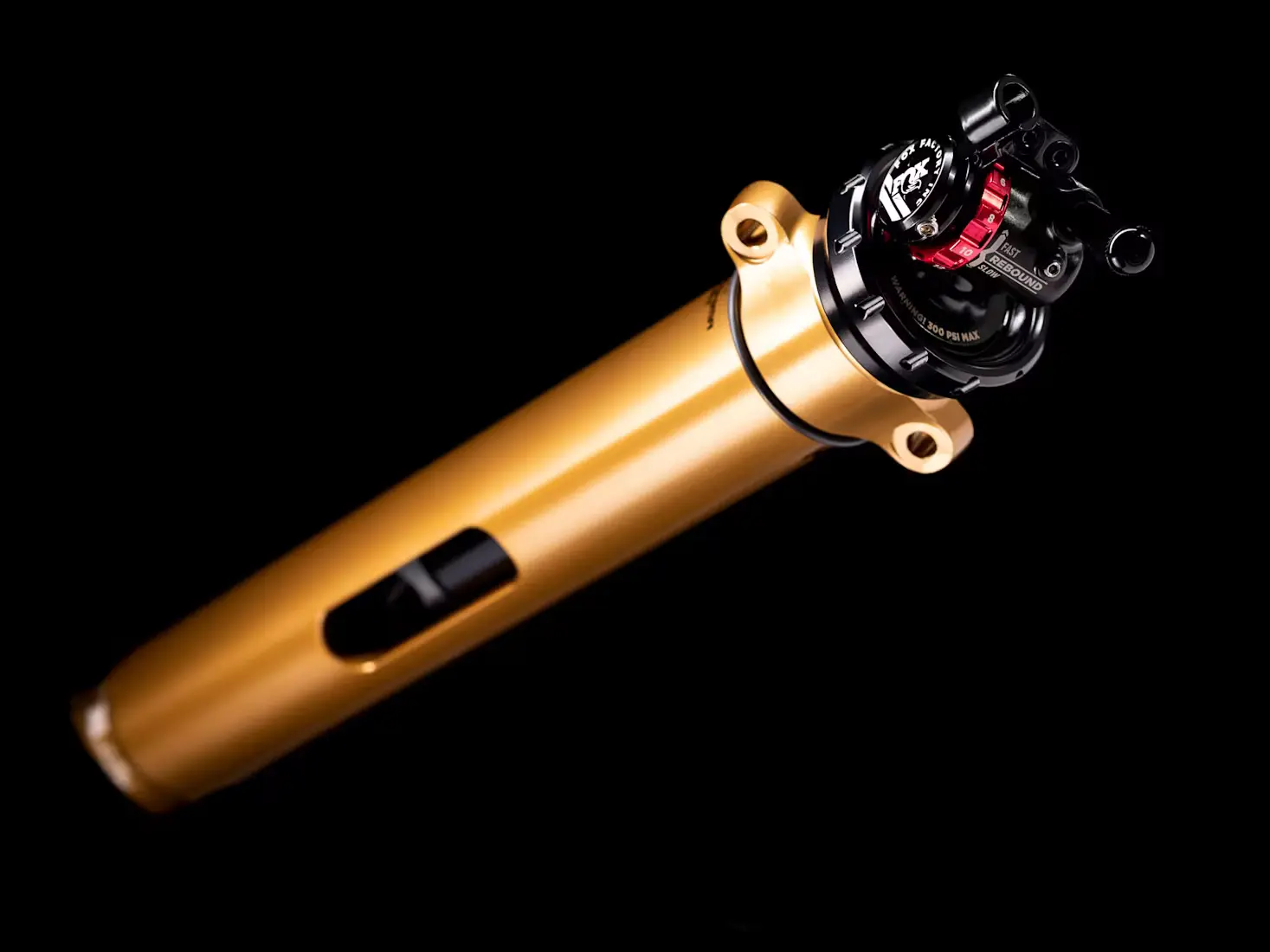

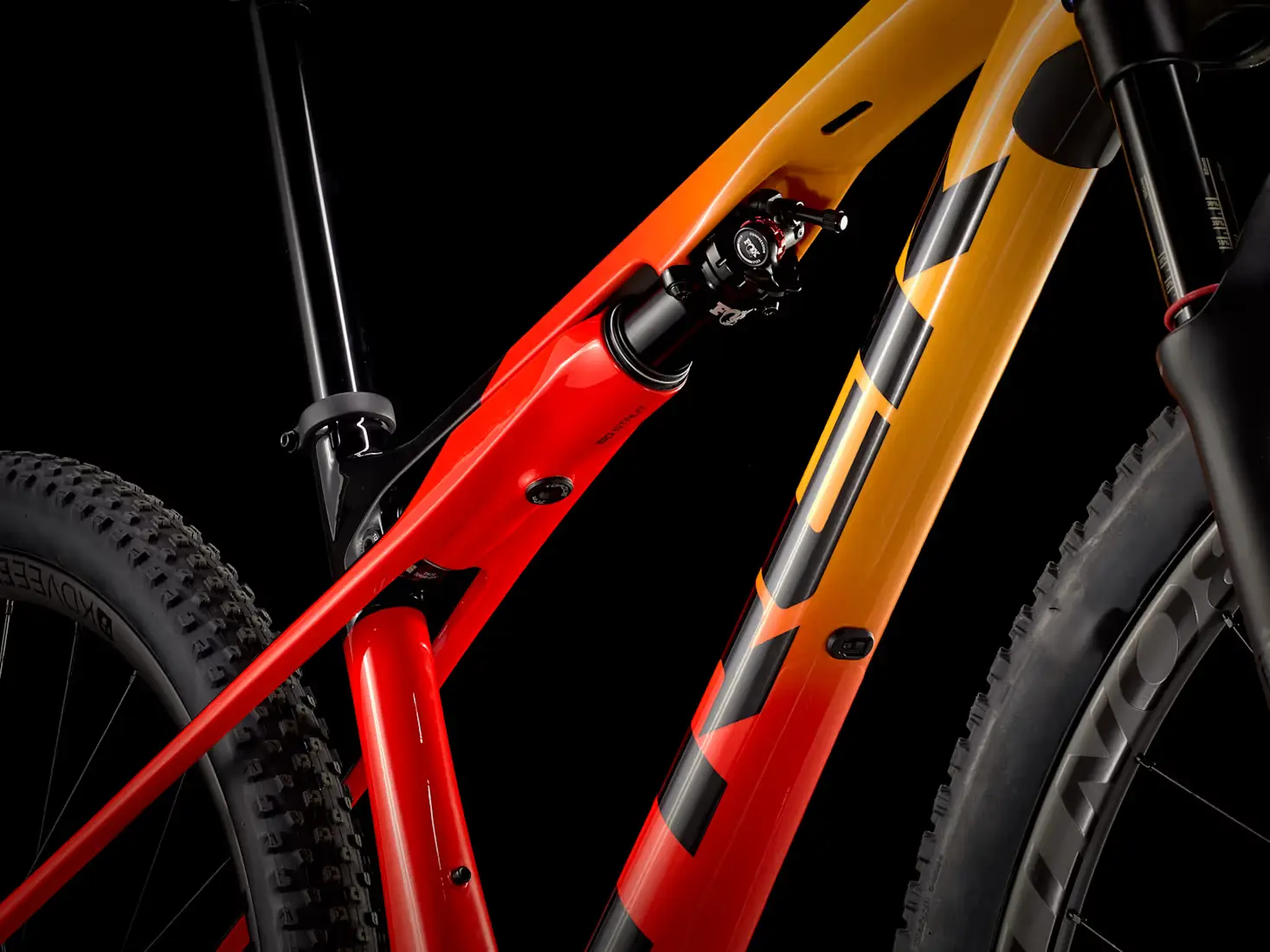

Rear Shock
Performance Trek IsoStrut, Fox shock, air spring, DPS 2-position damper, 235x32.5mm
- Travel
- 60 mm
Fork
RockShox Reba RL, Solo Air spring, Motion Control damper
- Travel
- 100 mm
- Front Axle Dimension
- 15x110 mm
- Offset
- 42 mm
Seat
Seatpost Clamp
Bolt-on, 36.4mm
Saddle
Bontrager Montrose Comp
Seatpost
Bontrager Comp, 6061 alloy
Cockpit
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Bontrager Rhythm Comp
- Length
- 60 mm
- Clamping diameter
- 31.8 mm
Handlebar
Bontrager Comp,
- Width
- 720 mm
- Rise
- 5 mm
- Clamping diameter
- 31.8 mm
- Material
- alloy
Wheels
Front
Front Wheel
Bontrager Kovee Elite 23 (29'', 15x110 mm)
- Size
- 29''
- Axle Dimension
- 15x110 mm
- Rotor mount
- 6-bolt
- Material
- Carbon
- Position
- Front

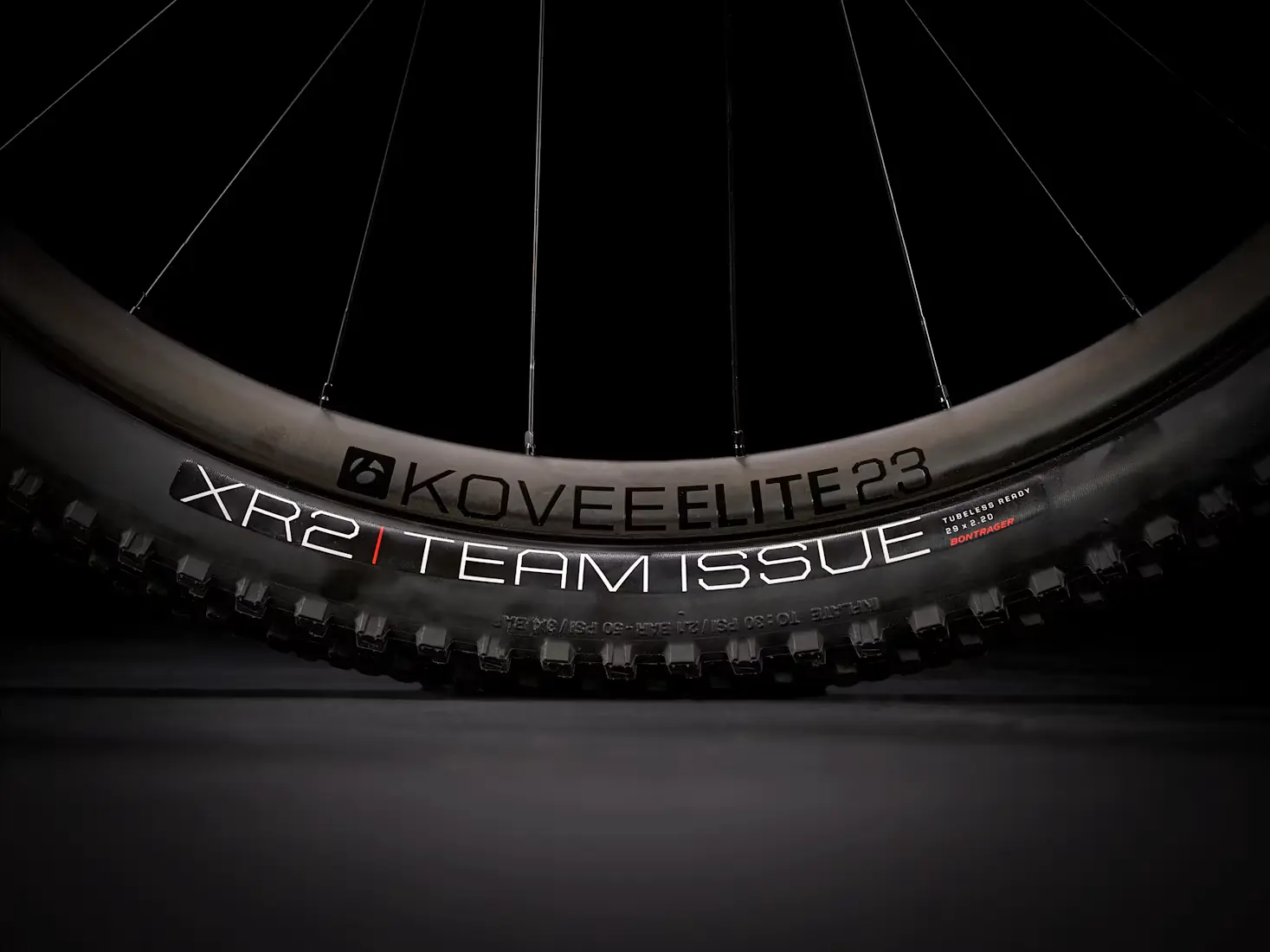

Front Tire
Bontrager XR2 Team Issue
Rear
Rear Wheel
Bontrager Kovee Elite 23 (29'', 12x148 mm)
- Size
- 29''
- Axle Dimension
- 12x148 mm
- Rotor mount
- Centerlock
- Material
- Carbon
- Position
- Back
Rear Tire
Bontrager XR2 Team Issue
Brakes
Front
Front Brake
Shimano MT500 caliper / MT501 lever
Front Disc
Shimano RT56
- Diameter
- 160 mm
Rear
Rear Brake
Shimano MT500 caliper / MT501 lever
Rear Disc
Shimano RT56
- Diameter
- 160 mm
