Trek

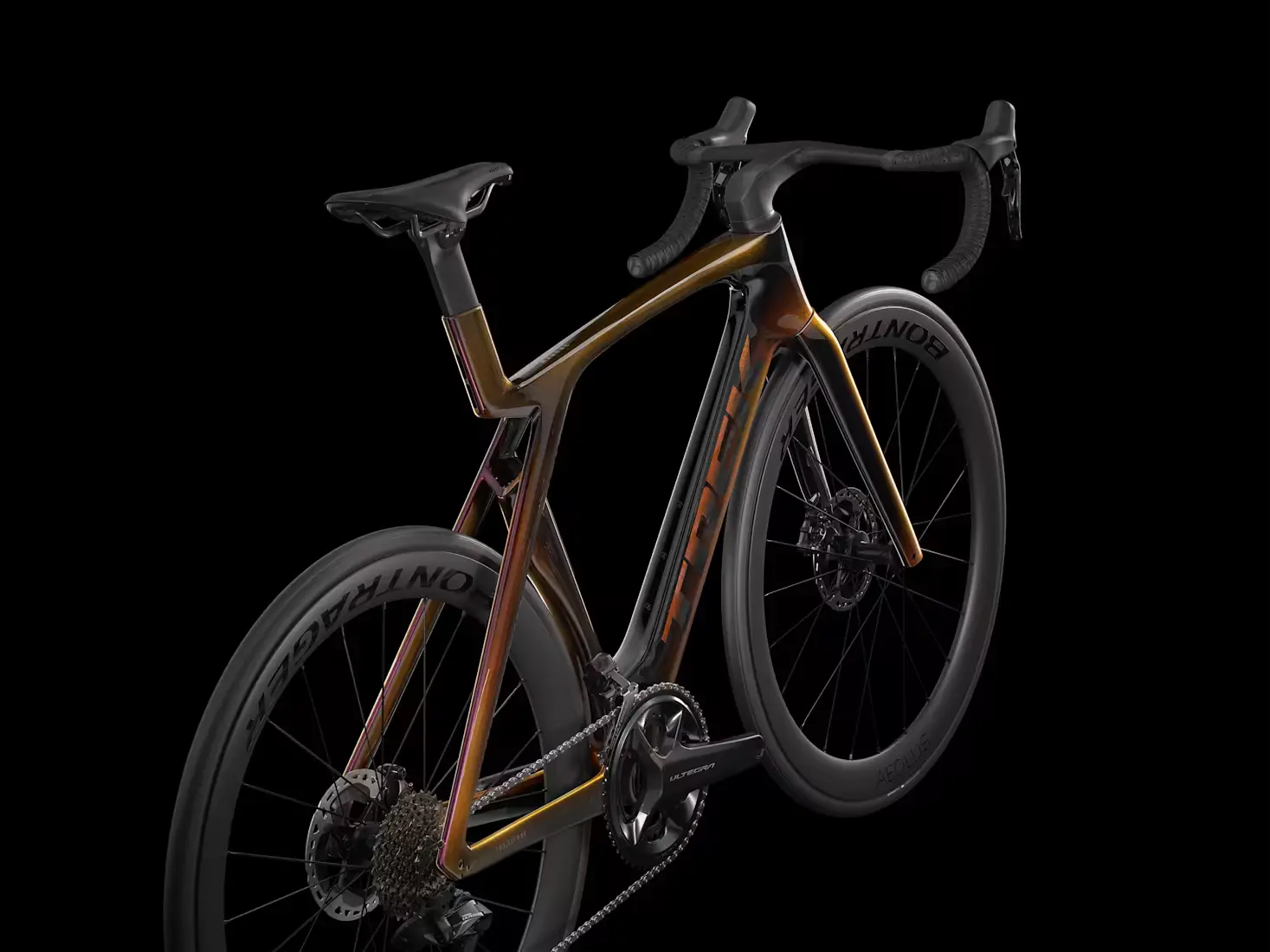

Madone SLR 7 Gen 7

2026BMX - Race
Madone SLR 7 Gen 7 Data
Frame
Carbon
Suspension
None
Gears
24
Weight
7.48 kg
Sizes
47, 54, 56, 58, 52, 50, 60, 62
Colors
Deep Smoke, Azure, Satin Quicksilver, Axinite Flip/Trek Black, Viper Red, Metallic Red Smoke To Red Carbon Smoke
View on Trek

Looking for replacement tires?

View verified compatible tires for the 2026 Madone SLR 7 Gen 7.

Compare Upgrades

Components

Complete component specification list for this variant.

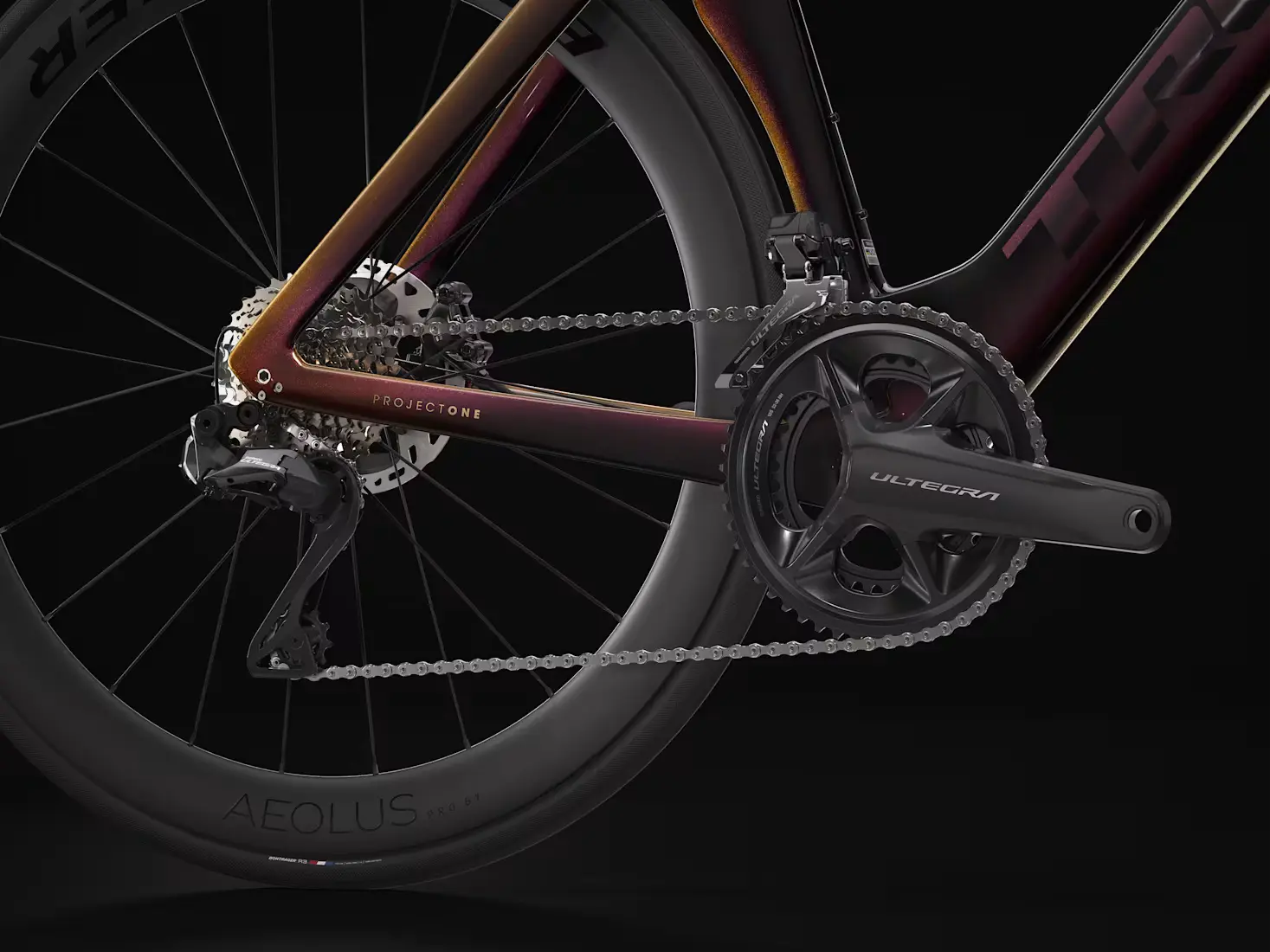

Drivetrain

Front
Front Derailleur
Shimano Ultegra R8150 Di
Front Derailleur
Gears
2
Front Shifter
Shimano Ultegra R8170 Di2
Front Shifter
Rear
Rear Derailleur
Shimano Ultegra R8150 Di2
Back Derailleur
Gears
12
Rear Shifter
Shimano Ultegra R8170 Di2
Back Shifter
Chainring
Shimano Ultegra R8100
Front Chainring
Gears
2
Ring 1
52 Teeth
Ring 2
36 Teeth
Cassette
Shimano Ultegra R8101
Cassette
Number of sprockets
12
Range
11-30
Chain
Shimano Ultegra/XT M8100
Chain
Gears
12
Bottom Bracket
Axis Praxis
Bottom bracket
Standard
T47 threaded
Battery
Shimano BT-DN300
Crank
Shimano Ultegra R8100

Cockpit

Grips
Bontrager Supertack Perf tape
Grips

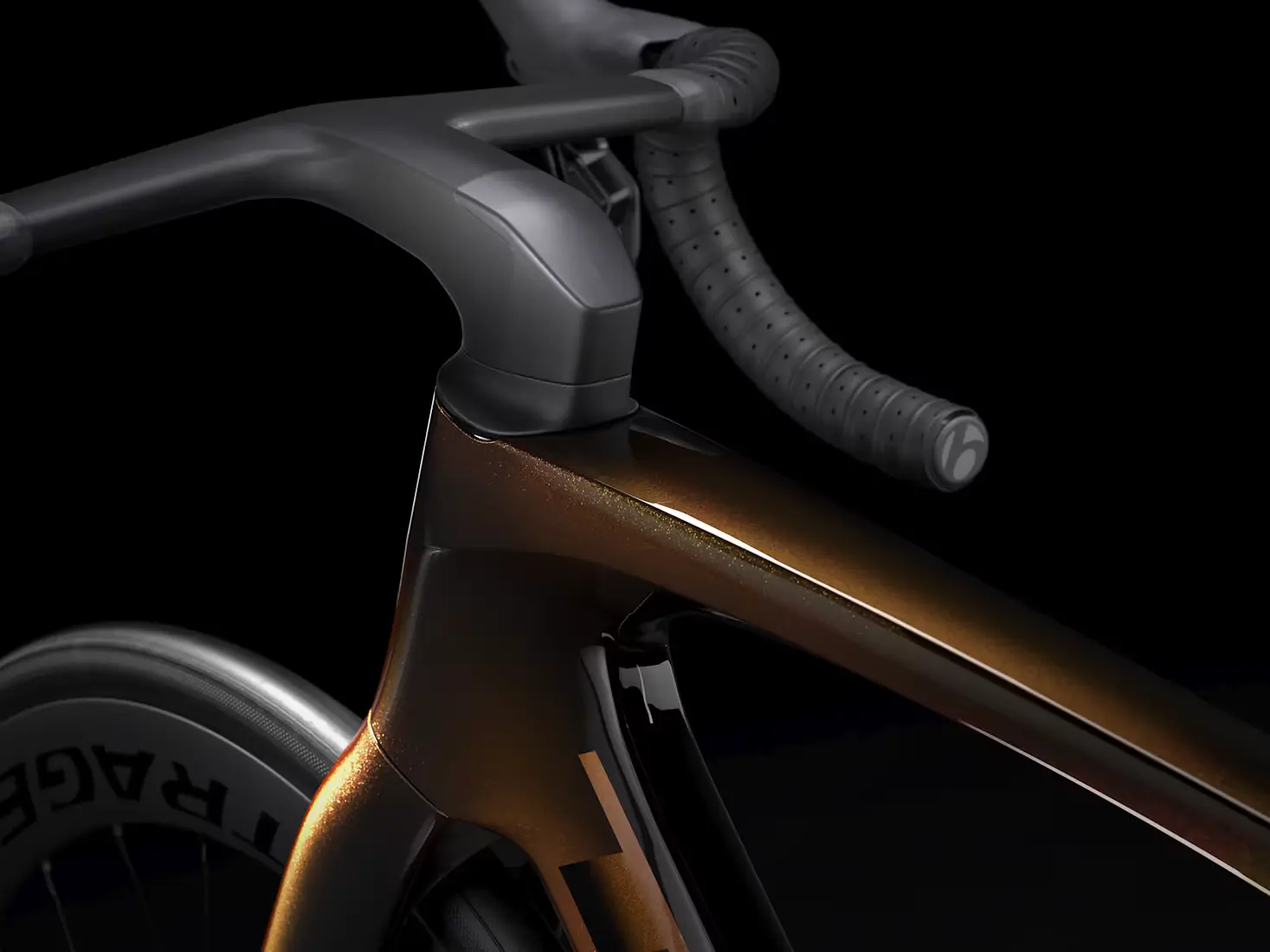

Stem
Integrated Madone handlebar/stem
Stem
Length
80 mm
Material
OCLV Carbon

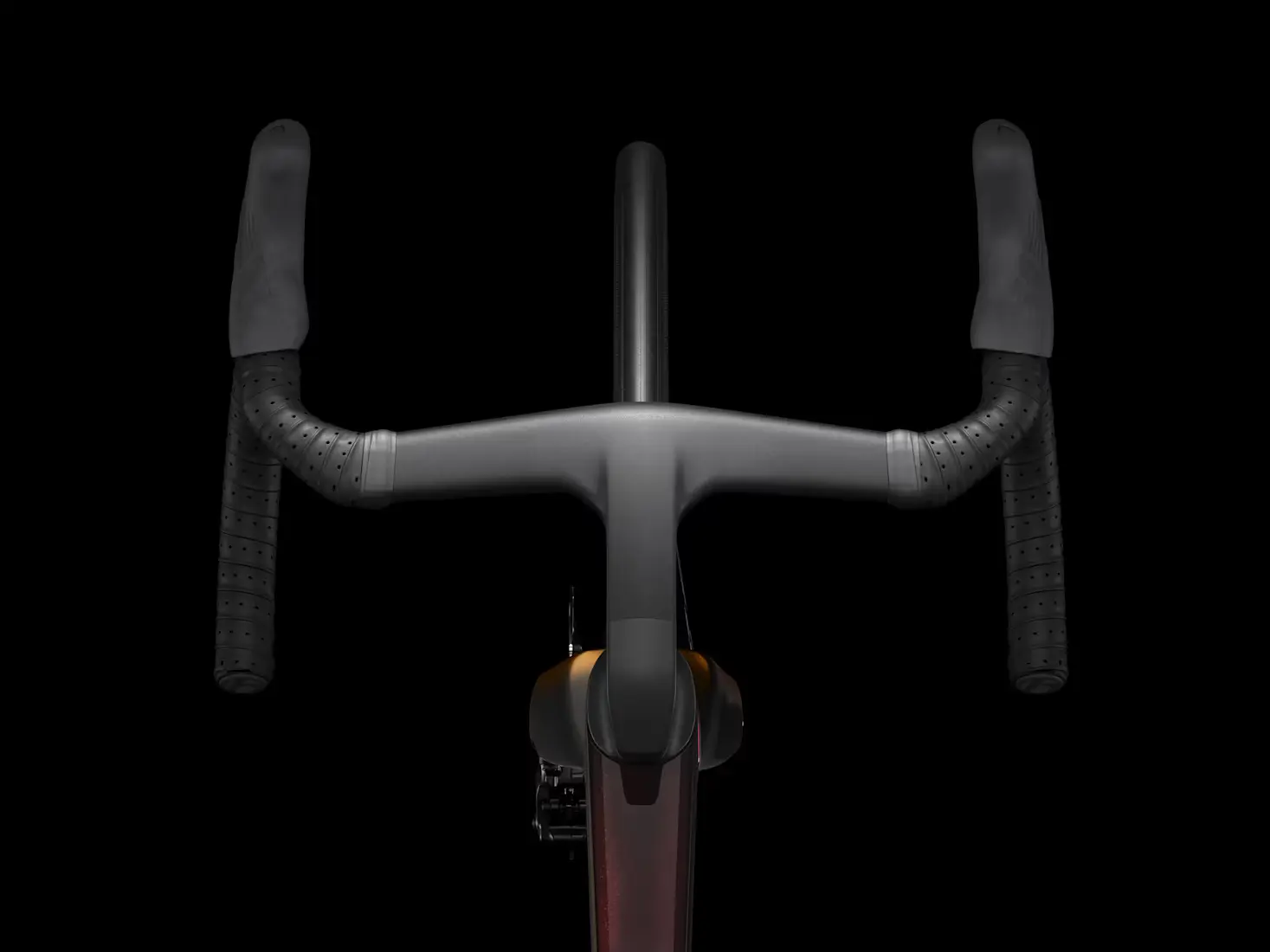

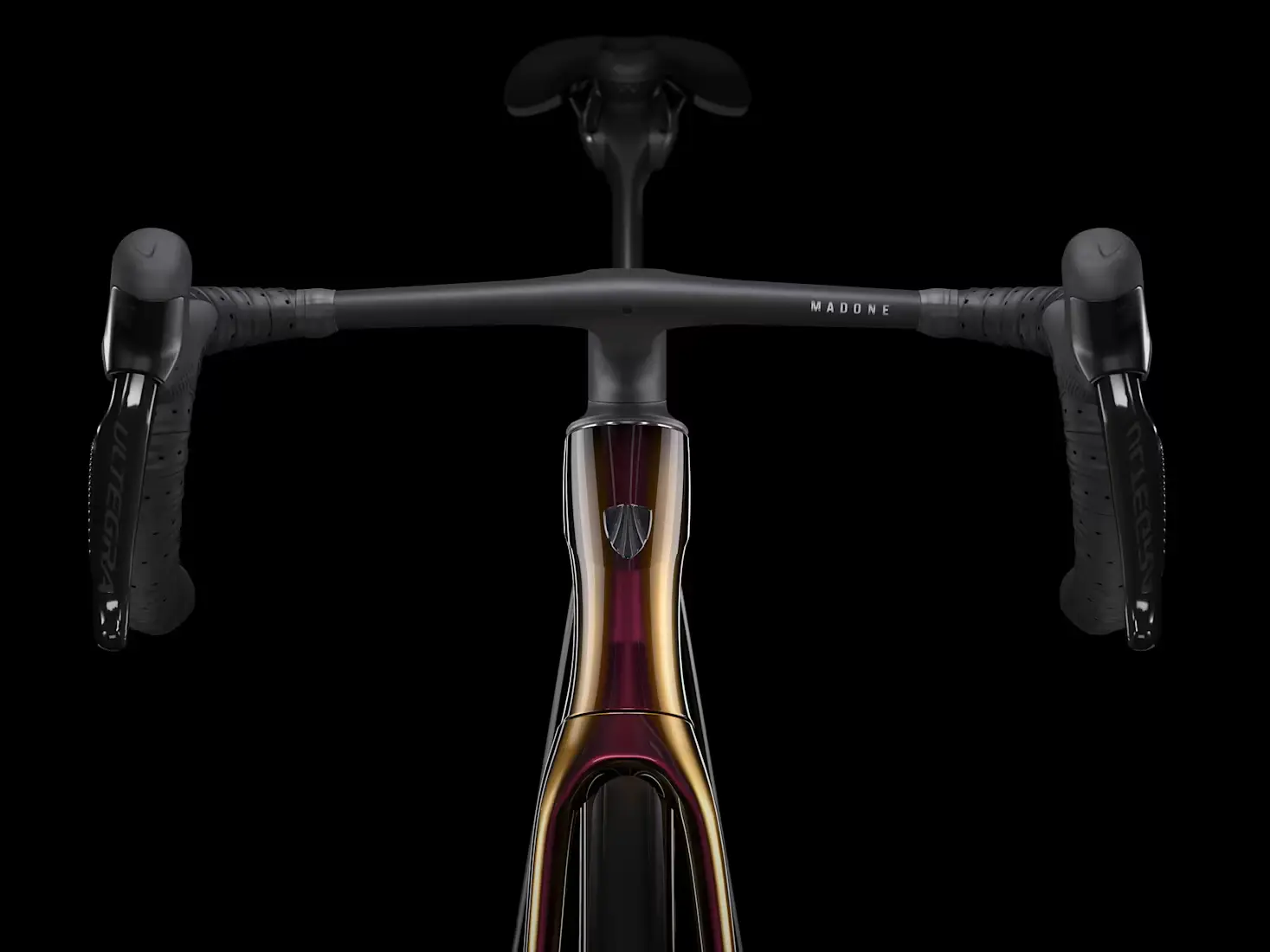

Handlebar
Integrated Madone handlebar/stem
Handlebar
Width
350 mm
Material
OCLV Carbon
Drop
124 mm
Reach
80 mm

Wheels

Front
Front Wheel
Bontrager Aeolus Pro (700c, 100x12mm)
Front Wheel
Size
700c
Axle Dimension
100x12mm
Rotor mount
Centerlock
Rim height
51 mm
Material
OCLV Carbon
Position
Front
Front Tire
Bontrager R3 Hard-Case Lite (700, 25mm)
Front Tire
Size
700
Width
25mm
Rear
Rear Wheel
Bontrager Aeolus Pro (700c, 142x12mm)
Back Wheel
Size
700c
Axle Dimension
142x12mm
Rotor mount
Centerlock
Rim height
51 mm
Material
OCLV Carbon
Position
Rear
Rear Tire
Bontrager R3 Hard-Case Lite (700, 25mm)
Back Tire
Size
700
Width
25mm

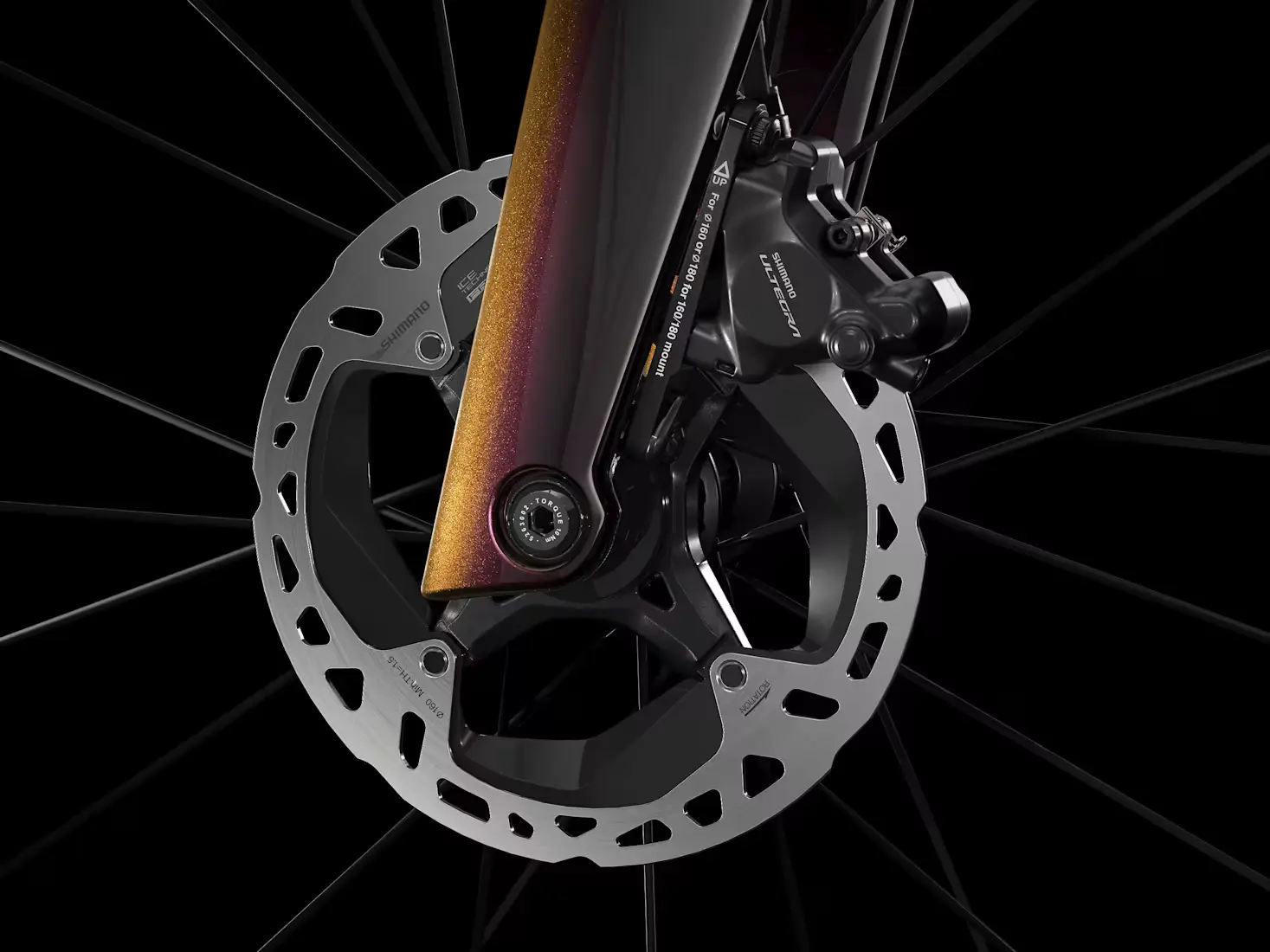

Brakes

Front
Front Brake
Hydraulic Shimano Ultegra disc
Front Brake
Front Disc
Shimano MT800
Rear
Rear Brake
Hydraulic Shimano Ultegra disc
Back Brake
Rear Disc
Shimano MT800

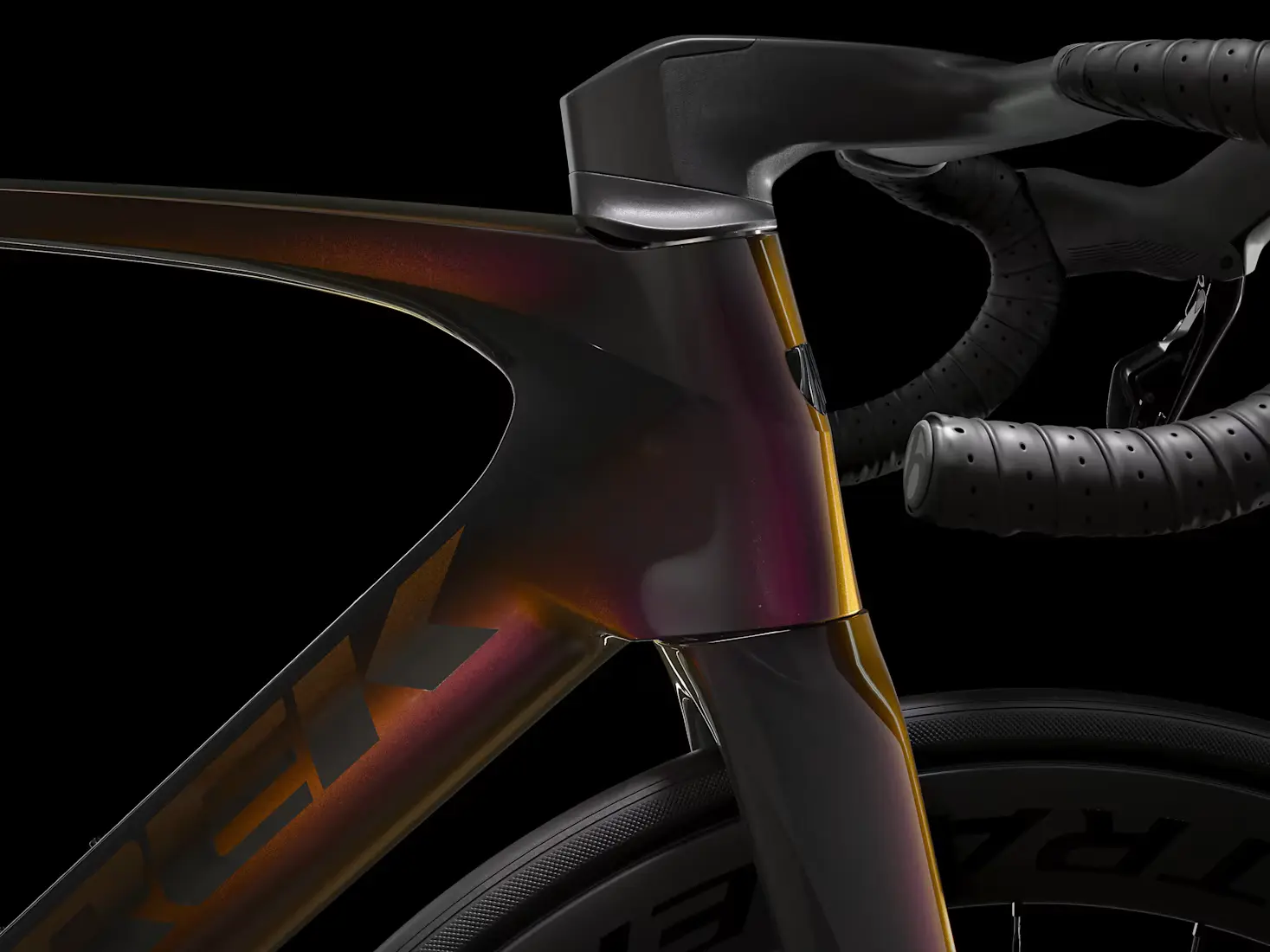

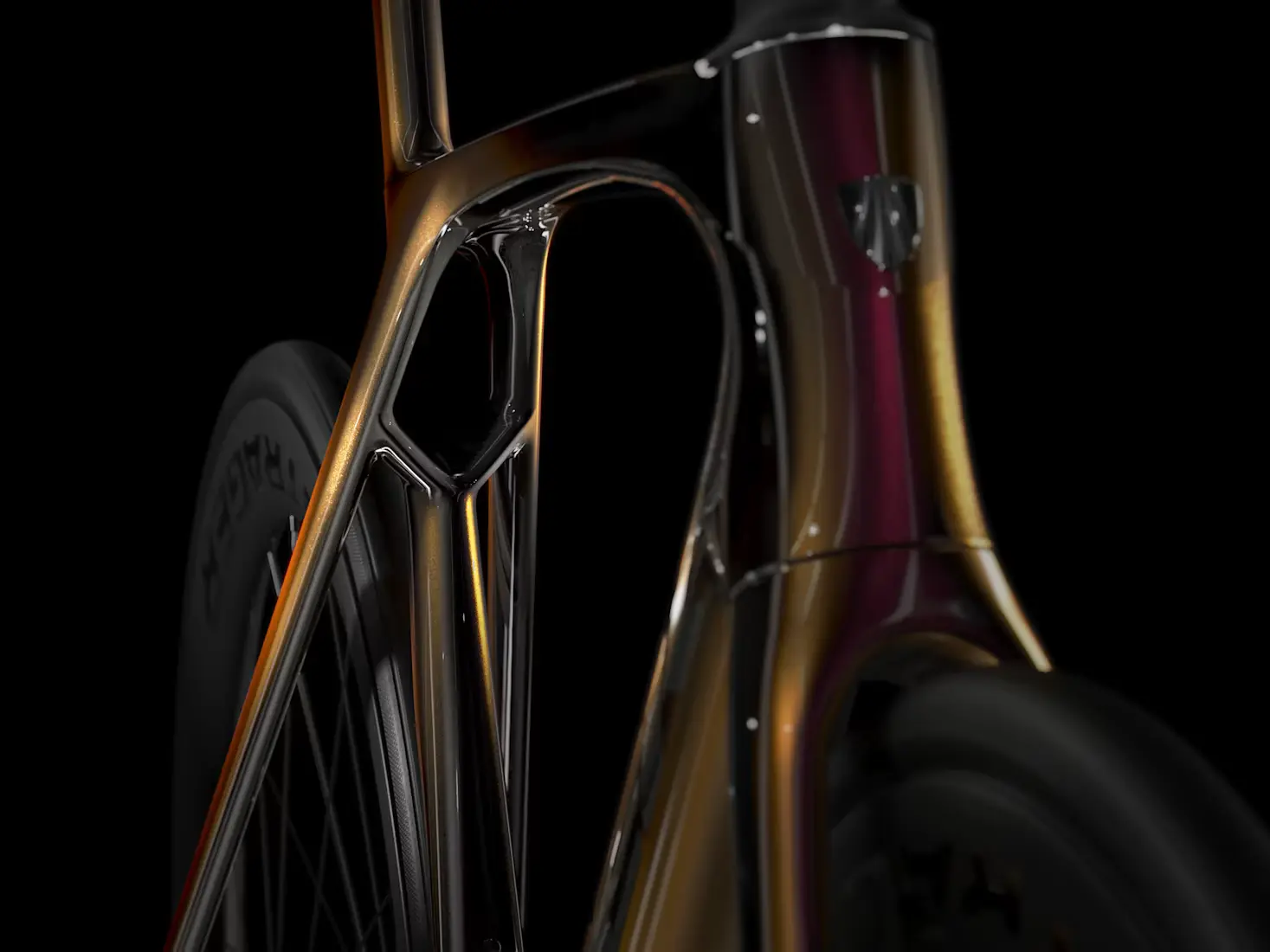

Frame

Frame
Series 800 OCLV
Frame
Rear Axle Dimension
142x12mm
Material
Carbon
Fork
Madone KVF full carbon

Seat

Saddle
Bontrager Aeolus Elite
Saddle
Seatpost
Madone aero seatpost
Seatpost
Material
Carbon
