Trek
FX+ Sport 4
2026City & Touring - Hybrid
FX+ Sport 4 Data
- Frame
- Carbon
- Suspension
- None
- Gears
- 10
- Weight
- 10.46 kg
- Sizes
- S, M, L, Xl, Xs
- Colors
- Lithium Grey, Dark Aquatic, Trek White
Looking for replacement tires?
View verified compatible tires for the 2026 FX+ Sport 4.
Components
Complete component specification list for this variant.

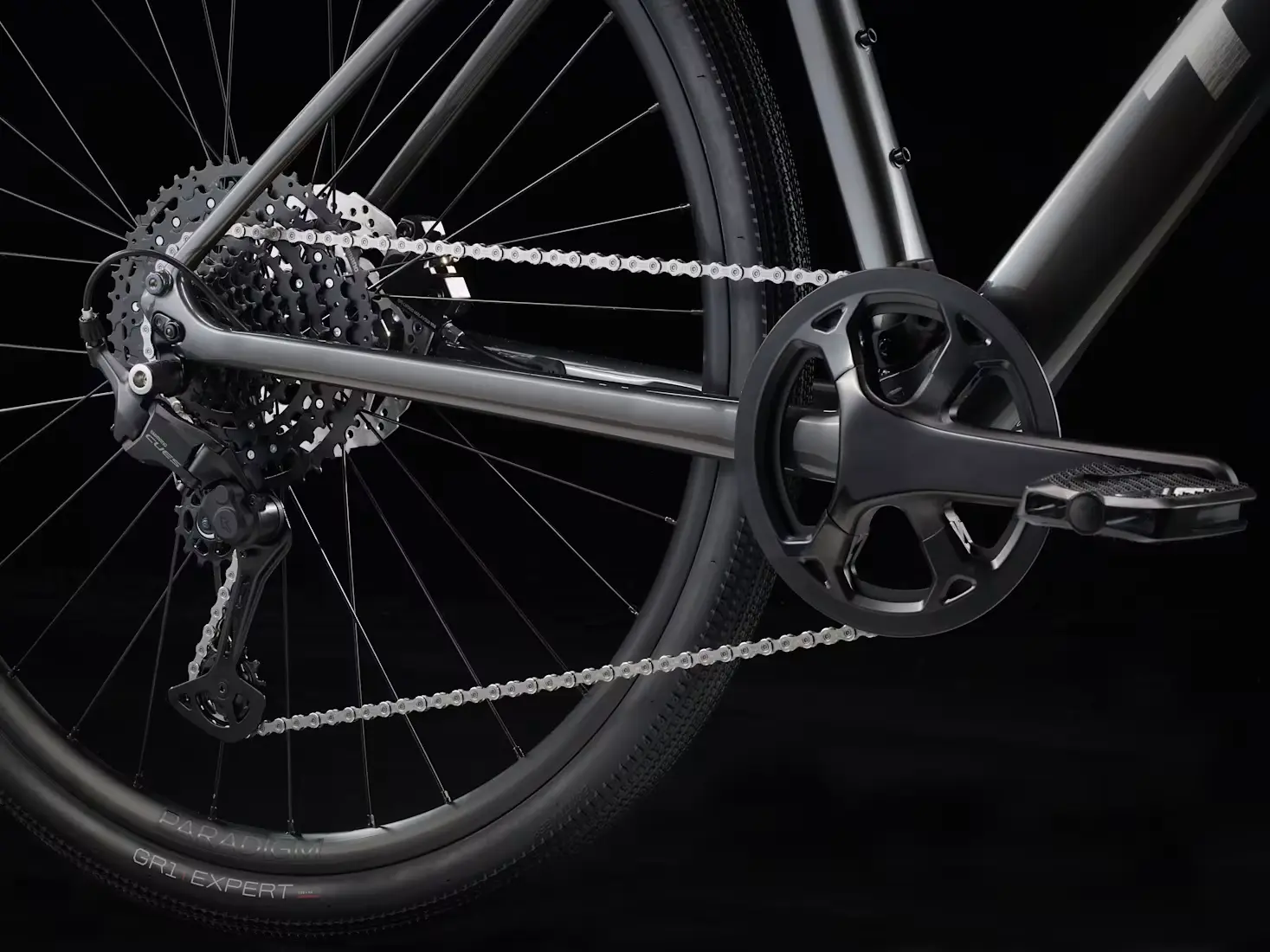

Drivetrain
Rear Shifter
Shimano CUES U6000
- Weight
- 31.751 g
Chainring
Prowheel alloy
- Ring 1
- 42 Teeth
Crank
Prowheel alloy
- Length
- 170
Rear Derailleur
Shimano CUES U6000 GS
- Gears
- 10
Cassette
Shimano CUES LG300, LINKGLIDE
- Number of sprockets
- 10
- Range
- 11-48
Chain
Shimano LG500
Seat
Seatpost
Bontrager alloy
- Length
- 330 mm
- Diameter
- 27.2 mm
- Material
- Alloy
Saddle
Bontrager Bontrager H1
Frame
Pedals
Bontrager City pedals

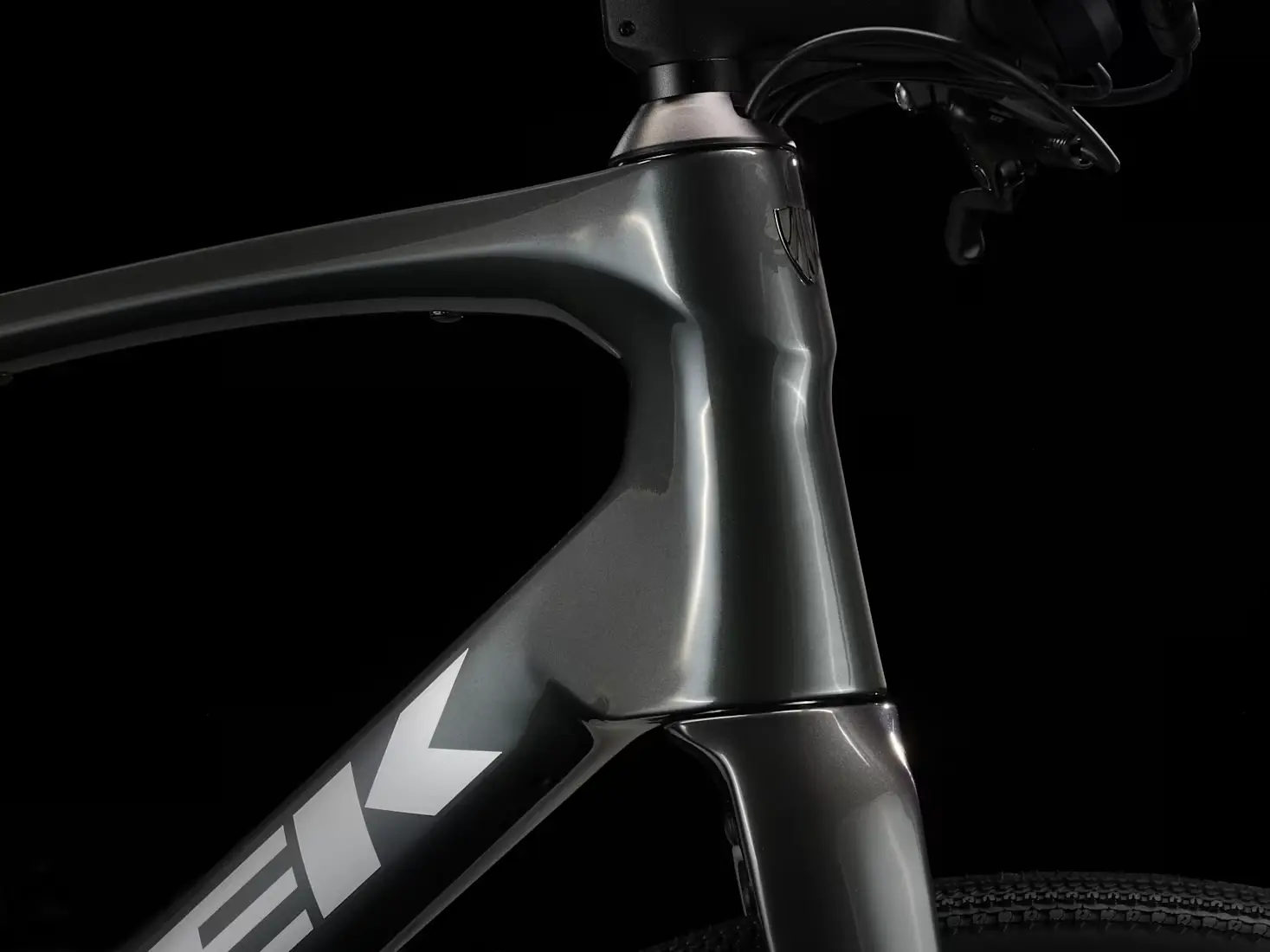

Frame
Series 400 OCLV
- Rear Axle Dimension
- 135x5mm
- Material
- Carbon
Fork
Carbon

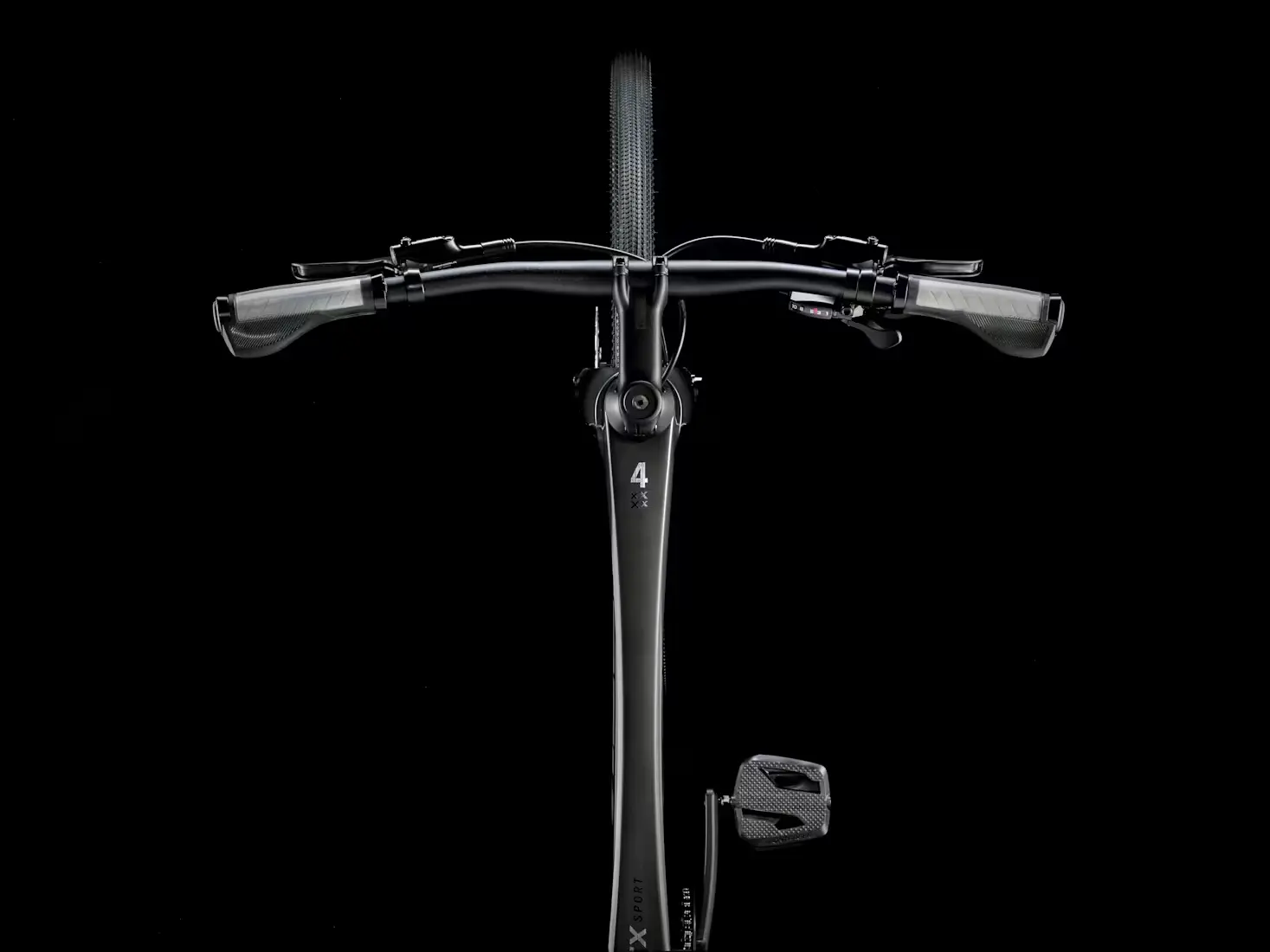

Cockpit

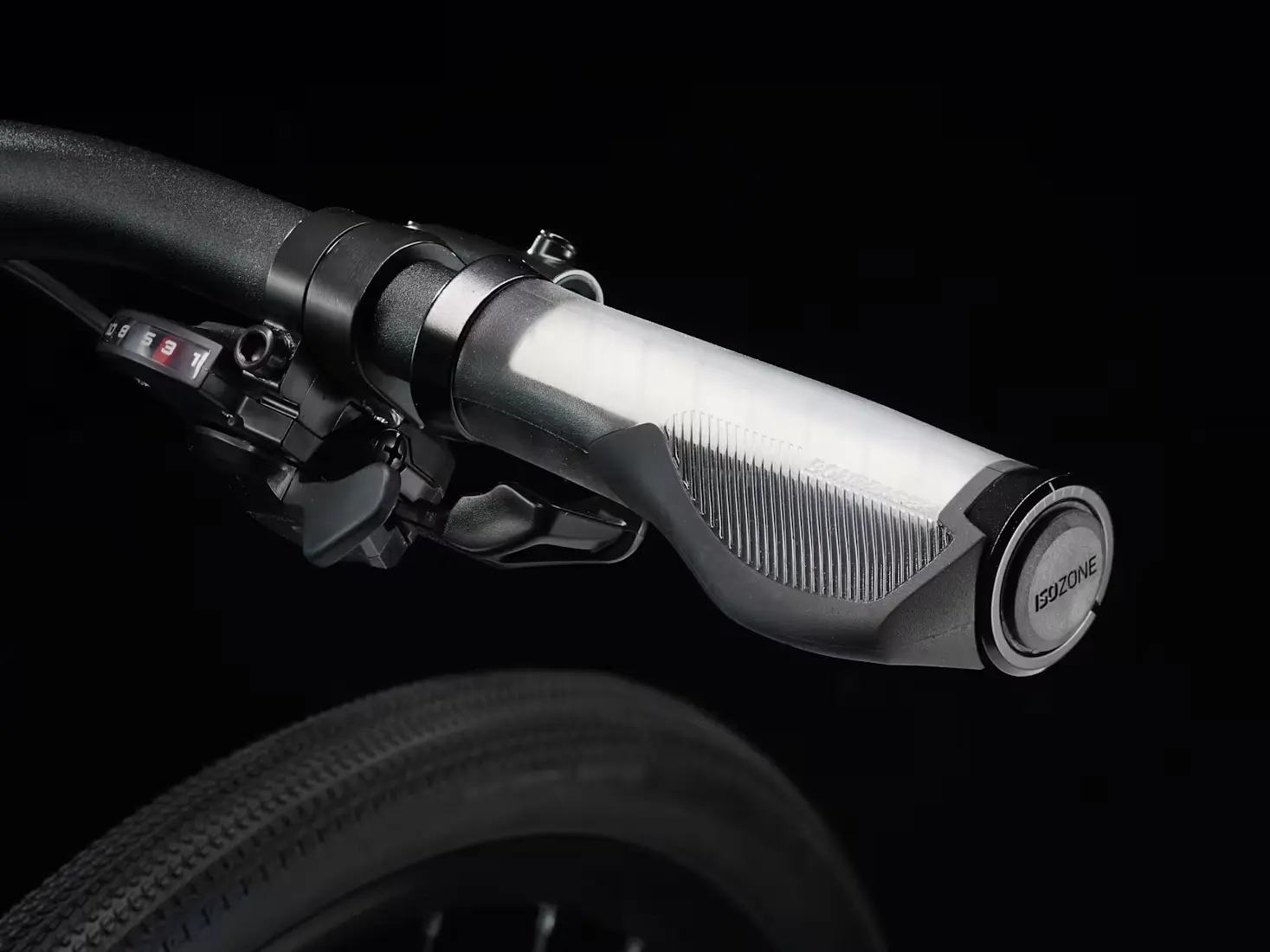

Grips
Bontrager Satellite IsoZone Plus
Stem
Bontrager Elite
- Length
- 90 mm
- Clamping diameter
- 31.8 mm
Handlebar
Bontrager Satellite Plus IsoZone
- Width
- 600 mm
- Rise
- 15 mm
- Clamping diameter
- 31.8 mm
- Material
- Alloy
Wheels
Front
Front Wheel
Bontrager Paradigm / Formula CL-51 (100x5mm)
- Axle Dimension
- 100x5mm
- Rotor mount
- Centerlock
- Inner width
- 21 mm
- Material
- Alloy
Front Tire
Bontrager GR1 Expert, Hard-Case Lite (700c, 40mm)
- Size
- 700c
- Width
- 40mm
Rear
Rear Wheel
Bontrager Paradigm / Formula CL-52 (135x5mm)
- Axle Dimension
- 135x5mm
- Rotor mount
- Centerlock
- Inner width
- 21 mm
- Material
- Alloy
Rear Tire
Bontrager GR1 Expert, Hard-Case Lite (700c, 40mm)
- Size
- 700c
- Width
- 40mm
Brakes
Front

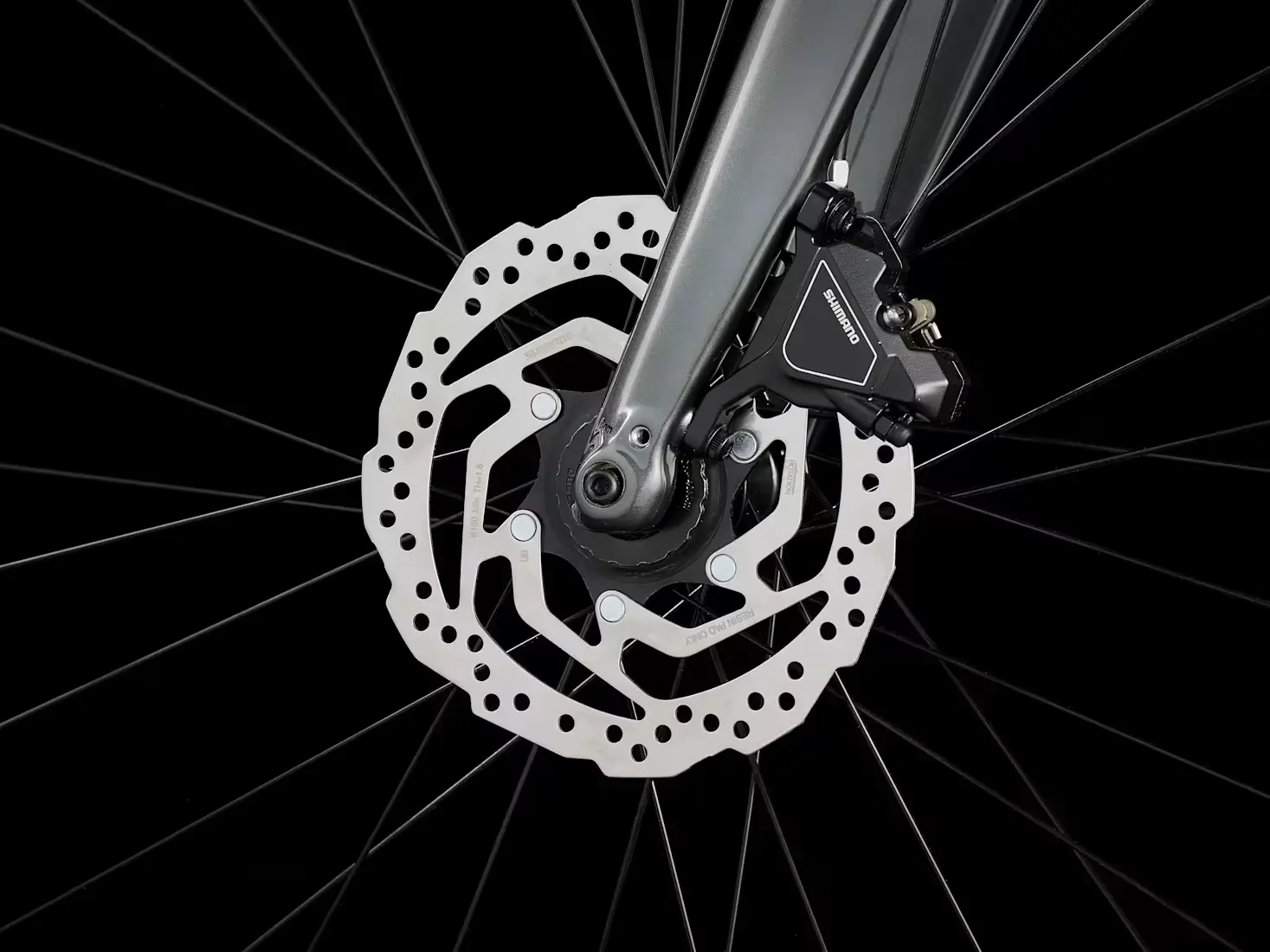

Front Brake
Shimano MT201 lever, UR300 caliper
Front Disc
Shimano RT10
Rear
Rear Brake
Shimano MT201 lever, UR300 caliper
Rear Disc
Shimano RT10
