Trek

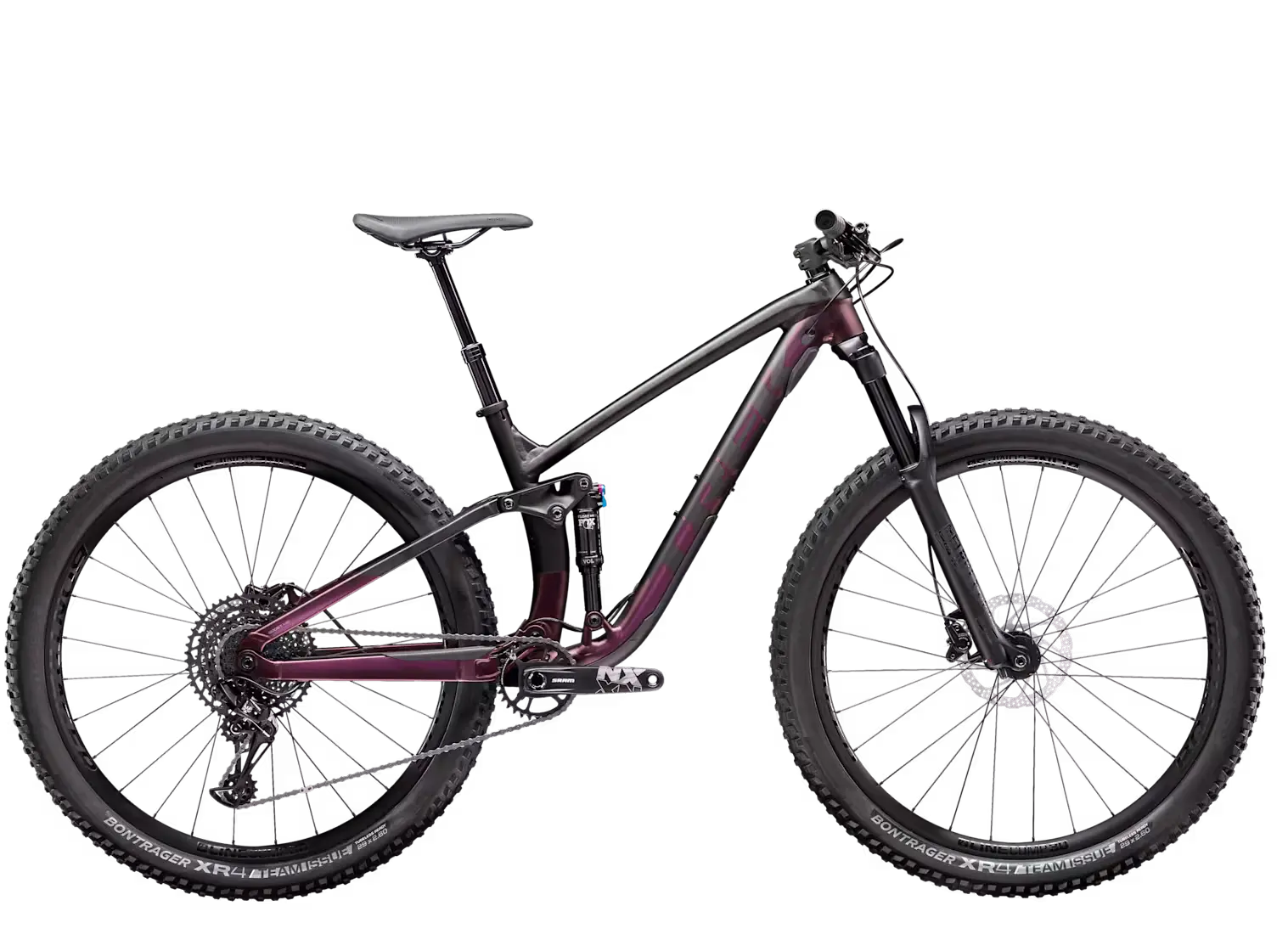

Fuel Ex 7
2026Mountain - Trail
Fuel Ex 7 Data
- Suspension
- Fully, Full Suspension
- Travel
- Front: 140mm, Rear: 130mm
- Gears
- 12
- Weight
- 15.05 kg

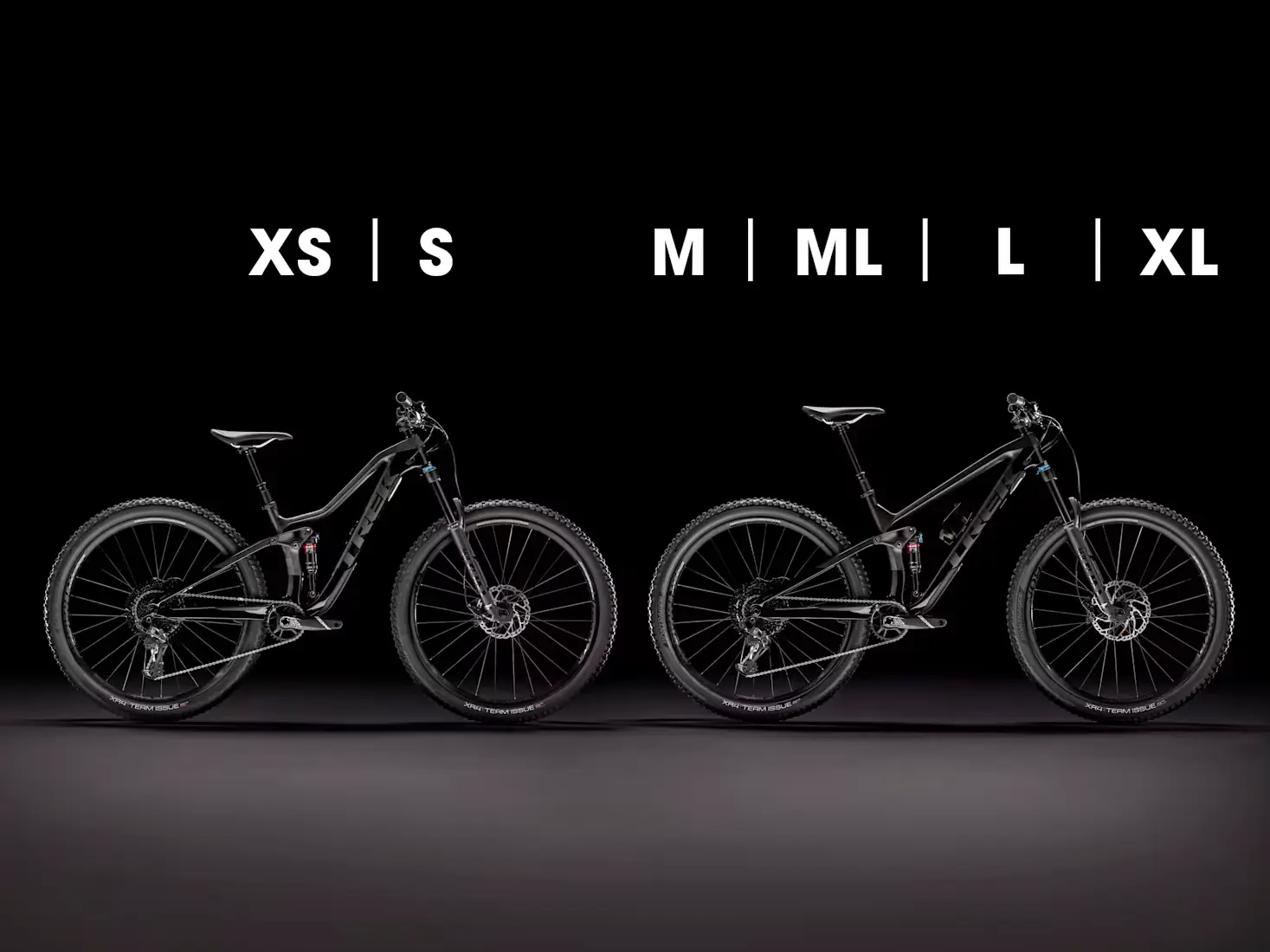

- Sizes
- S, M, L, Xl, Xs, Ml, 2Xl
- Colors
- Matte Dnister Black/Axinite Flip, Trek Black/Purple Lotus
Looking for replacement tires?
View verified compatible tires for the 2026 Fuel Ex 7.
Components
Complete component specification list for this variant.
Drivetrain

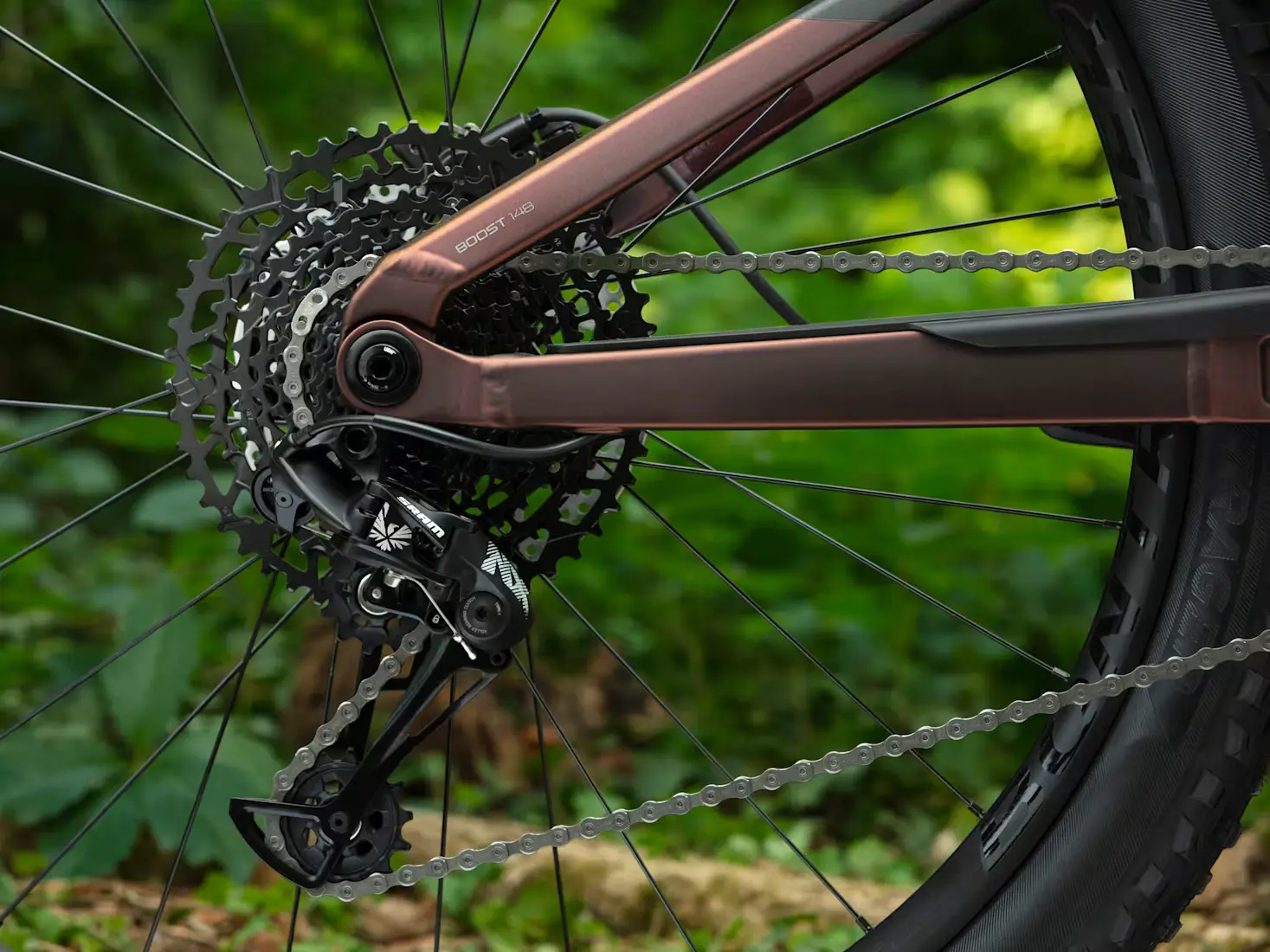

Rear Derailleur
SRAM NX EAGLE
- Gears
- 12
Chain
SRAM NX Eagle
- Gears
- 12
Bottom Bracket
SRAM DUB
- Standard
- PressFit
Chainring
SRAM NX Eagle
- Ring 1
- 30 Teeth
Cassette
SRAM PG-30 Eagle
- Number of sprockets
- 12
- Range
- 11-50

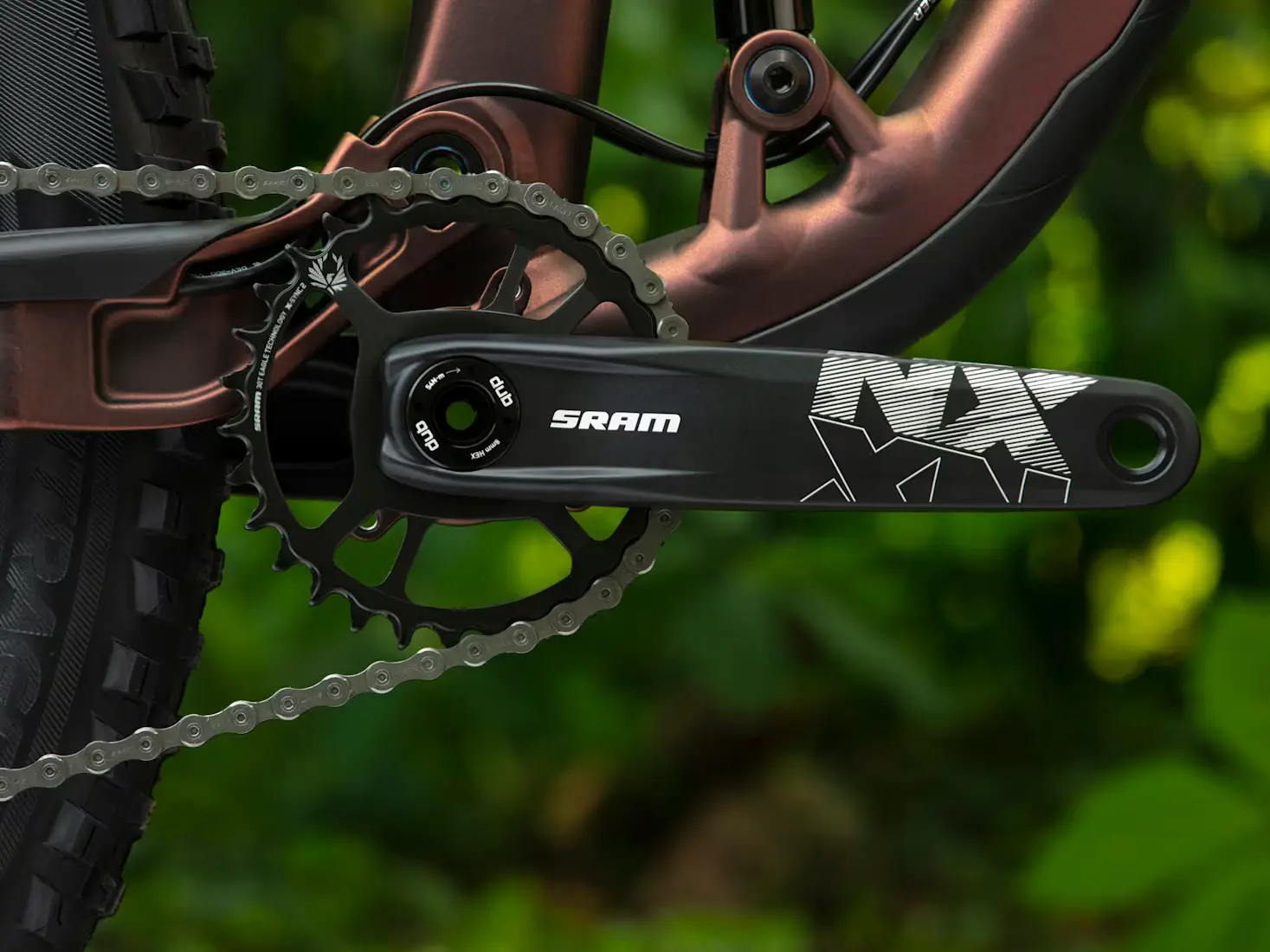

Crank
SRAM NX Eagle
- Length
- 170
Rear Shifter
SRAM NX Eagle
Seat
Saddle
Bontrager Arvada
Seatpost
TranzX JD-YSP8
- Length
- 361 mm
- Diameter
- 31.6 mm
- Dropper post
- 1
- Travel
- 100 mm
Seatpost Clamp
Bolt-on Bolt-on
Cockpit
Grips
Bontrager XR Trail Comp
Stem
Bontrager Rhythm Comp
- Length
- 50 mm
- Clamping diameter
- 31.8 mm
Handlebar
Bontrager alloy
- Width
- 750 mm
- Rise
- 15 mm
- Clamping diameter
- 31.8 mm
- Material
- Alloy
Wheels
Front

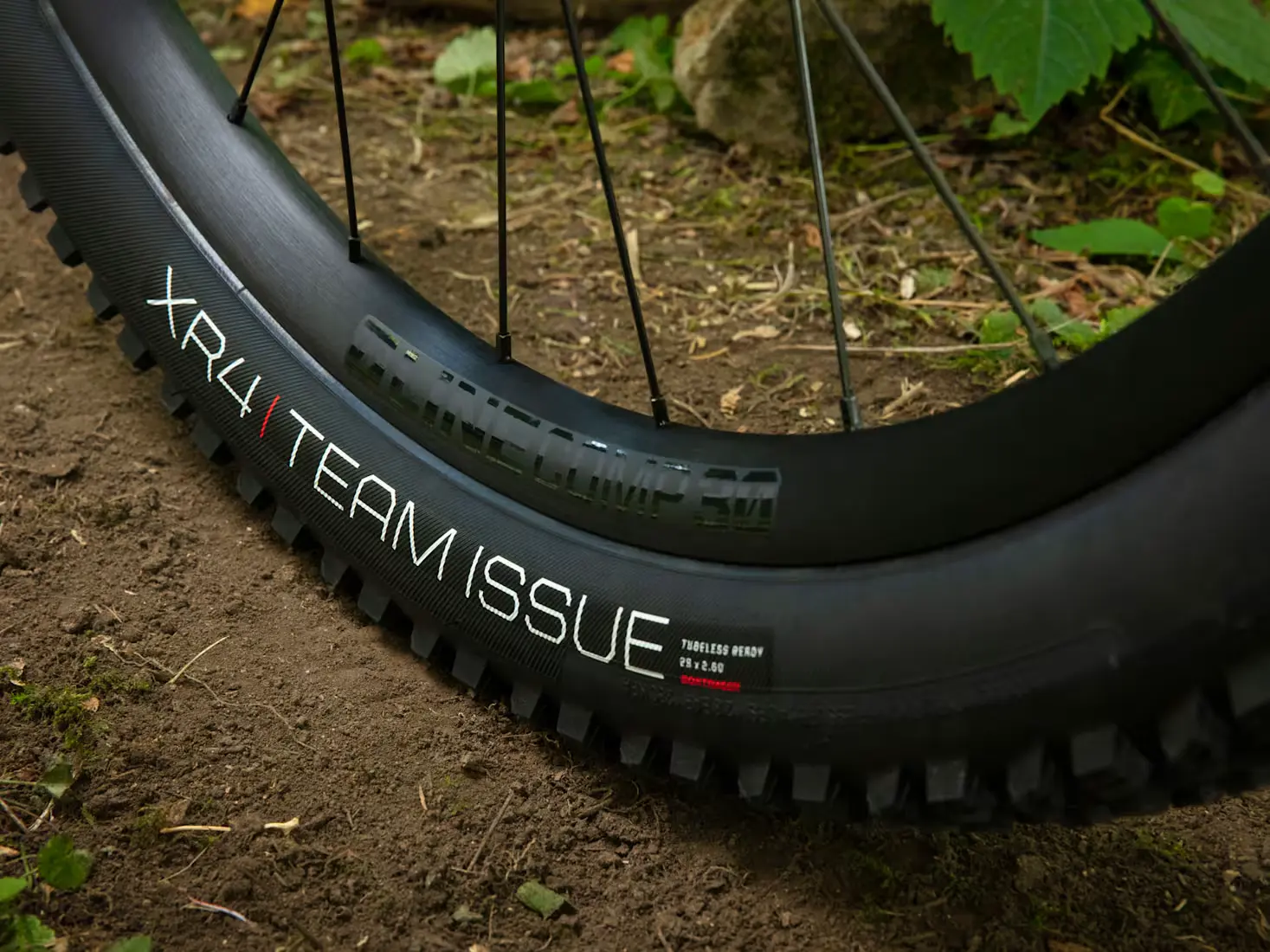

Front Tire
Bontrager XR4 Team Issue (27.5'', 2.60'')
- Size
- 27.5''
- Width
- 2.60''
Front Wheel
Bontrager Line Comp 30
Rear
Rear Tire
Bontrager XR4 Team Issue (27.5'', 2.60'')
- Size
- 27.5''
- Width
- 2.60''
Rear Wheel
Bontrager Line Comp 30
Brakes
Front
Front Brake
Shimano MT400 caliper, MT401 lever
Front Disc
Shimano RT56
- Diameter
- 180 mm
Rear
Rear Brake
Shimano MT400 caliper, MT401 lever
Rear Disc
Shimano RT56
- Diameter
- 180 mm
Frame

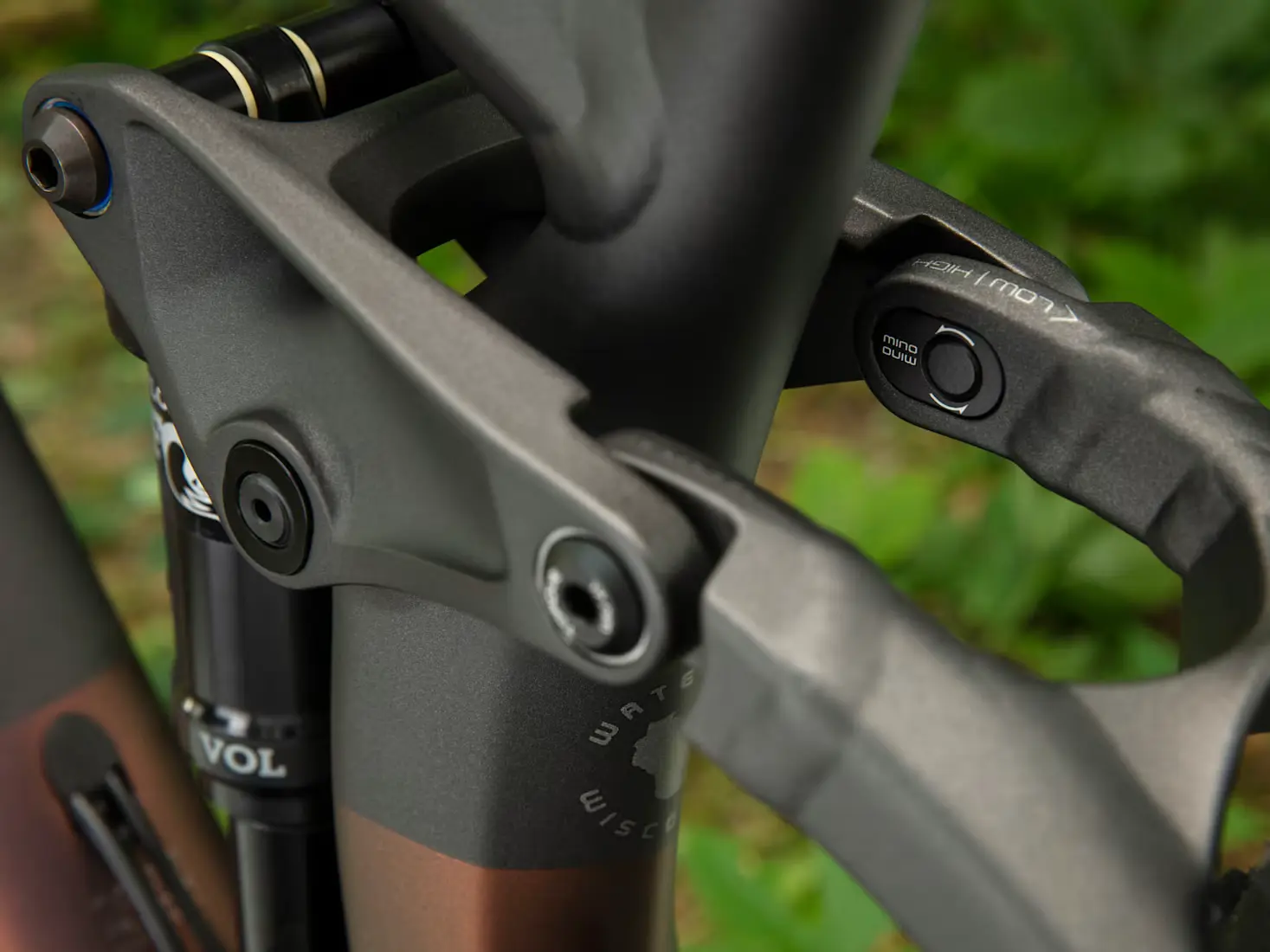

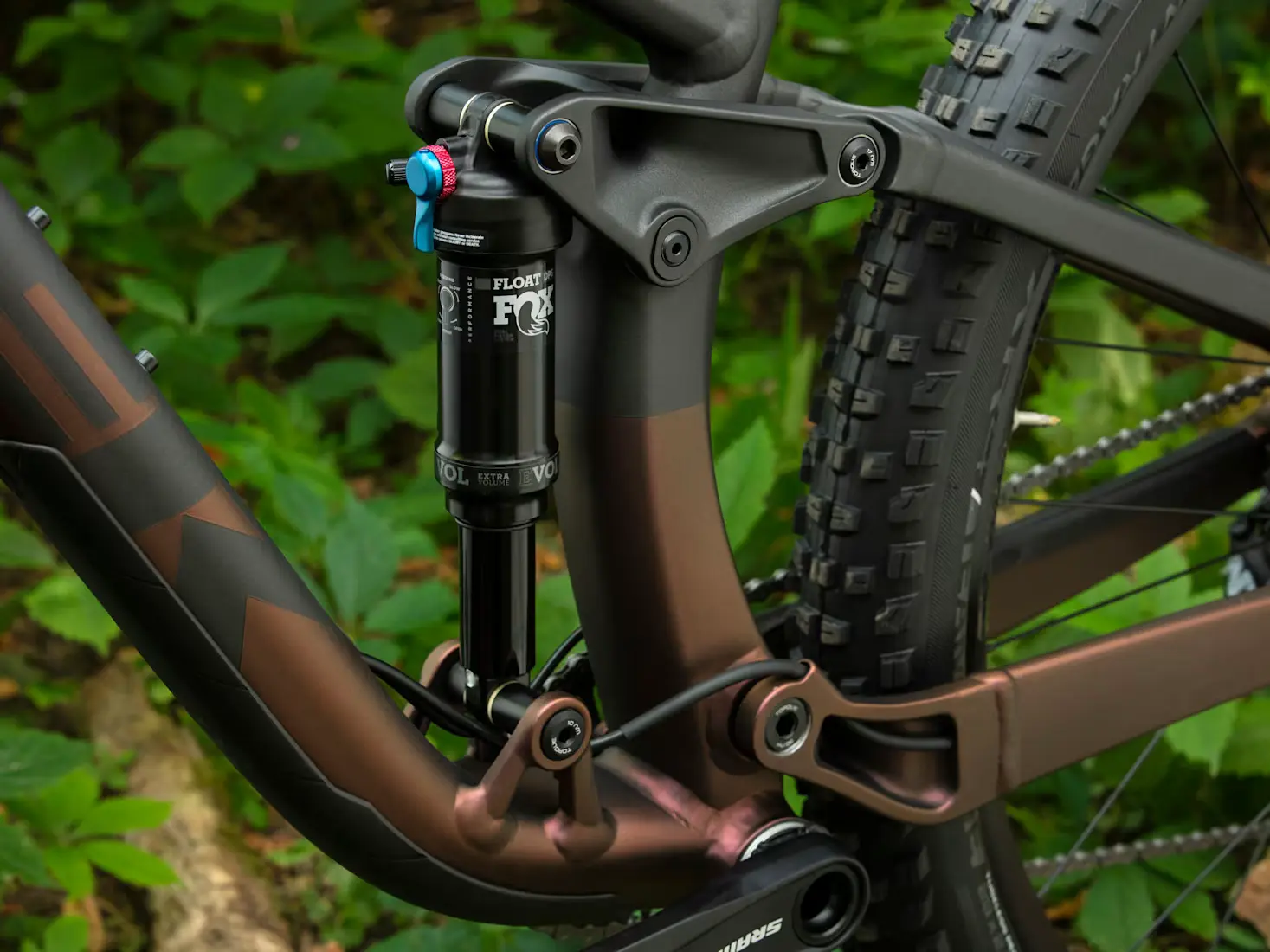

Rear Shock
Performance Fox Float EVOL, 3-position DPS damper
- Travel
- 130 mm
Fork
RockShox 35 Gold, DebonAir spring
- Travel
- 140 mm
- Front Axle Dimension
- 15x110 mm
- Offset
- 44 mm

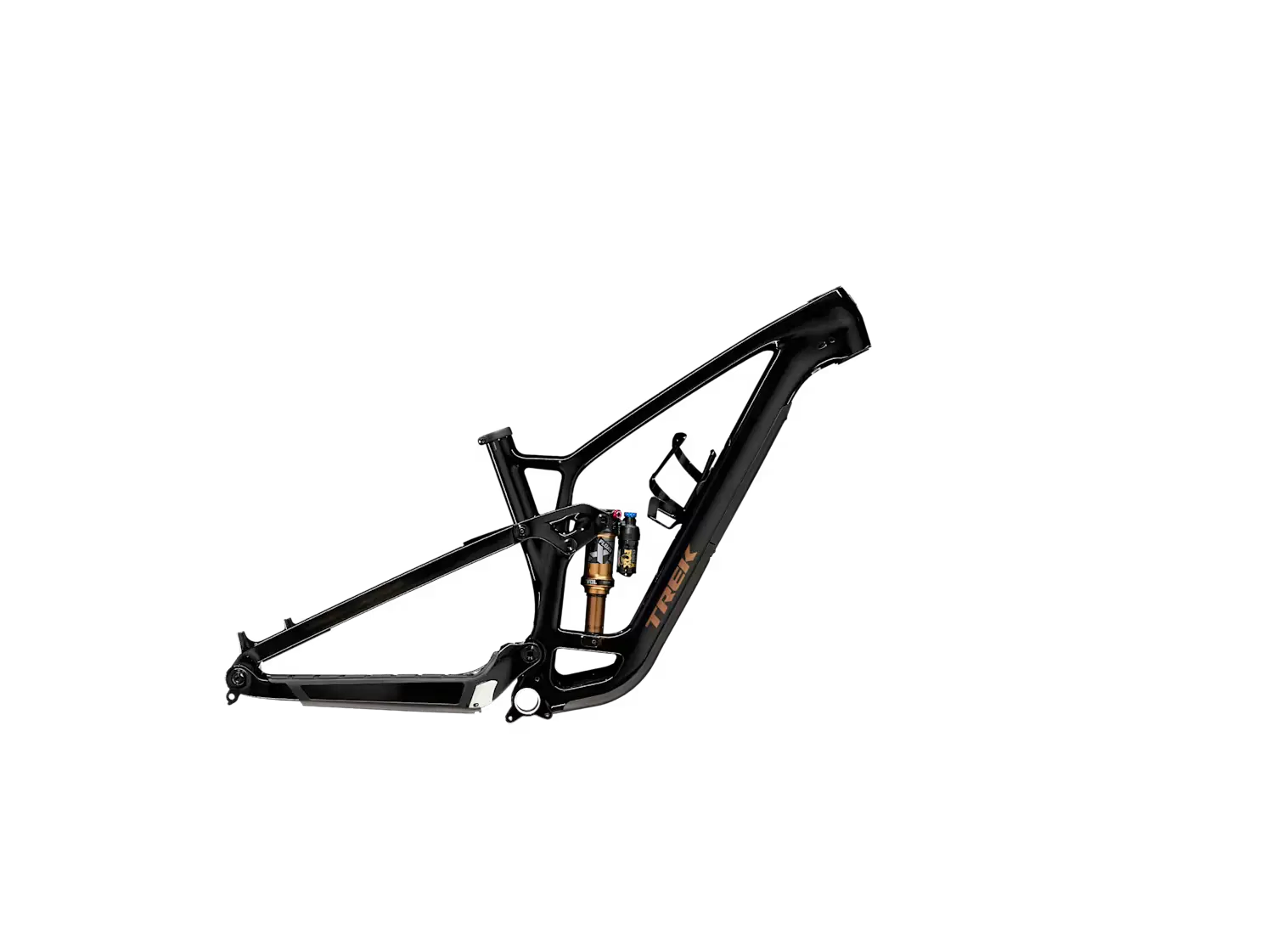

Frame
Alpha Platinum Aluminum
