Trek
Checkpoint+ Checkpoint SL 6 AXS Gen 3
2026
Checkpoint+ Checkpoint SL 6 AXS Gen 3 Data
- Frame
- Carbon
- Suspension
- None
- Weight
- 9.4 kg
- Sizes
- S, M, L, Xl, Xs, Ml
- Colors
- Matte Hex Blue/Marianas Blue, White Prismatic
Looking for replacement tires?
View verified compatible tires for the 2026 Checkpoint+ Checkpoint SL 6 AXS Gen 3.
Components
Complete component specification list for this variant.

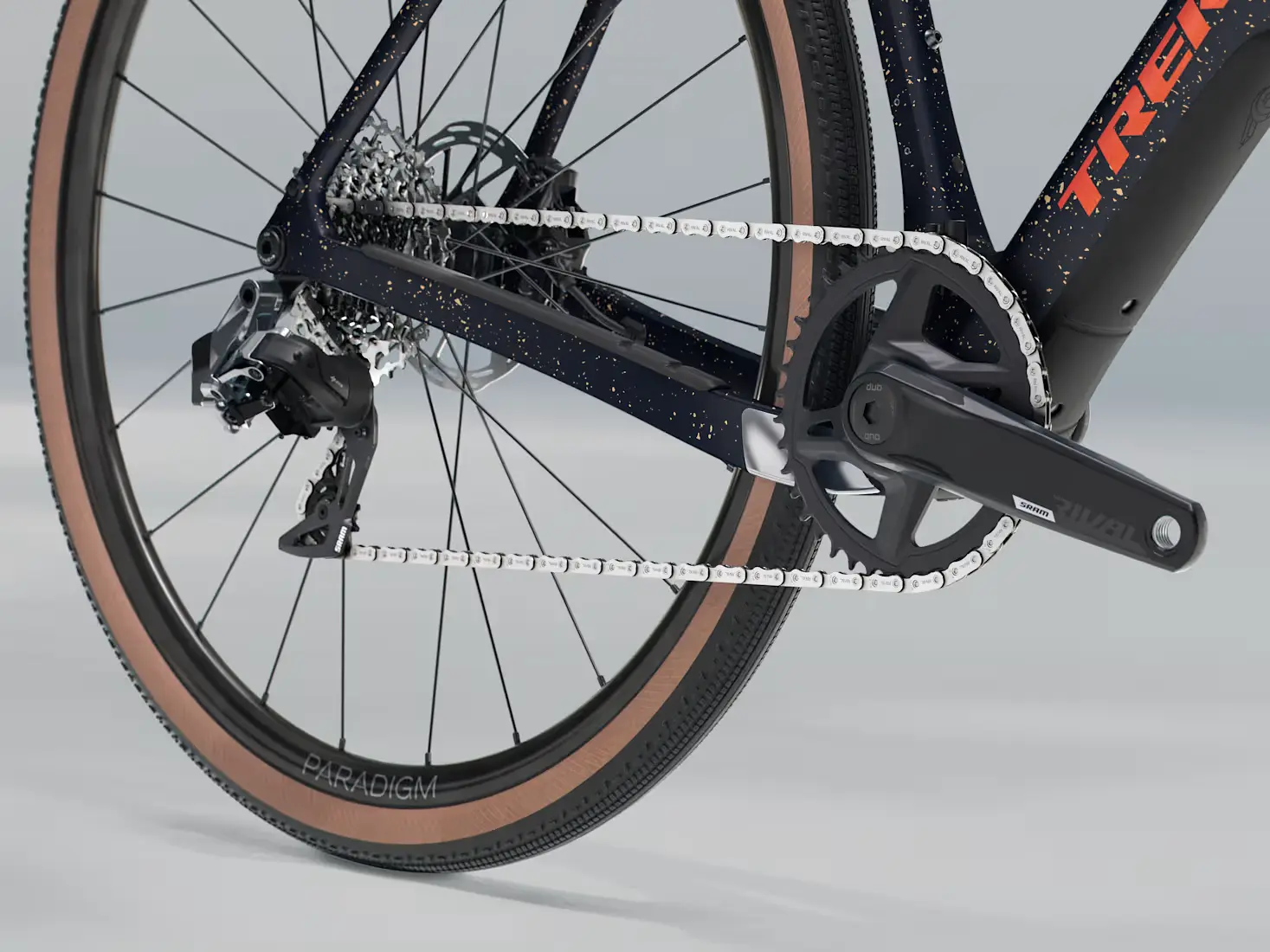

Drivetrain
Rear Shifter
Rival SRAM eTap AXS
Chain
Rival SRAM
- Gears
- 12
Battery
SRAM AXS battery pack
Chainring
Rival SRAM
- Gears
- 1
- Ring 1
- 40 Teeth
Rear Derailleur
Rival SRAM XPLR eTap AXS
- Gears
- 12
Cassette
SRAM XG-1251
Crank
SRAM Rival
Bottom Bracket
SRAM DUB Wide
Accessories
Charger
SRAM AXS charger
Cockpit
Grips
Bontrager Supertack Perf tape

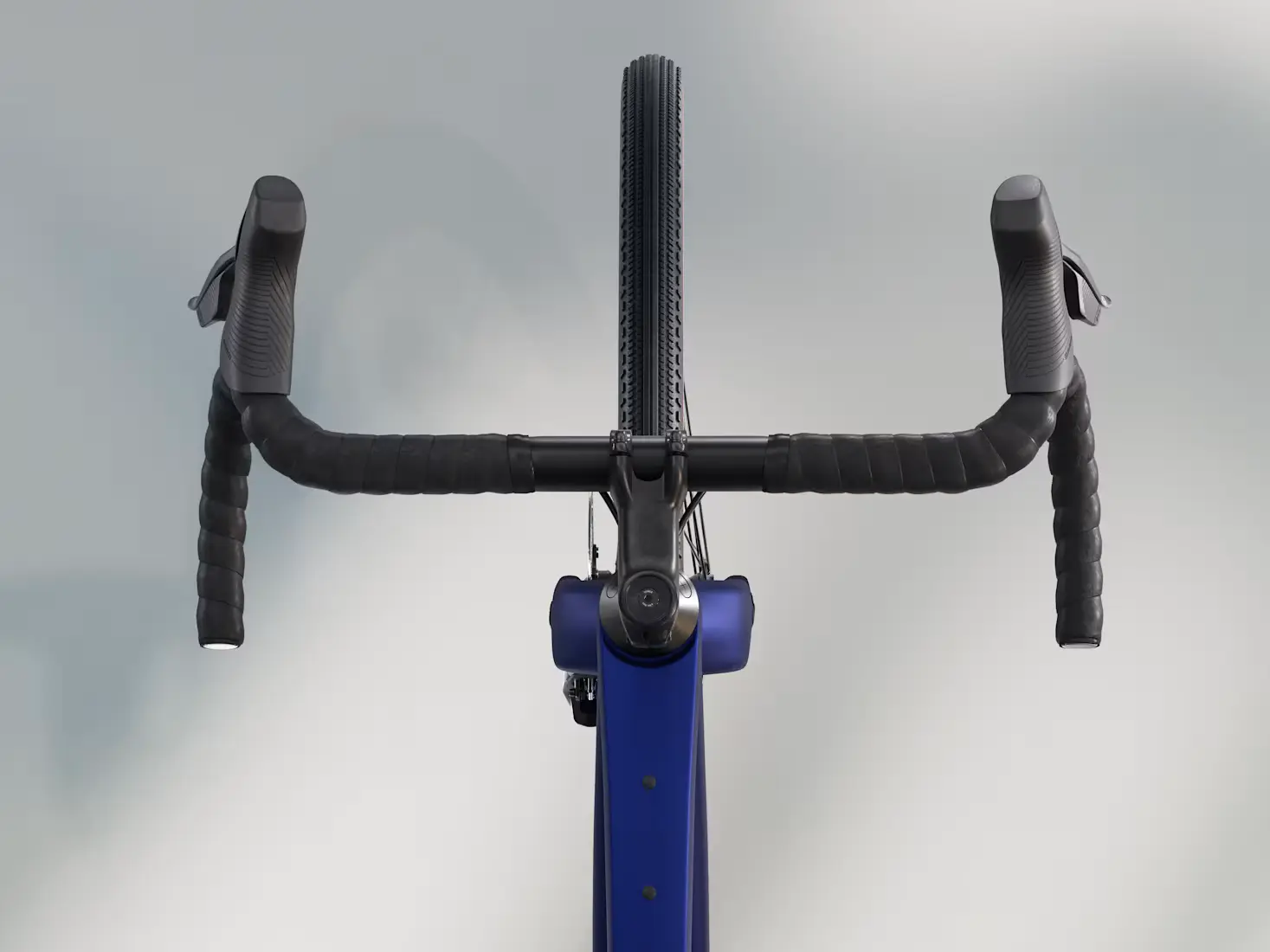

Handlebar
Bontrager Elite Gravel
- Width
- 400 mm
- Clamping diameter
- 31.8 mm
- Material
- Alloy
Stem
Bontrager Pro
Frame
Frame
Series 500 OCLV
- Rear Axle Dimension
- 142x12mm
- Material
- Carbon

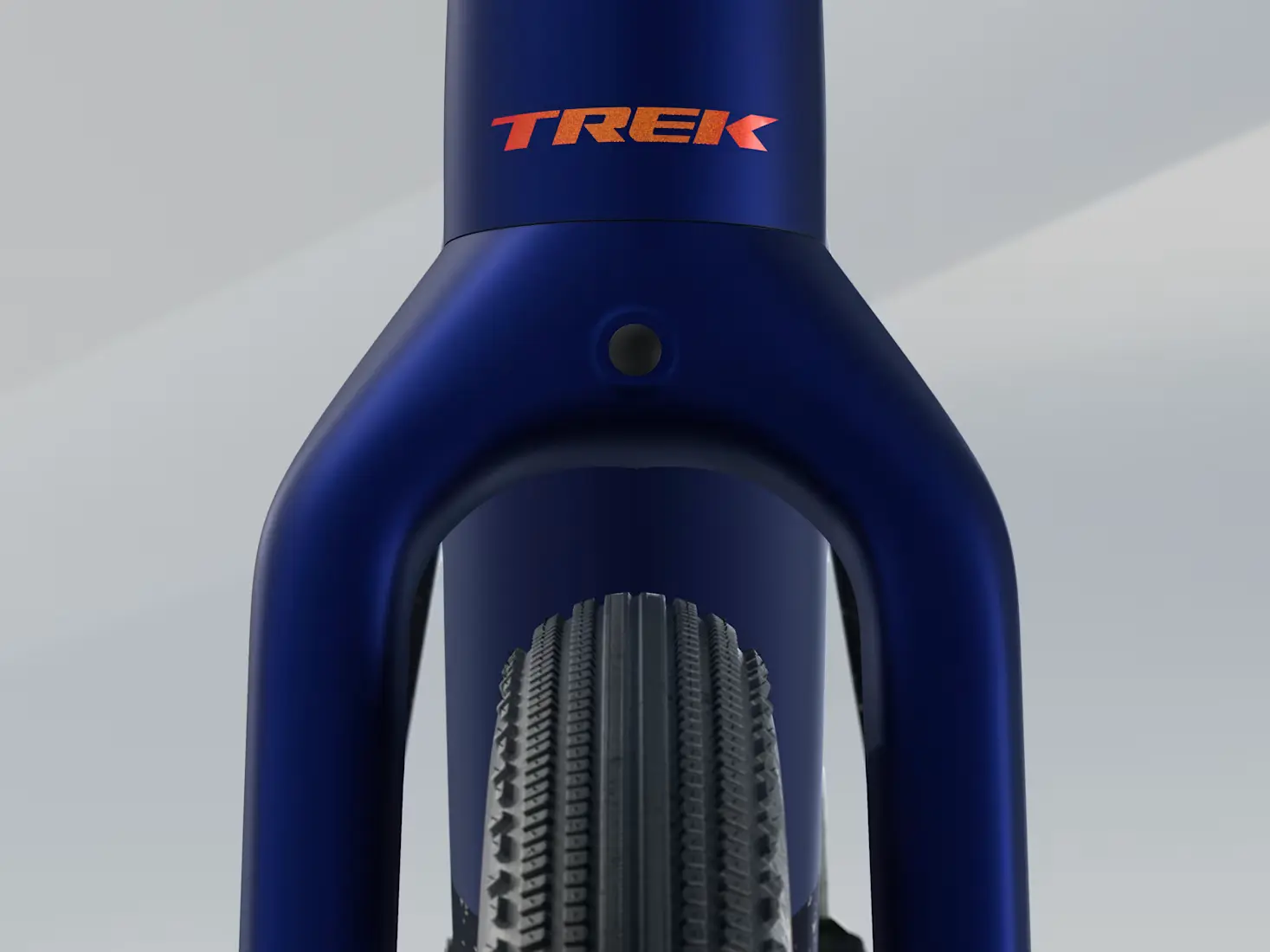

Fork
Checkpoint full carbon
Wheels
Front
Front Wheel
Bontrager Paradigm Comp (100x12mm)
- Axle Dimension
- 100x12mm
- Rotor mount
- Centerlock
- Inner width
- 25 mm
- Position
- front
Front Tire
Bontrager Girona RSL (700, 42mm)
- Size
- 700
- Width
- 42mm
Rear
Rear Wheel
Bontrager Paradigm Comp (142x12mm)
- Axle Dimension
- 142x12mm
- Rotor mount
- Centerlock
- Inner width
- 25 mm
- Position
- back
Rear Tire
Bontrager Girona RSL (700, 42mm)
- Size
- 700
- Width
- 42mm
Seat
Saddle
Bontrager Verse P3
Seatpost
Bontrager carbon
- Length
- 330 mm
- Diameter
- 27.2 mm
- Material
- Carbon
Brakes
Front
Front Disc
SRAM Paceline
Rear
Rear Disc
SRAM Paceline
