Trek
Checkpoint+ Checkpoint SL 5 2e Gén
2026
Checkpoint+ Checkpoint SL 5 2e Gén Data
- Frame
- Carbon
- Suspension
- None
- Gears
- 24
- Weight
- 9.76 kg
- Sizes
- 54, 56, 58, 61, 49, 52
- Colors
- Deep Smoke, Matte Pennyflake, Matte Keswick
Looking for replacement tires?
View verified compatible tires for the 2026 Checkpoint+ Checkpoint SL 5 2e Gén.
Components
Complete component specification list for this variant.

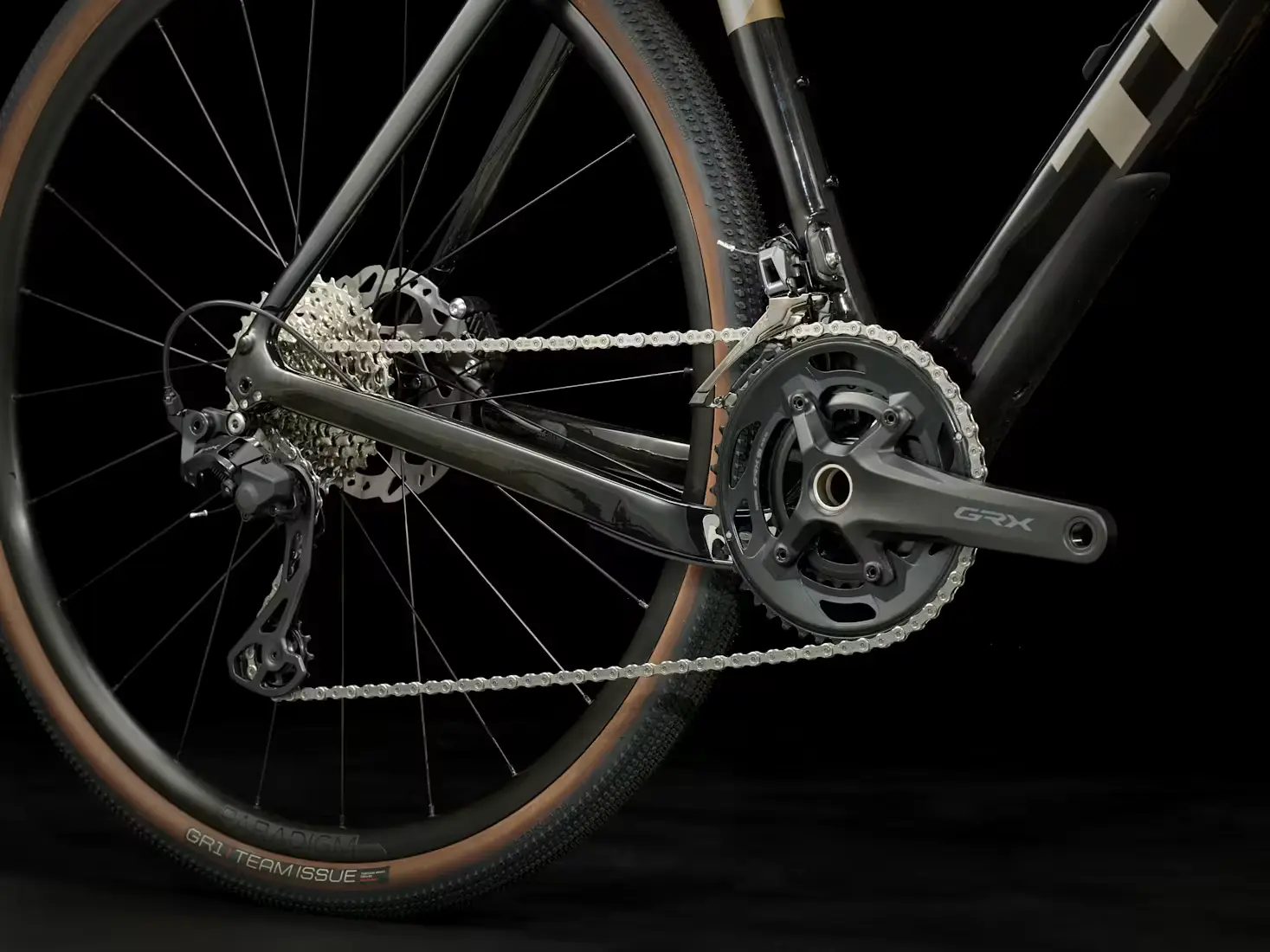

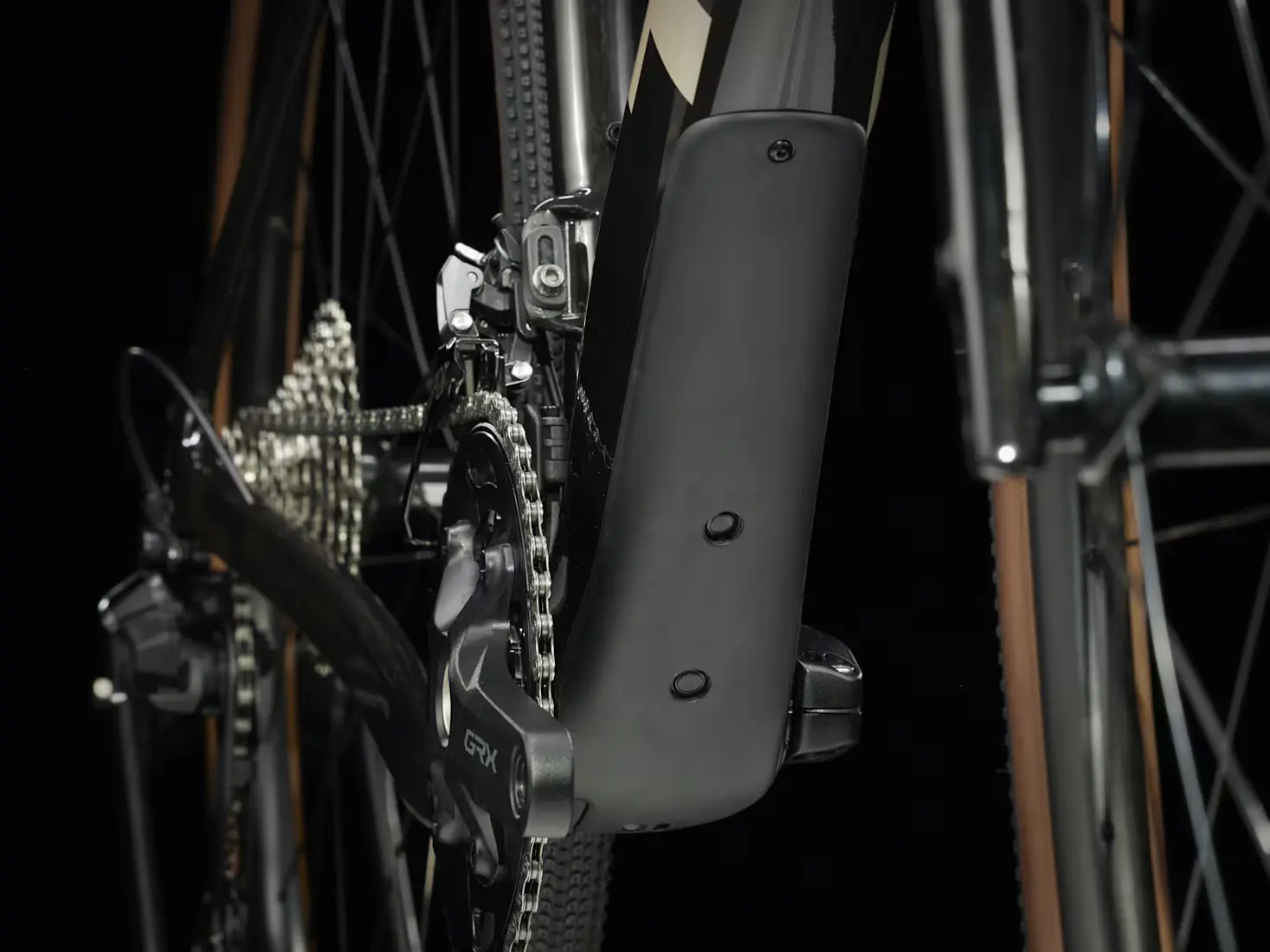

Drivetrain
Front
Front Derailleur
Shimano GRX RX80
- Gears
- 2
Front Shifter
Shimano GRX RX610
Rear
Rear Derailleur
Shimano GRX RX820
- Gears
- 12
Rear Shifter
Shimano GRX RX610
Chain
Shimano SLX M7100
- Gears
- 12
Chainring
Shimano GRX RX610
- Gears
- 2
- Ring 1
- 46 Teeth
- Ring 2
- 30 Teeth
Cassette
Shimano 105 7100
- Number of sprockets
- 12
- Range
- 11-36
Crank
Shimano GRX RX610
- Length
- 165
Bottom Bracket
Praxis, T47 threaded
Brakes
Front
Front Brake
Shimano GRX RX610
Front Disc
Shimano RT70
Rear
Rear Brake
Shimano GRX RX610
Rear Disc
Shimano RT70
Cockpit
Grips
Bontrager Supertack Perf tape

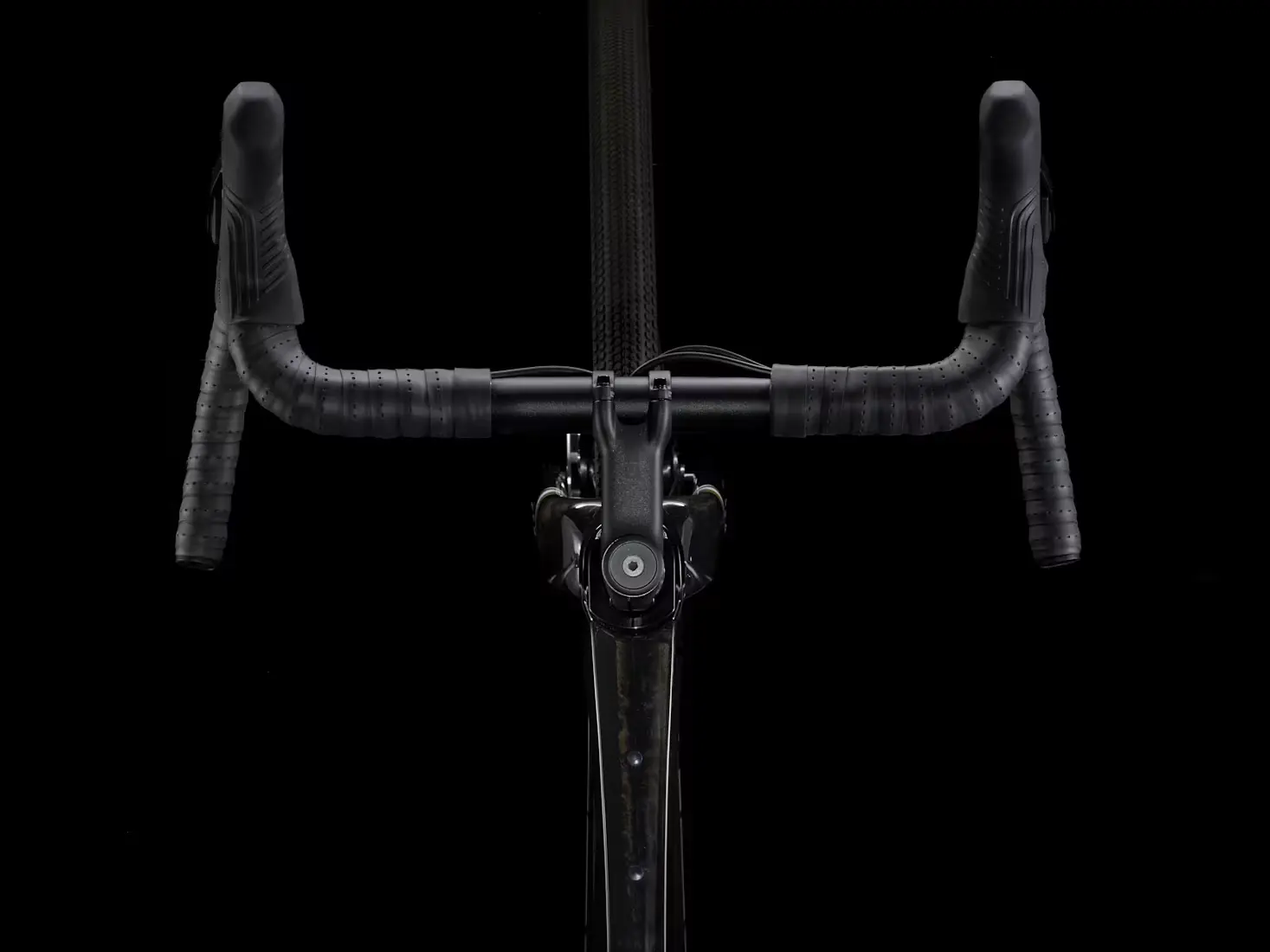

Handlebar
Bontrager Elite Gravel
- Width
- 380 mm
- Clamping diameter
- 31.8 mm
Stem
Bontrager Elite
- Length
- 70 mm
- Clamping diameter
- 31.8 mm
- Material
- Alloy
Frame
Frame
Series 500 OCLV
- Rear Axle Dimension
- 142x12mm
- Material
- Carbon

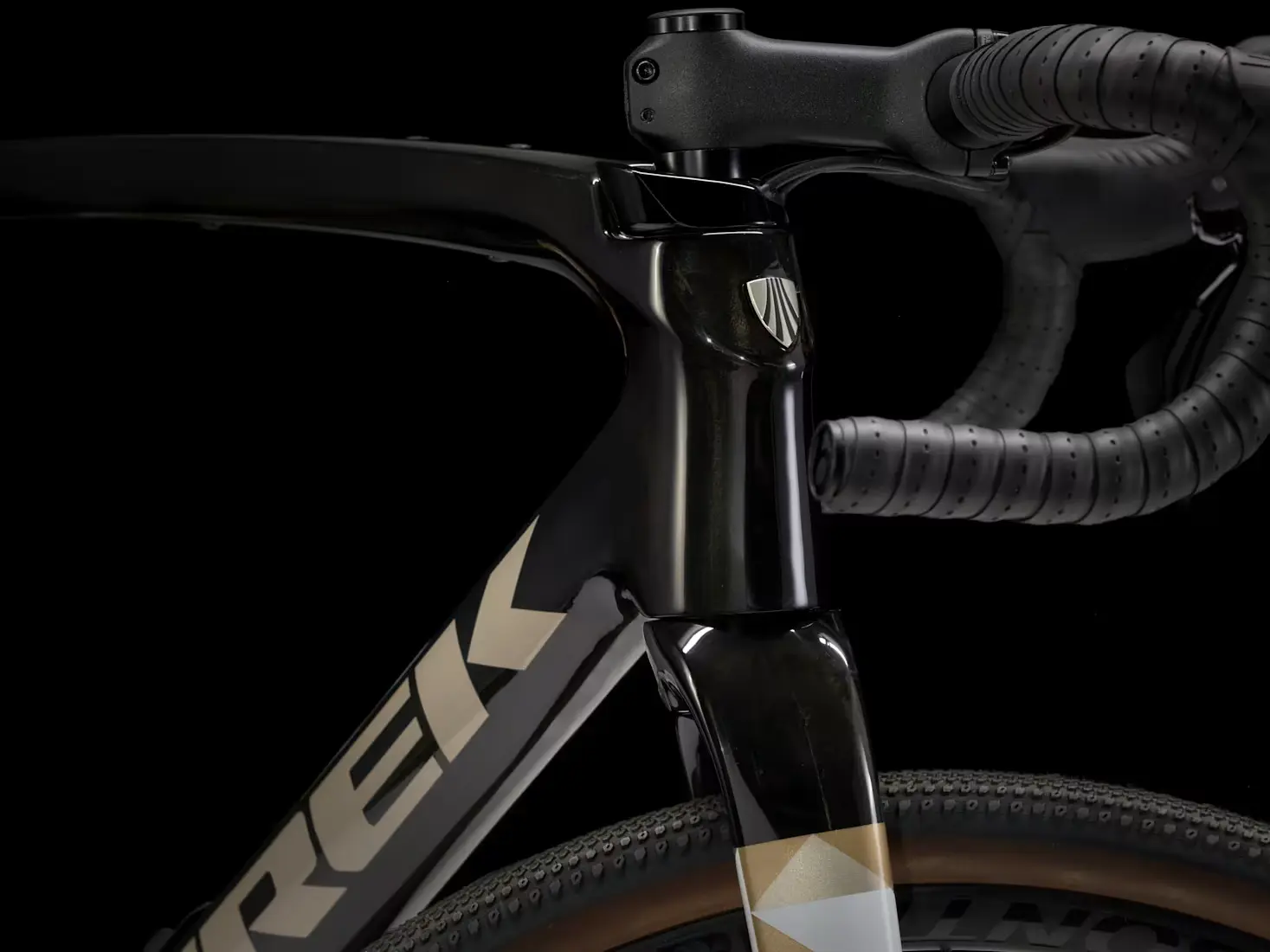

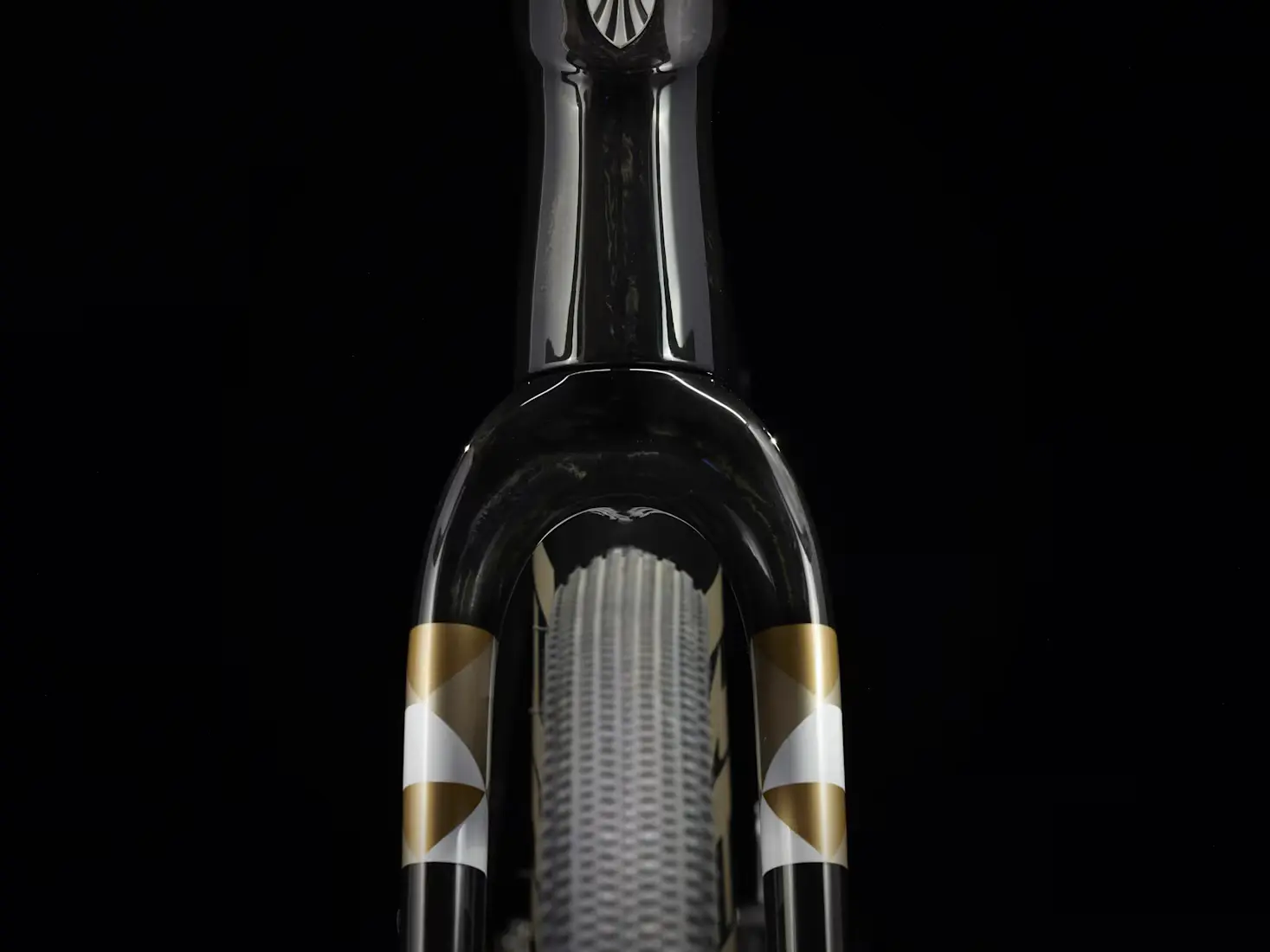

Fork
Trek Checkpoint, full carbon
Seat
Seatpost
Bontrager carbon
- Length
- 330 mm
- Diameter
- 27.2 mm
- Material
- Carbon
Saddle
Bontrager Verse Comp
Wheels
Front
Front Wheel
Bontrager Paradigm SL rim, hub (700c, 100x12mm)
- Size
- 700c
- Axle Dimension
- 100x12mm
- Rotor mount
- Centerlock
- Inner width
- 21 mm
- Material
- Alloy
- Position
- front
Front Tire
Bontrager GR1 Team Issue (700x40mm, 40mm)
- Size
- 700x40mm
- Width
- 40mm
Rear
Rear Wheel
Bontrager Paradigm SL rim, hub (700c, 142x12mm)
- Size
- 700c
- Axle Dimension
- 142x12mm
- Rotor mount
- Centerlock
- Inner width
- 21 mm
- Material
- Alloy
- Position
- back
Rear Tire
Bontrager GR1 Team Issue (700x40mm, 40mm)
- Size
- 700x40mm
- Width
- 40mm
