Trek

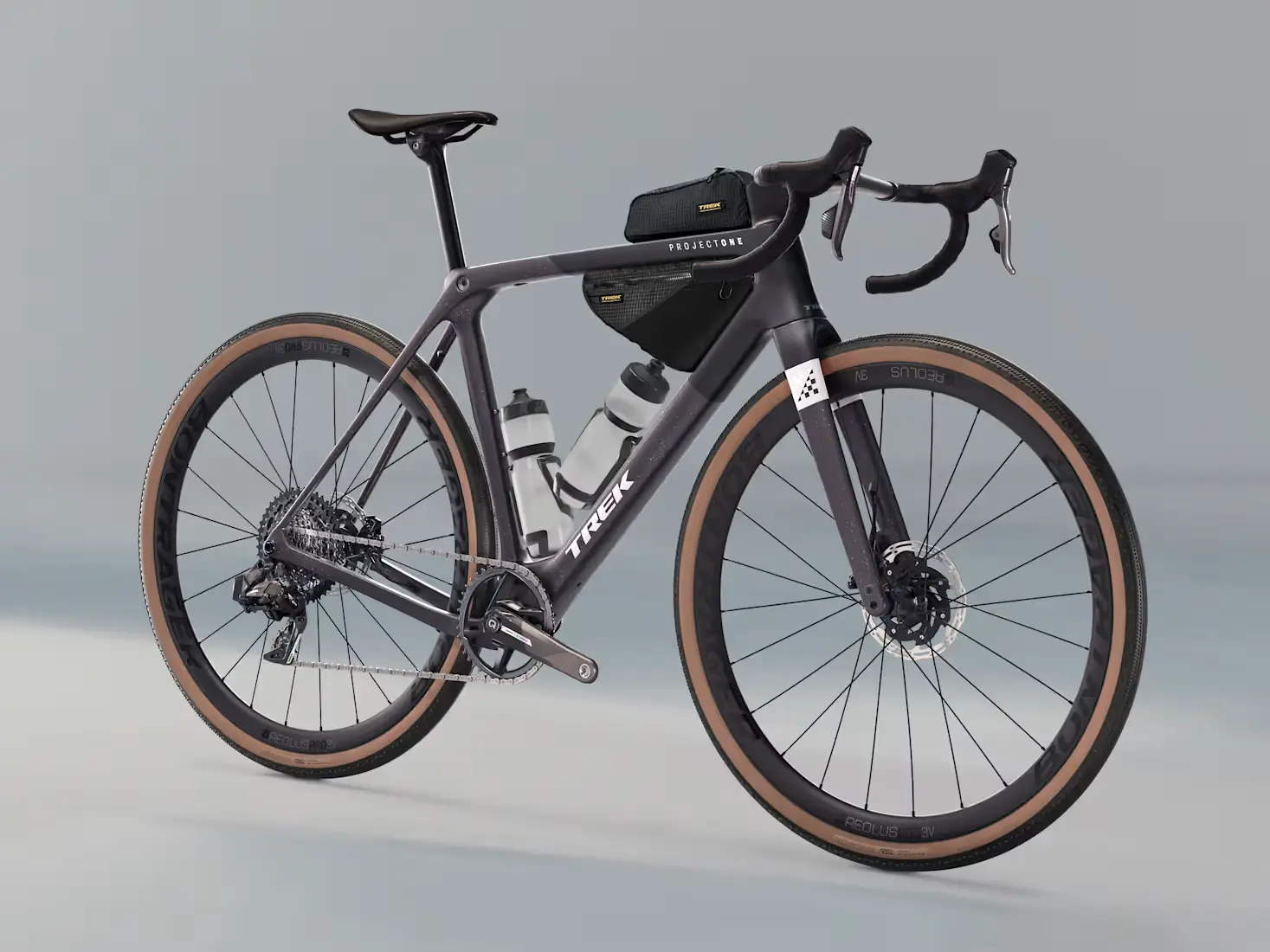

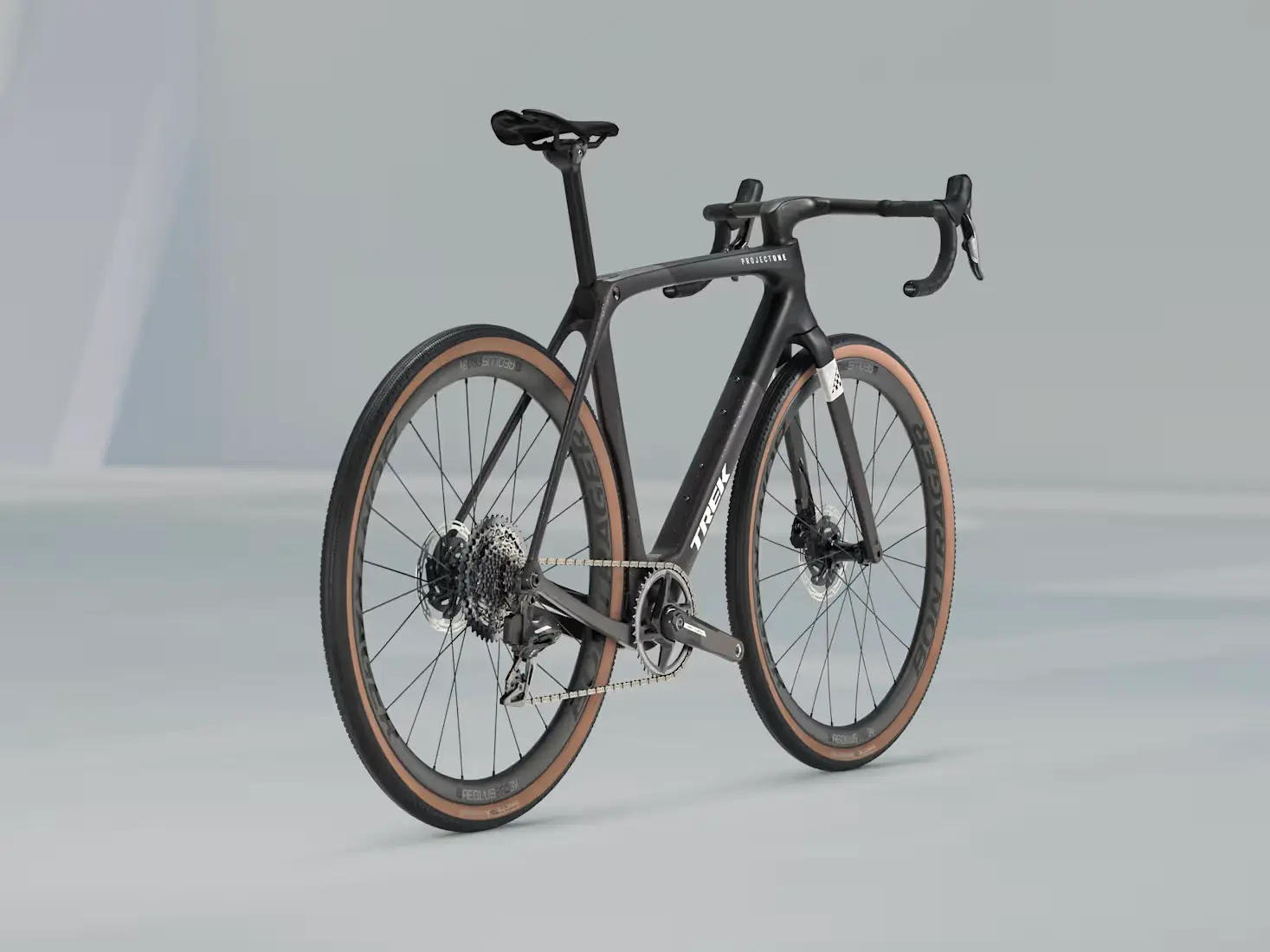

Checkmate SLR 7 AXS
2026Road
Checkmate SLR 7 AXS Data
- Frame
- Carbon
- Suspension
- None, Hardtail
- Weight
- 8.1 kg
- Sizes
- S, M, L, Xl, Xs, Ml
- Colors
- Matte Trek Black/Matte Deep Smoke, Matte Hex Blue/Plasma Grey Pearl, Olive Drab/Glowstick, Era White/Buff Beige
Looking for replacement tires?
View verified compatible tires for the 2026 Checkmate SLR 7 AXS.
Components
Complete component specification list for this variant.
Accessories
Charger
SRAM AXS charger
Chainguard
Integrated chainkeeper
Brakes
Front
Front Disc
Centerline SRAM X
- Diameter
- 160 mm
Front Brake
SRAM Force AXS D2
Rear
Rear Disc
Centerline SRAM X
- Diameter
- 160 mm
Rear Brake
SRAM Force AXS D2
Frame
Frame
Series 800 OCLV
- Rear Axle Dimension
- 142x12mm
- Material
- Carbon

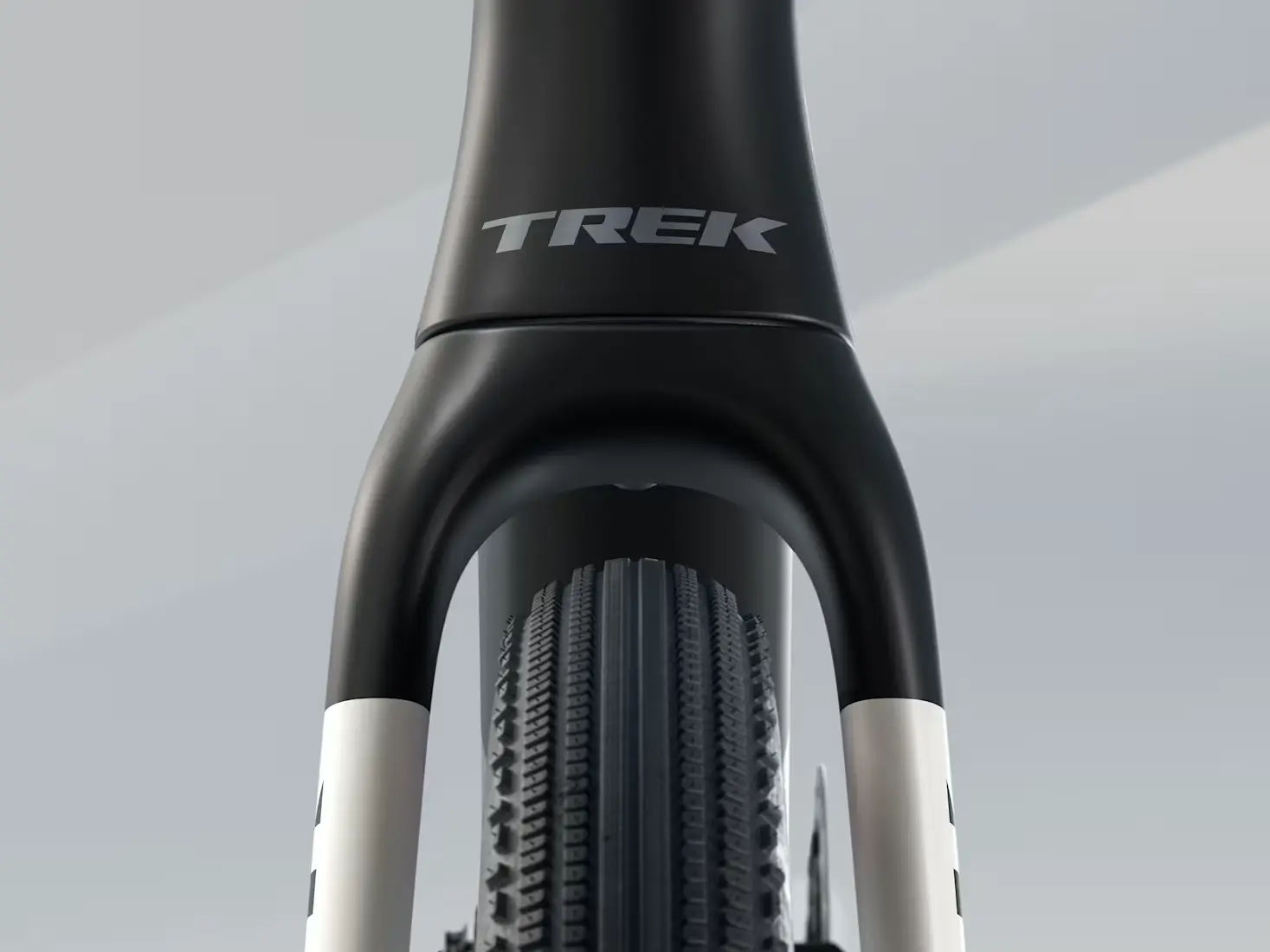

Fork
Full Checkmate SLR carbon
- Front Axle Dimension
- 12x100mm
- Steer tube diameter
- Tapered

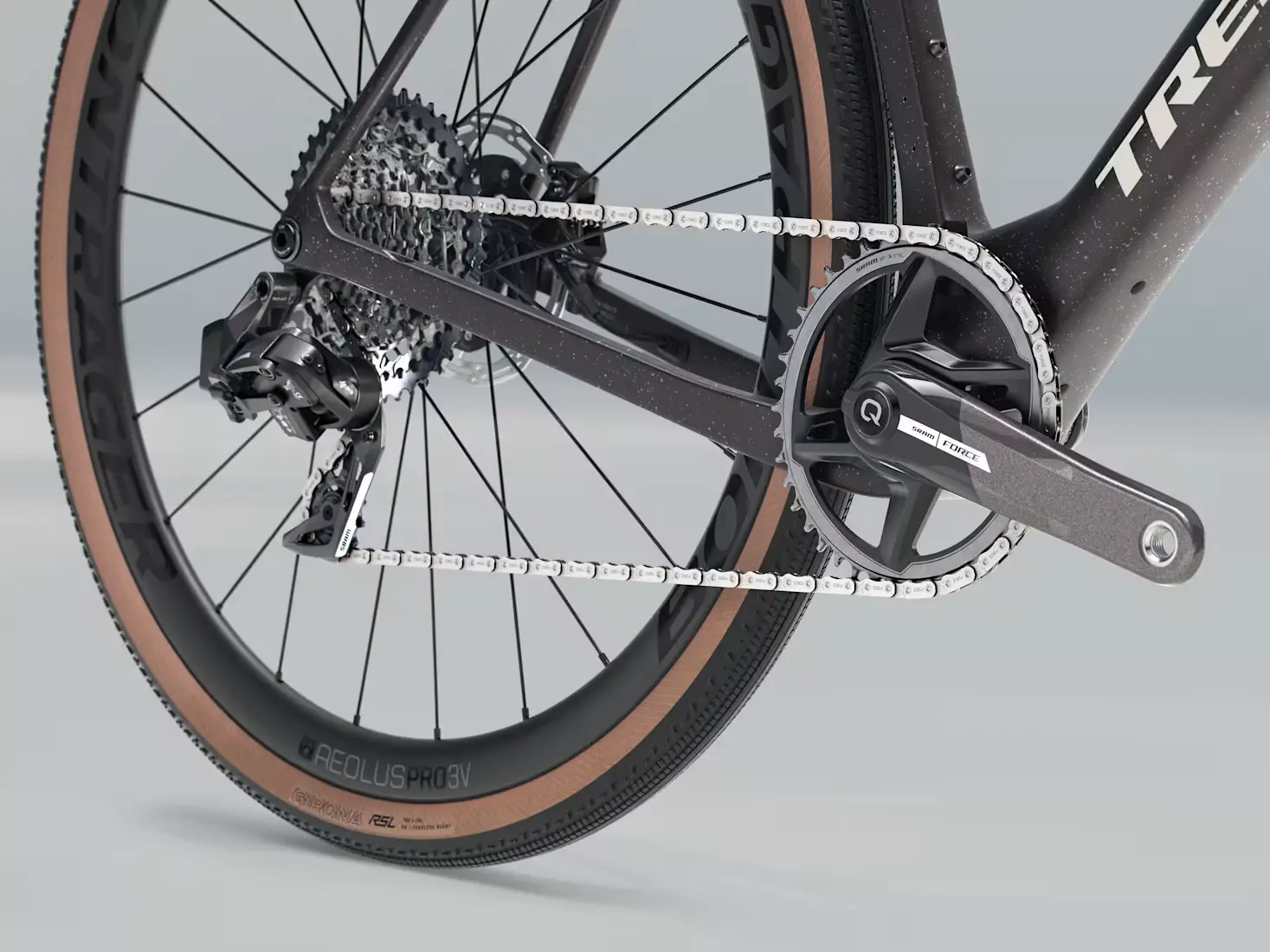

Drivetrain
Battery
SRAM AXS battery pack
Crank
SRAM Force AXS D2
- Length
- 165
Chainring
SRAM Force AXS D2
- Ring 1
- 42 Teeth
Rear Derailleur
SRAM Force XPLR AXS D2
- Gears
- 12
Bottom Bracket
SRAM DUB
- Standard
- T47 threaded
Rear Shifter
SRAM Force AXS D2
Cassette
SRAM XG-1271
Chain
SRAM Force
Cockpit
Grips
Trek EcoTack
Stem
Integrated Trek Aero RSL Road bar/stem
- Length
- 70 mm
- Material
- OCLV Carbon

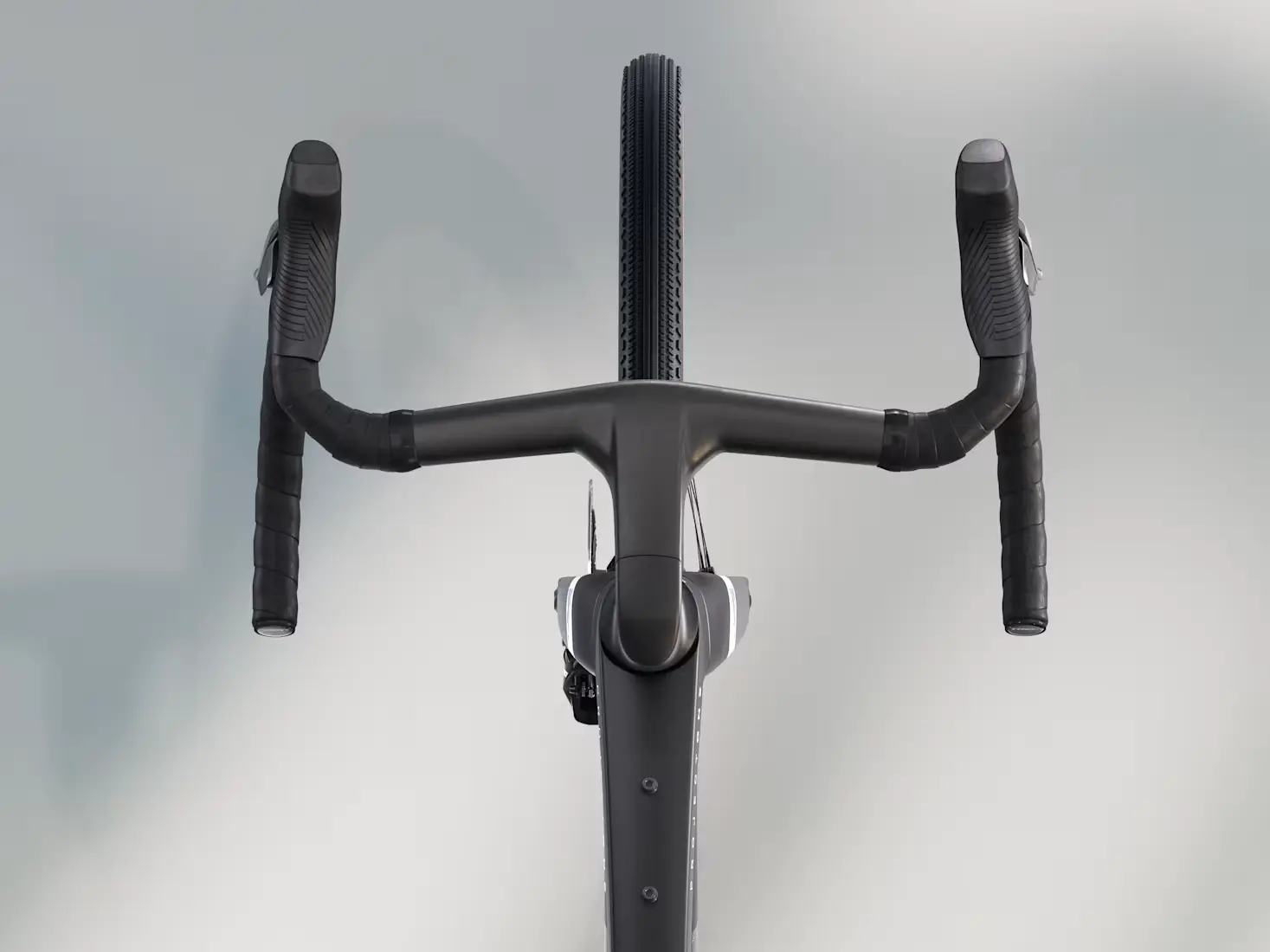

Handlebar
Integrated Trek Aero RSL Road bar/stem
- Width
- 370 mm
- Material
- OCLV Carbon
- Drop
- 124 mm
- Reach
- 80 mm
Seat
Saddle
Bontrager Aeolus P2 Pro
Seatpost
Seat KVF aero post
- Length
- 280 mm
- Material
- Carbon
Wheels
Front
Front Wheel
Bontrager Aeolus Pro 3V (100x12mm)
- Axle Dimension
- 100x12mm
- Inner width
- 25 mm
- Material
- OCLV Carbon
- Position
- front
Front Tire
Bontrager Girona RSL GR (700, 38mm)
- Size
- 700
- Width
- 38mm
Rear
Rear Wheel
Bontrager Aeolus Pro 3V (142x12mm)
- Axle Dimension
- 142x12mm
- Inner width
- 25 mm
- Material
- OCLV Carbon
- Position
- back
Rear Tire
Bontrager Girona RSL GR (700, 38mm)
- Size
- 700
- Width
- 38mm
