Trek
Boone 5
2026Cyclocross
Boone 5 Data
- Frame
- Carbon
- Suspension
- None, Hardtail
- Weight
- 8.5 kg
- Sizes
- 54, 56, 58, 61, 49, 52
- Colors
- Plasma Grey Pearl
Looking for replacement tires?
View verified compatible tires for the 2026 Boone 5.
Components
Complete component specification list for this variant.
Wheels
Front
Front Tire
Bontrager CX3 Team Issue, aramid bead, 120 tpi (700, 32mm)
- Size
- 700
- Width
- 32mm
Front Wheel
Bontrager Paradigm Comp , Tubeless Ready (100x12mm)
- Axle Dimension
- 100x12mm
- Inner width
- 25 mm
Rear

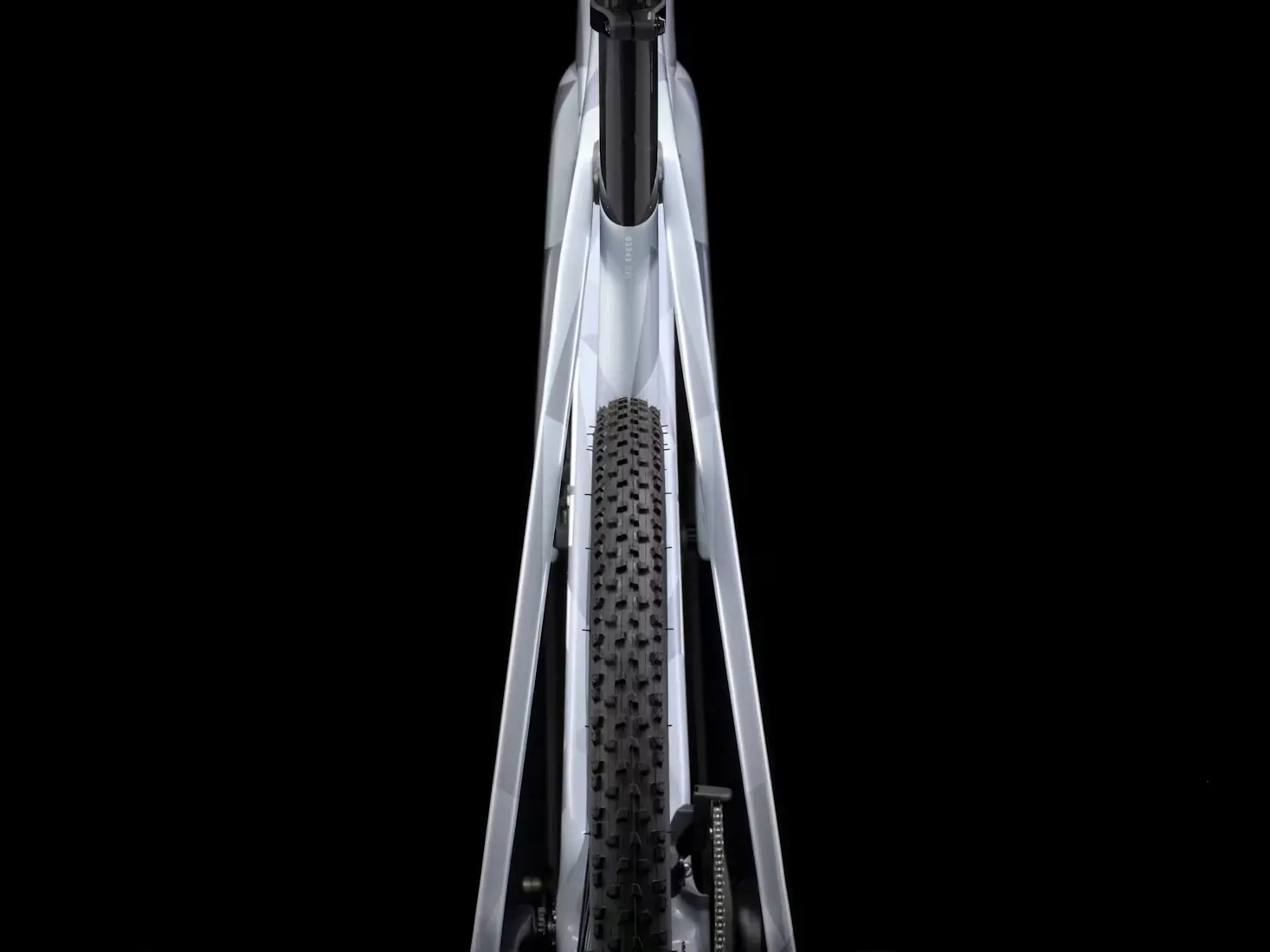

Rear Tire
Bontrager CX3 Team Issue, aramid bead, 120 tpi (700, 32mm)
- Size
- 700
- Width
- 32mm
Rear Wheel
Bontrager Paradigm Comp , Tubeless Ready (142x12mm)
- Axle Dimension
- 142x12mm
- Inner width
- 25 mm

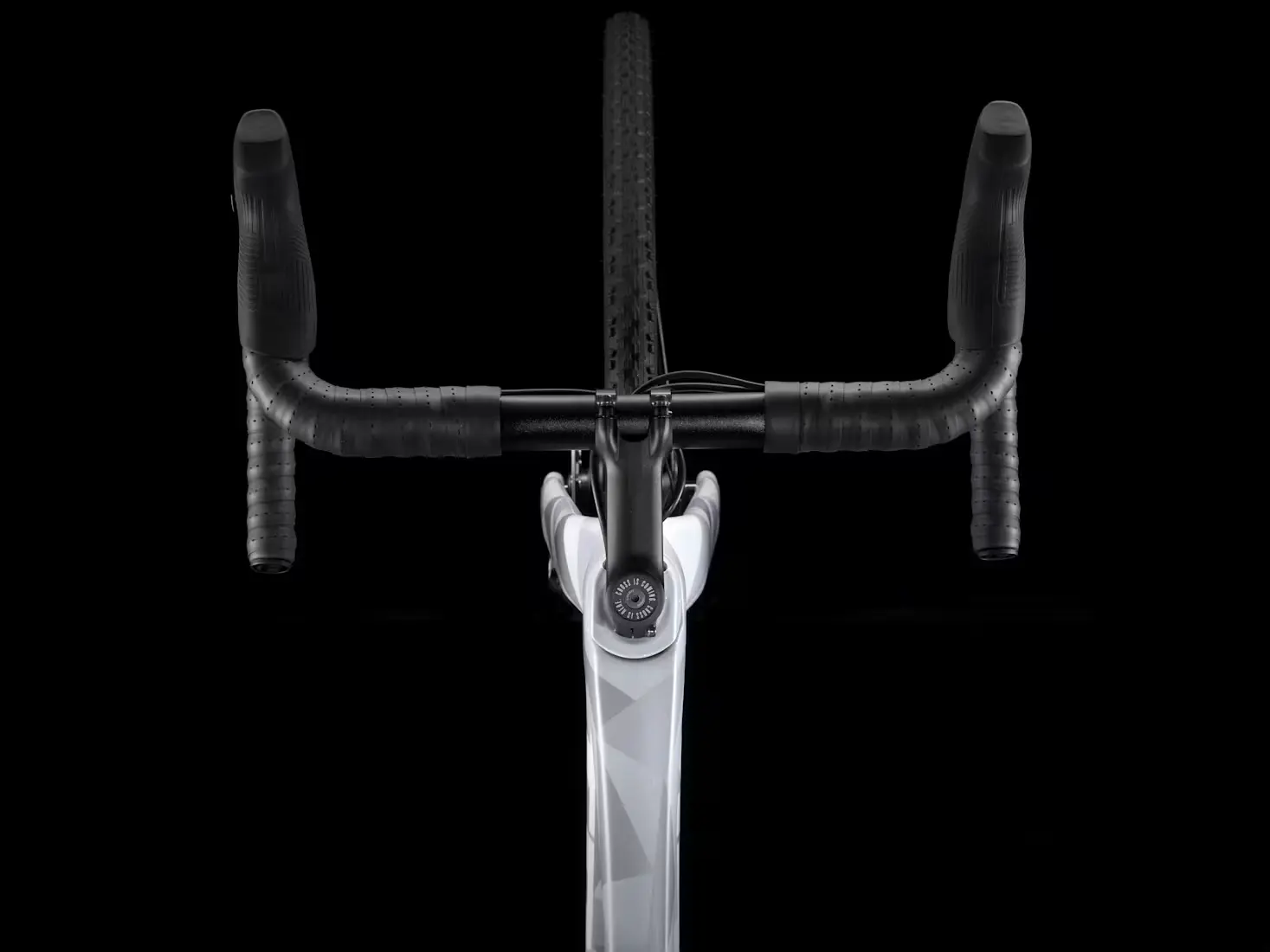

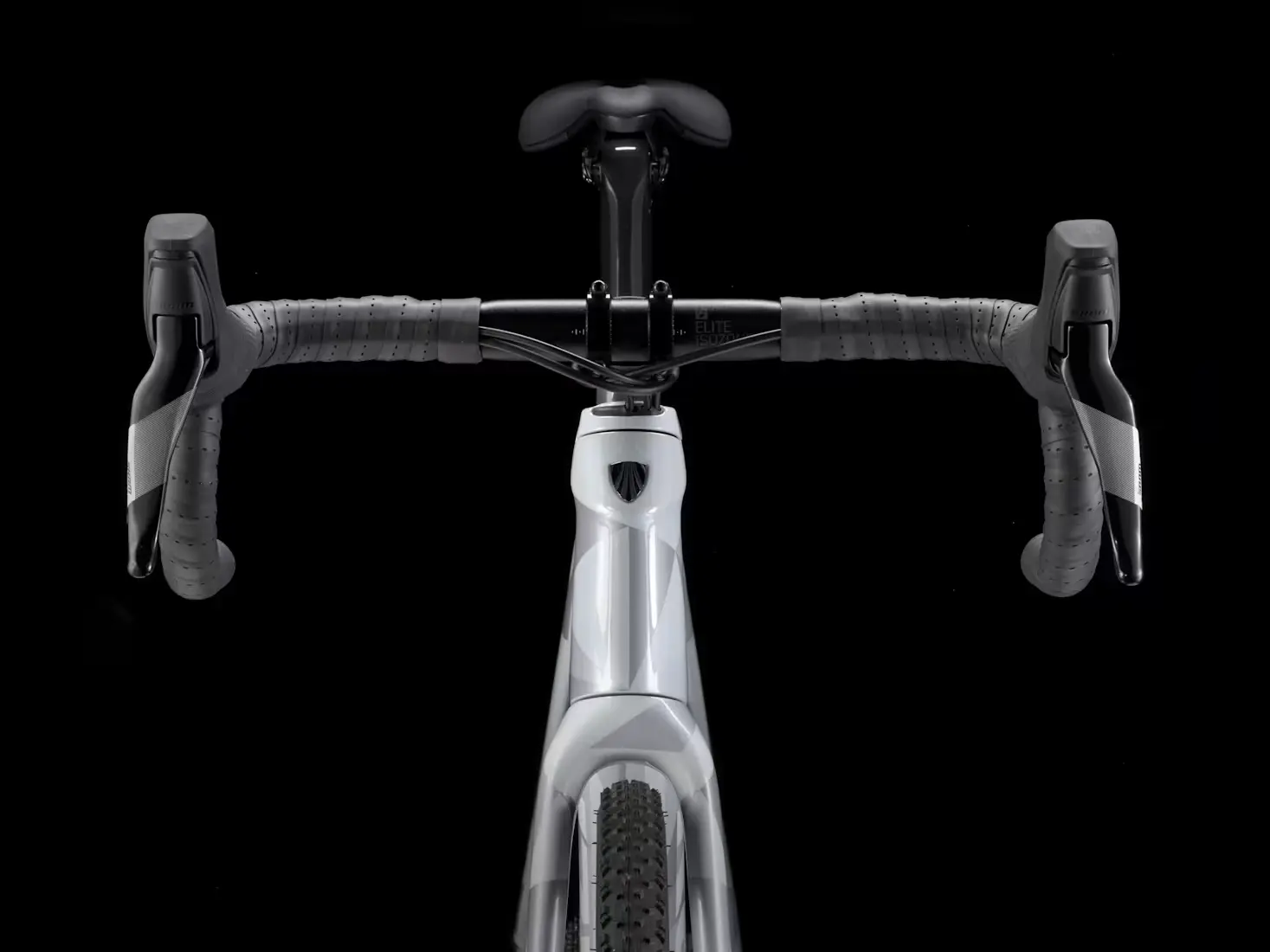

Cockpit
Grips
Bontrager Supertack Perf tape

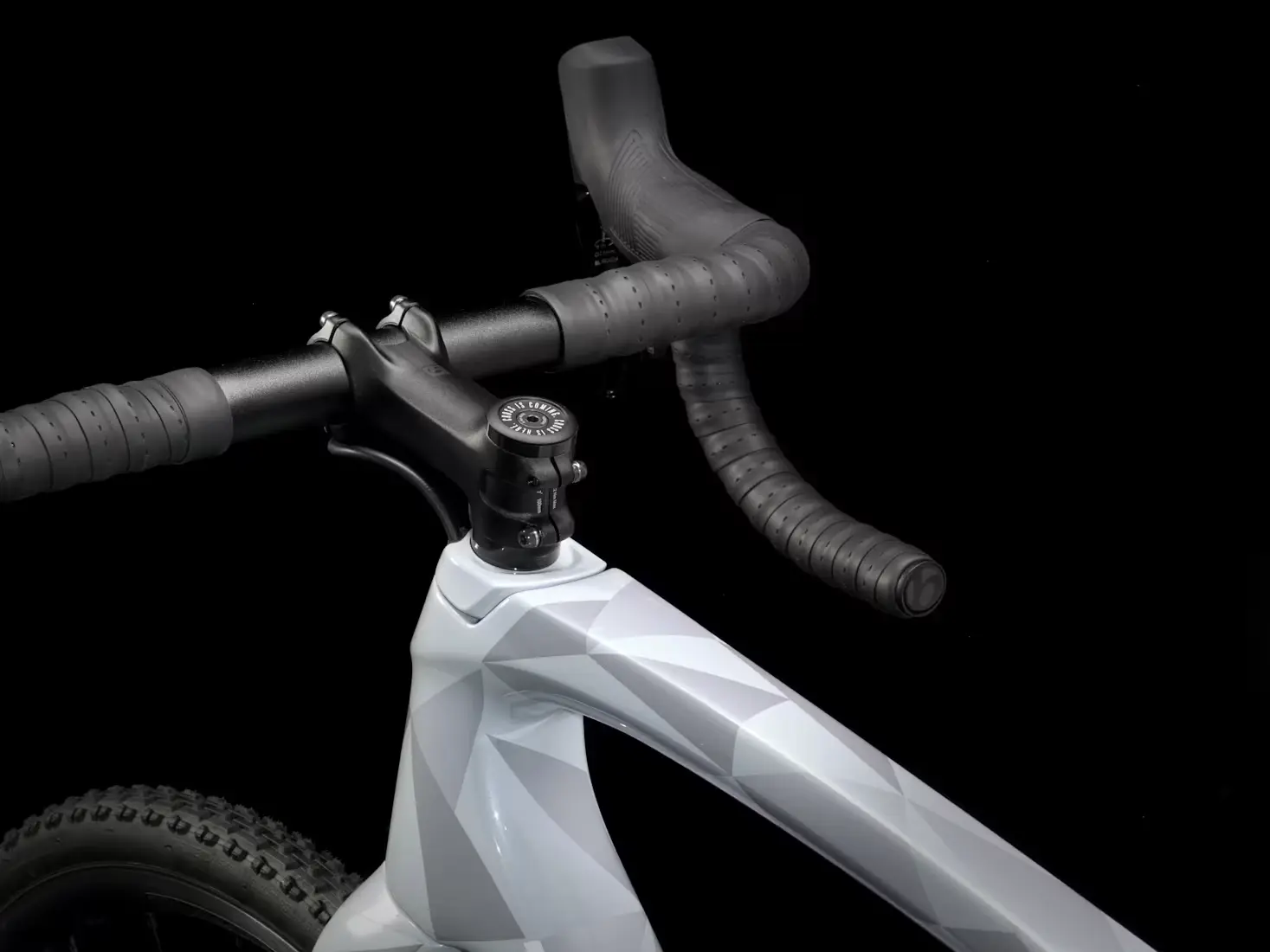

Stem
Compatible Bontrager Pro, Blendr
- Length
- 80 mm
- Clamping diameter
- 31.8 mm
Handlebar
Bontrager Elite IsoZone VR-CF,
- Width
- 380 mm
- Clamping diameter
- 31.8 mm
- Material
- Alloy
- Drop
- 123 mm
- Reach
- 93 mm

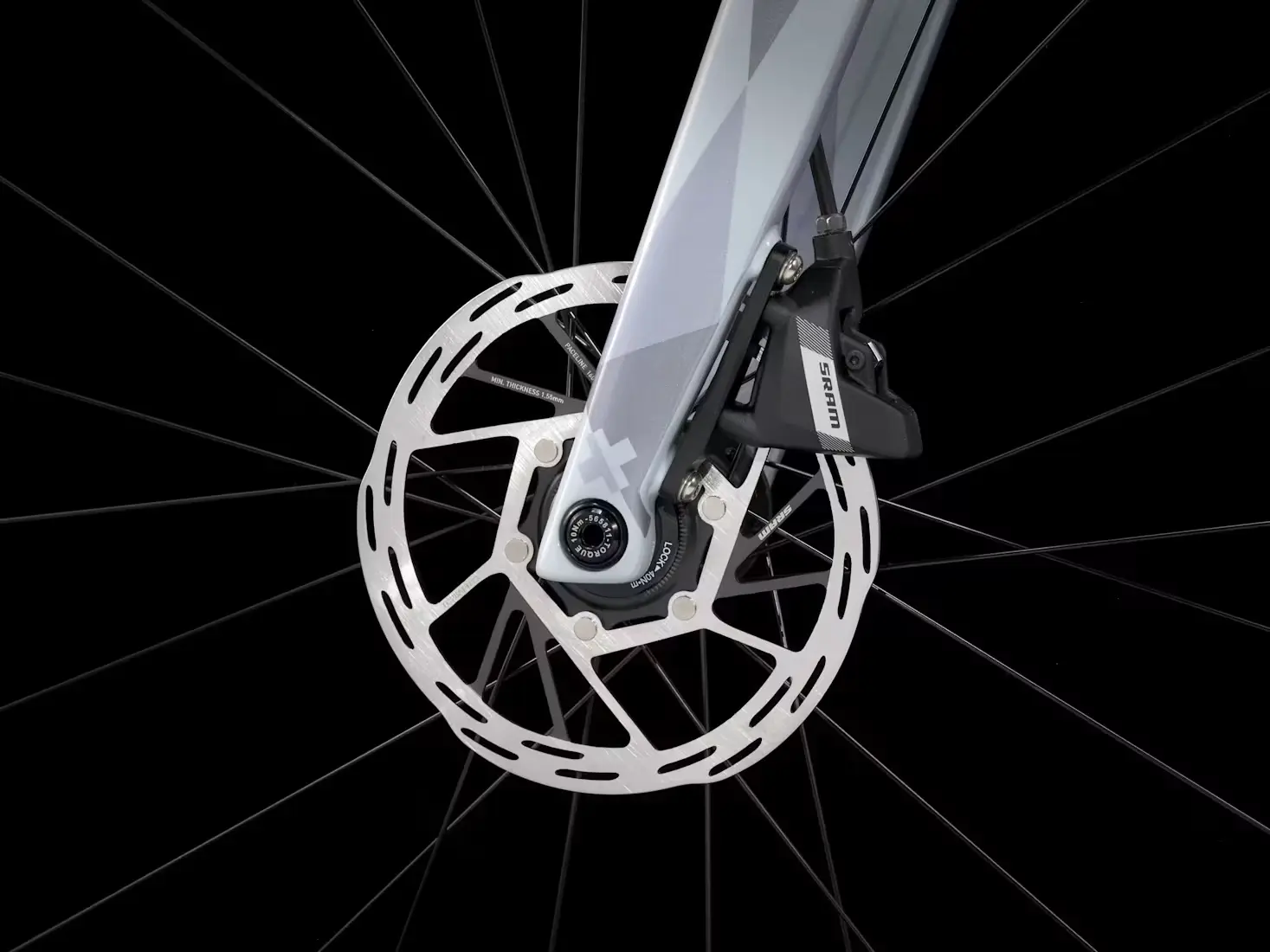

Brakes
Front
Front Brake
Hydraulic SRAM Apex disc, flat mount
Front Disc
Paceline SRAM , rounded, centerlock
- Diameter
- 160 mm
Rear
Rear Brake
Hydraulic SRAM Apex disc, flat mount
Rear Disc
Paceline SRAM , rounded, centerlock
- Diameter
- 160 mm

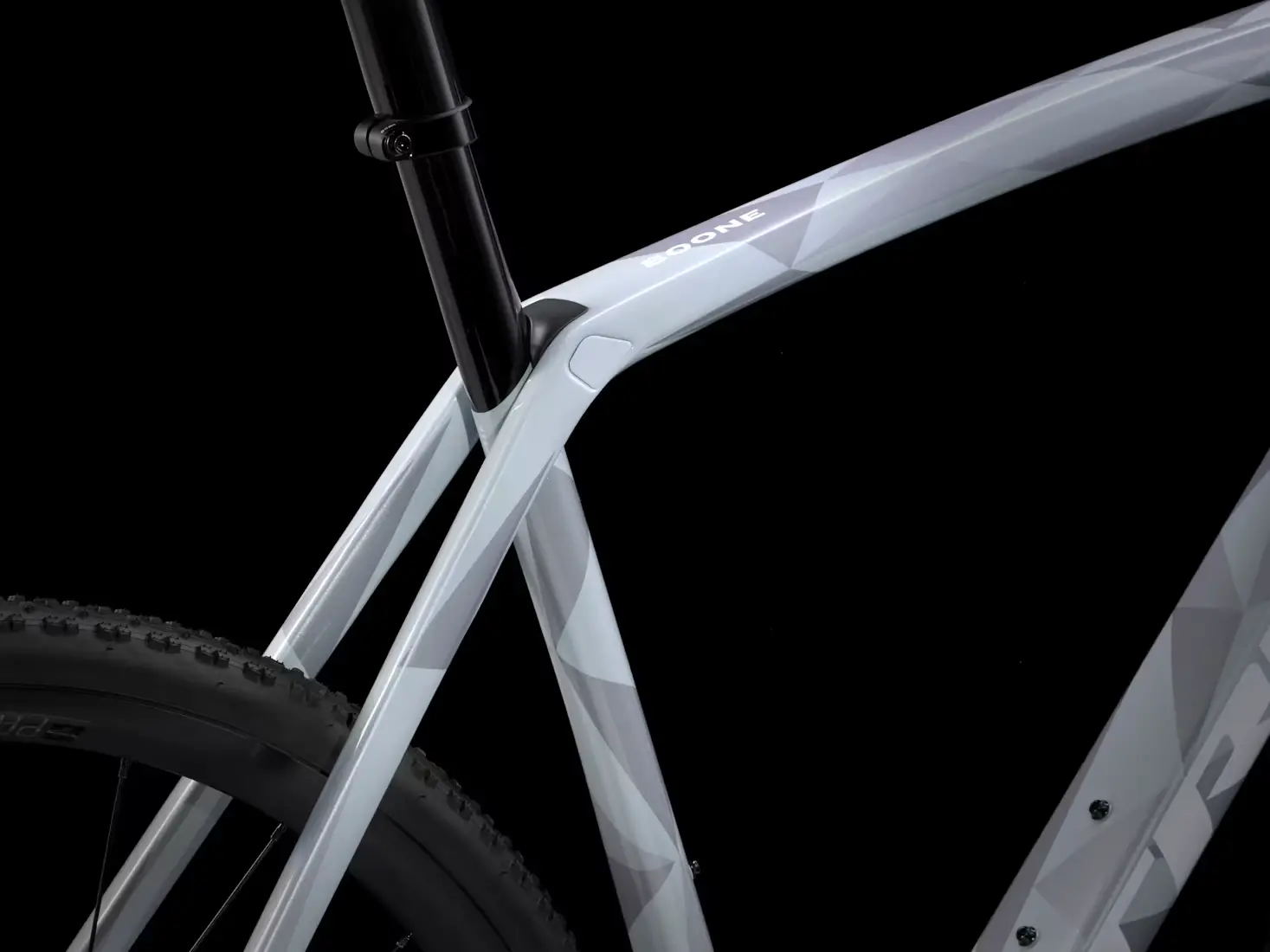

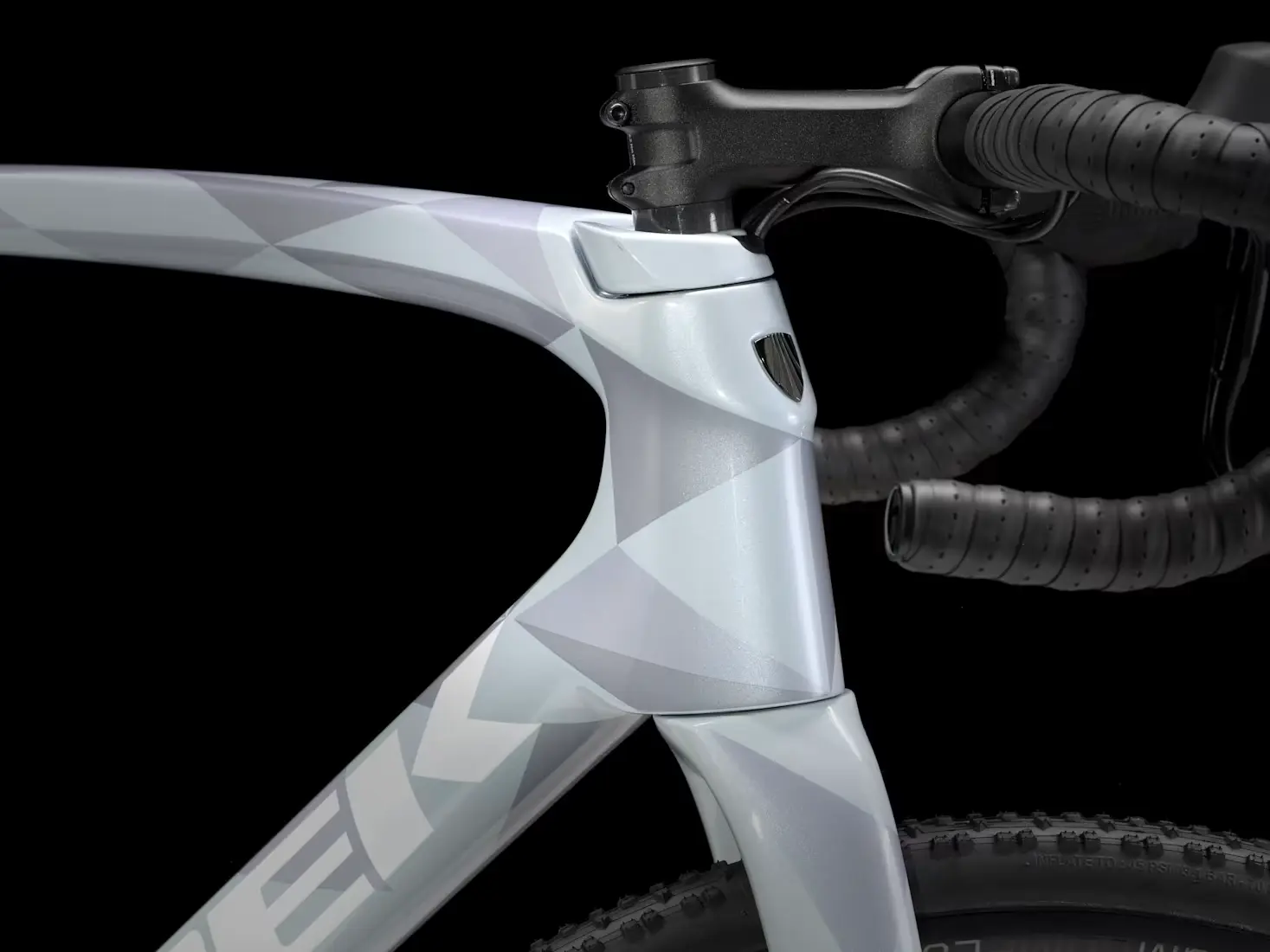

Frame
Frame
Series 600 OCLV , IsoSpeed
- Rear Axle Dimension
- 142x12mm
- Material
- Carbon
Fork
Trek Cross, full carbon, tapered carbon steerer
- Front Axle Dimension
- 12x100mm
- Steer tube diameter
- 1-1/8'' to 1.5''

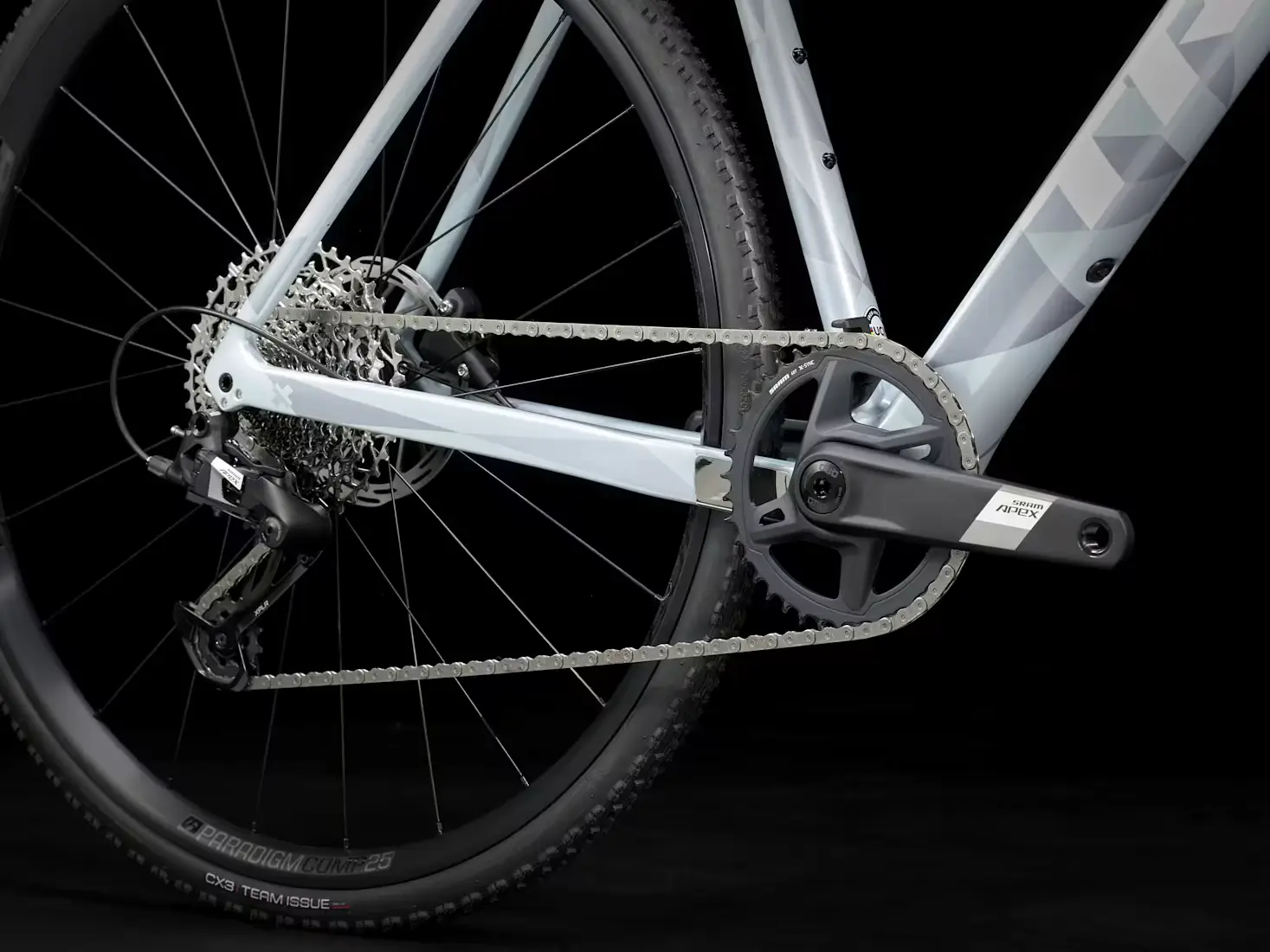

Drivetrain
Rear Derailleur
SRAM Apex XPLR, 44T max cog
- Gears
- 12
Rear Shifter
SRAM Apex, 12 speed
Crank
SRAM Apex 1, DUB Wide
- Length
- 165
Bottom Bracket
Threaded SRAM DUB Wide, , internal bearing
- Standard
- T47
Chainring
SRAM Apex 1
Cassette
SRAM XPLR PG-1231
Chain
SRAM Apex
Seat
Saddle
Rail Verse Short Comp, steel s, 155mm width
Seatpost
Bontrager seatmast cap, 5mm offset, short length
- Material
- Carbon
