Santa Cruz

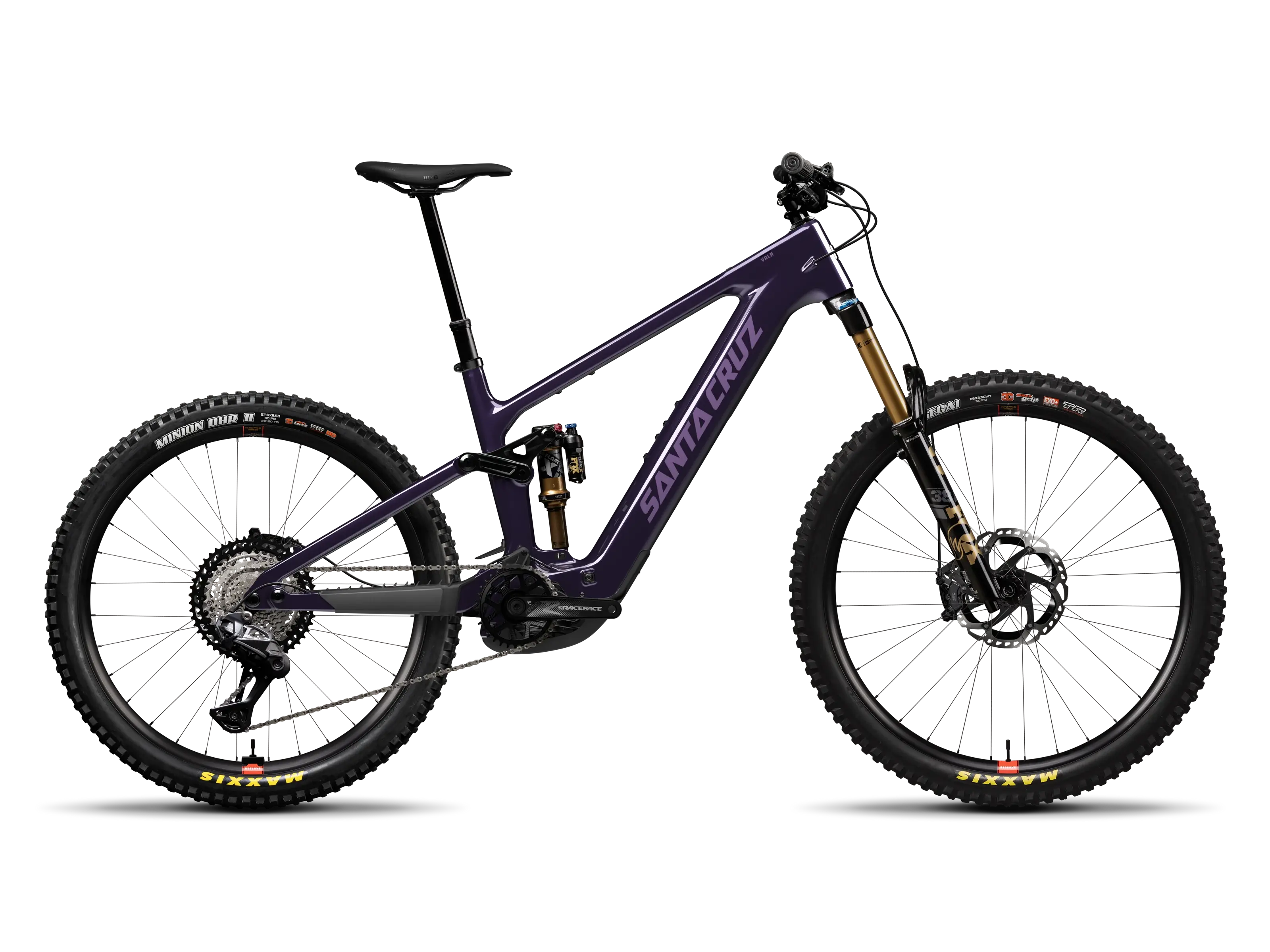

Vala XT Di2

2026 ElectricE-Mountain - E-All-Mountain
Vala XT Di2 Data
MSRP
USD 11299.00
Frame
Carbon C
Suspension
Fully, Full Suspension
Travel
Front: 160mm, Rear: 151mm
Gears
12
Weight
21450 kg
Sizes
S, M, L, Xl, Xxl
Colors
Gloss Deep Purple
EAN
58-26303-463-3-920-254201-01
View on Santa Cruz

Looking for replacement tires?

View verified compatible tires for the 2026 Vala XT Di2.

Compare Upgrades

Components

Complete component specification list for this variant.

Seat

Seatpost Clamp
Santa Cruz Seat Collar
Seatpost Clamp
Weight
31.8 g
Seatpost
OneUp Dropper Post
Seatpost
Diameter
31.6 mm
Dropper post
1
Saddle
WTB Silverado Medium Fusion
Saddle
Gender
Unisex

Cockpit

Grips
Santa Cruz Bicycles House Grips
Grips
Stem
OneUp Enduro Stem
Stem
Length
42 mm
Clamping diameter
35 mm
Handlebar
Santa Cruz Carbon Bar

Accessories

Chainguard
OneUp Chainguide
Chainguard

Wheels

Front
Front Wheel
DT Swiss 350, / Reserve |HD AL 6069 (15x110)
Front Wheel
Axle Dimension
15x110
Inner width
30 mm
Material
Aluminum 6069
Position
front
Front Tire
Maxxis Assegai
Rear
Rear Wheel
DT Swiss 350 DEG, / Reserve |HD AL 6069 (12x148)
Back Wheel
Axle Dimension
12x148
Inner width
30 mm
Material
Aluminum 6069
Position
back
Rear Tire
Maxxis Minion DHRII (27.5", 2.5")
Back Tire
Size
27.5"
Width
2.5"

Brakes

Front
Front Brake
Shimano XT 8220
Front Brake
Front Disc
Shimano MT905
Front Disc
Diameter
203 mm
Rear
Rear Brake
Shimano XT 8220
Back Brake
Rear Disc
Shimano MT905
Back Disc
Diameter
203 mm

Frame

Frame
MX 4-Bar
Frame
Rear Axle Dimension
12x148 mm
Tyre clearance
2.5 65
Material
Carbon C
Rear Shock
FACT FOX Float X ory
Rear Shock
Travel
151 mm
Fork
FACT FOX 38 ory, Grip X2
Fork
Travel
160 mm
Front Axle Dimension
15x110
Offset
44 mm

Drivetrain

Motor
Performance Bosch CX BDU38
Motor
Battery
Bosch PowerTube Battery Wh
Battery
Capacity
600 Wh
Display
CONTROL Bosch TT System ler / Mini Remote
Display
Rear Derailleur
Shimano 26 Deore XT M8260 Di2 SGS
Back Derailleur
Gears
12
Rear Shifter
Shimano Deore XT M8250 Shift Switch
Back Shifter
Cassette
Shimano XT 8200
Cassette
Number of sprockets
12
Range
10-51t
Chain
Shimano XT 8100
Chain
Gears
12
Crank
Face Aeffect R
Crank
Length
160
Bottom Bracket
N/A N/A
Bottom bracket
Standard
EMTB
