Santa Cruz

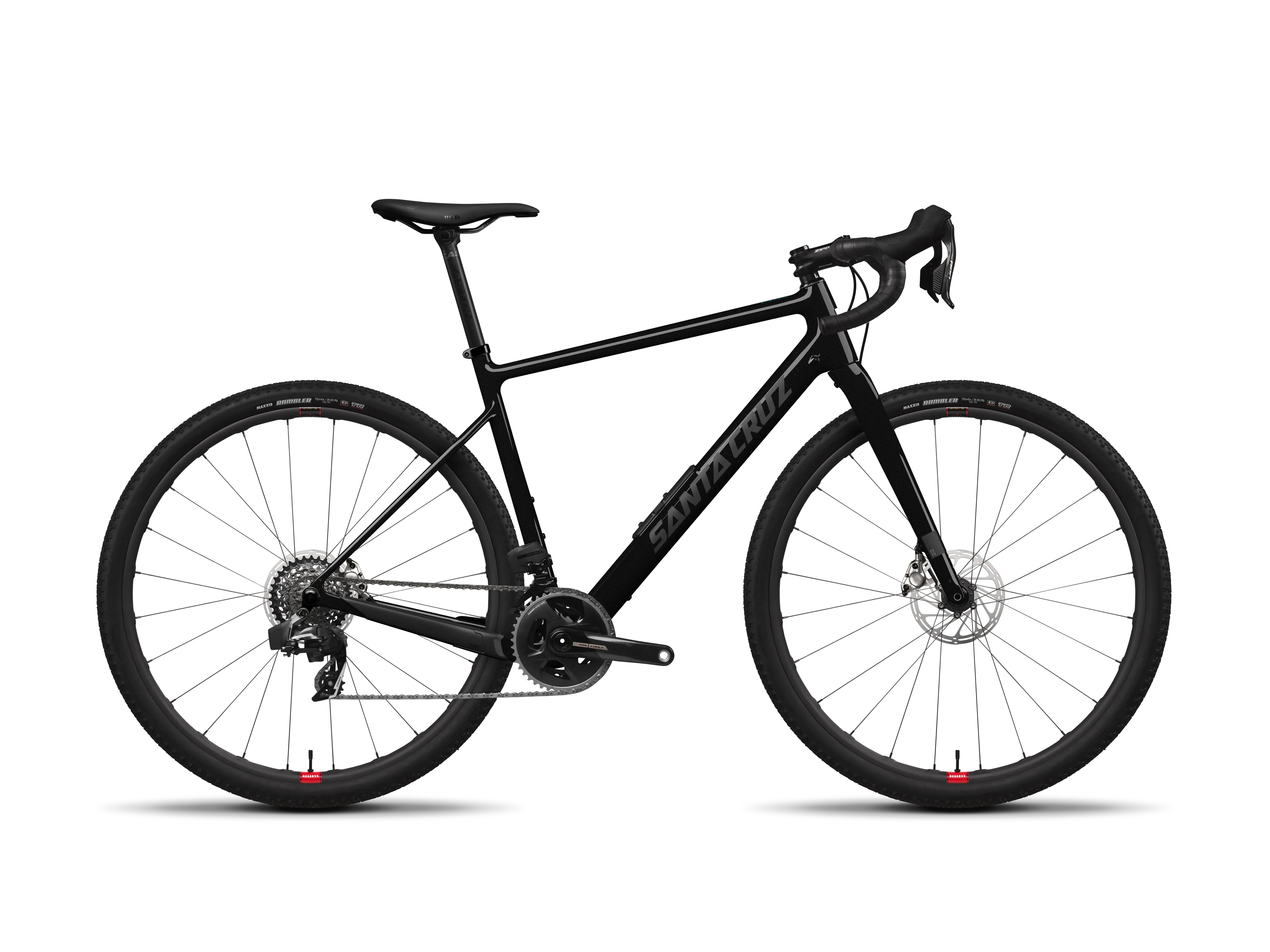

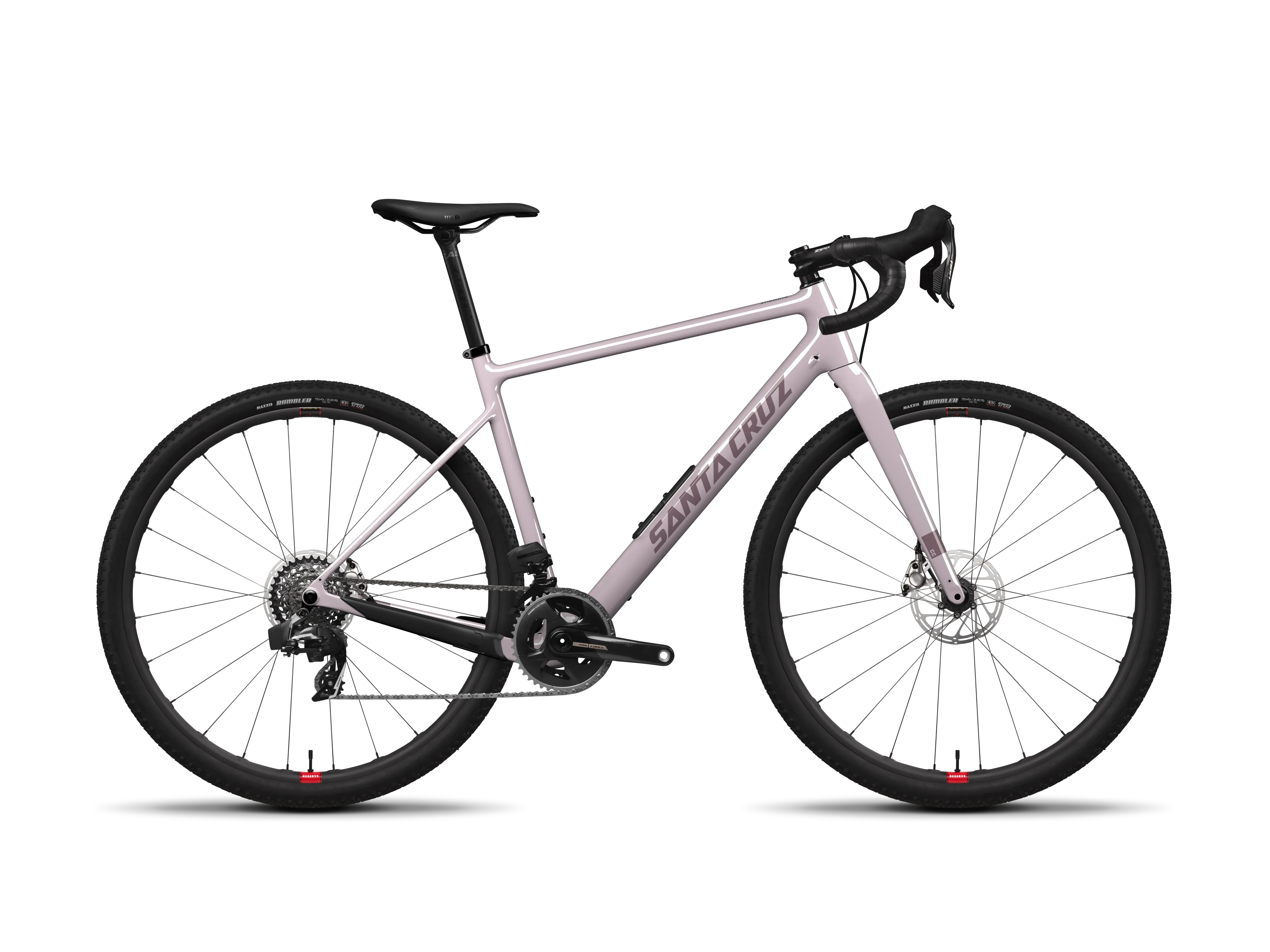

Stigmata RF 2x RSV
2025Gravel
Stigmata RF 2x RSV Data
- MSRP
- EUR 7499.00
- Frame
- Carbon CC
- Suspension
- None, Hardtail
- Gears
- 24
- Weight
- 8.48 kg
- Sizes
- S, M, L, Xl, Xs, Xxl
- Colors
- Gloss Black Sparkle, Gloss Purple Granite
- EAN
- 58-25290-445-1-853-000002
Looking for replacement tires?
View verified compatible tires for the 2025 Stigmata RF 2x RSV.
Components
Complete component specification list for this variant.
Brakes
Front
Front Disc
Centerline Avid
- Diameter
- 160 mm
Front Brake
SRAM Force AXS
Rear
Rear Disc
Centerline Avid
- Diameter
- 160 mm
Rear Brake
SRAM Force AXS
Cockpit
Stem
Zipp Service Course Stem
- Length
- 70 mm
Grips
Velo Bar Tape
Handlebar
Zipp Service Course SL-70 XPLR Bar
- Clamping diameter
- 31.8 mm
Seat
Seatpost
Easton EC70
- Length
- 350 mm
- Diameter
- 27.2 mm
- Material
- Carbon
Saddle
WTB Silverado Fusion
Wheels
Front
Front Tire
Maxxis Rambler, DC, EXO (700C, 45c)
- Size
- 700C
- Width
- 45c
Front Wheel
DT Swiss Reserve 25|GR / 350 (700C, 12x100 mm)
- Size
- 700C
- Axle Dimension
- 12x100 mm
- Rotor mount
- Centerlock
- Material
- Carbon
Rear
Rear Tire
Maxxis Rambler, DC, EXO (700C, 45c)
- Size
- 700C
- Width
- 45c
Rear Wheel
DT Swiss Reserve 25|GR / 350 (700C, 12x142 mm)
- Size
- 700C
- Axle Dimension
- 12x142 mm
- Rotor mount
- Centerlock
- Material
- Carbon
Drivetrain
Front
Front Derailleur
SRAM Force Wide eTap AXS
- Gears
- 2
Front Shifter
SRAM Red AXS
Rear
Rear Derailleur
SRAM Force AXS
Rear Shifter
SRAM Red AXS
Chainring
SRAM Force Wide
- Gears
- 2
- Ring 1
- 43 Teeth
- Ring 2
- 30 Teeth
Cassette
SRAM XG70
- Number of sprockets
- 12
- Range
- 10-36t
Crank
SRAM Force Wide
Bottom Bracket
SRAM DUB Road Wide
- Standard
- BSA Threaded 68mm
Chain
SRAM Force
Frame
Frame
Stigmata Carbon CC
- Rear Axle Dimension
- 12x142 mm
- Tyre clearance
- 45 65
- Material
- Carbon CC
Fork
Stigmata Carbon Fork
- Travel
- 0 mm
- Front Axle Dimension
- 12x100 mm
- Offset
- 45 mm
Accessories
Charger
Power SRAM eTap pack 2 Battery & Charger
