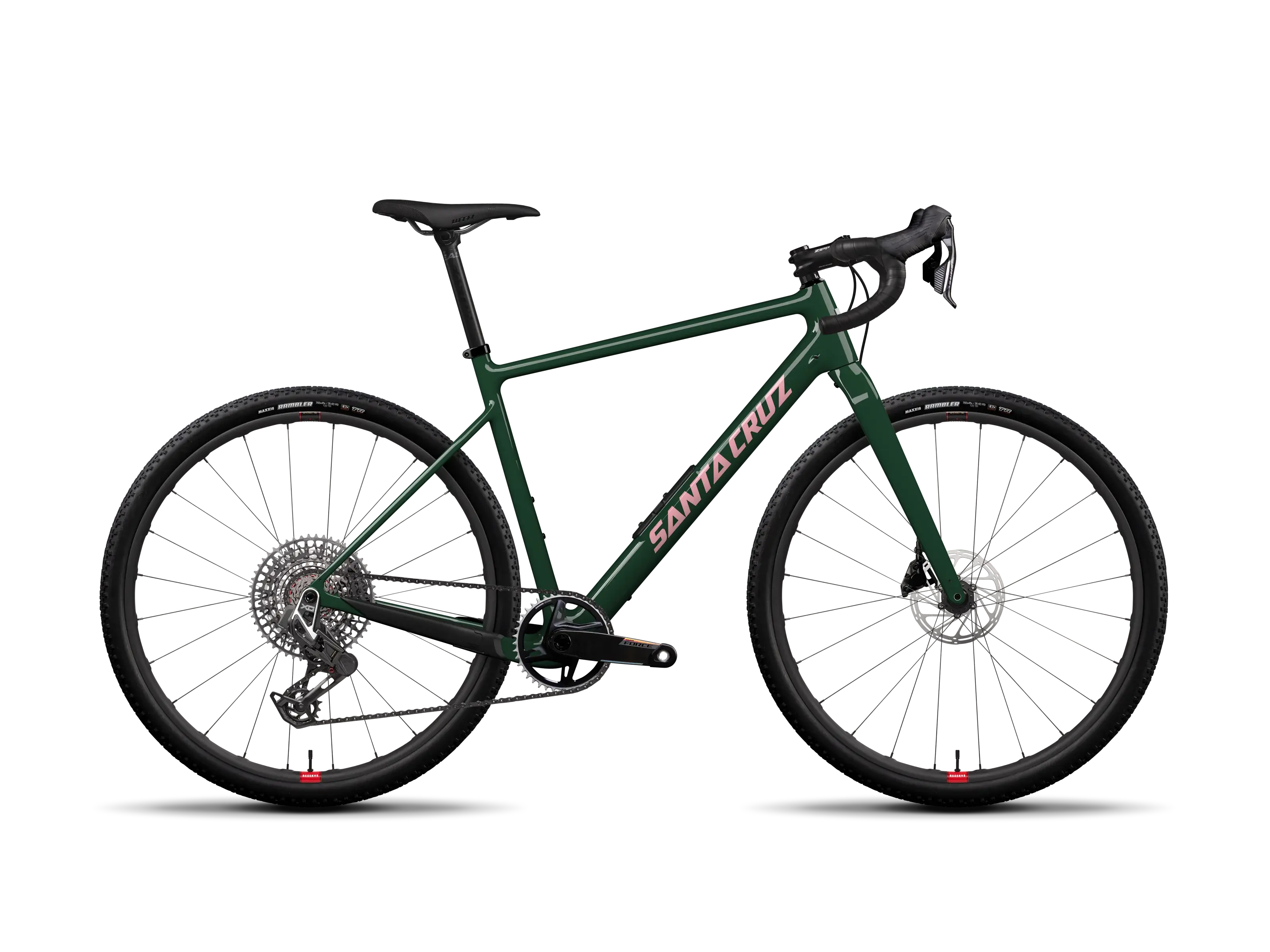

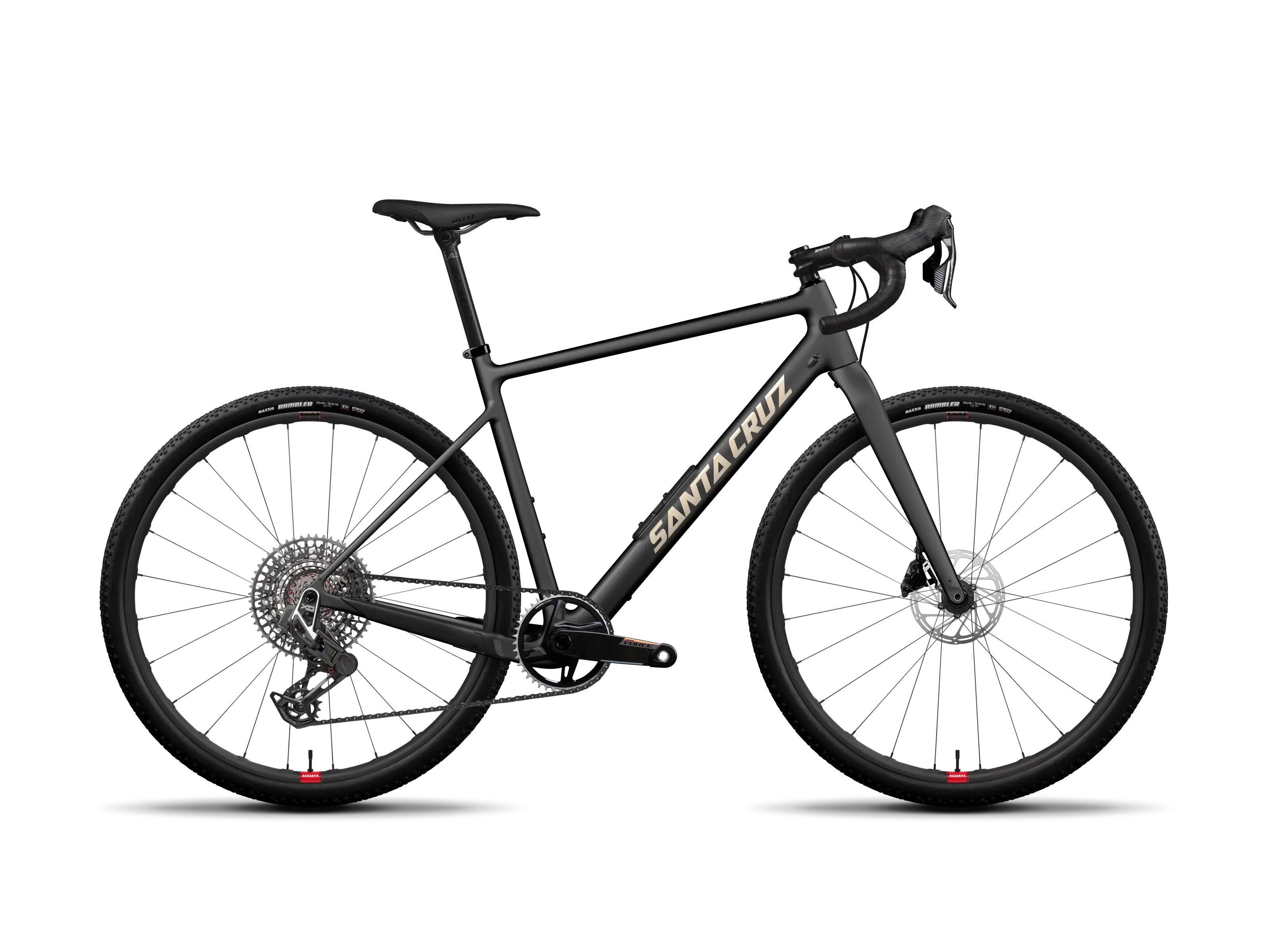

Santa Cruz
Stigmata Force 1x AXS RSV
2026Gravel
Stigmata Force 1x AXS RSV Data
- MSRP
- EUR 6799.00
- Frame
- Carbon CC
- Suspension
- None
- Gears
- 12
- Weight
- 8.68 kg
- Sizes
- S, M, L, Xl, Xs, Xxl
- Colors
- Matte Carbon, British Racing Green
- EAN
- 58-26290-414-1-909-000002
Looking for replacement tires?
View verified compatible tires for the 2026 Stigmata Force 1x AXS RSV.
Components
Complete component specification list for this variant.
Drivetrain
Rear Derailleur
SRAM X0 Eagle AXS T-Type
- Gears
- 12
Chain
SRAM X0 Eagle T-Type, Flattop
- Gears
- 12
Bottom Bracket
SRAM DUB 68mm Road Wide BB
- Standard
- Threaded 68mm
Cassette
SRAM X0 95 Eagle T-Type
- Number of sprockets
- 12
- Range
- 10-52t
Crank
SRAM Force XPLR
Rear Shifter
SRAM Force AXS
Seat
Saddle
WTB Silverado Medium Fusion, CroMo SL
Seatpost
Easton EC70, Zero Offset
- Length
- 350 mm
- Diameter
- 27.2 mm
- Material
- Carbon
Accessories
Charger
Power SRAM eTap pack 1 Battery & Charger
Cockpit
Stem
Zipp Service Course Stem
- Length
- 70 mm
Grips
Velo Bar Tape
Handlebar
Zipp Service Course SL-70 XPLR Bar
- Clamping diameter
- 31.8 mm
Wheels
Front
Front Tire
Maxxis Rambler, DC, EXO (700c, 45c)
- Size
- 700c
- Width
- 45c
Front Wheel
DT Swiss Reserve |GR / 350 (700c, 12x100 mm)
- Size
- 700c
- Axle Dimension
- 12x100 mm
- Rotor mount
- Centerlock
- Inner width
- 25 mm
- Material
- Carbon
- Position
- front
Rear
Rear Tire
Maxxis Rambler, DC, EXO (700c, 45c)
- Size
- 700c
- Width
- 45c
Rear Wheel
DT Swiss Reserve |GR / 350 (700c, 12x142 mm)
- Size
- 700c
- Axle Dimension
- 12x142 mm
- Rotor mount
- Centerlock
- Inner width
- 25 mm
- Material
- Carbon
- Position
- back
Frame
Frame
Santa Cruz Gravel
- Rear Axle Dimension
- 12x142 mm
- Tyre clearance
- 50 65
- Material
- Carbon CC
Fork
Carbon
Brakes
Front
Front Brake
SRAM Force
Front Disc
SRAM Centerline
Rear
Rear Brake
SRAM Force
Rear Disc
SRAM Centerline
