Santa Cruz

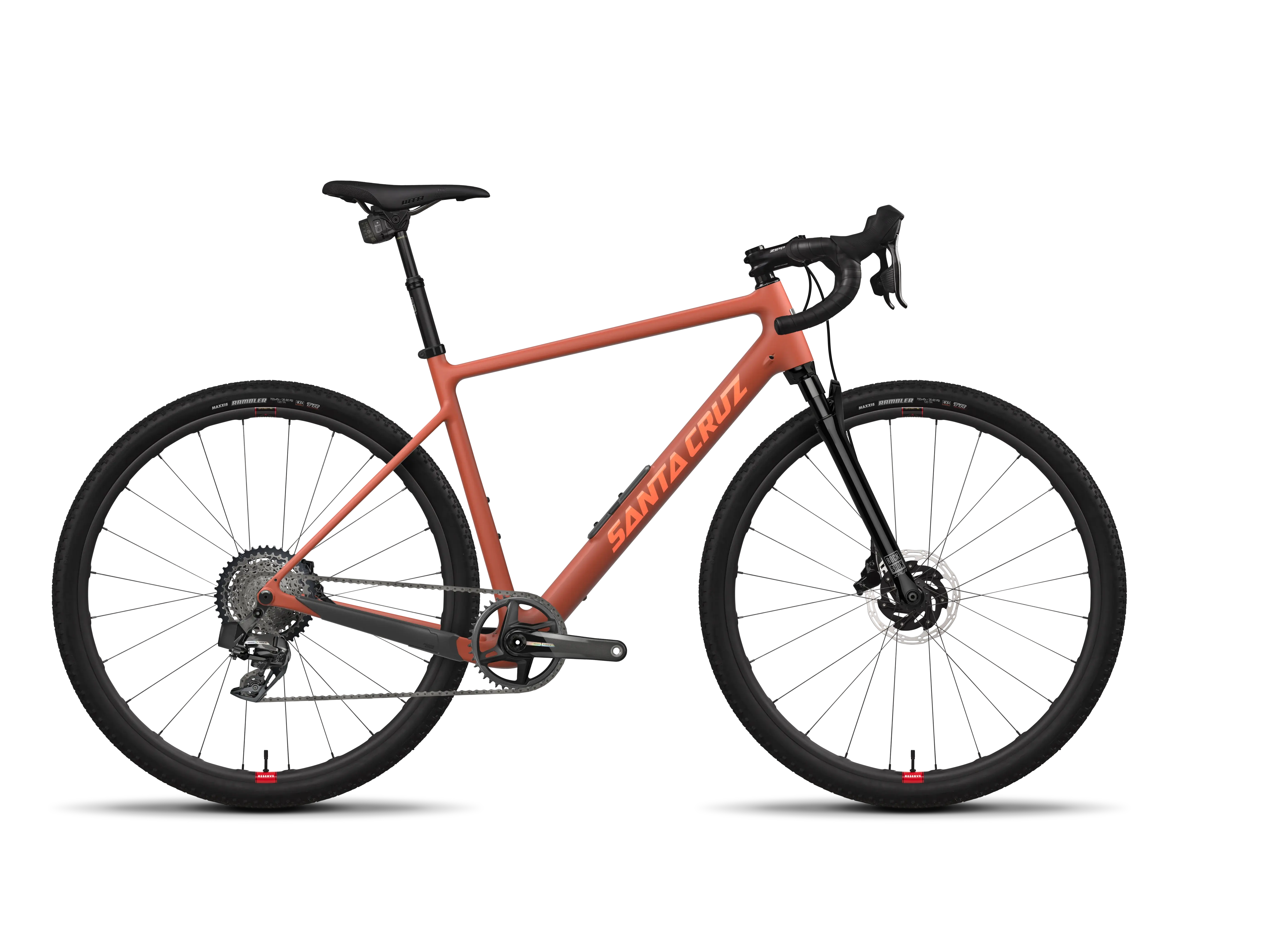

Stigmata 2024 Stigmata Force 1x AXS RSV
2026Gravel
Stigmata 2024 Stigmata Force 1x AXS RSV Data
- MSRP
- EUR 8299.00
- Frame
- Carbon CC
- Suspension
- Hardtail
- Travel
- Front: 40mm
- Gears
- 12
- Weight
- 9.53 kg
- Sizes
- S, M, L, Xl, Xxl
- Colors
- Matte Brick Red
- EAN
- 58-24290-138-2-813-000002
Looking for replacement tires?
View verified compatible tires for the 2026 Stigmata 2024 Stigmata Force 1x AXS RSV.
Components
Complete component specification list for this variant.
Seat
Saddle
WTB Silverado Medium
Seatpost
RockShox Reverb AXS XPLR
- Diameter
- 27.2 mm
- Dropper post
- 1
- Travel
- 75 mm
Cockpit
Stem
Zipp Service Course Stem
- Length
- 70 mm
Grips
Velo Bar Tape
Handlebar
Zipp Service Course SL-70 XPLR Bar
- Clamping diameter
- 31.8 mm
Frame
Fork
RockShox Rudy Ultimate XPLR
- Travel
- 40 mm
- Front Axle Dimension
- 12x100
- Offset
- 45 mm
Frame
Stigmata Carbon CC
- Rear Axle Dimension
- 12x142 mm
- Tyre clearance
- 50 65
- Material
- Carbon CC
Drivetrain
Front
Front Shifter
SRAM Force AXS
Rear
Rear Shifter
SRAM Force AXS
Bottom Bracket
SRAM DUB 68mm Road Wide BB
- Standard
- 68mm Threaded
Cassette
SRAM XG-71 XPLR
- Number of sprockets
- 12
- Range
- 10-44t
Rear Derailleur
SRAM Force XPLR AXS
Chain
SRAM Force
Crank
SRAM Force AXS DUB
Chainring
SRAM Force
Wheels
Front
Front Wheel
DT Swiss Reserve |GR with 350 Hub (700C, 12x100)
- Size
- 700C
- Axle Dimension
- 12x100
- Rotor mount
- Centerlock
- Inner width
- 25 mm
- Material
- Carbon
- Position
- Front
Front Tire
Maxxis Rambler, DC, EXO, TR (700c, 45c)
- Size
- 700c
- Width
- 45c
Rear
Rear Wheel
DT Swiss Reserve |GR with 350 Hub (700C, 12x142)
- Size
- 700C
- Axle Dimension
- 12x142
- Rotor mount
- Centerlock
- Inner width
- 25 mm
- Material
- Carbon
- Position
- Back
Rear Tire
Maxxis Rambler, DC, EXO, TR (700c, 45c)
- Size
- 700c
- Width
- 45c
Brakes
Front
Front Brake
SRAM Force AXS
Front Disc
SRAM CLX R
Rear
Rear Brake
SRAM Force AXS
Rear Disc
SRAM CLX R
Accessories
Charger
SRAM eTap Powerpack
