Santa Cruz

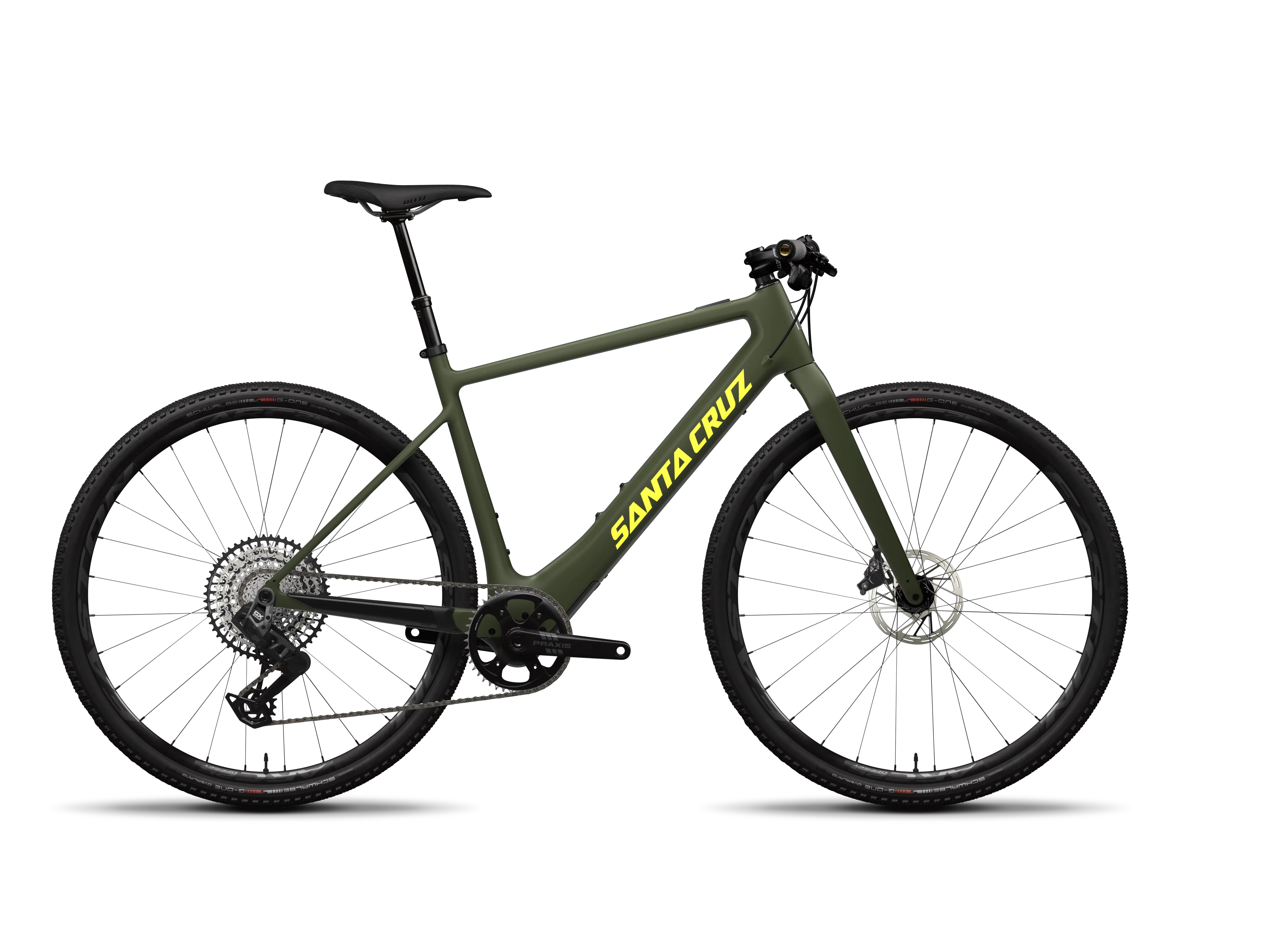

Skitch GX AXS Flat Bar 2024
2026 ElectricE-City & Touring - E-Commuter
Skitch GX AXS Flat Bar 2024 Data
- MSRP
- USD 8149.00
- Frame
- Carbon CC
- Suspension
- None
- Gears
- 12
- Weight
- 13.67 kg
- Sizes
- S, M, L, Xl, Xxl
- Colors
- Matte Olive Green
- EAN
- 58-24300-195-2-826-000001-01
Looking for replacement tires?
View verified compatible tires for the 2026 Skitch GX AXS Flat Bar 2024.
Components
Complete component specification list for this variant.
Brakes
Front
Front Brake
SRAM Level Silver Stealth 4 Piston
Front Disc
SRAM Paceline
Rear
Rear Brake
SRAM Level Silver Stealth 4 Piston
Rear Disc
SRAM Paceline
Drivetrain
Chain
SRAM GX Eagle T-Type
- Gears
- 12
Rear Derailleur
SRAM GX Eagle AXS T-Type
- Gears
- 12
Rear Shifter
Bridge SRAM AXS Pod
Cassette
SRAM GX Eagle T-Type
- Number of sprockets
- 12
- Range
- 10-52t
Motor
Fazua Ride60
Battery
Integrated Fazua Wh Battery
- Capacity
- 430 Wh
Crank
Axis Pr eTor AL
Display
Fazua LED Hub
Cockpit
Handlebar
SRAM Atmos Flat Bar
- Width
- 760 mm
- Clamping diameter
- 31.8 mm
Grips
ESI Chunky Grips
Stem
SRAM Atmos Stem
- Length
- 80 mm
Seat
Saddle
WTB Silverado Medium, CroMo
Seatpost
OneUp V2 Dropper Post
- Diameter
- 27.2 mm
- Dropper post
- 1
Seatpost Clamp
Seat 31.8 Collar
Wheels
Front
Front Wheel
DT Swiss Easton ARC Offset / 370 (700C, 12x100)
- Size
- 700C
- Axle Dimension
- 12x100
- Rotor mount
- Centerlock
- Inner width
- 25 mm
- Material
- Aluminum
Front Tire
Schwalbe G-One Overland Evo, ADDIX SpeedGrip (700C, 45c)
- Size
- 700C
- Width
- 45c
Rear
Rear Wheel
DT Swiss Easton ARC Offset / 370 (700C, 12x148)
- Size
- 700C
- Axle Dimension
- 12x148
- Rotor mount
- Centerlock
- Inner width
- 25 mm
- Material
- Aluminum
Rear Tire
Schwalbe G-One Overland Evo, ADDIX SpeedGrip (700C, 45c)
- Size
- 700C
- Width
- 45c
Frame
Frame
Skitch Carbon CC
- Rear Axle Dimension
- 12x148 mm
- Tyre clearance
- 50 65
- Material
- Carbon CC
Fork
Carbon
Accessories
Charger
Fazua Charger
