Santa Cruz

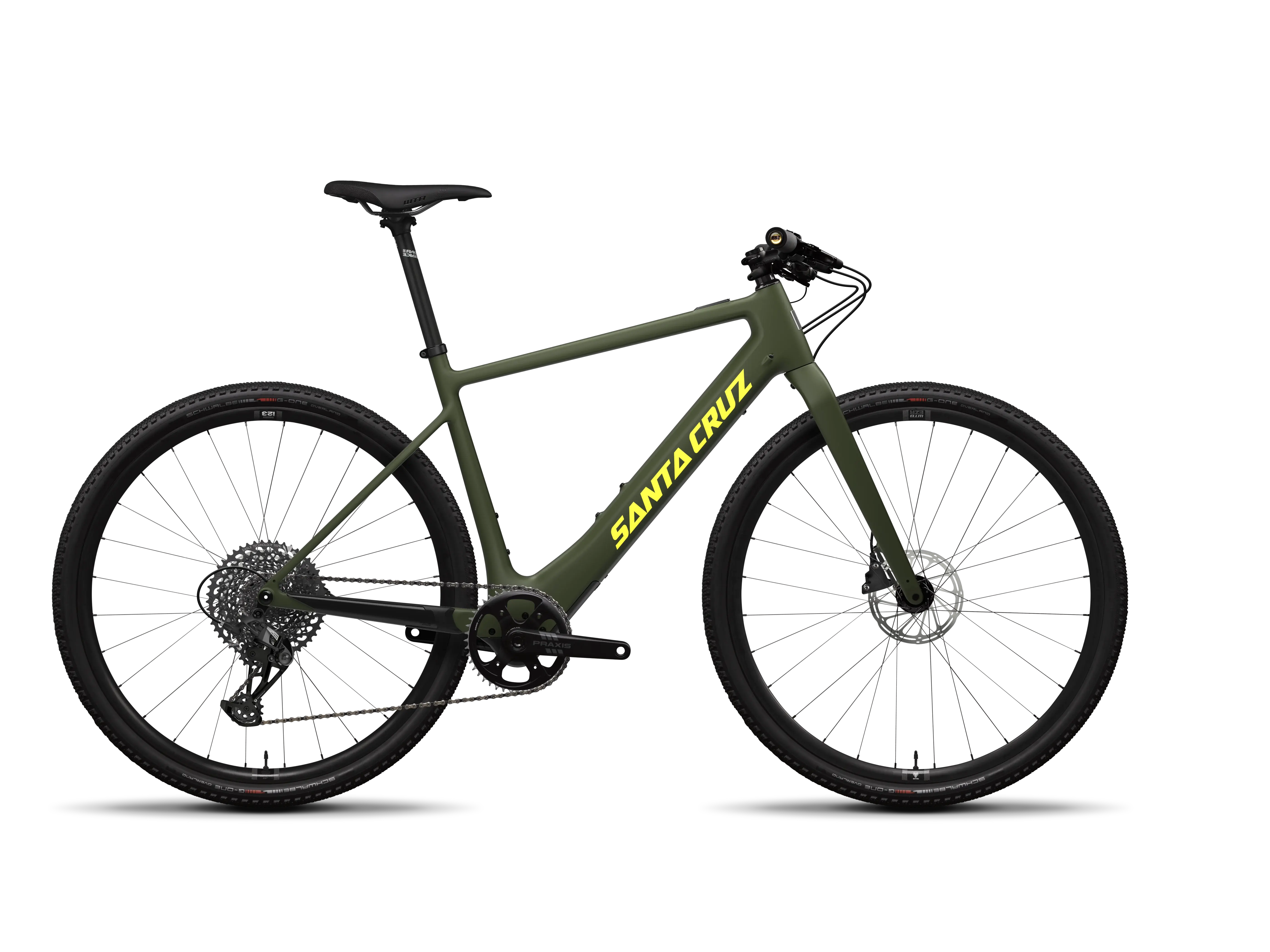

Skitch Apex Flat Bar 2024
2026 ElectricE-City & Touring - E-Commuter
Skitch Apex Flat Bar 2024 Data
- MSRP
- USD 6499.00
- Frame
- Carbon CC
- Suspension
- None, Hardtail
- Gears
- 12
- Weight
- 13.53 kg
- Sizes
- S, M, L, Xl, Xxl
- Colors
- Matte Olive Green
- EAN
- 58-24300-193-2-826-000001-01
Looking for replacement tires?
View verified compatible tires for the 2026 Skitch Apex Flat Bar 2024.
Components
Complete component specification list for this variant.
Drivetrain
Chain
SRAM SX Eagle™
- Gears
- 12
Cassette
SRAM XG75 Eagle
- Number of sprockets
- 12
- Range
- 10-50t
Motor
Fazua Ride60
Battery
Integrated Fazua Wh Battery
- Capacity
- 430 Wh
Crank
Axis Pr eTor AL
Rear Derailleur
SRAM Apex Eagle
- Gears
- 12
Rear Shifter
SRAM NX Eagle
Seat
Saddle
WTB Silverado Medium
Seatpost Clamp
Seat 31.8 Collar
Seatpost
Face Ride
- Diameter
- 27.2 mm
- Material
- Aluminum
Brakes
Front
Front Disc
Centerline Avid
- Diameter
- 160 mm
Front Brake
SRAM S-300
Rear
Rear Disc
Centerline Avid
- Diameter
- 160 mm
Rear Brake
SRAM S-300
Cockpit
Grips
ESI Chunky Grips
Stem
Face Ride
- Length
- 80 mm
- Material
- Aluminum
Handlebar
Face Ride
- Material
- Aluminum
Wheels
Front
Front Wheel
DT Swiss WTB EZR ip / 370 (700C, 12x100)
- Size
- 700C
- Axle Dimension
- 12x100
- Rotor mount
- Centerlock
- Inner width
- 23 mm
- Material
- Aluminum
- Position
- front
Front Tire
Schwalbe G-One Overland Evo
Rear
Rear Wheel
DT Swiss WTB EZR ip / 370 (700C, 12x148)
- Size
- 700C
- Axle Dimension
- 12x148
- Rotor mount
- Centerlock
- Inner width
- 23 mm
- Material
- Aluminum
- Position
- back
Rear Tire
Schwalbe G-One Overland Evo
Frame
Frame
Skitch Skitch CC
- Rear Axle Dimension
- 12x148 mm
- Tyre clearance
- 50 65
- Material
- Carbon CC
Fork
Skitch Carbon Fork
- Travel
- 0 mm
- Front Axle Dimension
- 12x100 mm
- Offset
- 45 mm
Accessories
Charger
Fazua Charger
