Santa Cruz

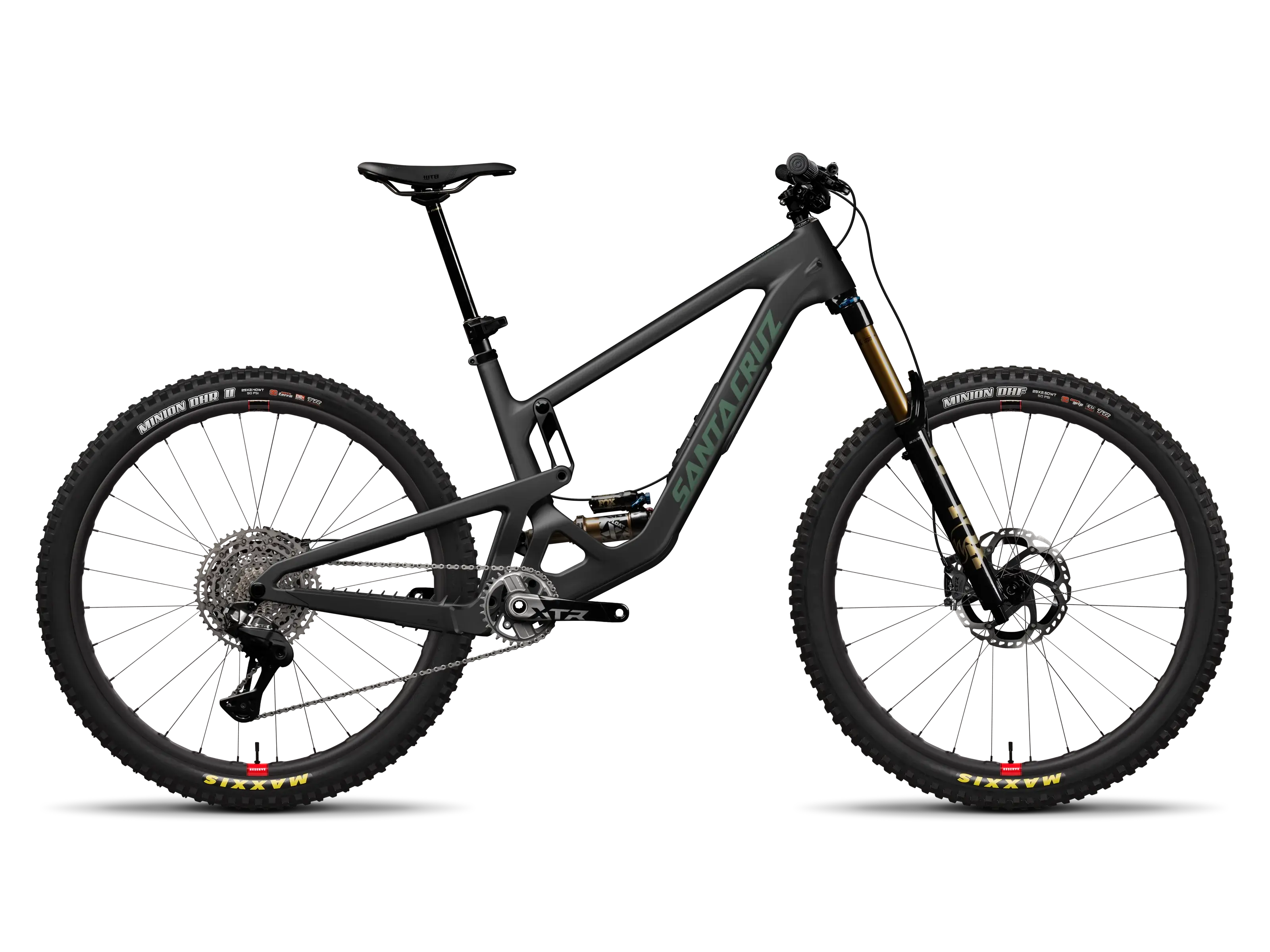

Hightower XTR RSV
2026Mountain - All-Mountain
Hightower XTR RSV Data
- MSRP
- USD 11399.00
- Frame
- Carbon CC
- Suspension
- Fully, Full Suspension
- Travel
- Front: 160mm, Rear: 150mm
- Gears
- 12
- Weight
- 14490 kg
- Sizes
- S, M, L, Xl, Xxl
- Colors
- Matte Black
- EAN
- 58-26312-123-3-902-253102
Looking for replacement tires?
View verified compatible tires for the 2026 Hightower XTR RSV.
Components
Complete component specification list for this variant.
Brakes
Front
Front Brake
Shimano XTR 9220
Front Disc
Shimano MT905
- Diameter
- 203 mm
Rear
Rear Brake
Shimano XTR 9220
Rear Disc
Shimano MT905
- Diameter
- 180 mm
Wheels
Front
Front Tire
Maxxis Minion DHF (29", 2.5")
- Size
- 29"
- Width
- 2.5"
Front Wheel
Industry Reserve 30|HD / Nine Hydra 2 (29", 15x110 mm)
- Size
- 29"
- Axle Dimension
- 15x110 mm
- Rotor mount
- 6-Bolt
- Material
- Carbon
Rear
Rear Tire
Maxxis Minion DHR II
Rear Wheel
Industry Reserve 30|HD / Nine Hydra 2 (29", 12x148 mm)
- Size
- 29"
- Axle Dimension
- 12x148 mm
- Rotor mount
- 6-Bolt
- Material
- Carbon
Cockpit
Grips
Santa Cruz Bicycles House Grips
Stem
Industry Nine A
- Length
- 40 mm
- Clamping diameter
- 35 mm
Handlebar
Santa Cruz Carbon Bar
Seat
Saddle
WTB Silverado Medium Fusion
- Gender
- Unisex
Seatpost
RockShox Reverb AXS
- Diameter
- 31.6 mm
- Dropper post
- 1
Frame
Frame
29" VPP™
- Rear Axle Dimension
- 12x148 mm
- Tyre clearance
- 2.5 65
- Material
- Carbon CC
Rear Shock
FACT FOX Float X ory
- Travel
- 150 mm
Fork
FACT FOX 36 Float ory, Grip X2
- Travel
- 160 mm
- Front Axle Dimension
- 15x110 mm
- Offset
- 44 mm
Drivetrain
Battery
Shimano Battery DN320
Rear Derailleur
Shimano XTR Di2 M9250, SGS
- Gears
- 12
Rear Shifter
Shimano XTR M9250 Shift Switch
Cassette
Shimano XTR 9200
- Number of sprockets
- 12
- Range
- 10-51t
Chain
Shimano XTR 9100
- Gears
- 12
Crank
Shimano XTR M9220
- Length
- 170
Chainring
Shimano XTR M9220
- Ring 1
- 32 Teeth
Bottom Bracket
Threaded Shimano XTR
- Standard
- 73mm Threaded
Accessories
Charger
Shimano Charger DN100
