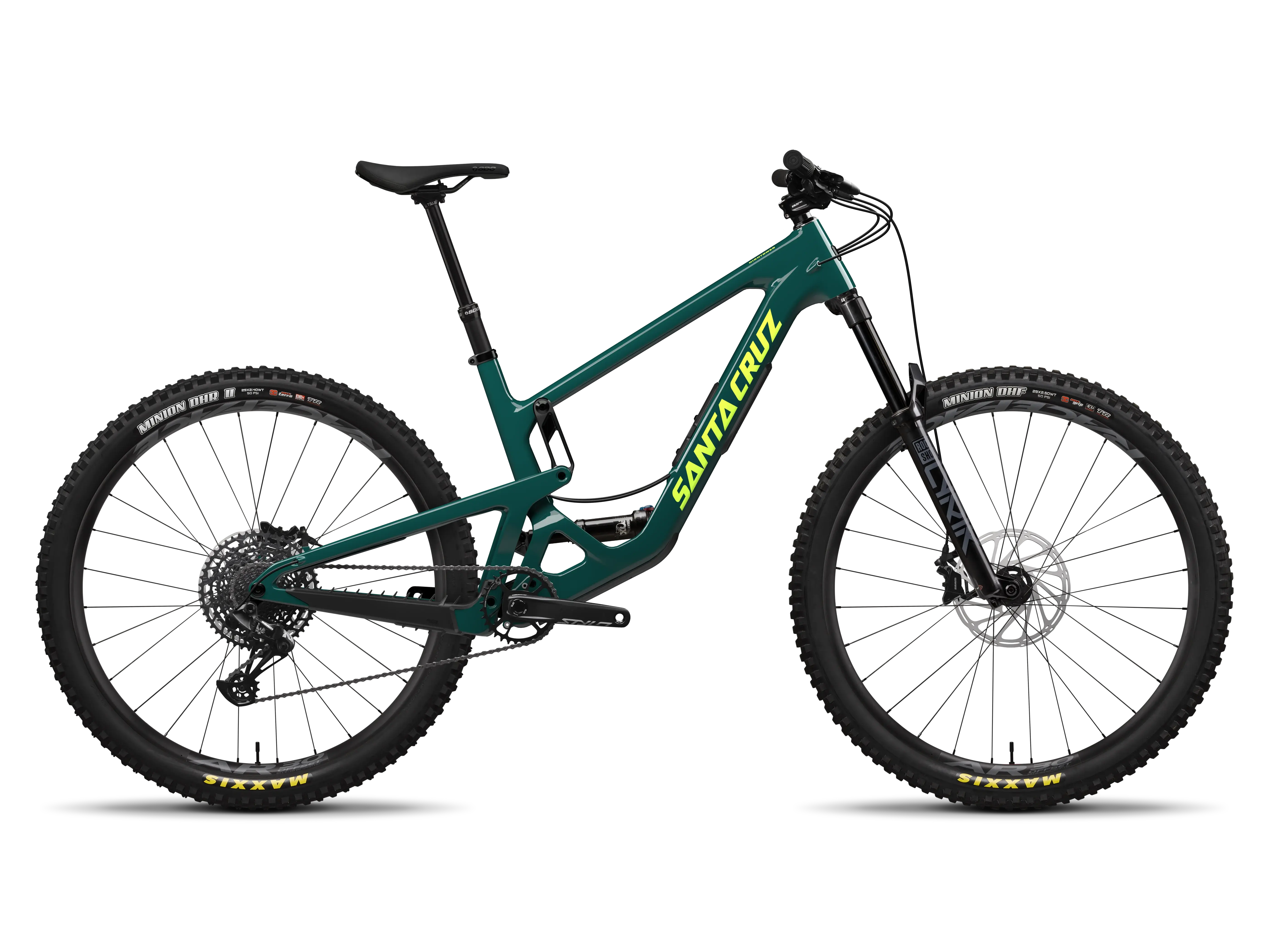

Santa Cruz
Hightower R
2025Mountain - All-Mountain
Hightower R Data
- MSRP
- EUR 5499.00
- Frame
- Carbon C
- Suspension
- Fully, Full Suspension
- Travel
- Front: 160mm, Rear: 150mm
- Gears
- 12
- Weight
- 15.62 kg
- Sizes
- S, M, L, Xl, Xxl

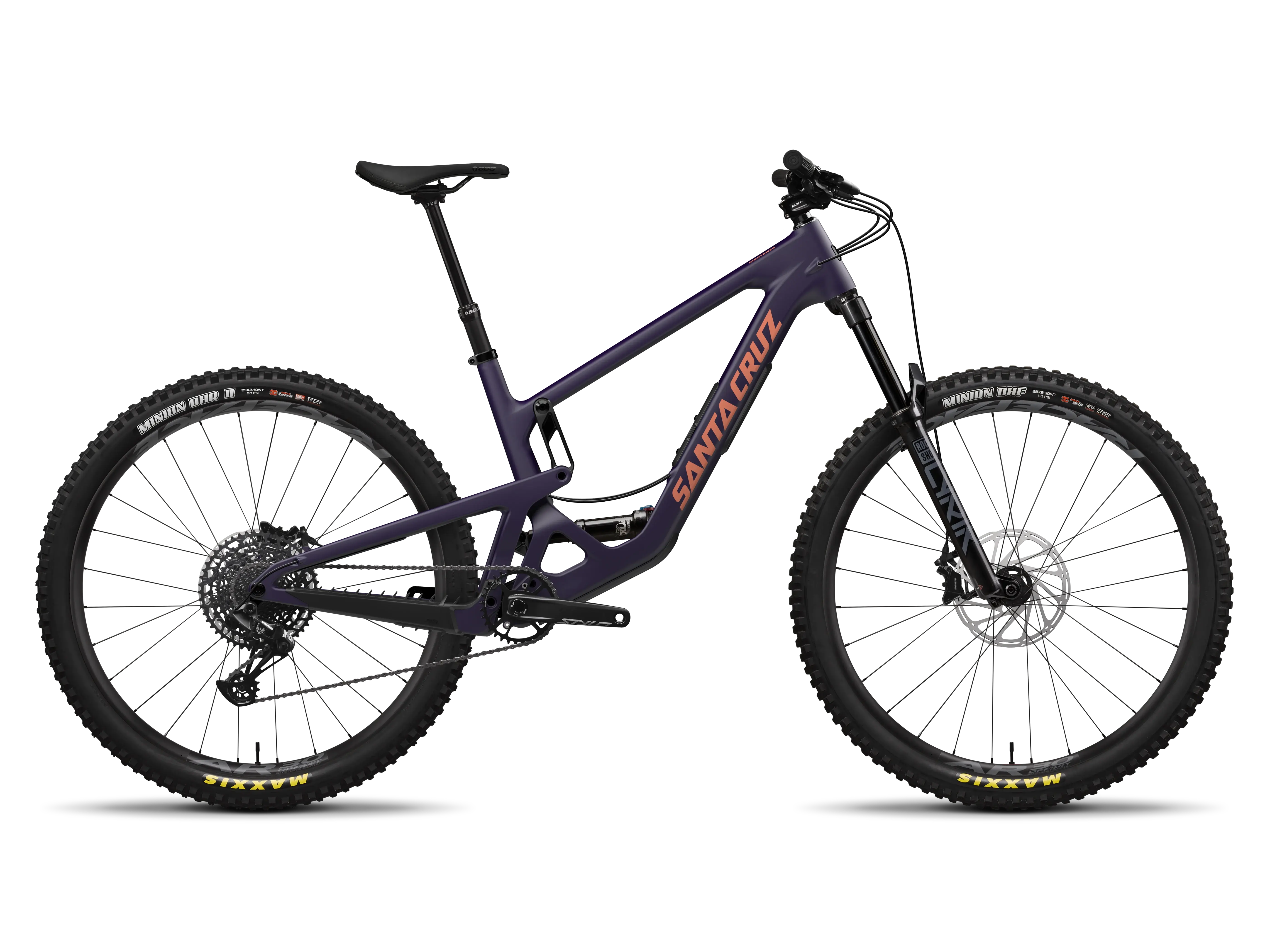

- Colors
- Gloss Day Green, Matte Deep Purple
- EAN
- 58-25311-310-2-865-693601
Looking for replacement tires?
View verified compatible tires for the 2025 Hightower R.
Components
Complete component specification list for this variant.
Drivetrain
Rear Derailleur
SRAM NX EAGLE
- Gears
- 12
Chain
SRAM NX Eagle
- Gears
- 12
Cassette
SRAM PG30
- Number of sprockets
- 12
- Range
- 11-50t
Bottom Bracket
Threaded SRAM DUB 68/73mm BB
- Standard
- Threaded
Crank
Descendant SRAM Eagle 148 DUB
Rear Shifter
SRAM NX Eagle
Chainring
SRAM Eagle
Seat
Seatpost Clamp
Santa Cruz Seat Collar
- Weight
- 31.8 g
Seatpost
SDG Tellis Dropper
- Diameter
- 31.6 mm
- Dropper post
- 1
Saddle
Fizik Monte
Cockpit
Grips
Santa Cruz Bicycles House Grips
Handlebar
Burgtec Alloy Bar
Stem
OneUp Stem
Frame
Rear Shock
Rhythm FOX Float
- Travel
- 150 mm
Frame
Hightower Carbon C
- Rear Axle Dimension
- 12x148
- Material
- Carbon C
Fork
RockShox Lyrik Base
- Travel
- 160 mm
- Front Axle Dimension
- 15x110
- Offset
- 44 mm
Wheels
Front
Front Wheel
face AR30 / SRAM MTH 716 (29, 15x110)
- Size
- 29
- Axle Dimension
- 15x110
- Rotor mount
- 6-Bolt
Front Tire
Maxxis Minion DHF (29, 2.5"WT)
- Size
- 29
- Width
- 2.5"WT
Rear
Rear Wheel
face AR30 / SRAM MTH 746 (29, 12x148)
- Size
- 29
- Axle Dimension
- 12x148
- Rotor mount
- 6-Bolt
Rear Tire
Maxxis Minion DHR II
Brakes
Front
Front Brake
SRAM DB8 Stealth
Front Disc
SRAM Centerline
Rear
Rear Brake
SRAM DB8 Stealth
Rear Disc
SRAM Centerline
