Santa Cruz

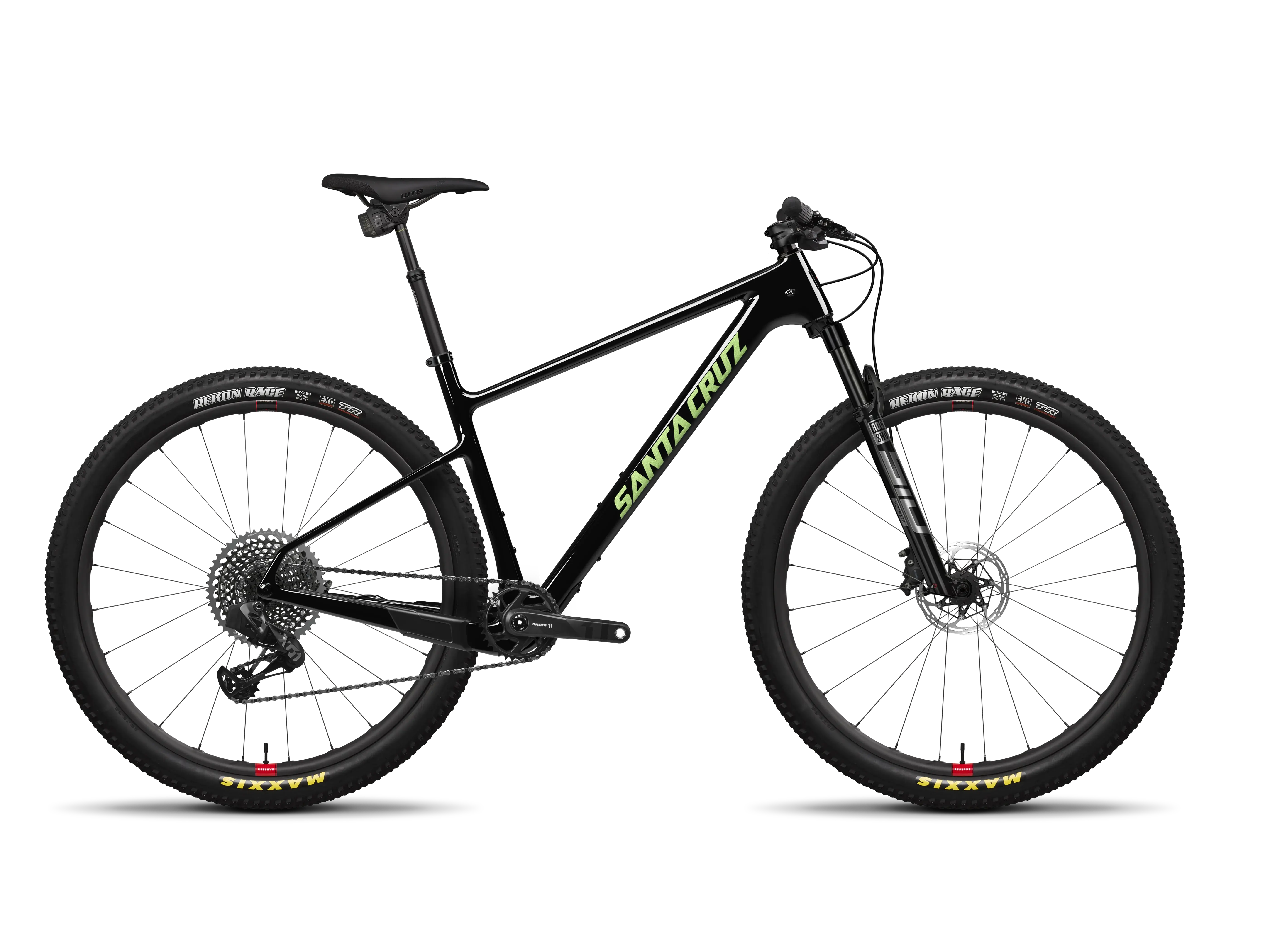

Highball X01 AXS RSV 2024

2026Mountain - Cross-Country (XC)
Highball X01 AXS RSV 2024 Data
MSRP
EUR 7399.00
Frame
Carbon CC
Suspension
Hardtail
Travel
Front: 100mm
Gears
12
Sizes
S, M, L, Xl
Colors
Gloss Black
EAN
58-24258-433-2-804-001502
View on Santa Cruz

Looking for replacement tires?

View verified compatible tires for the 2026 Highball X01 AXS RSV 2024.

Compare Upgrades

Components

Complete component specification list for this variant.

Brakes

Front
Front Brake
SRAM Level Silver Stealth 4 Piston
Front Brake
Front Disc
SRAM CLX, Centerlock
Front Disc
Diameter
160 mm
Rear
Rear Brake
SRAM Level Silver Stealth 4 Piston
Back Brake
Rear Disc
SRAM CLX, Centerlock
Back Disc
Diameter
160 mm

Wheels

Front
Front Tire
Maxxis Rekon Race EXO (29", 2.35")
Front Tire
Size
29"
Width
2.35"
Front Wheel
Industry Nine 1/1, 15x110, , 24h hub on Reserve 28|XC Rim (29", 15x110 mm)
Front Wheel
Size
29"
Axle Dimension
15x110 mm
Rotor mount
Centerlock
Material
Carbon
Rear
Rear Tire
Maxxis Rekon Race EXO (29", 2.35")
Back Tire
Size
29"
Width
2.35"
Rear Wheel
Industry Nine 1/1, 12x148, XD, , 24h hub on Reserve 28|XC Rim (29", 12x148 mm)
Back Wheel
Size
29"
Axle Dimension
12x148 mm
Rotor mount
Centerlock
Material
Carbon

Drivetrain

Front
Front Shifter
RockShox Reverb AXS Controller
Front Shifter
Rear
Rear Shifter
CONTROL SRAM GX Eagle AXS ler 2 Button
Back Shifter
Bottom Bracket
SRAM DUB 73mm MTB Wide BB
Bottom bracket
Standard
73mm Threaded
Cassette
SRAM XG75 Eagle
Cassette
Number of sprockets
12
Range
10-50t
Crank
SRAM X1 Eagle Carbon 148 DUB
Crank
Rear Derailleur
SRAM X01 Eagle AXS
Back Derailleur
Gears
12
Chain
SRAM GX Eagle

Cockpit

Grips
SRAM Grips
Grips
Handlebar
Santa Cruz Flat Bar
Handlebar
Width
760 mm
Rise
7 mm
Clamping diameter
31.8 mm
Material
Carbon
Stem
SRAM Atmos 7k
Stem
Length
60 mm
Clamping diameter
31.8 mm

Seat

Seatpost Clamp
Santa Cruz Seat Collar
Seatpost Clamp
Weight
31.8 g
Seatpost
RockShox Reverb AXS XPLR
Seatpost
Diameter
27.2 mm
Dropper post
1
Travel
75 mm
Saddle
WTB Silverado Medium, Ti
Saddle

Accessories

Charger
Power SRAM eTap pack 2 Battery
Charger

Frame

Frame
Highball Highball CC
Frame
Rear Axle Dimension
12x148 mm
Tyre clearance
2.4 65
Material
Carbon CC
Fork
RockShox SID SL Ultimate w/ Remote
Fork
Travel
100 mm
Front Axle Dimension
15x110 mm
Offset
44 mm
