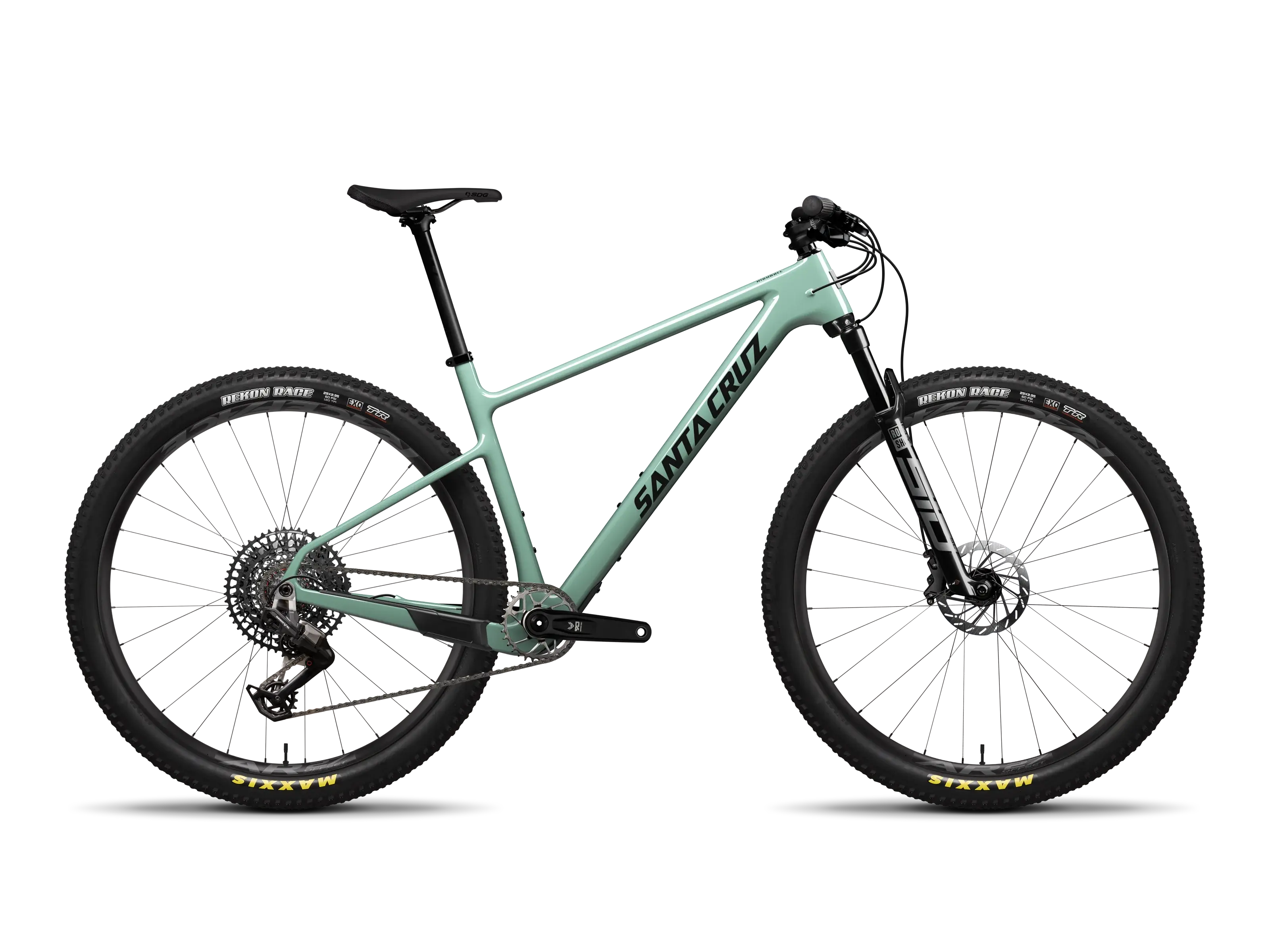

Santa Cruz
Highball 90
2026Mountain - Cross-Country (XC)
Highball 90 Data
- MSRP
- USD 4149.00
- Frame
- Carbon
- Suspension
- Hardtail
- Travel
- Front: 100mm
- Gears
- 12
- Weight
- 10950 kg
- Sizes
- S, M, L, Xl
- Colors
- Gloss Light Teal
- EAN
- 58-26257-455-2-890-001101
Looking for replacement tires?
View verified compatible tires for the 2026 Highball 90.
Components
Complete component specification list for this variant.
Wheels
Front
Front Wheel
DT Swiss RaceFace AR Offset / 370 (29", 15x110 mm)
- Size
- 29"
- Axle Dimension
- 15x110 mm
- Rotor mount
- 6-Bolt
- Inner width
- 27 mm
- Position
- front
Front Tire
Maxxis Rekon Race EXO (29", 2.35")
- Size
- 29"
- Width
- 2.35"
Rear
Rear Wheel
DT Swiss RaceFace AR Offset / 370 (29", 12x148 mm)
- Size
- 29"
- Axle Dimension
- 12x148 mm
- Rotor mount
- 6-Bolt
- Inner width
- 27 mm
- Position
- back
Rear Tire
Maxxis Rekon Race EXO (29", 2.35")
- Size
- 29"
- Width
- 2.35"
Frame
Frame
C 29" Hardtail
- Rear Axle Dimension
- 12x148 mm
- Tyre clearance
- 2.4 65
- Material
- Carbon
Fork
RockShox Sid SL Select w/ Remote
- Travel
- 100 mm
- Front Axle Dimension
- 15x110 mm
Drivetrain
Rear Derailleur
SRAM 90 Eagle T-Type
- Gears
- 12
Rear Shifter
SRAM 90 Eagle T-Type
Chainring
SRAM 90 Eagle T-Type
- Gears
- 1
- Ring 1
- 34 Teeth
Cassette
SRAM XS 75 Eagle T-Type
- Number of sprockets
- 12
- Range
- 10-52t
Chain
SRAM GX Eagle T-Type, Flattop
- Gears
- 12
Crank
SRAM 90 Eagle DUB T-Type Crankset
Bottom Bracket
SRAM DUB 73mm MTB Wide BB
- Standard
- 73mm Threaded
Cockpit
Stem
SRAM Atmos Stem
- Length
- 60 mm
Handlebar
SRAM Atmos Flat Bar
- Width
- 760 mm
- Clamping diameter
- 31.8 mm
Grips
SRAM Grips
Seat
Saddle
SDG Bel-Air V3 Lux-Alloy
Seatpost
Face Next
- Length
- 400 mm
- Diameter
- 27.2 mm
- Material
- Carbon
Seatpost Clamp
Santa Cruz Seat Collar
- Weight
- 31.8 g
Brakes
Front
Front Brake
SRAM DB8
Front Disc
SRAM HS2
Rear
Rear Brake
SRAM DB8
Rear Disc
SRAM HS2
