Marin
Team Marin 1
2025Mountain - Cross-Country (XC)
Team Marin 1 Data
- MSRP
- EUR 1599.00
- Frame
- Aluminum
- Suspension
- Hardtail
- Travel
- Front: 120mm
- Sizes
- S, M, L, Xl
- Colors
- Green
Looking for replacement tires?
View verified compatible tires for the 2025 Team Marin 1.
Components
Complete component specification list for this variant.
Frame
Pedals
Nylon
- Type
- Platform

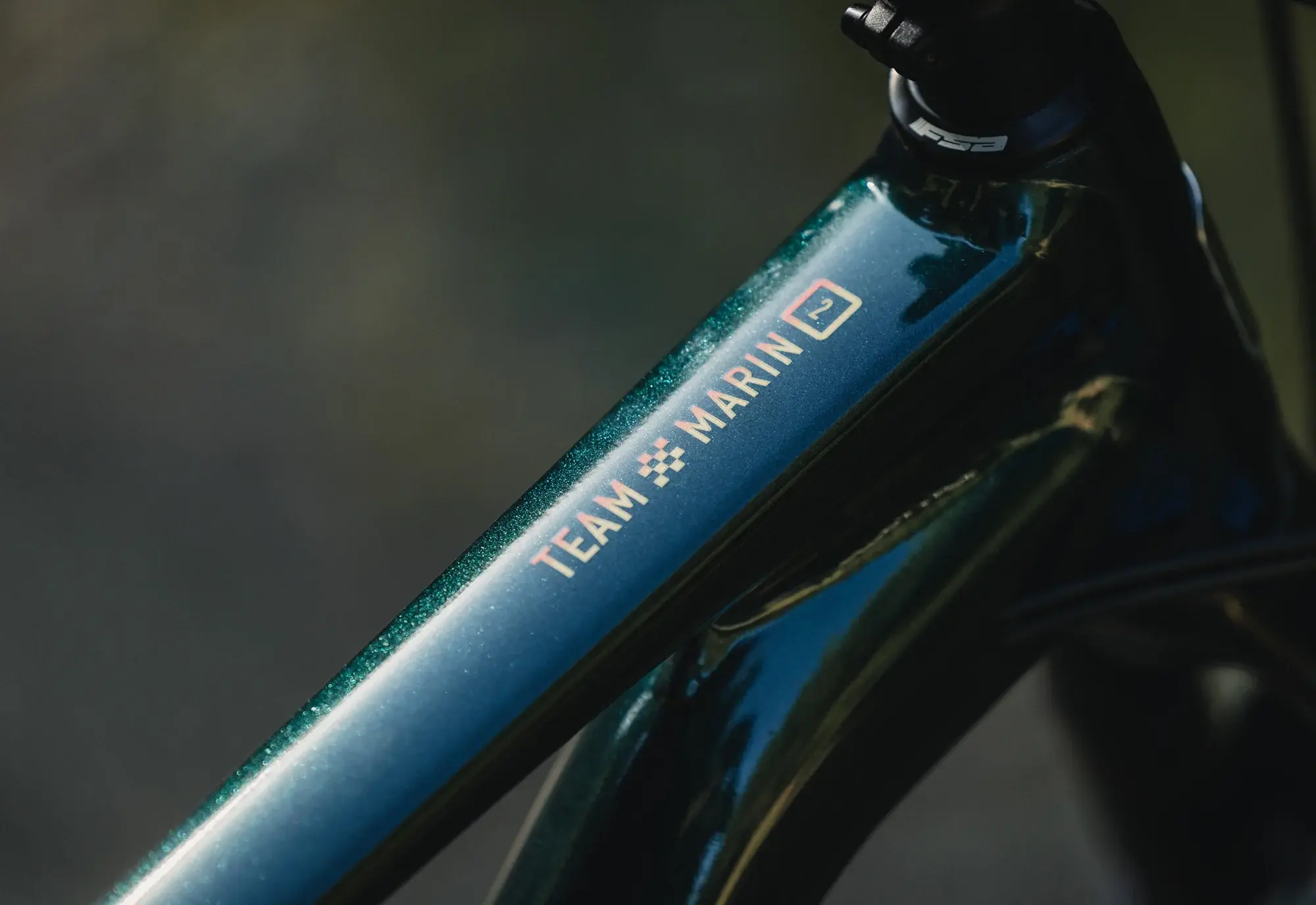

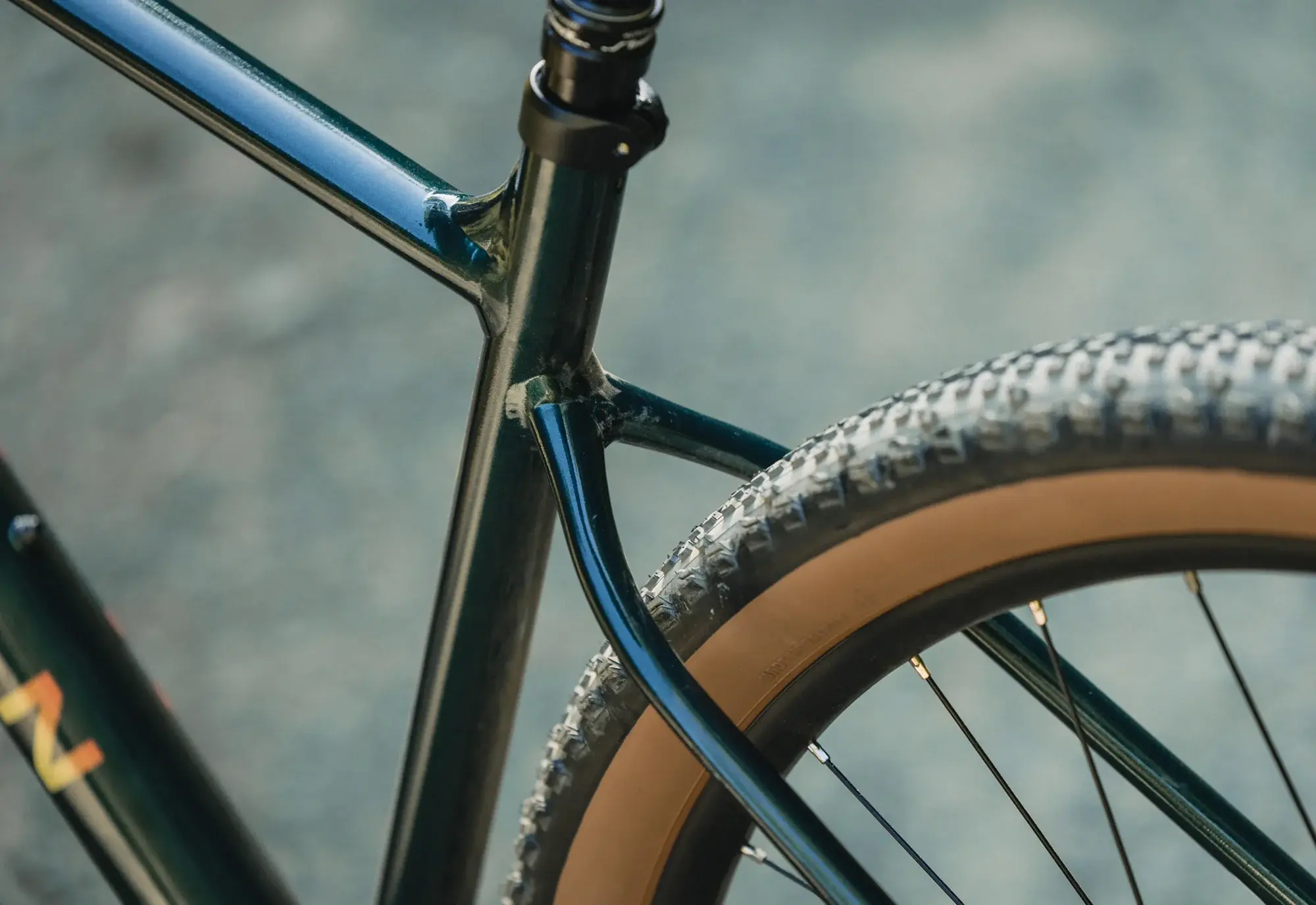

Frame
Series All New 4 6061
- Rear Axle Dimension
- 148x12mm
- Material
- Aluminum
Fork
RockShox Judy Silver TK
- Travel
- 120 mm
- Front Axle Dimension
- 110x15mm
- Steer tube diameter
- Alloy Tapered Steerer
- Offset
- 51 mm
Seat
Saddle
Marin Speed Concept
Seatpost
Marin Alloy
- Diameter
- 30.9 mm
- Material
- Alloy

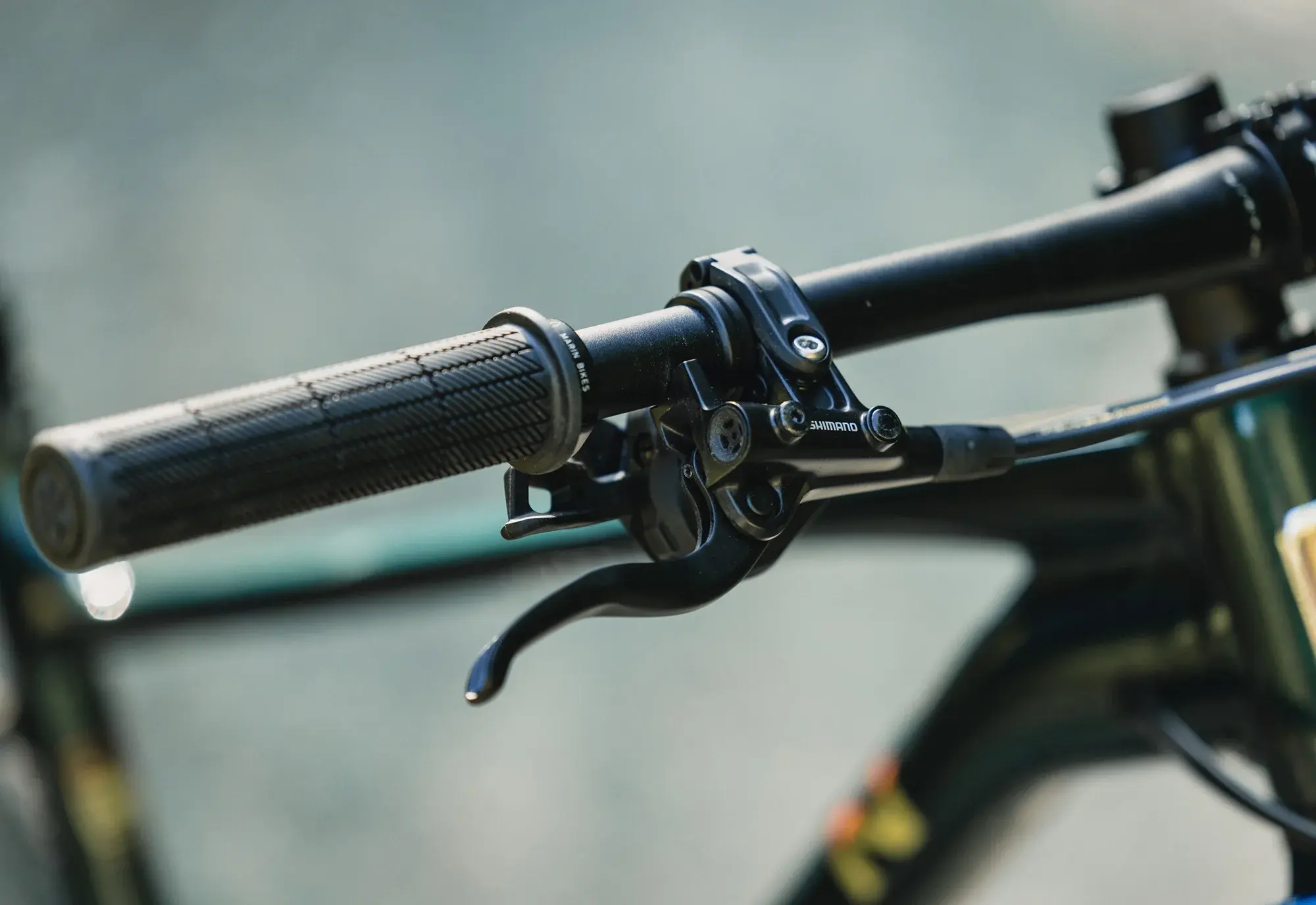

Brakes
Front
Front Brake
Shimano BR-MT200 Hydraulic Disc
Front Disc
Shimano

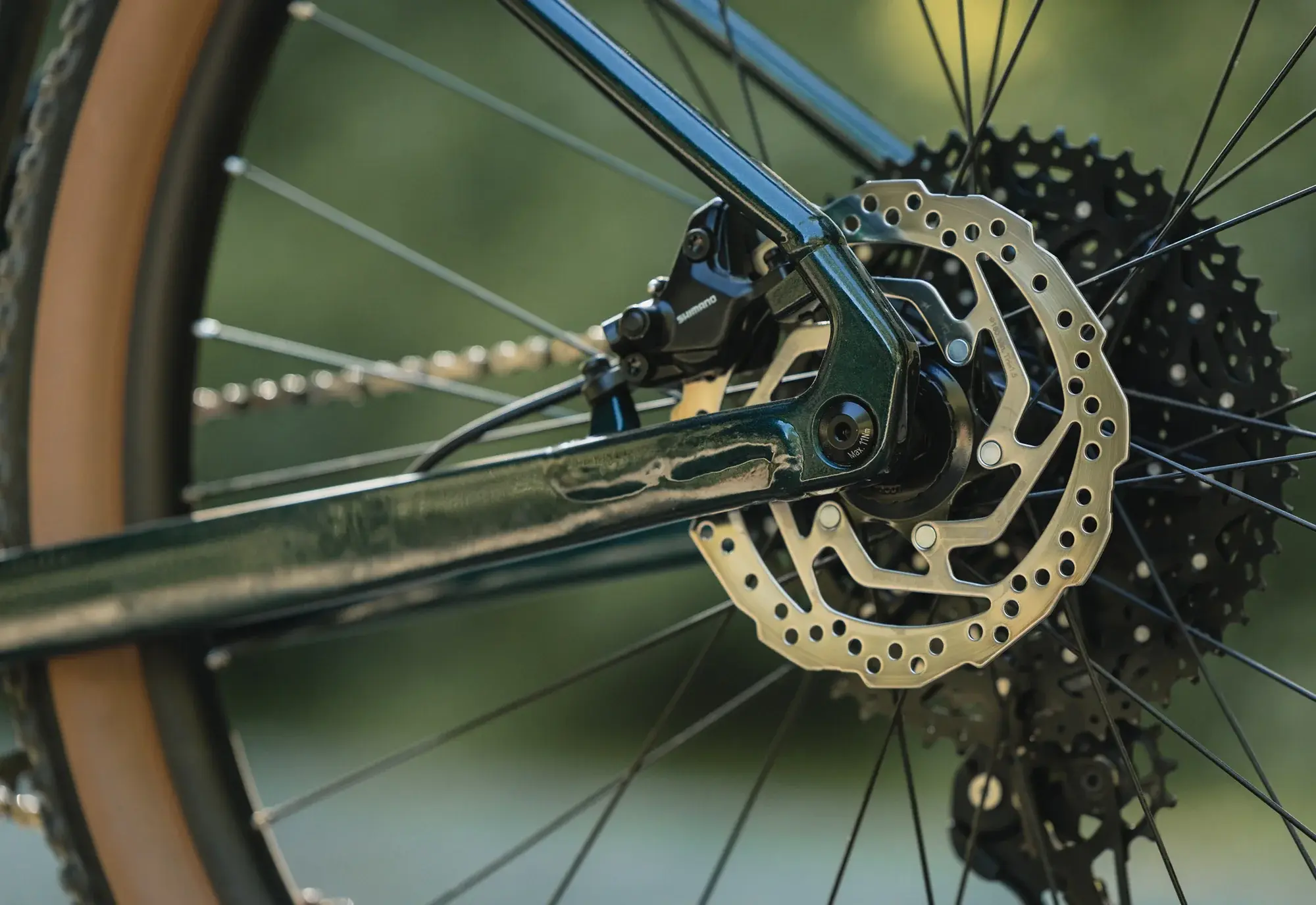

Rear
Rear Brake
Shimano BR-MT200 Hydraulic Disc
Rear Disc
Shimano
Cockpit
Stem
Forged Marin 3D
- Length
- 35 mm
- Material
- Alloy
Grips
Marin Single Clamp Locking
Handlebar
Double Marin Mini-Riser, 6061 Butted
- Width
- 780 mm
- Angle
- 9 °
- Material
- Aluminum
Drivetrain
Chain
KMC X12
- Gears
- 12
Rear Derailleur
Shimano Deore, RDM6100
- Gears
- 12
Rear Shifter
Shimano Deore, SLM6100
Bottom Bracket
Sealed Cartridge Bearings
- Standard
- External
Cassette
SunRace
Crank
Forged Alloy 1x12
Wheels
Front
Front Tire
Vee Tire, Rail Rocco XC (29", 2.3")
- Size
- 29"
- Width
- 2.3"
Front Wheel
Marin Aluminum Double Wall
Rear
Rear Tire
Vee Tire, Rail Rocco XC (29", 2.3")
- Size
- 29"
- Width
- 2.3"
Rear Wheel
Marin Aluminum Double Wall
