Marin
Stinson E ST
2025 ElectricCity & Touring - Hybrid
Stinson E ST Data
- MSRP
- USD 1599.00
- Frame
- 6061 Aluminum
- Suspension
- None, Hardtail
- Gears
- 8
- Sizes
- S, M, L
- Colors
- Silver (Int)
Looking for replacement tires?
View verified compatible tires for the 2025 Stinson E ST.
Components
Complete component specification list for this variant.
Brakes
Front
Front Disc
Tektro Tektro
- Diameter
- 160 mm
Front Brake
Tektro MDM280 Mechanical Disc
Rear
Rear Disc
Tektro Tektro
- Diameter
- 160 mm
Rear Brake
Tektro MDM280 Mechanical Disc
Frame
Pedals
Nylon
- Type
- Platform
Frame
CONTROL Series 1 Comfort, E-Bike Specific, Low-Step Design, Comfort Geometry
- Material
- 6061 Aluminum
Fork
CrMo Steel, Straight Blade, Disc Specific
Drivetrain
Chain
KMC KMC Z
- Gears
- 8
Motor
Bafang 250 Watt Hub Motor
- Torque
- 40 Nm
Battery
Bafang In-tube
- Capacity
- 340 Wh
Display

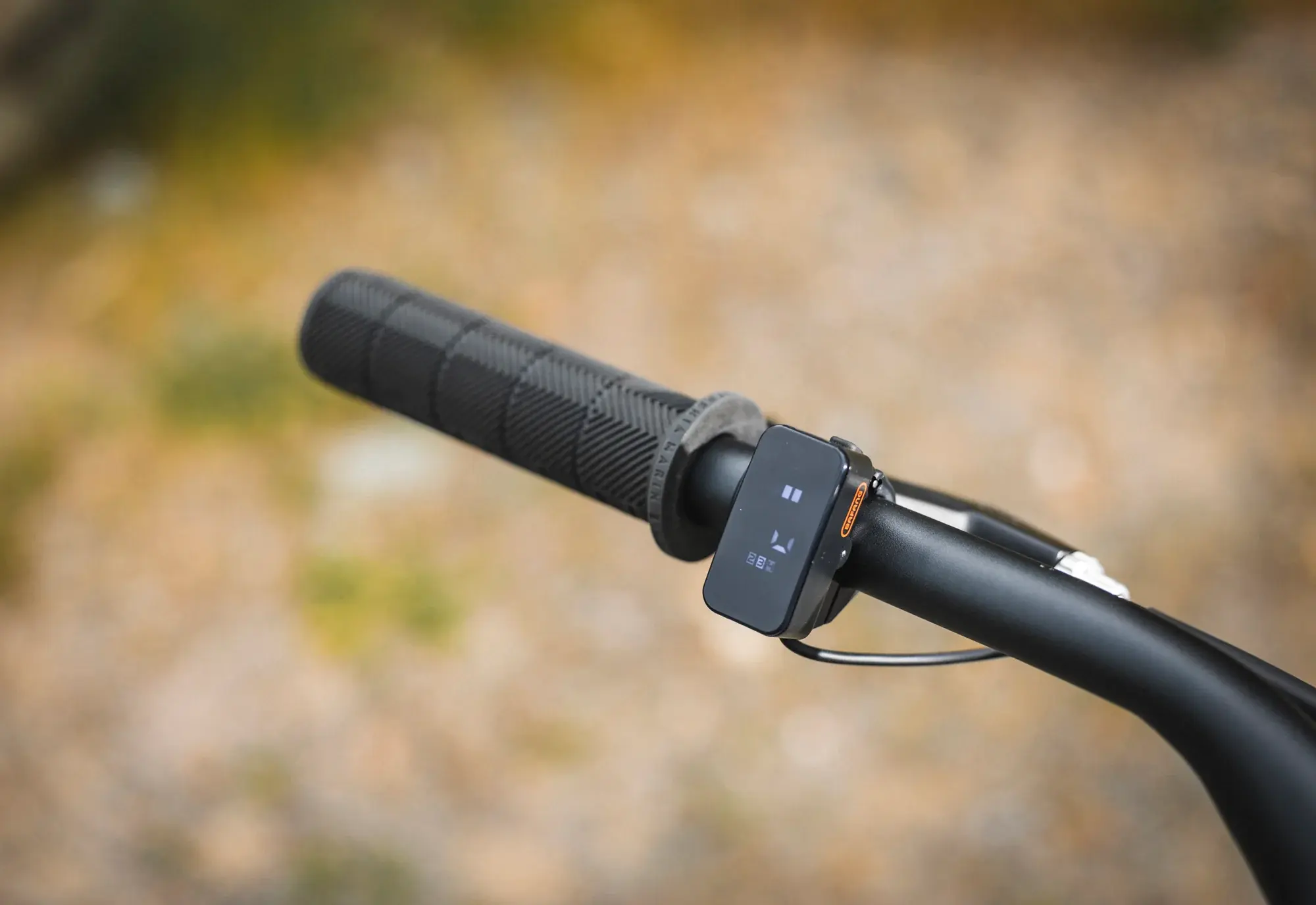

Handlebar Mount LCD Switch & Display
Chainring
Steel T Chainring, Ring Guard
- Gears
- 1
- Ring 1
- 38 Teeth

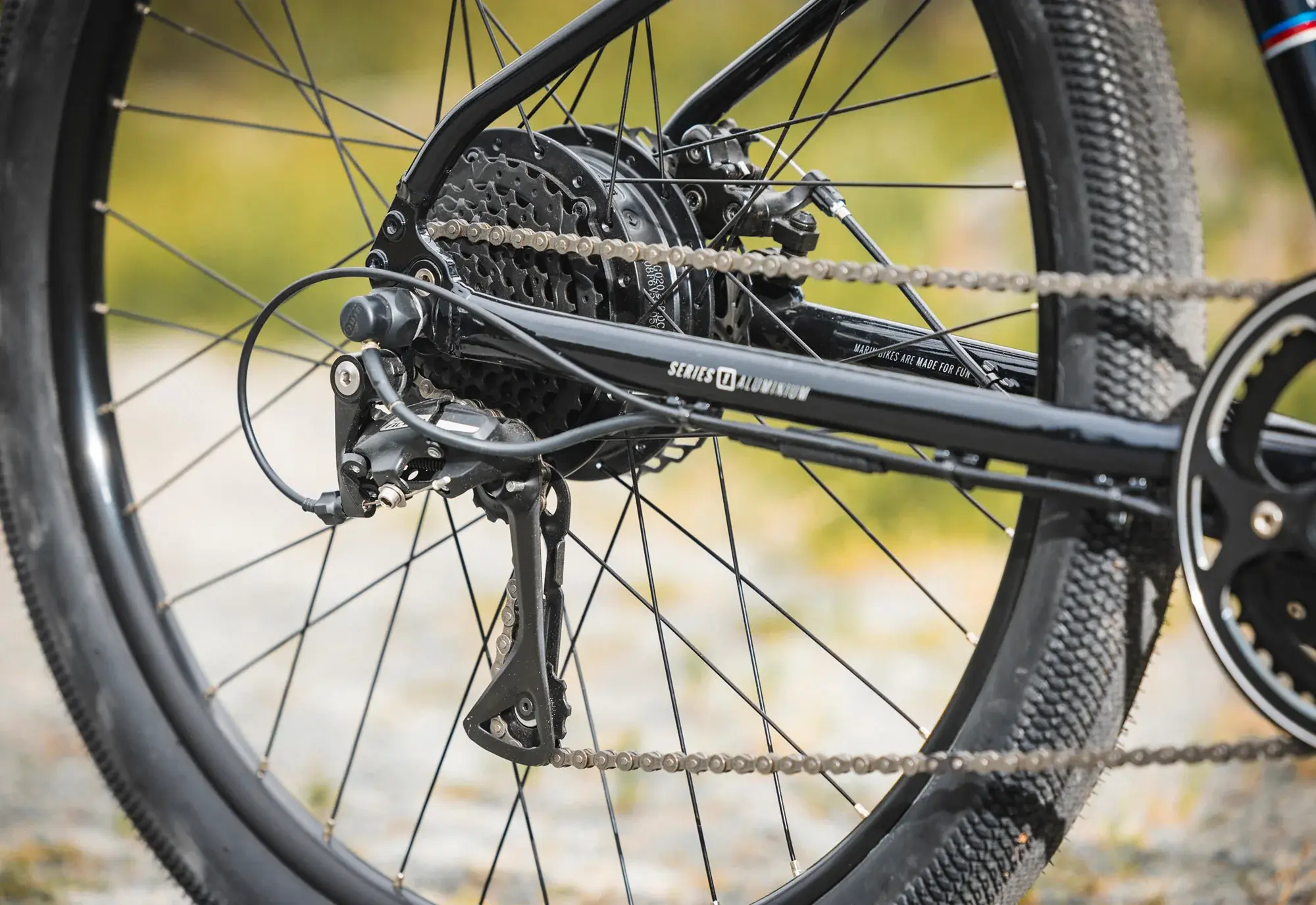

Rear Derailleur
Shimano Acera
- Gears
- 8
Rear Shifter
Shimano Altus 8-Speed RapidFire
Cassette
Sun -Speed
- Number of sprockets
- 8
- Range
- 11-34T
Crank
Alloy Crank
- Length
- 170
Bottom Bracket
Integrated Torque Sensing, Sealed Cartridge Bearings,
- Standard
- Square Taper
Wheels
Front
Front Wheel
Double Marin Wall, Disc Specific, Forged Alloy Hub, 32H
- Material
- Aluminum
Front Tire
Vee Tire Co. Speedster, Puncture Protection (27.5", 2.35")
- Size
- 27.5"
- Width
- 2.35"
Rear
Rear Wheel
Double Marin Wall, Disc Specific, Bafang 250W Hub Motor, 36H
- Material
- Aluminum
Rear Tire
Vee Tire Co. Speedster, Puncture Protection (27.5", 2.35")
- Size
- 27.5"
- Width
- 2.35"
Cockpit
Stem
Marin Alloy
- Length
- 45 mm
- Material
- Alloy
Handlebar
Marin Alloy
- Width
- 700 mm
- Rise
- 25 mm
- Angle
- 18 °
- Material
- Alloy
Grips
Marin County
Seat
Saddle
Marin Comfort
Seatpost
Marin Alloy
- Diameter
- 30.9 mm
- Material
- Alloy
