Marin

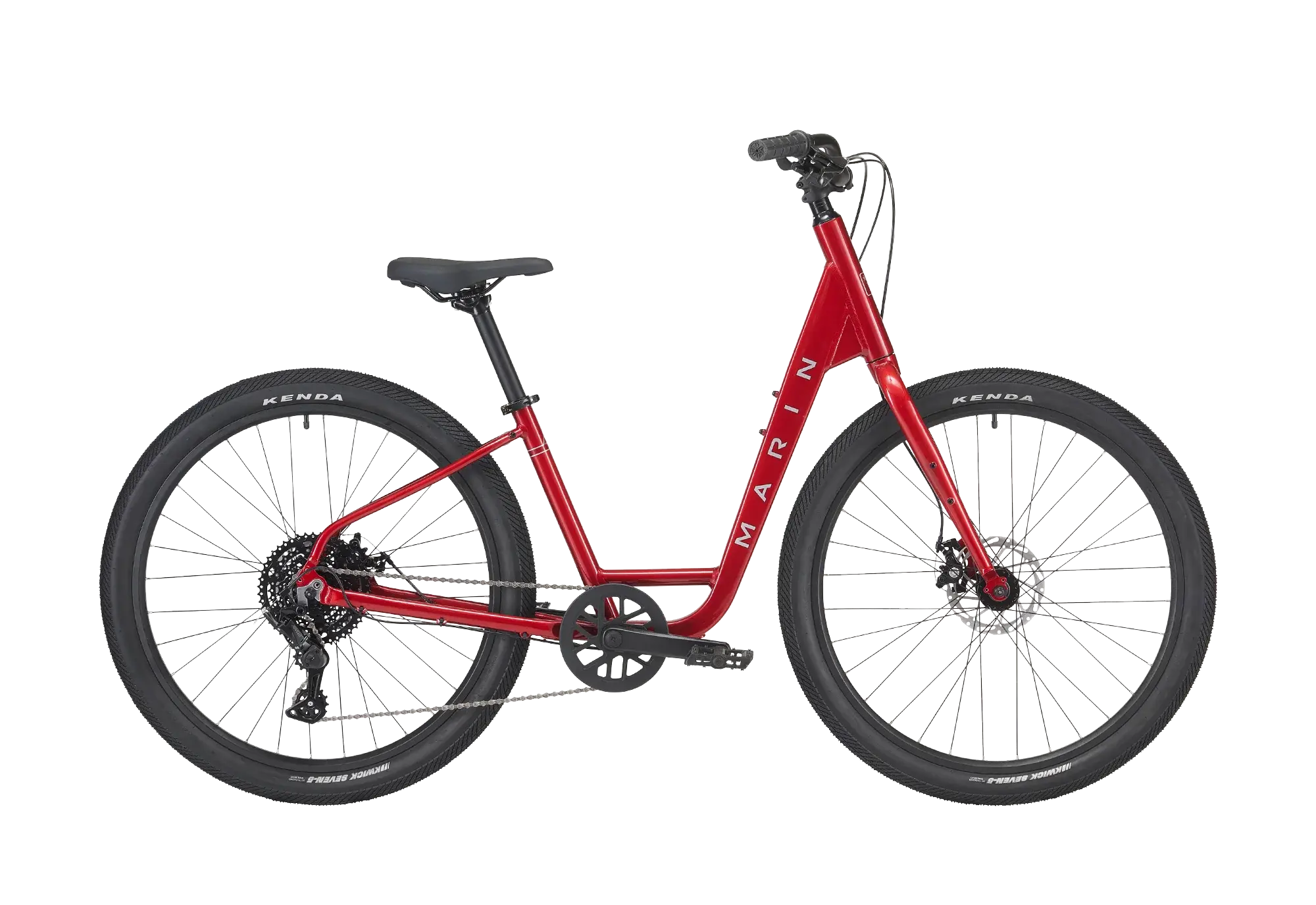

STINSON 2 LS
2025City & Touring - Hybrid
STINSON 2 LS Data
- MSRP
- EUR 799.00
- Frame
- 6061 Aluminum
- Suspension
- None, Hardtail
- Gears
- 8
- Sizes
- S, M, L
- Colors
- Silver/ Blk, Red/ Silver
Looking for replacement tires?
View verified compatible tires for the 2025 STINSON 2 LS.
Components
Complete component specification list for this variant.
Brakes
Front
Front Disc
Tektro Tektro
- Diameter
- 160 mm
Front Brake
Tektro MDM280 Mechanical Disc
Rear
Rear Disc
Tektro Tektro
- Diameter
- 160 mm

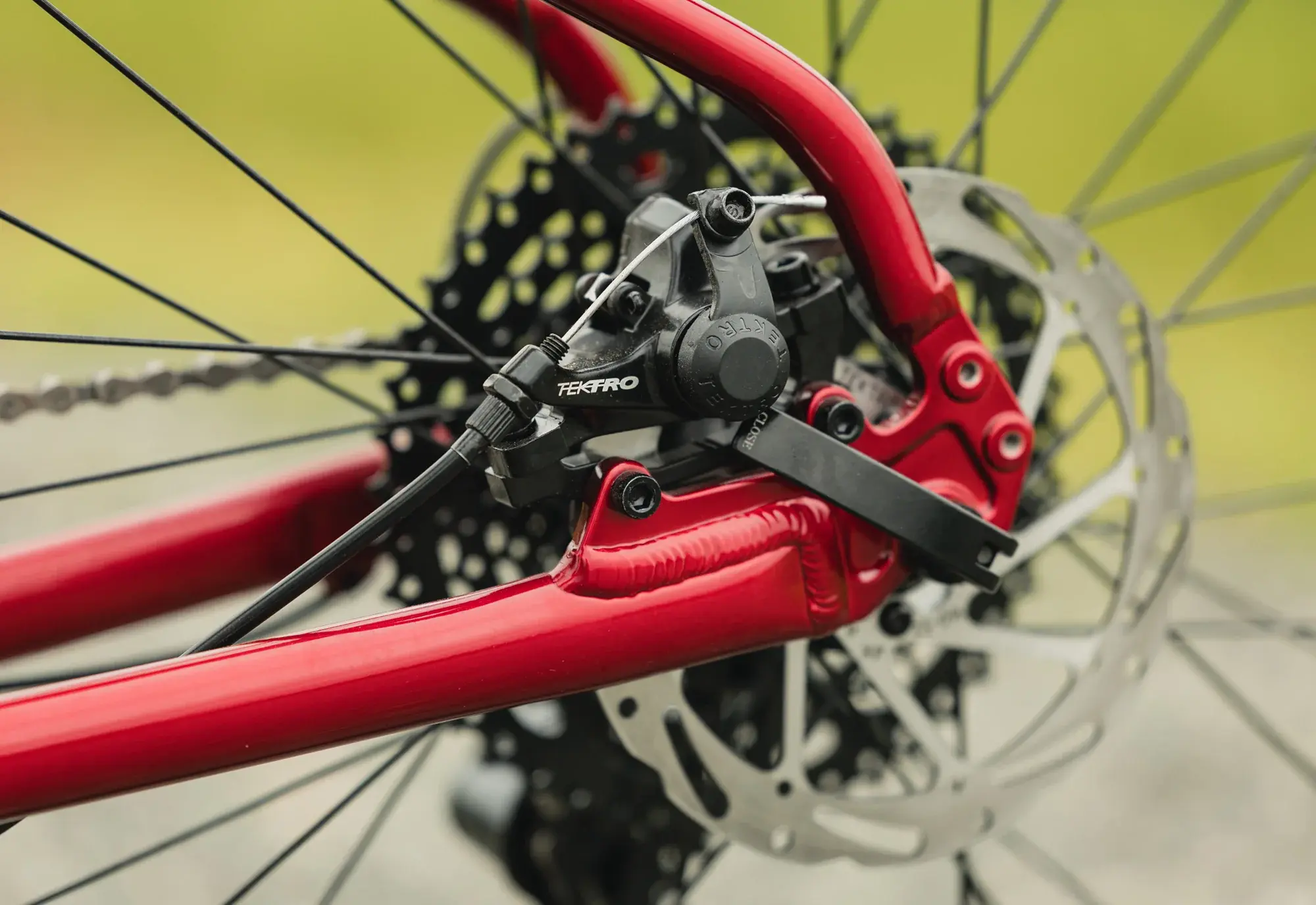

Rear Brake
Tektro MDM280 Mechanical Disc
Frame
Pedals
Nylon
- Type
- Platform
Fork
CrMo Steel, Straight Blade, Disc Specific
Frame
Series 1 Comfort Low Step,
- Material
- 6061 Aluminum
Drivetrain
Bottom Bracket
Sealed Cartridge Bearings,
- Standard
- Square Taper
Chain
KMC KMC X
- Gears
- 9

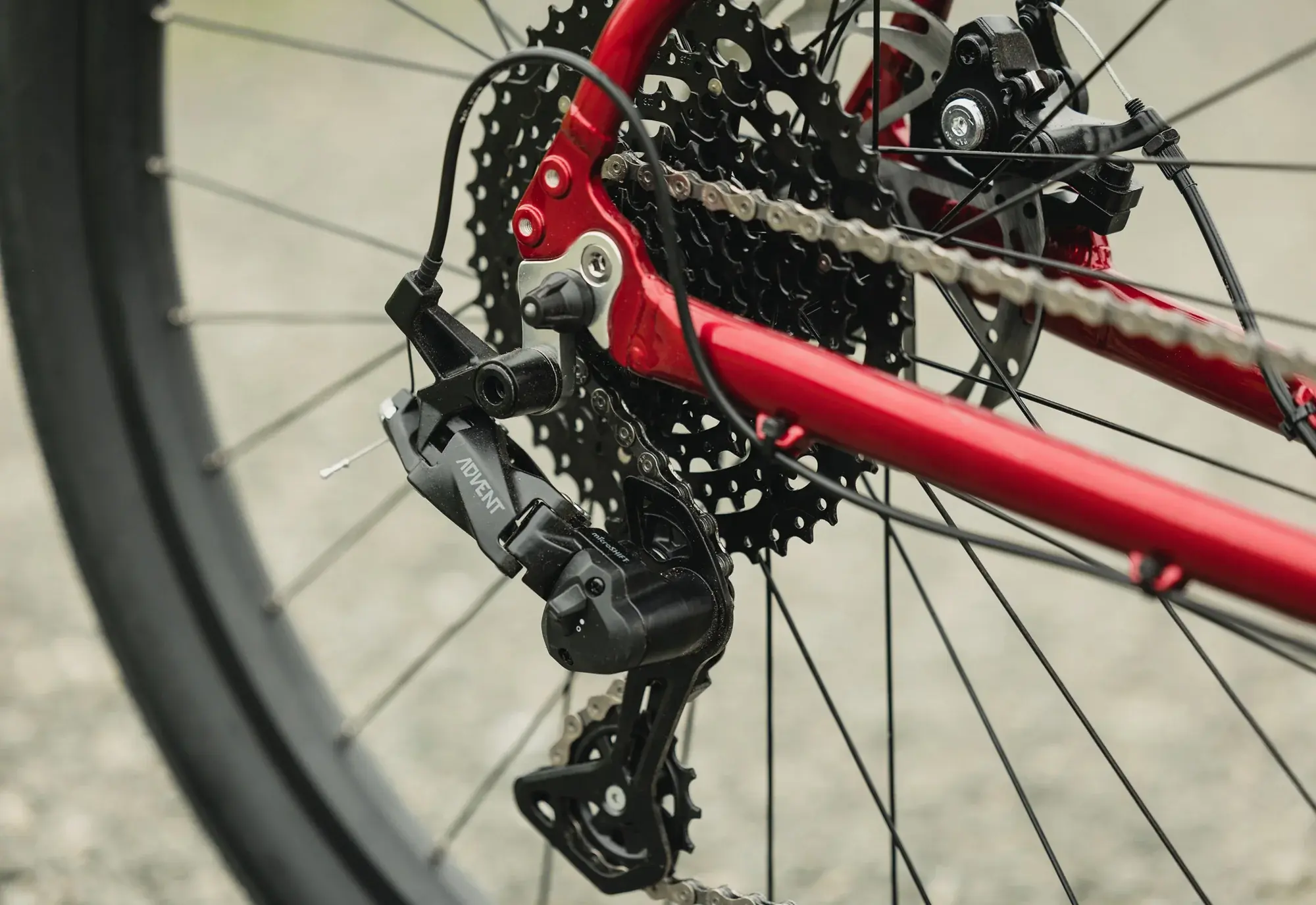

Rear Derailleur
Shimano Acera
- Gears
- 8
Rear Shifter
Shimano Altus 8-Speed RapidFire
Crank
Alloy Crank
- Length
- 170
Chainring
Ring Steel T Chain, Guard
- Gears
- 1
- Ring 1
- 38 Teeth
Cassette
Shimano HG400
- Number of sprockets
- 8
- Range
- 11-40T
Seat
Saddle
Marin Comfort
Seatpost
Suspension Post, Preload Adjust
- Diameter
- 27.2 mm
Wheels
Front
Front Tire
Kenda Kwick Seven-5, Puncture Protection (27.5", 2.4")
- Size
- 27.5"
- Width
- 2.4"
Front Wheel
Double Marin Wall Rim, Forged Alloy Hub (27.5")
- Size
- 27.5"
- Material
- Aluminum
Rear
Rear Tire
Kenda Kwick Seven-5, Puncture Protection (27.5", 2.4")
- Size
- 27.5"
- Width
- 2.4"
Rear Wheel
Double Marin Wall Rim, Forged Alloy Hub (27.5")
- Size
- 27.5"
- Material
- Aluminum
Cockpit
Stem
Marin Alloy
- Length
- 45 mm
- Clamping diameter
- 31.8 mm
- Material
- Alloy
Handlebar
Marin Alloy
- Width
- 700 mm
- Rise
- 90 mm
- Clamping diameter
- 31.8 mm
- Material
- Alloy
Grips
Marin Adventure
