Marin
STINSON 1 LS
2025City & Touring - Hybrid
STINSON 1 LS Data
- MSRP
- EUR 699.00
- Frame
- 6061 Aluminum
- Suspension
- None, Hardtail
- Sizes
- S, M, L
- Colors
- Teal, Charcoal
Looking for replacement tires?
View verified compatible tires for the 2025 STINSON 1 LS.
Components
Complete component specification list for this variant.
Frame
Pedals
Nylon
- Type
- Platform
Fork
CrMo Steel, Straight Blade, Disc Specific
Frame
CONTROL Series 1 Comfort Low Step, , 27.5” Wheels, Disc Specific, Low-Step Design, Comfort Geometry
- Material
- 6061 Aluminum
Drivetrain
Chain
KMC KMC Z
- Gears
- 8
Bottom Bracket
Sealed Cartridge Bearings,
- Standard
- Square Taper

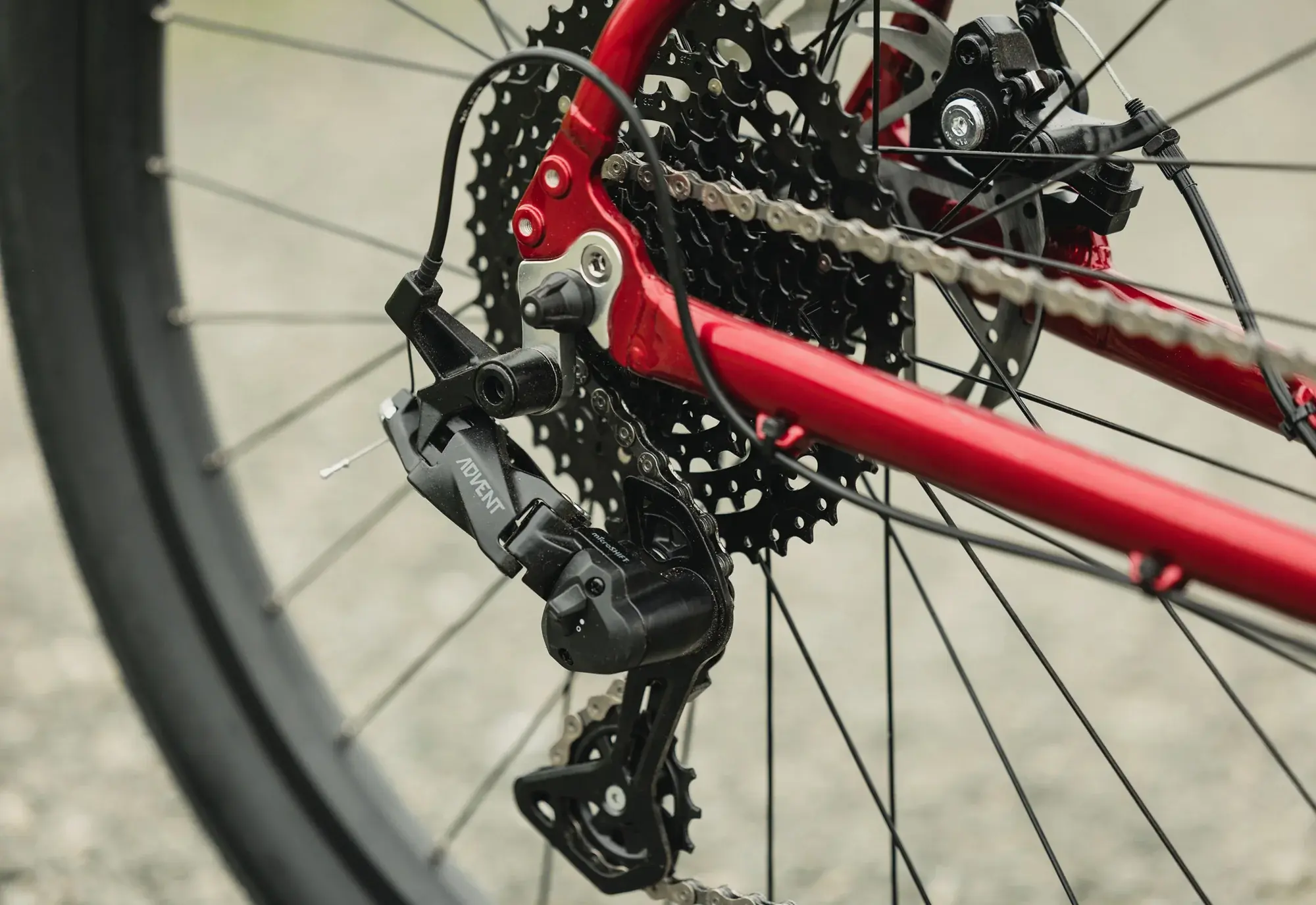

Rear Derailleur
Shimano Tourney
- Gears
- 7
Crank
Alloy Crank
- Length
- 170
Rear Shifter
Shimano Altus 7-Speed RapidFire
Chainring
Ring Steel T Chain, Guard
- Ring 1
- 38 Teeth
Cassette
Shimano CSHG200
Brakes
Front
Front Disc
Tektro mm Rotor
- Diameter
- 160 mm
Front Brake
Tektro MDM280 Mechanical Disc

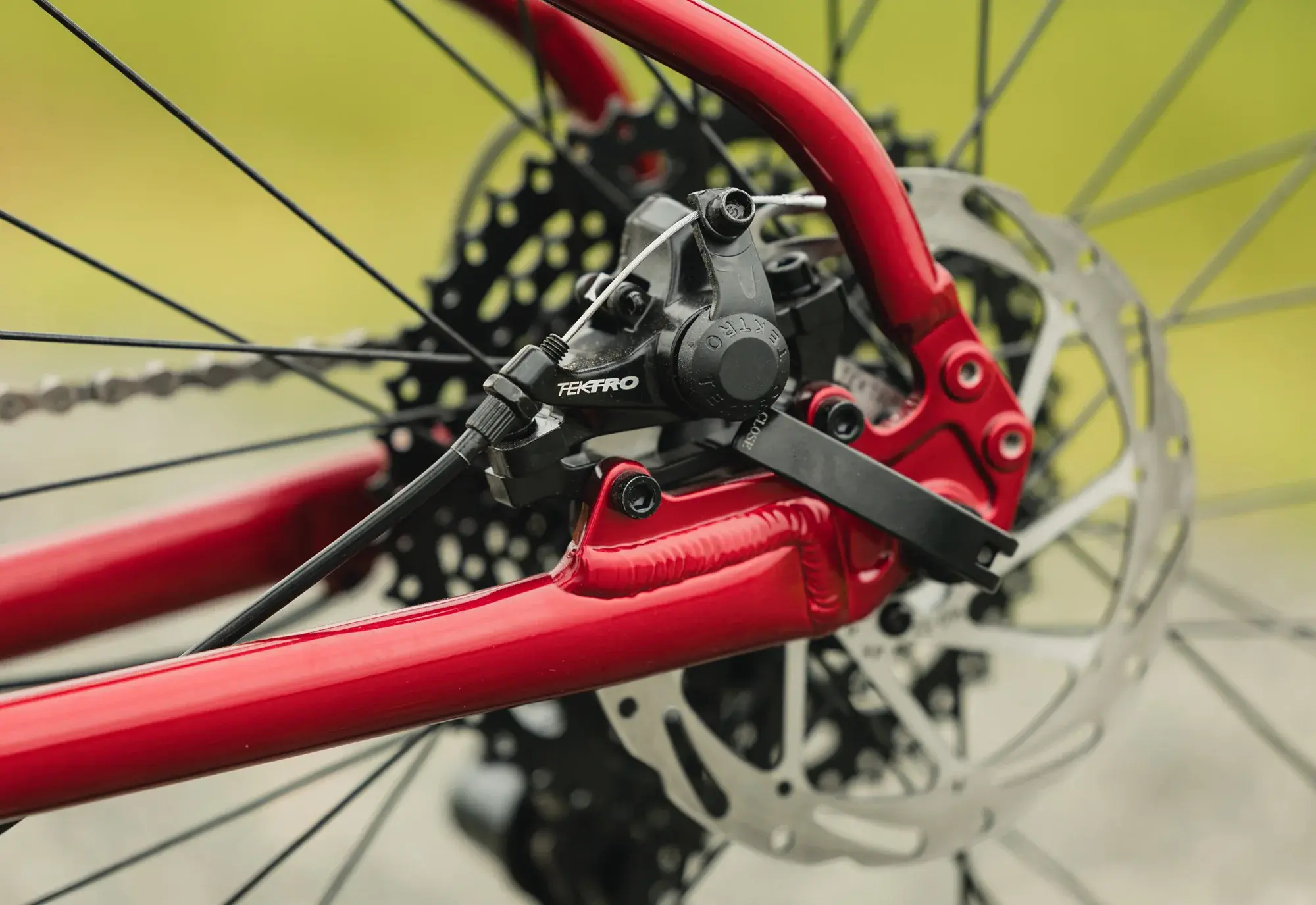

Rear
Rear Disc
Tektro mm Rotor
- Diameter
- 160 mm
Rear Brake
Tektro MDM280 Mechanical Disc
Cockpit
Stem
Marin Alloy
- Length
- 45 mm
- Material
- Alloy
Handlebar
Marin Alloy
- Width
- 700 mm
- Rise
- 60 mm
- Angle
- 30 °
- Material
- Alloy
Grips
Marin Adventure
Seat
Saddle
Marin Comfort
Seatpost
Marin Alloy
- Diameter
- 30.9 mm
- Material
- Alloy
Wheels
Front
Front Wheel
Double Marin Wall, Forged Alloy Hub, 32H
- Material
- Aluminum
- Position
- front
Front Tire
Kenda Kwick Seven-5, Puncture Protection (27.5", 2.4)
- Size
- 27.5"
- Width
- 2.4
Rear
Rear Wheel
Double Marin Wall, Forged Alloy Hub, 32H
- Material
- Aluminum
- Position
- back
Rear Tire
Kenda Kwick Seven-5, Puncture Protection (27.5", 2.4)
- Size
- 27.5"
- Width
- 2.4
