BikeDB
Marin

Rift Zone EL XR

2025 Electric
Rift Zone EL XR Data
MSRP
USD 7699.00
Frame
Aluminum
Suspension
Fully, Full Suspension
Travel
Front: 150mm, Rear: 140mm
Gears
12
Sizes
S, M, L, Xl
Colors
Tan/Brown
View on Marin

Components

Complete component specification list for this variant.

Wheels

Front
Front Tire
Maxxis Minion DHF (29", 2.5")
Front Tire
Size
29"
Width
2.5"
Front Wheel
Double Marin Wall Rim | Formula DCL-3482 Hub (29", 148x12)
Front Wheel
Size
29"
Axle Dimension
148x12
Rotor mount
6-Bolt
Inner width
32 mm
Material
Aluminum
Rear
Rear Tire
Maxxis Forekaster (29", 2.4")
Back Tire
Size
29"
Width
2.4"
Rear Wheel
Double Marin Wall Rim | Formula DC-711 Hub (29", 110x15)
Back Wheel
Size
29"
Axle Dimension
110x15
Rotor mount
6-Bolt
Inner width
32 mm
Material
Aluminum

Drivetrain

Motor
Performance Bosch Line SX
Motor
Torque
55 Nm

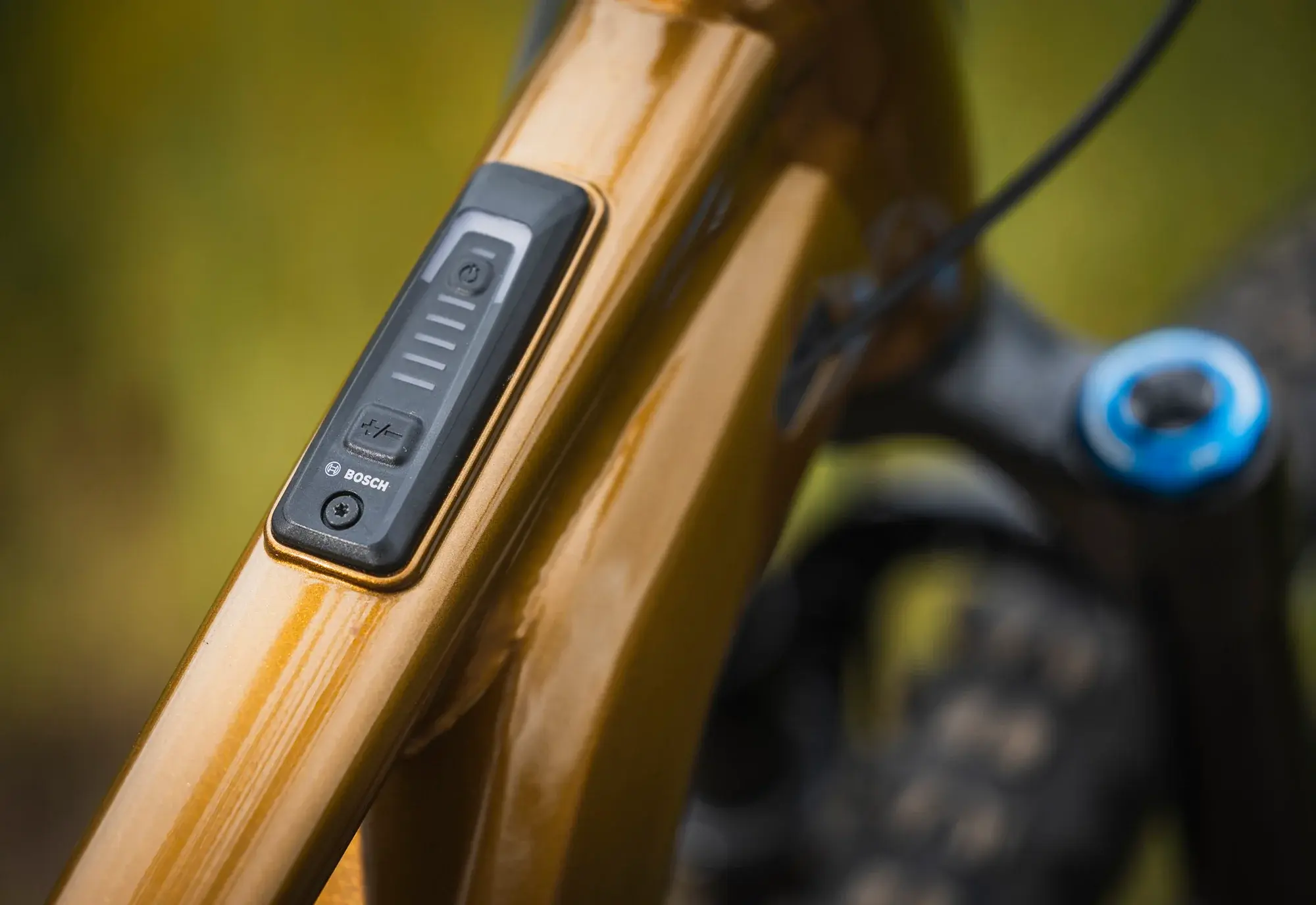

Display
CONTROL Bosch BRC3100 Systems ler
Display
Chain
SRAM GX T-Type
Chain
Gears
12
Crank
e*thirteen e*spec Plus
Crank
Length
160
Chainring
e*thirteen e*thirteen
Front Chainring
Ring 1
34 Teeth
Battery
CompactTube Bosch Internal
Battery
Capacity
400 Wh
Rear Derailleur
SRAM GX AXS T-Type
Back Derailleur
Gears
12
Rear Shifter
SRAM AXS Pod Infinity Mount
Back Shifter
Cassette
SRAM CS-XS-75 T-Type
Cassette
Number of sprockets
12
Range
10-52T
Bottom Bracket
Integrated with Motor
Bottom bracket

Cockpit

Stem
Marin CNC
Stem
Length
35 mm
Clamping diameter
35 mm
Handlebar
Marin Trail
Handlebar
Width
800 mm
Rise
20 mm
Angle
8 °
Clamping diameter
35 mm
Material
7000 Alloy
Grips
Marin Grizzly Lock-On
Grips

Seat

Saddle
Marin Speed Concept
Saddle
Seatpost
PNW Loam Post with Range Lever
Seatpost
Diameter
34.9 mm
Dropper post
1

Frame

Pedals
Marin MTB Plastic
Pedals
Type
Flat
Frame
Series 4 Alloy Lightweight E
Frame
Rear Axle Dimension
148mm
Material
Aluminum

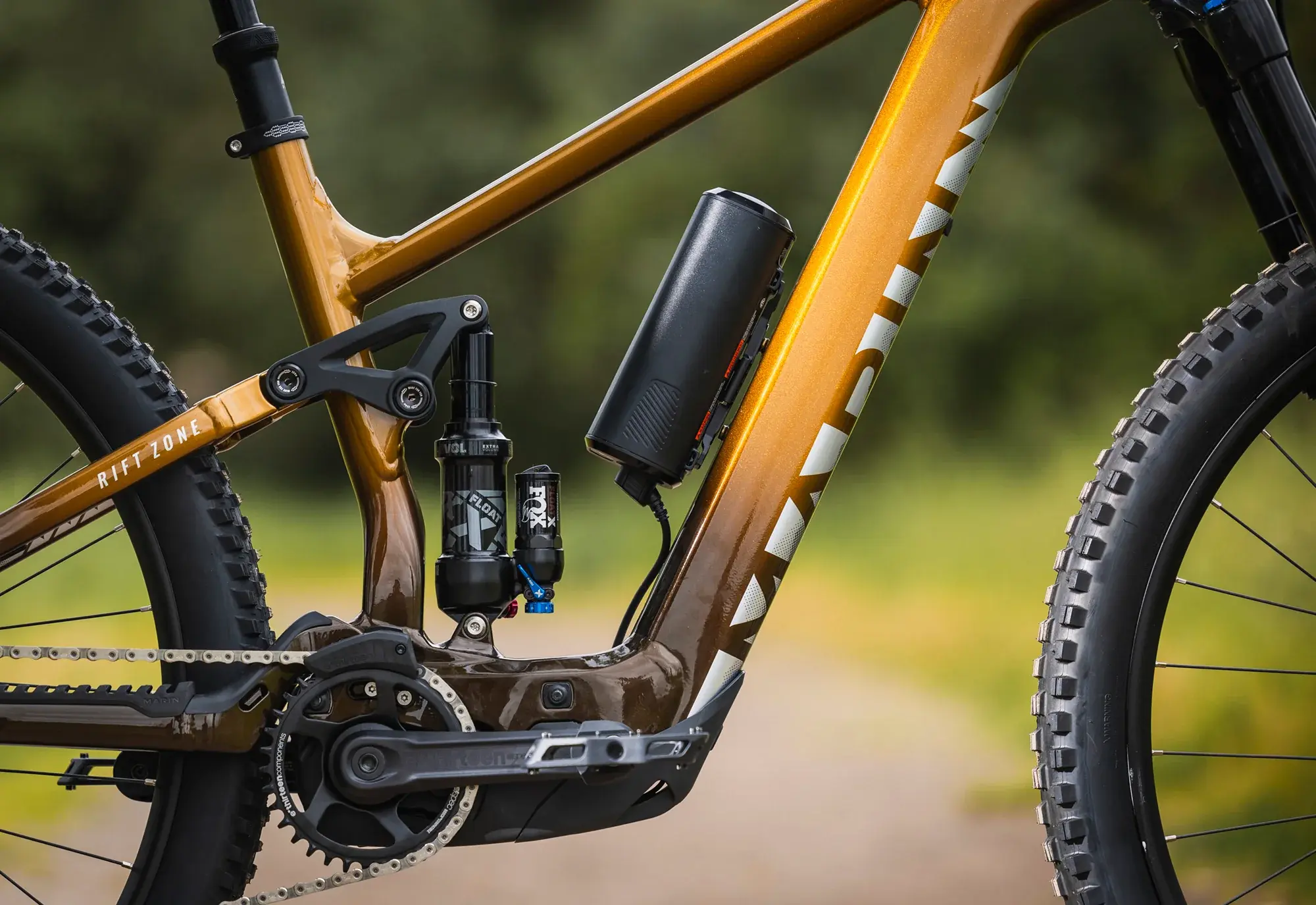

Rear Shock
Performance Fox Float X, Elite
Rear Shock
Travel
140 mm
Fork
Performance Fox 36 Elite
Fork
Travel
150 mm
Front Axle Dimension
110x15 Kabolt
Offset
44 mm

Accessories

Chainguard
e*thirteen e*Spec Chainguide
Chainguard

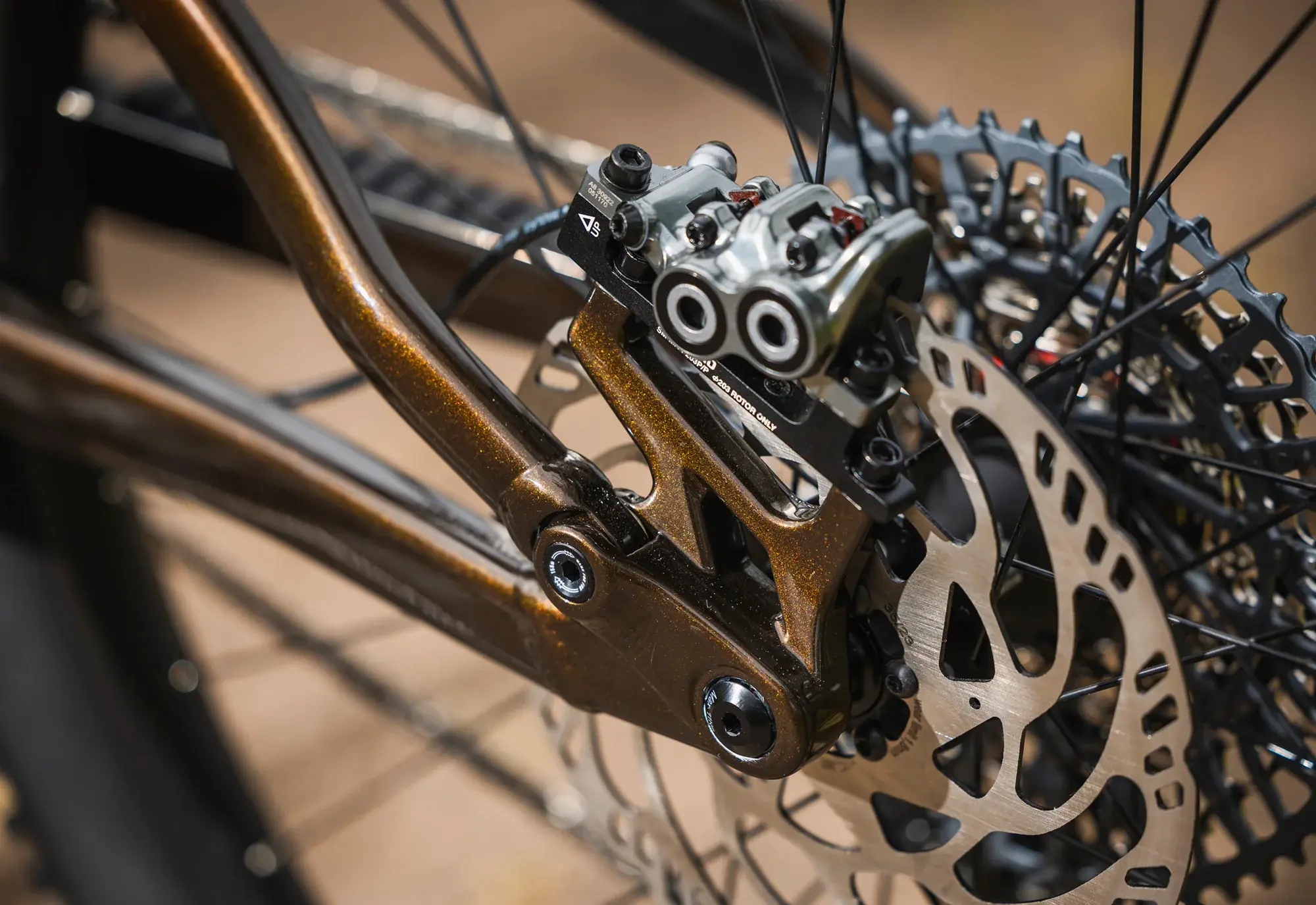

Brakes

Front
Front Brake
Magura MT7 with HC3 Lever
Front Brake
Front Disc
Magura MDR Rotor
Front Disc
Diameter
203 mm
Rear
Rear Brake
Magura MT7 with HC3 Lever
Back Brake
Rear Disc
Magura MDR Rotor
Back Disc
Diameter
203 mm

Comparison

Compare specifications and components across all variants of this model. Toggle years to customize your comparison.

Model Year:
Current
Rift Zone EL XR
2025
Rift Zone 2
2025
Rift Zone EL1
2025
Rift Zone EL2
2025
Rift Zone XR AXS
2025
Specifications
MSRPUSD 7699.00EUR 2299.00USD 5199.00USD 6499.00EUR 5399.00
FrameAluminumAluminumAluminumAluminumAluminum
SuspensionFully, Full SuspensionFully, Full SuspensionFully, Full SuspensionFully, Full SuspensionFully, Full Suspension
TravelFront: 150mm, Rear: 140mmFront: 140mm, Rear: 130mmFront: 150mm, Rear: 140mmFront: 150mm, Rear: 140mmFront: 150mm, Rear: 130mm
Gears12—1012—
SizesS, M, L, XlS, M, L, XlS, M, L, XlS, M, L, XlS, M, L, Xl
ColorsTan/BrownGrey/BlueBlue/NavySilverOrange/Yellow
Wheels
Front Wheel
Double Marin Wall Rim | Formula DCL-3482 Hub (29", 148x12)
Shimano HF-MT410B Hub / Marin Double Wall Rim (110x15mm)
Shimano Marin Aluminum Double Wall / Hub (29", 110x15 Kabolt Thru Axle)
Marin Aluminum Double Wall
Double Marin Wall rim, Formula DC-711 hub (29", 110x15mm)
Back Wheel
Double Marin Wall Rim | Formula DC-711 Hub (29", 110x15)
Shimano FH-TC500 Hub / Marin Double Wall Rim (148x12mm)
Shimano Marin Aluminum Double Wall / FHTC500 Hub (29", 148x12 Thru Axle)
Marin Aluminum Double Wall
Double Marin Wall rim, Formula DCL-3482 hub (29", 148x12mm)
Front Tire
Maxxis Minion DHF (29", 2.5")
Vee Tire Snap WCE (2.35")
Maxxis Minion DHF (29", 2.5")
Maxxis Minion DHF (29", 2.5")
Maxxis Assegai
Back Tire
Maxxis Forekaster (29", 2.4")
Vee Tire Snap WCE (2.35")
Maxxis Forekaster (29", 2.4")
Maxxis Forekaster (29", 2.4")
Maxxis Assegai
Brakes
Front Brake
Magura MT7 with HC3 Lever
Tektro HD-M535 Hydraulic Disc
TRP Slate EVO
SRAM Code Bronze
SRAM Code Bronze 4-Piston Hydraulic Disc
Back Brake
Magura MT7 with HC3 Lever
Tektro HD-M535 Hydraulic Disc
TRP Slate EVO
SRAM Code Bronze
SRAM Code Bronze 4-Piston Hydraulic Disc
Front Disc
Magura MDR Rotor
Tektro Tektro
TRP Slate EVO Rotor
SRAM HS2 Rotor
SRAM HSC
Back Disc
Magura MDR Rotor
Tektro Tektro
TRP Slate EVO Rotor
SRAM HS2 Rotor
SRAM HSC
Frame
Frame
Series 4 Alloy Lightweight E
Series 3 6061 Frame
Series 4 Alloy Lightweight E
Series 4 Alloy Lightweight E
Series 3 6061
Rear Shock
Performance Fox Float X, Elite
RockShox Deluxe Select RT
Marzocchi Bomber Air Inline, Custom Tune
Performance Fox Float X, , EVOL Air Spring
RockShox Super Deluxe Select+
Fork
Performance Fox 36 Elite
Marzocchi Bomber Z2 29"
Marzocchi Bomber Z1
Performance Fox 36
RockShox Lyrik Select+
Pedals
Marin MTB Plastic
—
Marin MTB Plastic
Marin MTB Plastic
—
Drivetrain
Motor
Performance Bosch Line SX
—
Performance Bosch Line SX
Performance Bosch Line SX
—
Battery
CompactTube Bosch Internal
—
CompactTube Bosch Wh Internal
Bosch Internal
—
Display
CONTROL Bosch BRC3100 Systems ler
—
CONTROL Bosch BRC3100 Systems ler
CONTROL Bosch BRC3100 Systems ler
—
Back Derailleur
SRAM GX AXS T-Type
Shimano Deore SGS
Shimano CUES RD-U6000 GS
SRAM EAGLE 90
SRAM GX Eagle Lunar
Back Shifter
SRAM AXS Pod Infinity Mount
Shimano Deore SL-M6100-R
Shimano CUES SL-U6000-10R
SRAM EAGLE 90 MMX Mount
SRAM AXS Pod MMX
Cassette
SRAM CS-XS-75 T-Type
Sunrace
Shimano CS-LG300-
SRAM XG 75 Eagle Cassette
SRAM XG 1275 Eagle
Chain
SRAM GX T-Type
KMC X-12
Shimano LG500
SRAM GX T-Type
SRAM GX Eagle T-Type
Crank
e*thirteen e*spec Plus
FSA Comet, Modular 1x
e*thirteen e*spec Plus
e*thirteen e*spec Plus
SRAM GX Eagle
Front Chainring
e*thirteen e*thirteen
FSA Direct Mount
e*thirteen e*thirteen
e*thirteen e*thirteen
SRAM GX Eagle
Bottom bracket
Integrated with Motor
Sealed External Cartridge Bearing
——
SRAM DUB MTB 73
Battery 2——
Bosch Optional PowerMore wh external
——
Cockpit
Stem
Marin CNC
Forged Marin 3D Alloy
Forged Marin 3D Alloy
Marin CNC
Marin CNC
Handlebar
Marin Trail
Double Marin Mini-Riser, 6061 Butted
Marin Mini-Riser
Marin Trail
Marin Trail
Grips
Marin Grizzly Lock-On
Marin Grizzly Lock On
Marin Grizzly Lock-On
Marin Grizzly Lock-On
Marin Grizzly Lock-On
Seat
Saddle
Marin Speed Concept
Marin Speed Concept
Marin Speed Concept
Marin Speed Concept
Marin Speed Concept
Seatpost
PNW Loam Post with Range Lever
X-Fusion Manic, x Composite Remote
TranzX YSI34 QL
TranzX YSP39
PNW Loam Post with Range Lever
Accessories
Chainguard
e*thirteen e*Spec Chainguide
—
e*thirteen e*Spec Chainguide
e*thirteen e*Spec Chainguide
—

Replacement Parts

Find compatible wear items and replacement parts for your bike. Components are organized by category to help you maintain and upgrade your ride.

Drivetrain

Maintain optimal power transfer with the correct drivetrain components for your Rift Zone EL XR. We recommend adhering to manufacturer standards for best shifting performance, though compatible third-party options exist for upgrades or budget repairs.

No resources available yet

Chain
Chain
Recommended OEM Spec:
SRAM GX T-Type
Front Chainring
Front Chainring
Recommended OEM Spec:
e*thirteen e*thirteen
Back Derailleur
Back Derailleur
Recommended OEM Spec:
SRAM GX AXS T-Type
Cassette
Cassette
Recommended OEM Spec:
SRAM CS-XS-75 T-Type
Bottom bracket
Bottom bracket
Recommended OEM Spec:
Integrated with Motor
Chainguard
Chainguard
Recommended OEM Spec:
e*thirteen e*Spec Chainguide

Brakes

Ensure safe stopping power with the right brake components for your Rift Zone EL XR. OEM parts guarantee compatibility, while aftermarket alternatives can offer performance upgrades or cost savings.

No resources available yet

Front Brake
Front Brake
Recommended OEM Spec:
Magura MT7 with HC3 Lever
Back Brake
Back Brake
Recommended OEM Spec:
Magura MT7 with HC3 Lever
Front Disc
Front Disc
Recommended OEM Spec:
Magura MDR Rotor
Back Disc
Back Disc
Recommended OEM Spec:
Magura MDR Rotor

Tires & Tubes

Keep your Rift Zone EL XR rolling smoothly with properly matched tires and tubes. The recommended specs ensure optimal grip, puncture protection, and ride quality for your specific setup.

No resources available yet

Front Tire
Front Tire
Recommended OEM Spec:
Maxxis Minion DHF (29", 2.5")
Back Tire
Back Tire
Recommended OEM Spec:
Maxxis Forekaster (29", 2.4")

Suspension & Bearings

Maintain your Rift Zone EL XR's suspension performance with the correct bearings and service parts. Regular maintenance ensures consistent handling and extends component life.

No resources available yet

Rear Shock
Rear Shock
Recommended OEM Spec:
Performance Fox Float X, Elite
Fork
Fork
Recommended OEM Spec:
Performance Fox 36 Elite

Cockpit

Customize your Rift Zone EL XR's cockpit with compatible handlebars, stems, and grips. These contact points affect comfort, control, and overall riding experience.

No resources available yet

Stem
Stem
Recommended OEM Spec:
Marin CNC
Handlebar
Handlebar
Recommended OEM Spec:
Marin Trail
Grips
Grips
Recommended OEM Spec:
Marin Grizzly Lock-On
Saddle
Saddle
Recommended OEM Spec:
Marin Speed Concept
Seatpost
Seatpost
Recommended OEM Spec:
PNW Loam Post with Range Lever

Wear Items

Replace high-wear items on your Rift Zone EL XR regularly to maintain performance and safety. These components see frequent use and benefit from periodic replacement.

No resources available yet

Grips
Grips
Recommended OEM Spec:
Marin Grizzly Lock-On
Saddle
Saddle
Recommended OEM Spec:
Marin Speed Concept
Pedals
Pedals
Recommended OEM Spec:
Marin MTB Plastic

Accessories

Compatible accessories matched to your bike's specifications. Find the perfect upgrades and add-ons.

No compatible accessories found

Accessories are matched based on bike specifications

Geometry

Frame geometry specifications by size. Compare reach, stack, and other key measurements across available frame sizes.

MeasurementLMSXL
Reach485mm465mm445mm515mm
Stack625.1mm614mm607mm634.2mm
Stack-to-Reach Ratio————
Top Tube Length————
Head Tube Angle65°65°65°65°
Seat Tube Angle (Effective)76.5°76.5°76.5°76.5°
Head Tube Length120mm110mm100mm130mm
Seat Tube Length425mm400mm390mm435mm
Chainstay Length440mm440mm440mm440mm
Wheelbase1246.7mm1222.5mm1198.3mm1281mm
BB Drop32mm32mm32mm32mm
Standover Height709.9mm696mm693.7mm719.9mm
Front Center————
