Marin
Pine Mountain 1
2026Mountain
Pine Mountain 1 Data
- MSRP
- EUR 1599.00
- Frame
- Steel
- Suspension
- Hardtail
- Travel
- Front: 120mm
- Gears
- 11
- Sizes
- S, M, L, Xl
- Colors
- Grey
Looking for replacement tires?
View verified compatible tires for the 2026 Pine Mountain 1.
Components
Complete component specification list for this variant.
Frame
Pedals
Nylon
- Type
- Platform

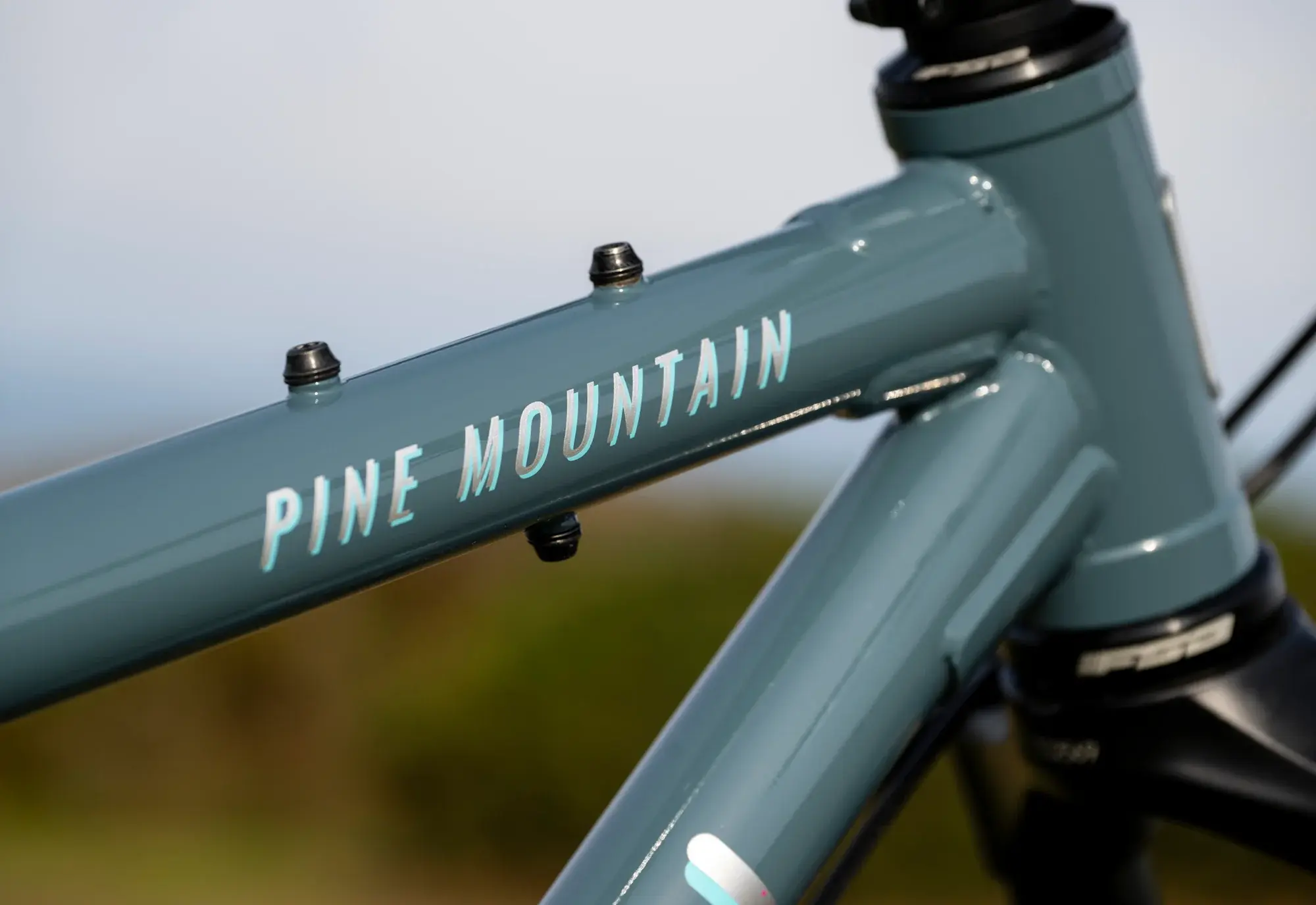

Frame

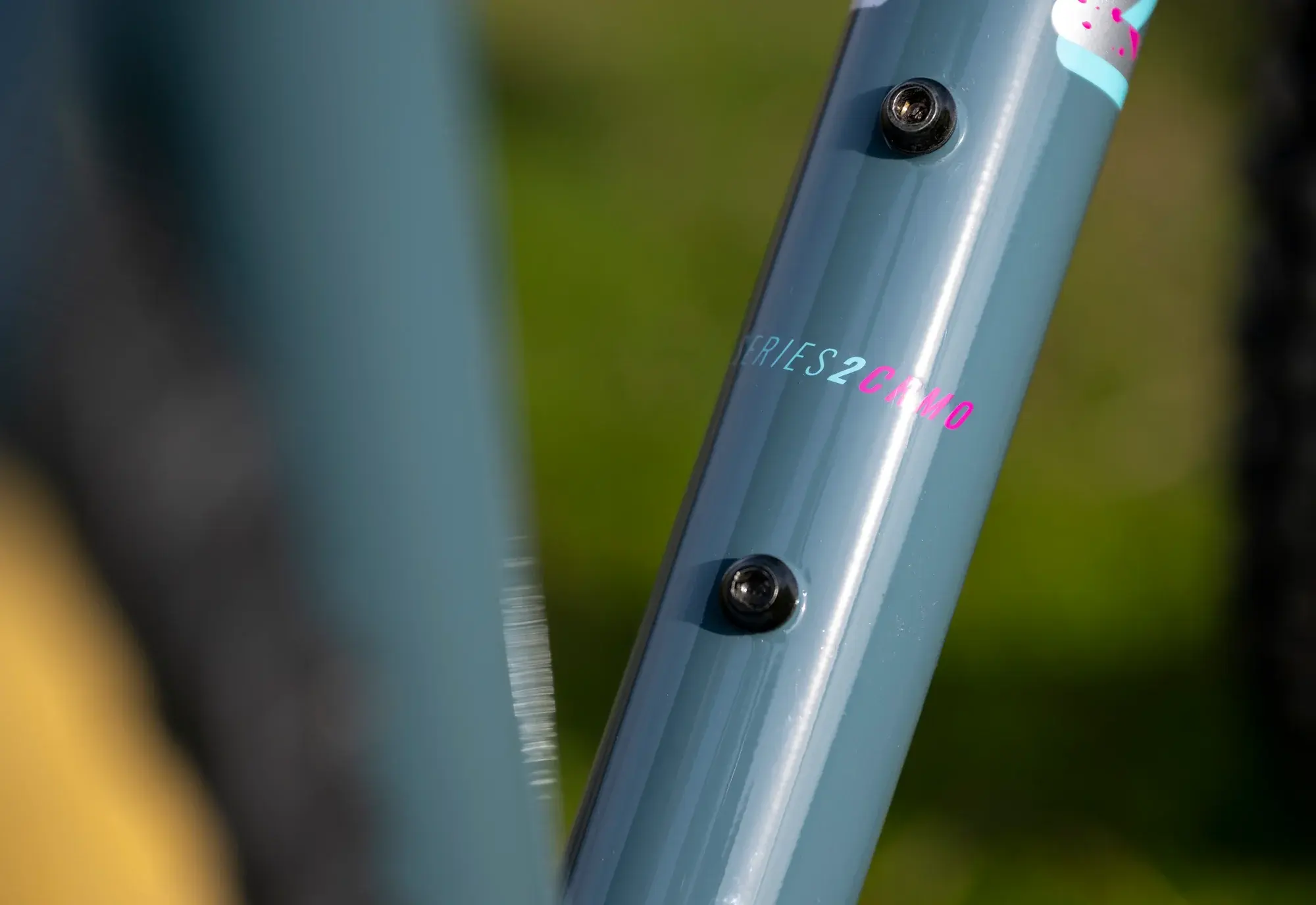

Series 2 Double Butted CrMo
- Rear Axle Dimension
- 141x9mm
- Material
- Steel
Fork
RockShox Recon RL
- Travel
- 120 mm
- Front Axle Dimension
- 110x15mm
- Steer tube diameter
- 1 1/8" x 1 1/2"
- Offset
- 51 mm
Cockpit
Grips
Marin Grizzly Lock On
Stem
Forged Marin 3D Alloy
- Length
- 35 mm

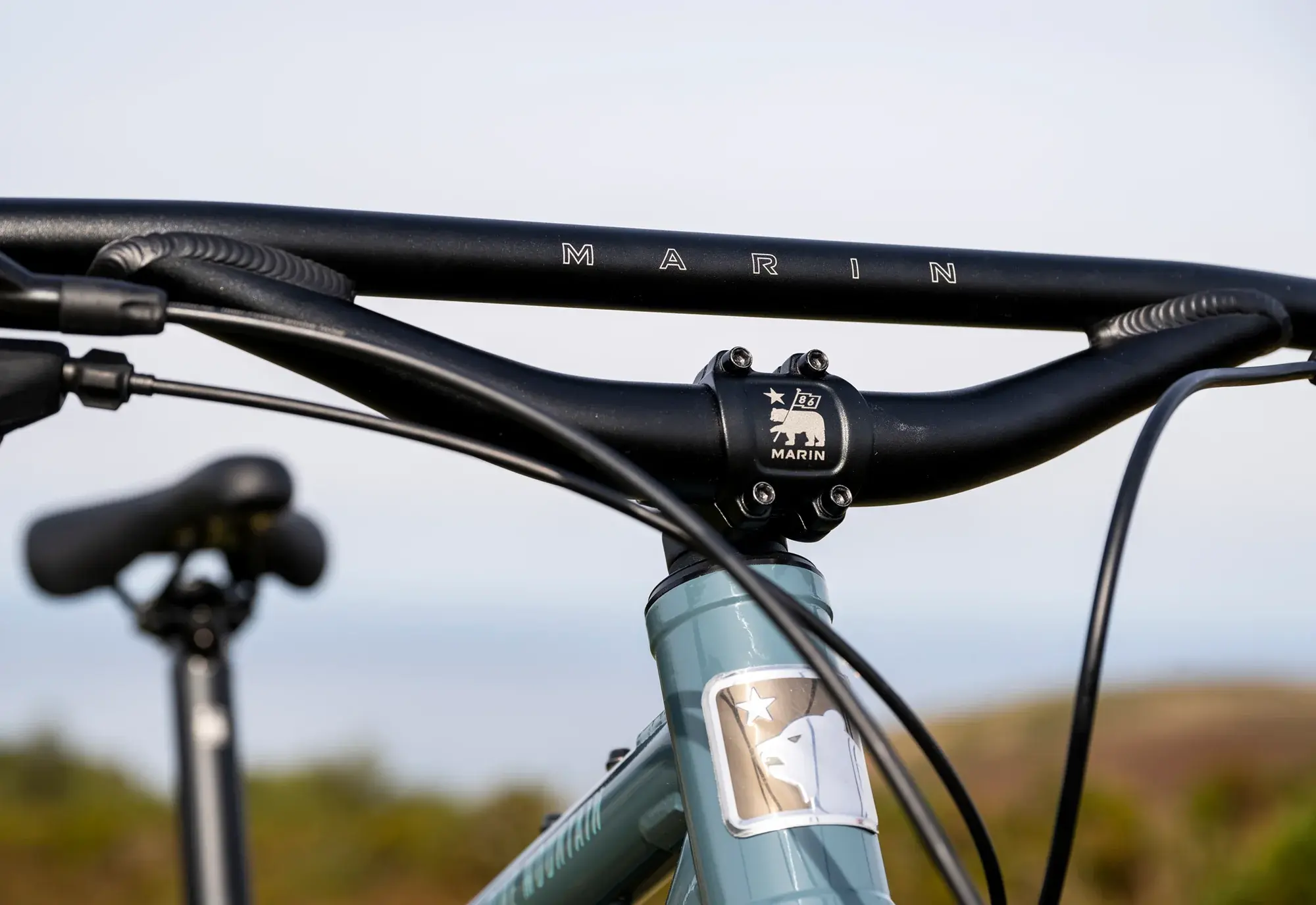

Handlebar
Marin Bedroll Bar
- Width
- 780 mm
- Rise
- 50 mm
- Material
- Alloy
Drivetrain
Chain
KMC X11
- Gears
- 11
Rear Derailleur
Shimano Deore RDM5100
- Gears
- 11
Rear Shifter
Shimano Deore SLM5100
Chainring
Narrow Steel Wide
- Gears
- 1
- Ring 1
- 32 Teeth

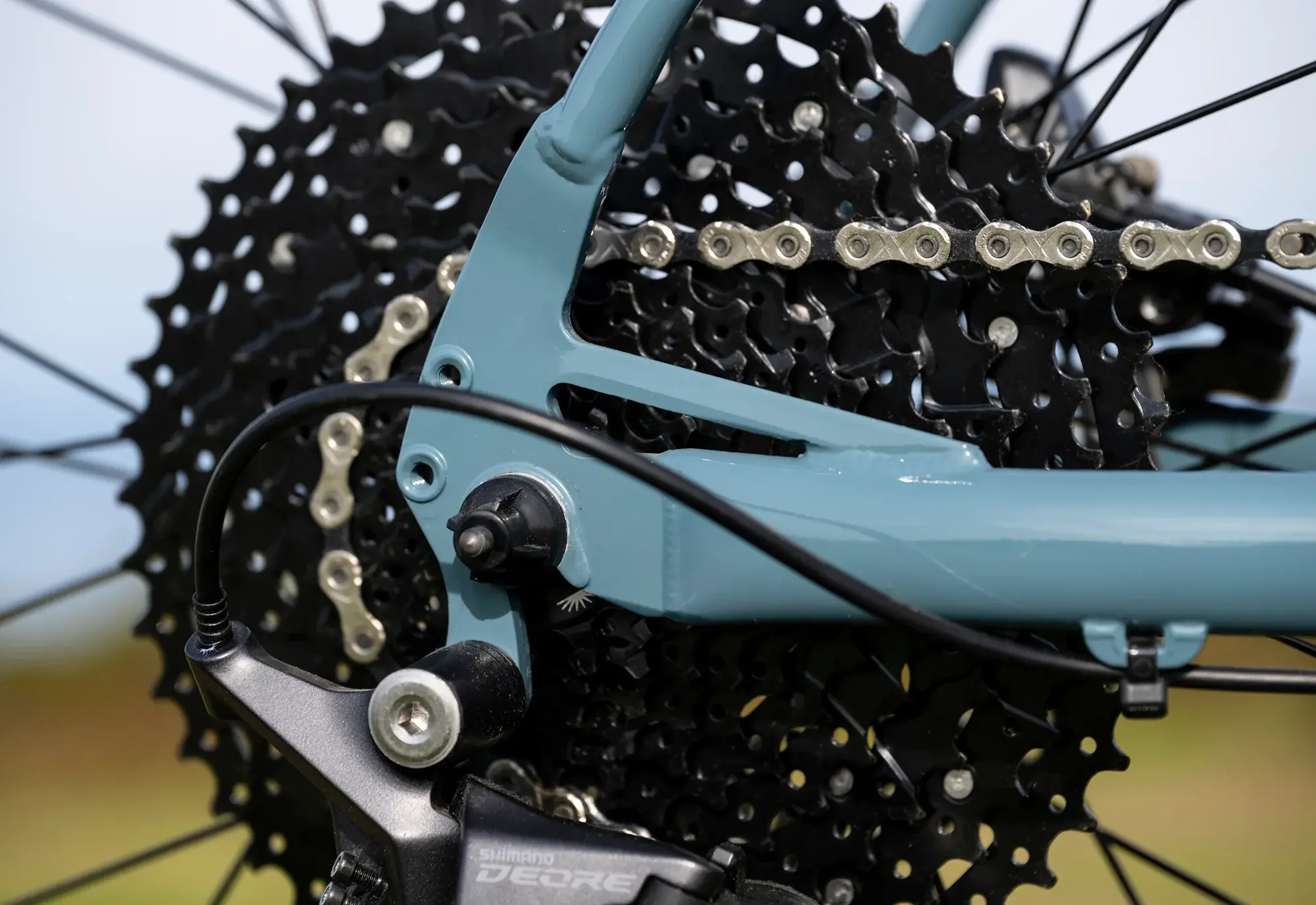

Cassette
Shimano Deore CSM5100
- Number of sprockets
- 11
- Range
- 11-51T
Crank
Forged Marin Alloy
- Length
- 170
Bottom Bracket
Sealed External Cartridge Bearings
- Standard
- 73mm Threaded
Seat
Seatpost
Marin Alloy
- Diameter
- 30.9 mm
Saddle
Marin Pine Mountain Trail
Wheels
Front
Front Wheel
Forged Hub / Double-Wall Rim (110x15mm)
- Axle Dimension
- 110x15mm
- Inner width
- 32 mm
- Material
- Alloy
- Position
- front
Front Tire
Vee Tire Flow Snap (29, 2.6")
- Size
- 29
- Width
- 2.6"
Rear
Rear Wheel
Forged Hub / Double-Wall Rim (141x9mm)
- Axle Dimension
- 141x9mm
- Inner width
- 32 mm
- Material
- Alloy
- Position
- back
Rear Tire
Vee Tire Flow Snap (29, 2.6")
- Size
- 29
- Width
- 2.6"
Brakes
Front
Front Brake
Tektro HDM535
Front Disc
Tektro Rotor
Rear
Rear Brake
Tektro HDM535
Rear Disc
Tektro Rotor
