Marin
Nicasio 1 ST
2025Road - All-Road
Nicasio 1 ST Data
- MSRP
- EUR 999.00
- Frame
- CrMo
- Suspension
- None, Hardtail
- Gears
- 16
- Sizes
- 47, 54, 56, 58, 52, 50
- Colors
- Blue
Looking for replacement tires?
View verified compatible tires for the 2025 Nicasio 1 ST.
Components
Complete component specification list for this variant.
Wheels

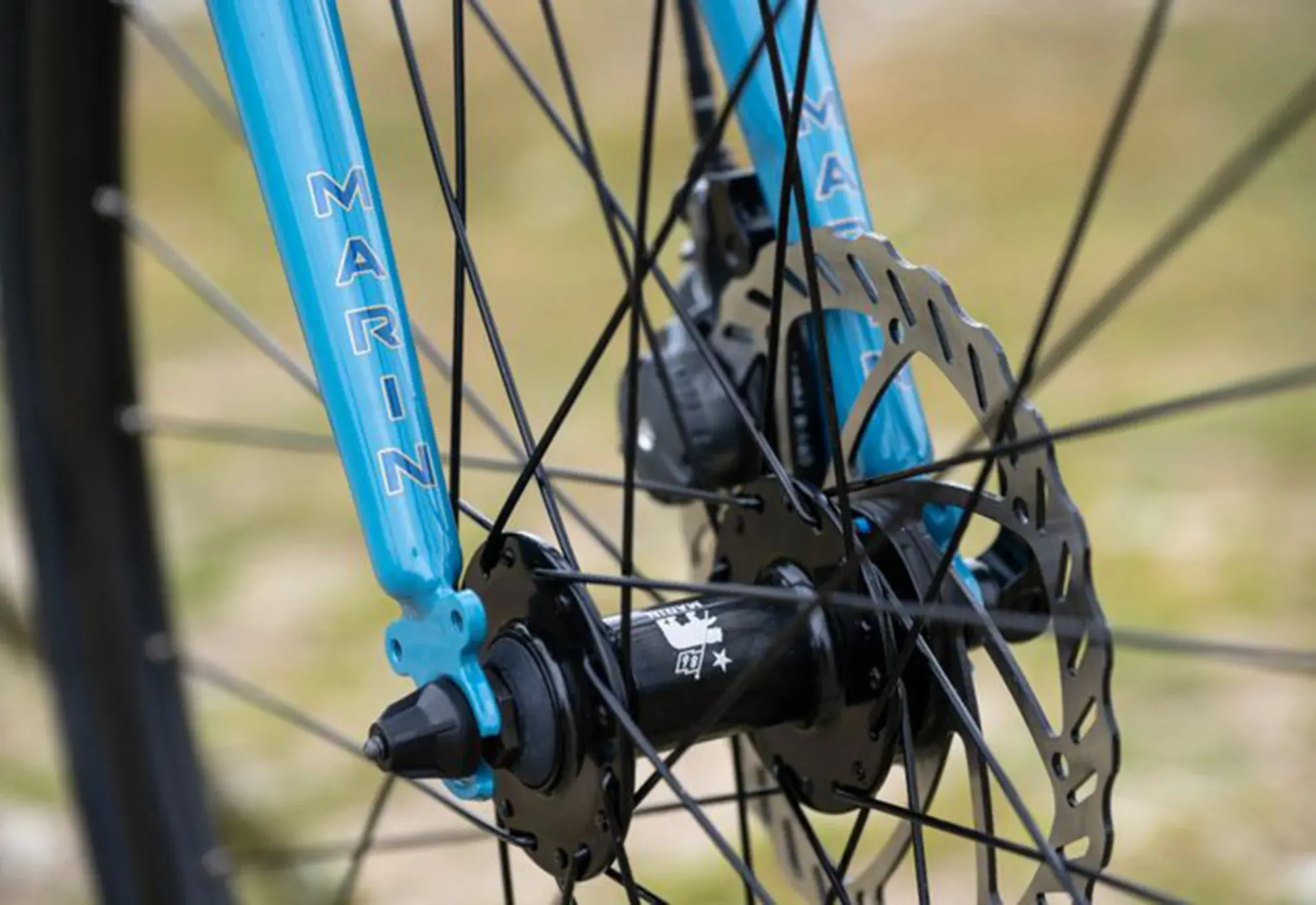

Front
Front Wheel
Double Marin Wall, mm Inner, Forged Alloy Disc Hub, 32H
- Inner width
- 19 mm
- Material
- Aluminum
- Position
- front
Front Tire
WTB Exposure, Wire Bead (700C, 36)
- Size
- 700C
- Width
- 36
Rear
Rear Wheel
Double Marin Wall, mm Inner, Forged Alloy Disc Hub, 32H
- Inner width
- 19 mm
- Material
- Aluminum
- Position
- back
Rear Tire
WTB Exposure, Wire Bead (700C, 36)
- Size
- 700C
- Width
- 36
Brakes
Front
Front Brake
Tektro MDC400 Road Mechanical
Front Disc
Tektro Tektro
- Diameter
- 160 mm
Rear
Rear Brake
Tektro MDC400 Road Mechanical
Rear Disc
Tektro Tektro
- Diameter
- 160 mm
Frame
Frame

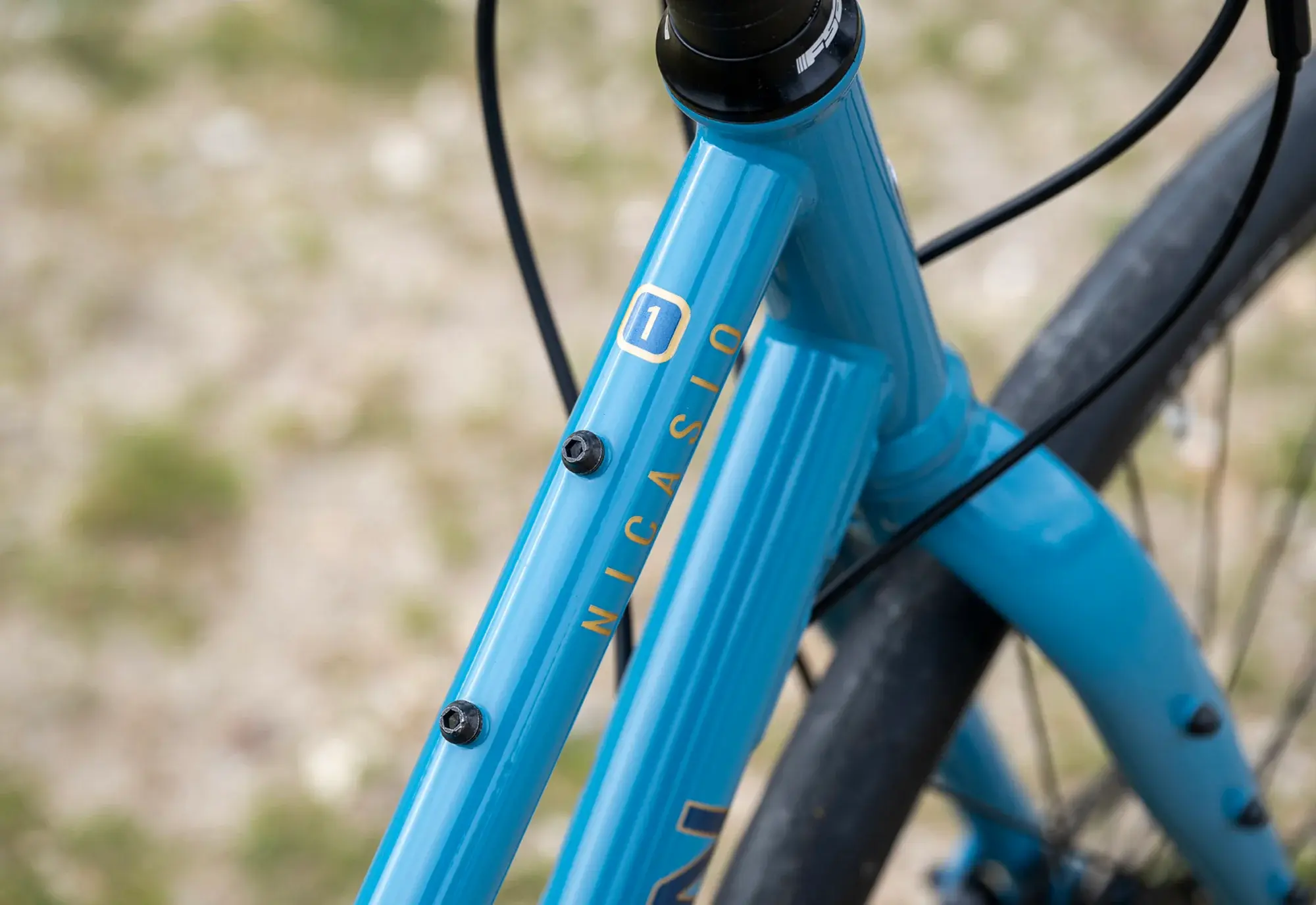

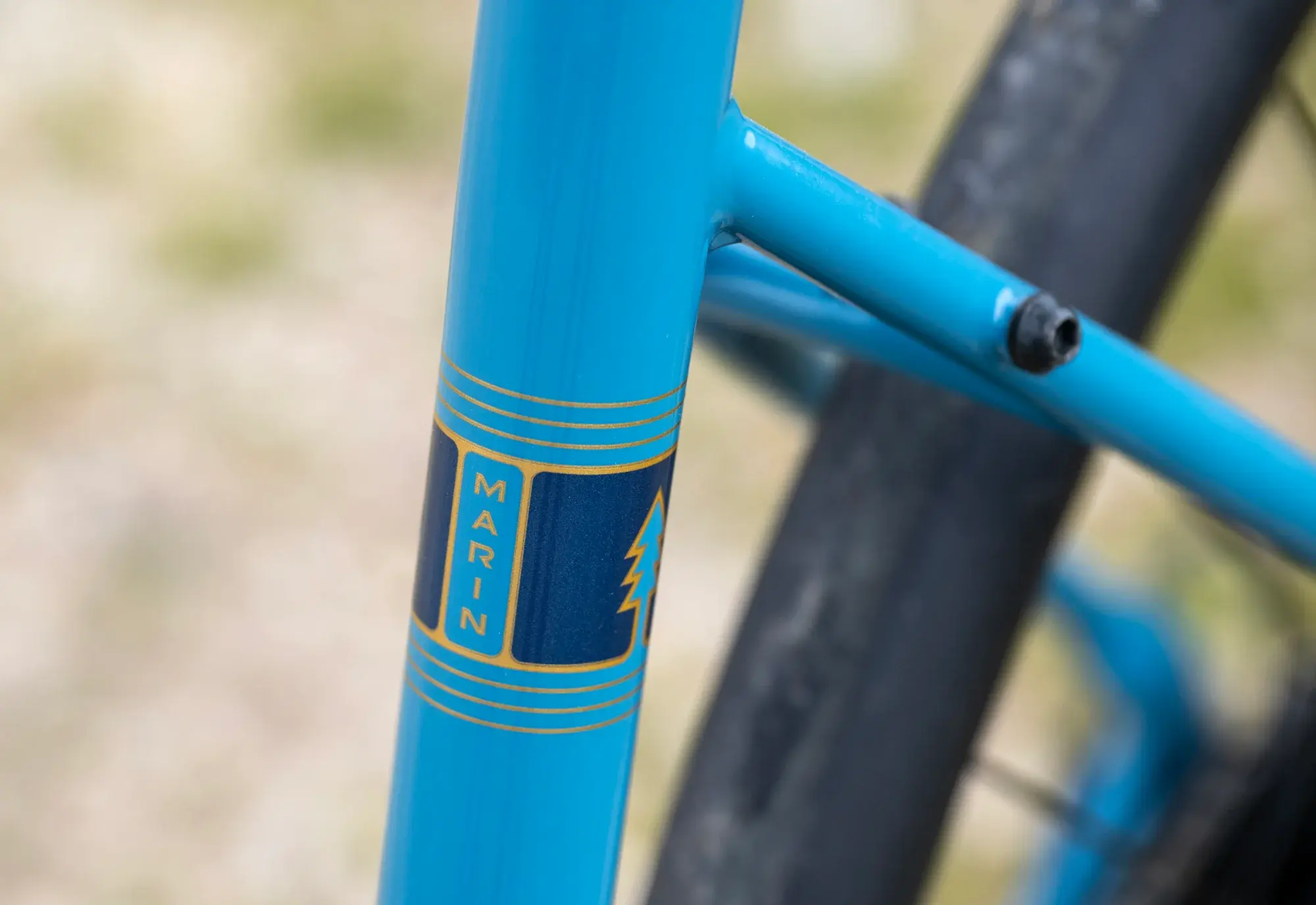

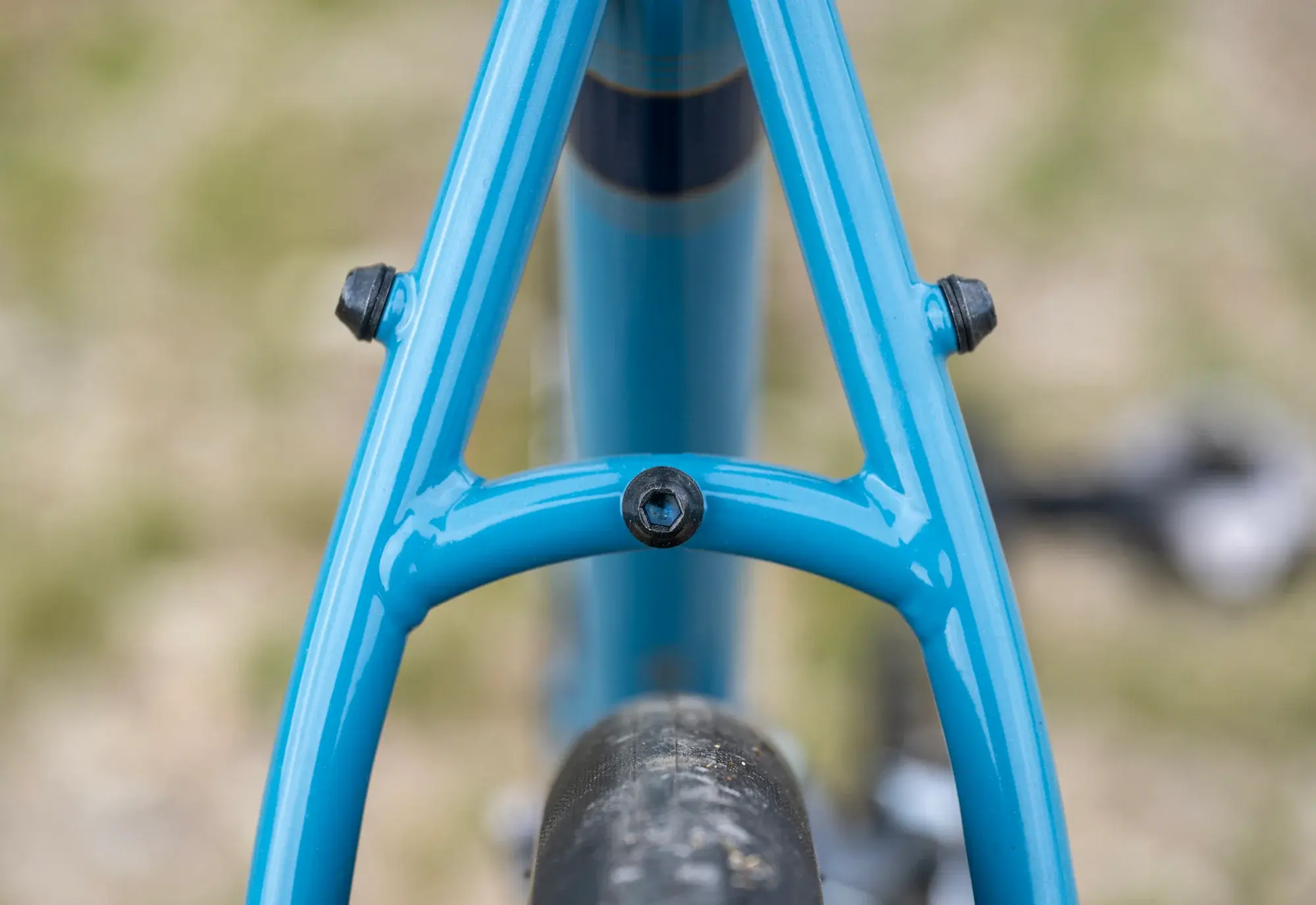

Double Steezy Step-Thru Butted , Beyond Road Geometry
- Material
- CrMo
Fork
CrMo, Fender and Rack Eyelets, IS Disc Mount
Pedals
Nylon
- Type
- Platform
Drivetrain
Front
Front Shifter
Shimano Claris 2x8-Speed
Rear
Rear Shifter
Shimano Claris 2x8-Speed
Chainring
FSA Tempo Compact
- Gears
- 2
- Ring 1
- 50 Teeth
- Ring 2
- 34 Teeth
Rear Derailleur
Shimano Claris -Speed
- Gears
- 8
Cassette
Sun -Speed
- Number of sprockets
- 8
- Range
- 11-32T
Chain
KMC KMC Z
- Gears
- 8
Crank
FSA Tempo Compact
- Length
- 170
Bottom Bracket
Sealed Cartridge Bearings,
- Standard
- Square Taper
Cockpit
Stem
Forged Marin 3D
- Length
- 75 mm
- Material
- Alloy
Handlebar
Marin Butted , Compact 16º Flared Drop
- Width
- 400 mm
- Material
- Alloy
Grips
Marin Comfort Tape
Seat
Saddle
Marin Beyond Road Concept
Seatpost
Marin Alloy
- Diameter
- 27.2 mm
- Material
- Alloy
