Marin
GESTALT XR
2025Road - All-Road
GESTALT XR Data
- MSRP
- EUR 2599.00
- Frame
- Aluminum
- Suspension
- None, Hardtail
- Gears
- 12
- Sizes
- S, M, L, Xl
- Colors
- Black/Grey
Looking for replacement tires?
View verified compatible tires for the 2025 GESTALT XR.
Components
Complete component specification list for this variant.
Drivetrain
Bottom Bracket
SRAM DUB
- Standard
- BSA
Rear Shifter
SRAM Apex 1 1x12-Speed

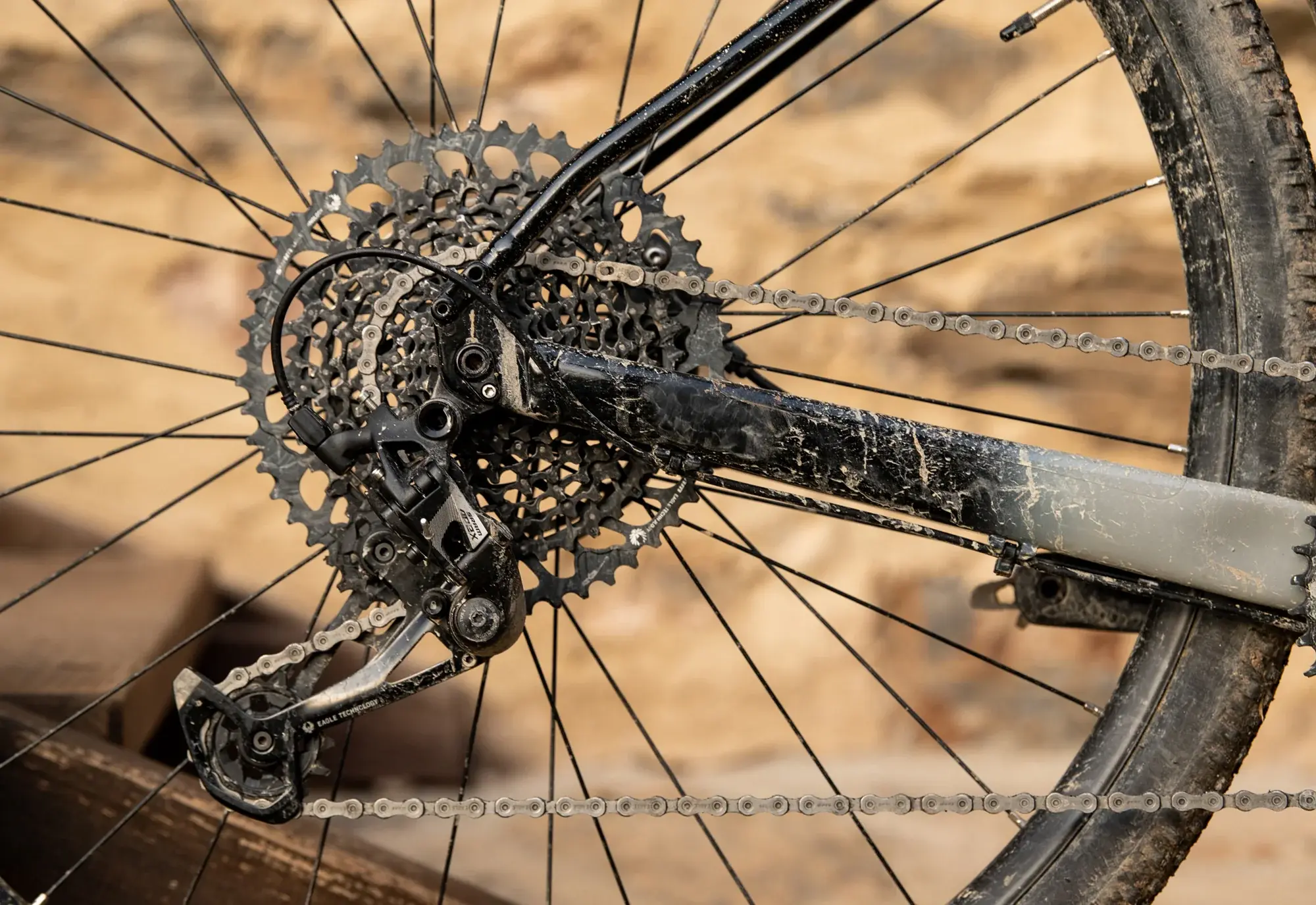

Cassette
SRAM CS-XG-75
- Number of sprockets
- 12
- Range
- 10-52T
Chain
SRAM SRAM NX
- Gears
- 12
Rear Derailleur
SRAM Apex 1
Chainring
SRAM Apex 1
Crank
SRAM Apex 1
Brakes
Front

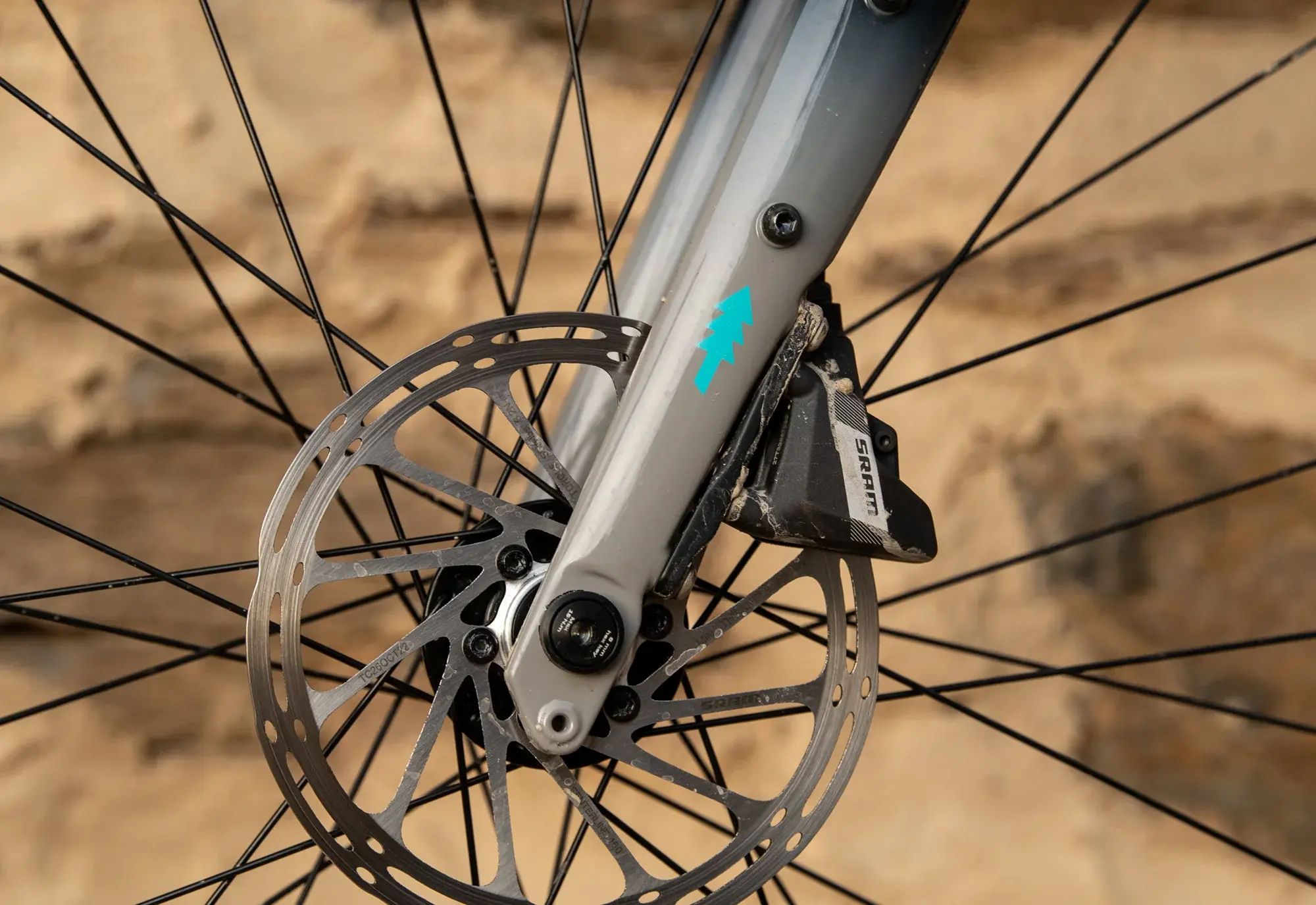

Front Brake
SRAM Apex 1 Flat-Mount Hydraulic Disc
Front Disc
SRAM Rotor
Rear
Rear Brake
SRAM Apex 1 Flat-Mount Hydraulic Disc
Rear Disc
SRAM Rotor
Seat
Saddle
Marin Beyond Road Concept Elite
Seatpost
TranzX YSP38J
- Diameter
- 27.2 mm
- Dropper post
- 1
- Travel
- 70 mm
Wheels
Front
Front Wheel
Double Marin Wall, Forged Alloy Hub, , 32H (700c, 100x12mm)
- Size
- 700c
- Axle Dimension
- 100x12mm
- Rim height
- 18 mm
- Inner width
- 25 mm
- Material
- Aluminum
- Position
- front
Front Tire
Vee Tire Co. QuikStyk, Folding Bead, Tubeless Compatible (700c, 45)
- Size
- 700c
- Width
- 45
Rear
Rear Wheel
Double Marin Wall, Forged Alloy Hub, , 32H (700c, 142x12mm)
- Size
- 700c
- Axle Dimension
- 142x12mm
- Rim height
- 18 mm
- Inner width
- 25 mm
- Material
- Aluminum
- Position
- back
Rear Tire
Vee Tire Co. QuikStyk, Folding Bead, Tubeless Compatible (700c, 45)
- Size
- 700c
- Width
- 45
Frame
Frame
Series 3 Beyond Road, 6061 , Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, Thru-Axle
- Rear Axle Dimension
- 142x12mm
- Material
- Aluminum
Fork
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
- Front Axle Dimension
- 12x100mm
Cockpit
Stem
Forged Marin 3D
- Length
- 50 mm
- Material
- Alloy
Handlebar
Marin Butted , Compact 16º Flared Drop
- Width
- 440 mm
- Material
- Alloy
Grips
Marin Shock Absorbing Perforated Tape
