Marin
Gestalt 1
2025Road - All-Road
Gestalt 1 Data
- MSRP
- EUR 1399.00
- Suspension
- None
- Gears
- 18
- Sizes
- 54, 56, 58, 52, 50, 60
- Colors
- White
Looking for replacement tires?
View verified compatible tires for the 2025 Gestalt 1.
Components
Complete component specification list for this variant.
Frame
Pedals
Nylon
- Type
- Platform

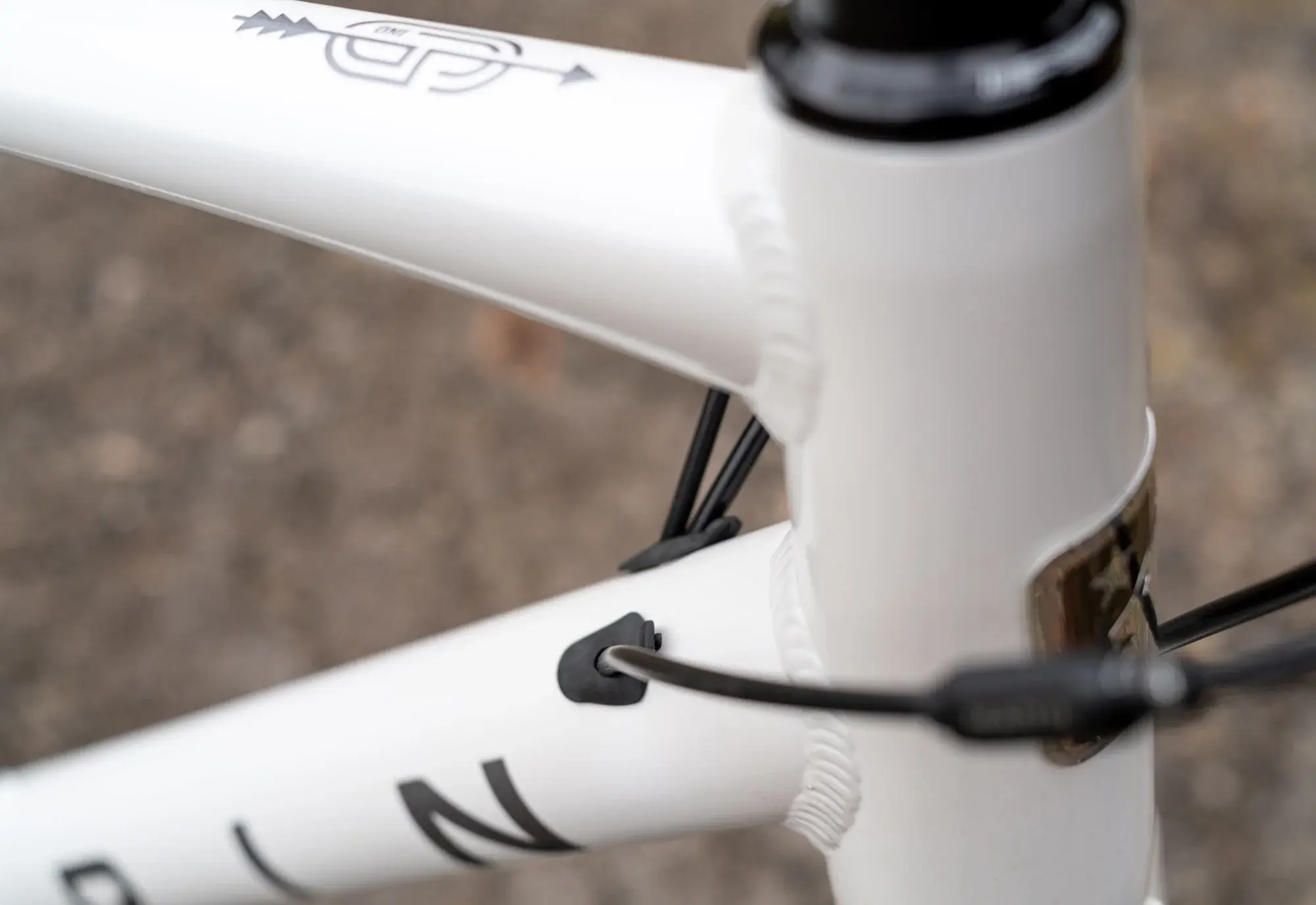

Frame
Series 3 Beyond Road

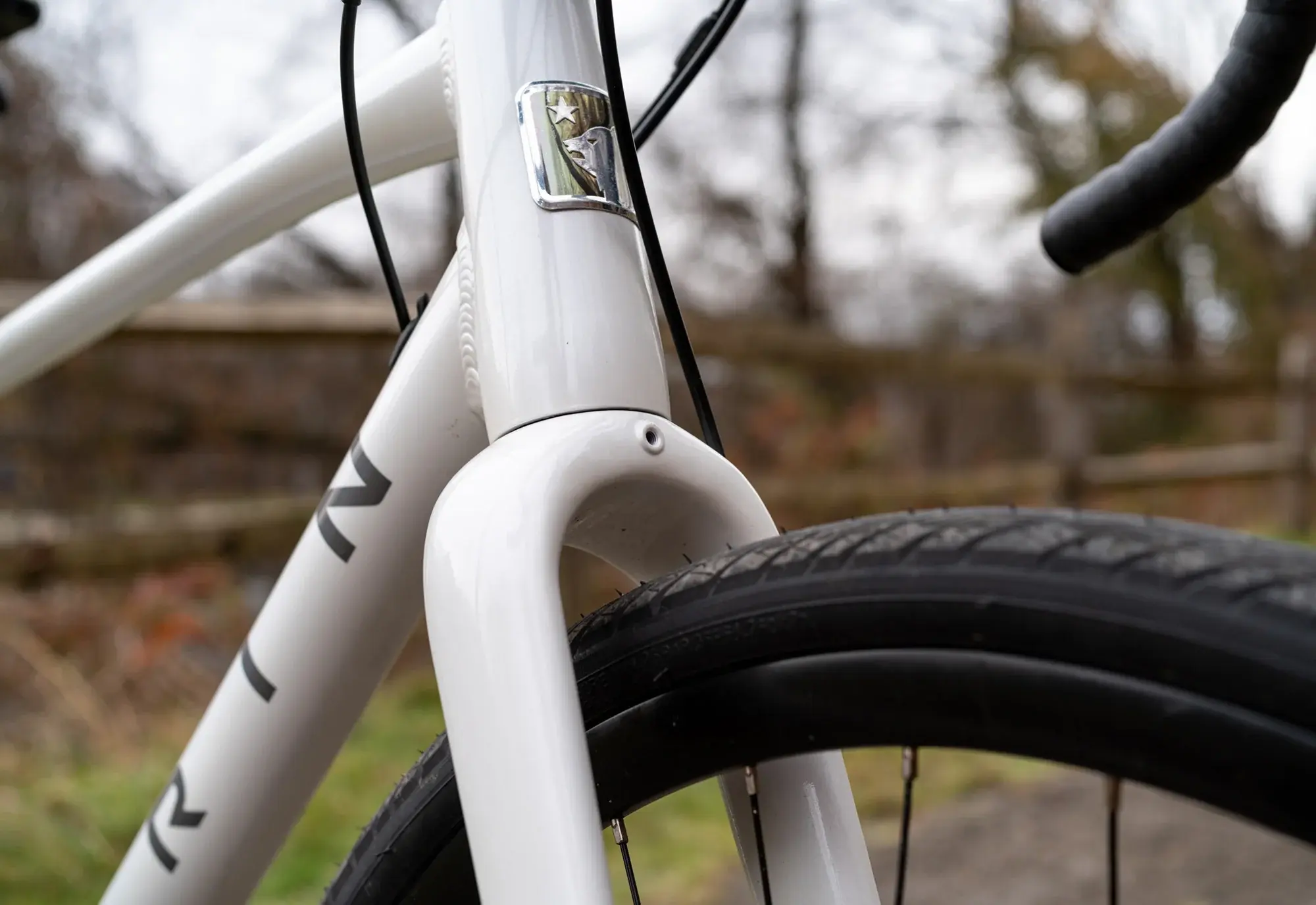

Fork
Marin Full Carbon
Seat
Saddle
Marin Beyond Road Concept
Seatpost
Marin Alloy
- Diameter
- 27.2 mm
- Material
- Alloy
Drivetrain
Front
Front Derailleur
Shimano Sora
- Gears
- 2
Front Shifter
Shimano Sora
Rear
Rear Derailleur
Shimano Sora
- Gears
- 9
Rear Shifter
Shimano Sora
Chain
KMC KMC X
- Gears
- 9
Chainring
Shimano R5 Octalink Compact
- Ring 1
- 50 Teeth
- Ring 2
- 34 Teeth
Cassette
Sun -Speed
- Number of sprockets
- 9
- Range
- 11-32T
Crank
Shimano R345 Octalink Compact
Bottom Bracket
Shimano Cartridge
- Standard
- Octalink V2
Cockpit

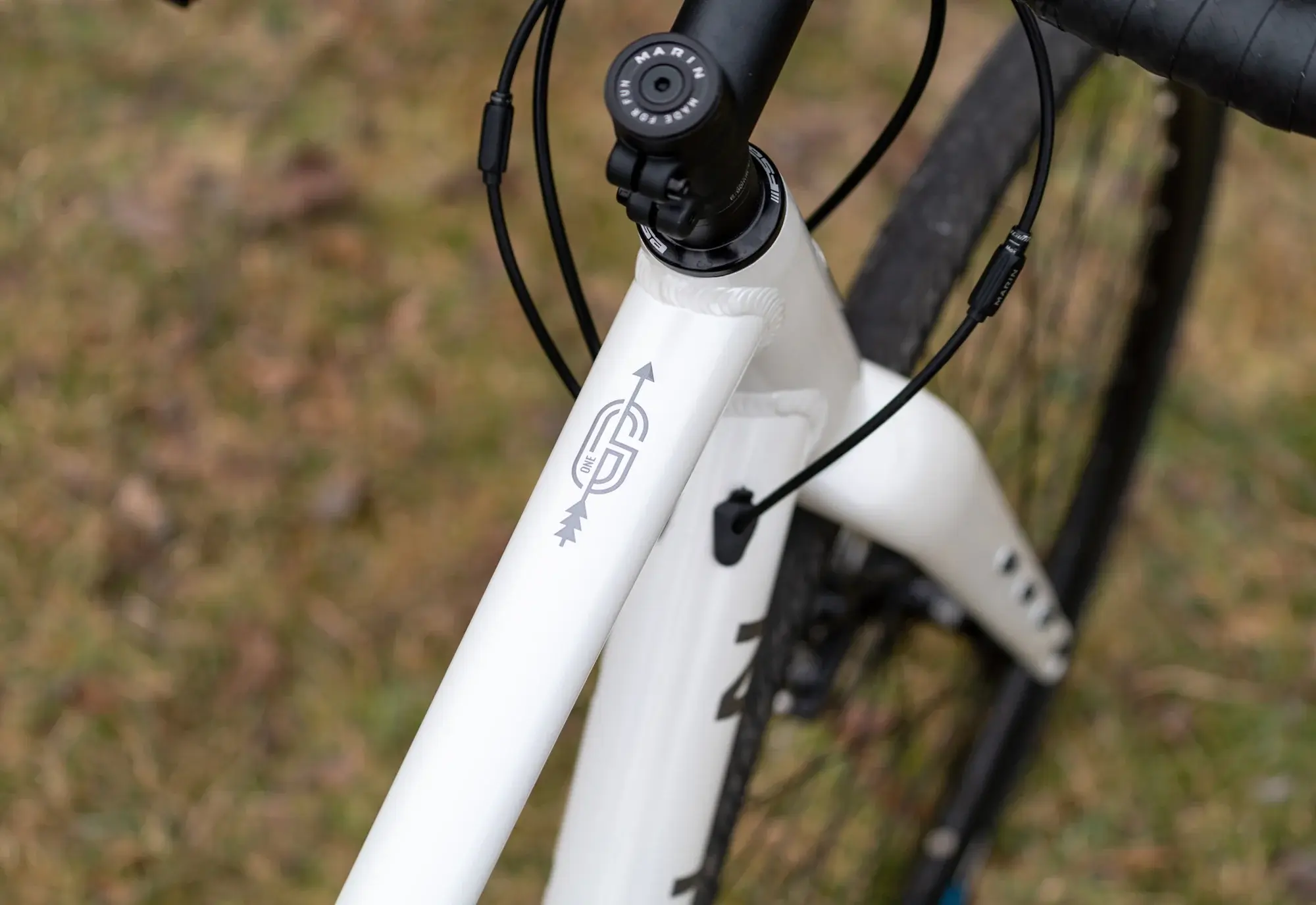

Stem
Forged Marin 3D
- Material
- Alloy
Handlebar
Marin Butted , Compact 16º Flared Drop
- Material
- Alloy
Grips
Marin Perforated Tape
Brakes
Front
Front Disc
Tektro MDM280 Mechanical Disc Rotor
- Diameter
- 160 mm
Front Brake
Tektro MD-C550 Dual Piston Road Mechanical Disc
Rear
Rear Disc
Tektro MDM280 Mechanical Disc Rotor
- Diameter
- 160 mm

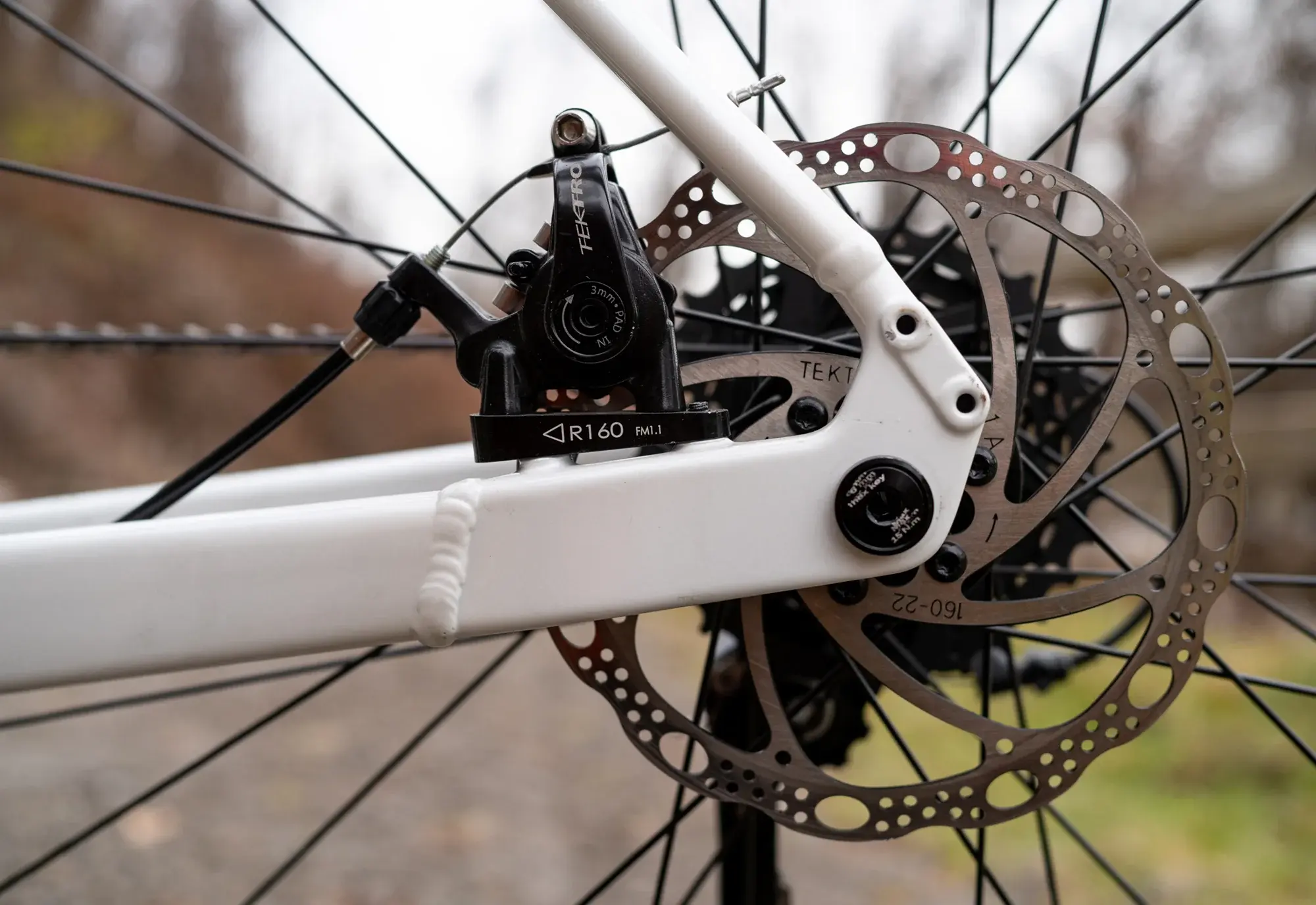

Rear Brake
Tektro MD-C550 Dual Piston Road Mechanical Disc
Wheels
Front
Front Wheel
Double Marin Wall w/ Forged Alloy Hub (700c, 12x100mm)
- Size
- 700c
- Axle Dimension
- 12x100mm
- Rotor mount
- 6-Bolt
- Rim height
- 22 mm
- Inner width
- 21 mm
- Material
- Aluminum
- Position
- Front
Front Tire
WTB Exposure Comp (700, 36)
- Size
- 700
- Width
- 36
Rear
Rear Wheel
Double Marin Wall w/ Forged Alloy Hub (700c, 12x142mm)
- Size
- 700c
- Axle Dimension
- 12x142mm
- Rotor mount
- 6-Bolt
- Rim height
- 22 mm
- Inner width
- 21 mm
- Material
- Aluminum
- Position
- Back
Rear Tire
WTB Exposure Comp (700, 36)
- Size
- 700
- Width
- 36
