Marin
Fairfax E
2025 ElectricCity & Touring - Fitness
Fairfax E Data
- MSRP
- USD 1599.00
- Frame
- Aluminum
- Suspension
- None, Hardtail
- Sizes
- S, M, L, Xl
- Colors
- Silver
Looking for replacement tires?
View verified compatible tires for the 2025 Fairfax E.
Components
Complete component specification list for this variant.
Brakes
Front
Front Disc
Tektro Tektro
- Diameter
- 160 mm
Front Brake
Tektro HDM-275 Hydraulic Disc
Rear

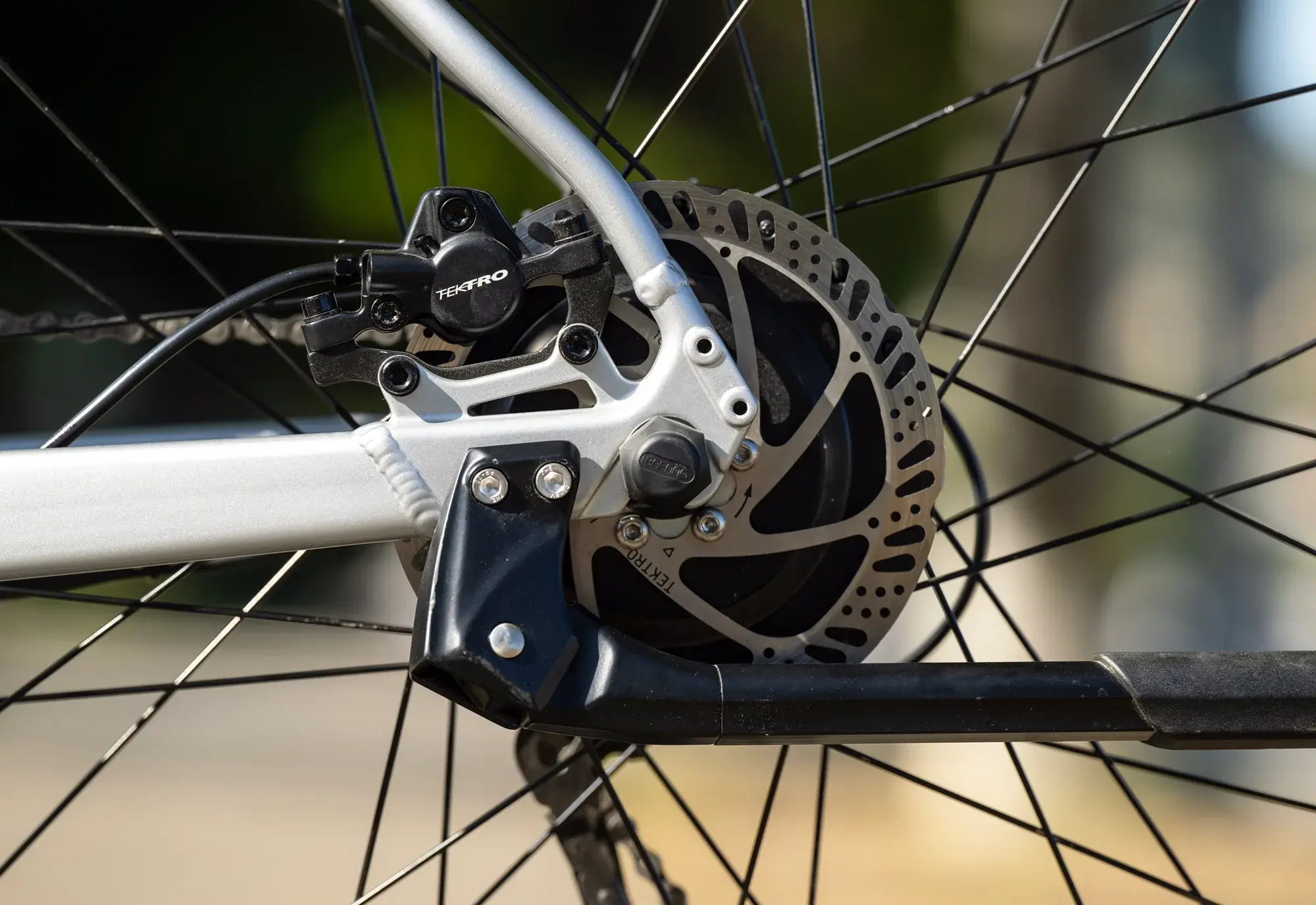

Rear Disc
Tektro Tektro
- Diameter
- 160 mm
Rear Brake
Tektro HDM-275 Hydraulic Disc
Wheels
Front
Front Tire
Vee Tire City Cruz (700C, 40mm)
- Size
- 700C
- Width
- 40mm
Front Wheel
Double Marin Wall, Forged Alloy Hub
- Material
- Aluminum
- Position
- Front
Rear
Rear Tire
Vee Tire City Cruz (700C, 40mm)
- Size
- 700C
- Width
- 40mm
Rear Wheel
Double Marin Wall, Bafang 250W Hub Motor
- Material
- Aluminum
- Position
- Back
Frame
Fork
6061 Aluminum, Straight-Blade
Frame
Fitness Series 2 , E-Bike Specific, 6061
- Material
- Aluminum
Pedals
Nylon Platform
- Type
- Flat
Drivetrain
Battery

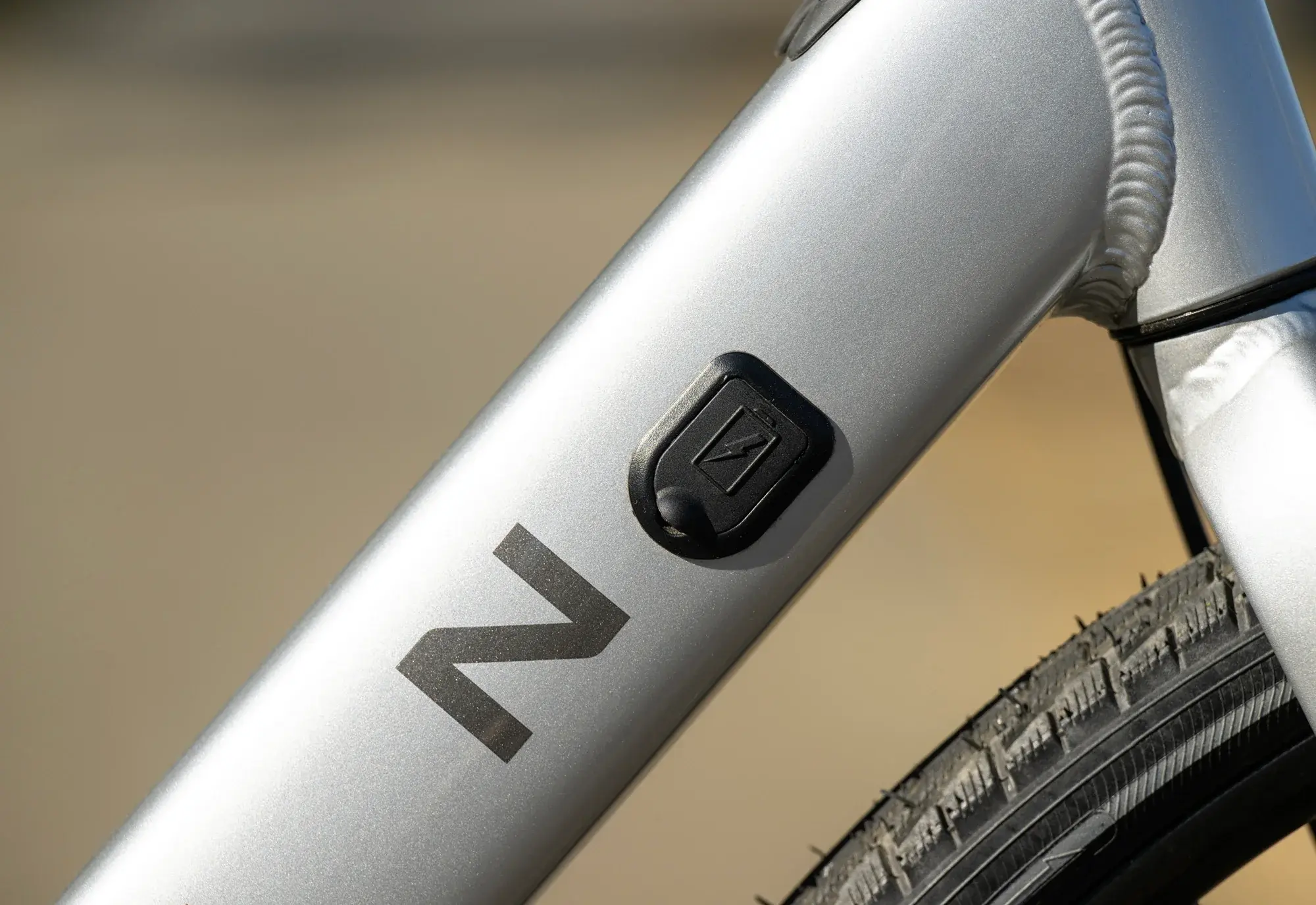

Bafang In-tube
- Capacity
- 340 Wh
Rear Derailleur
Shimano Acera
- Gears
- 8
Crank
Alloy Crank
- Length
- 170
Bottom Bracket
Integrated Torque Sensing, Sealed Cartridge Bearings,
- Standard
- Square Taper
Rear Shifter
Shimano Altus RapidFire
Chain
KMC KMC X
- Gears
- 8
Display

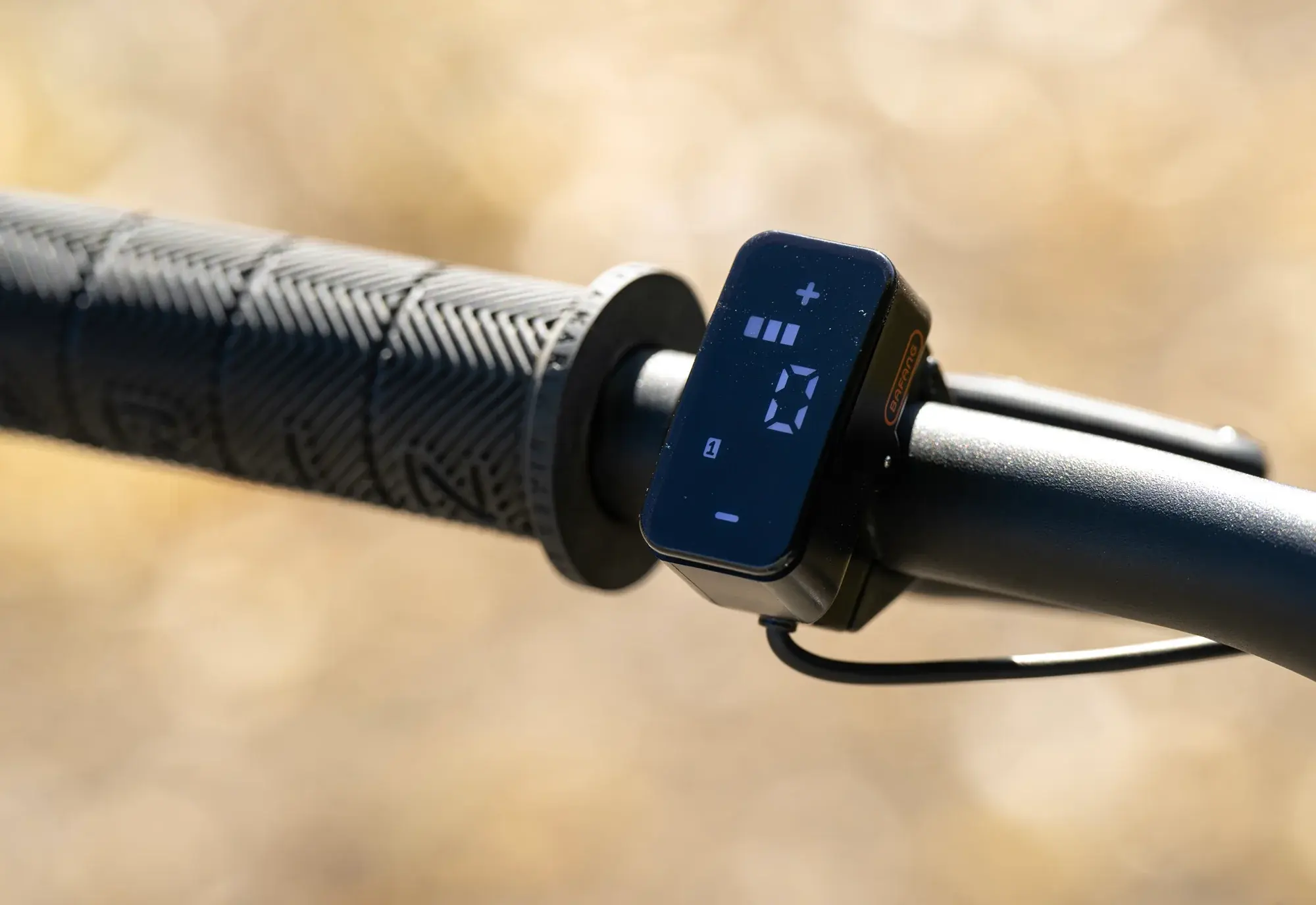

Bafang Handlebar Mount LCD Switch & Display
Motor
Bafang Hub Motor
Chainring
Steel
Cassette
Shimano HG-400
Cockpit
Grips
Marin County
Stem
Marin Alloy
- Length
- 70 mm
Handlebar
Marin Alloy Flat
- Width
- 680 mm
- Material
- Aluminum
Seat
Seatpost
Marin Alloy
- Diameter
- 27.2 mm
- Material
- Aluminum
Saddle
Marin Fitness
