Marin

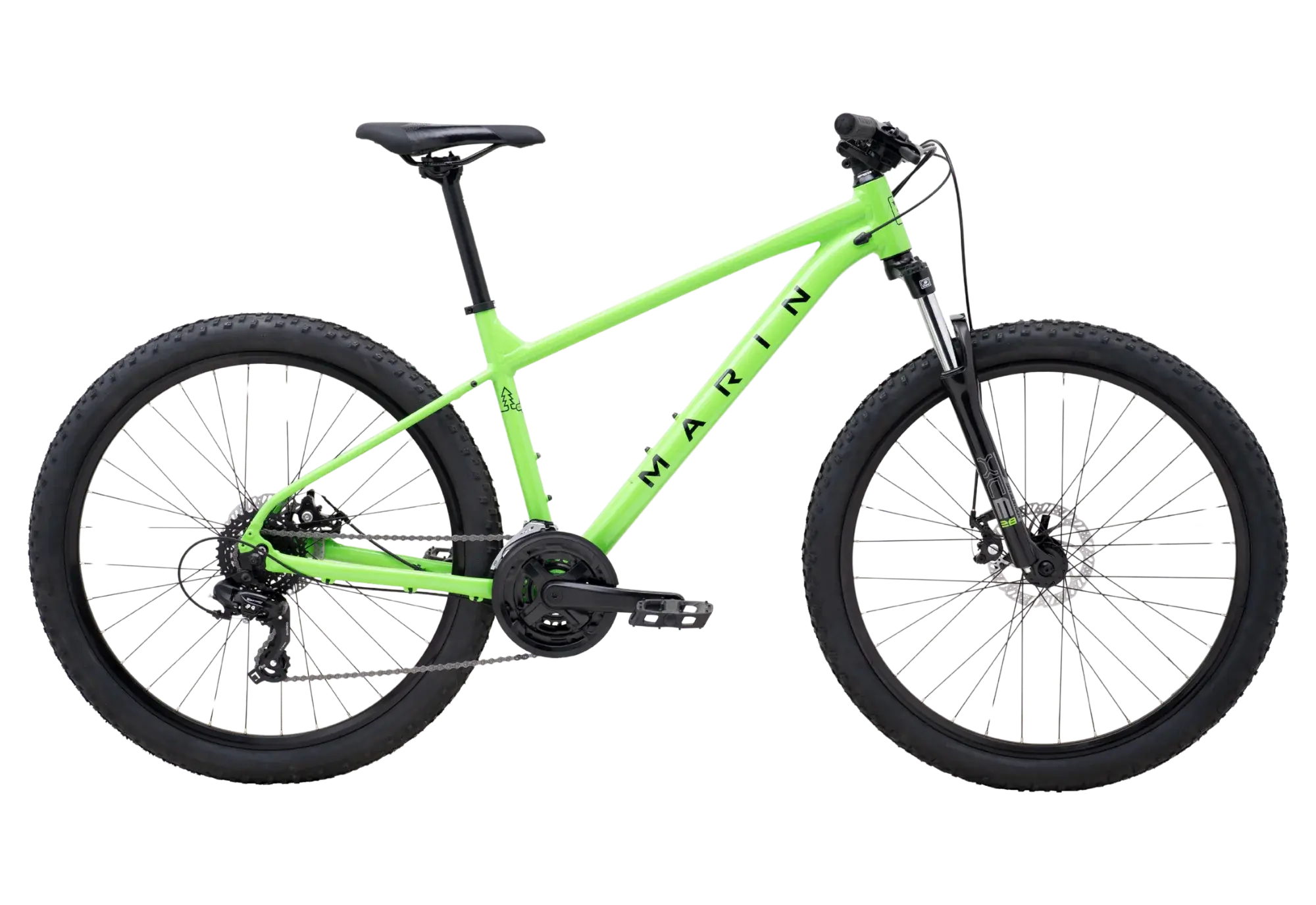

BOLINAS RIDGE 1
2025Mountain
BOLINAS RIDGE 1 Data
- MSRP
- USD 599.00
- Frame
- Aluminum
- Suspension
- Hardtail
- Travel
- Front: 100mm
- Sizes
- M, L, Xl
- Colors
- Green, Blue
Looking for replacement tires?
View verified compatible tires for the 2025 BOLINAS RIDGE 1.
Components
Complete component specification list for this variant.
Brakes
Front
Front Disc
Tektro Tektro
- Diameter
- 160 mm
Front Brake
Tektro MDM280 Mechanical Disc
Rear
Rear Disc
Tektro Tektro
- Diameter
- 160 mm
Rear Brake
Tektro MDM280 Mechanical Disc
Frame
Pedals
Nylon
- Type
- Platform
Frame
Series 1 6061
- Rear Axle Dimension
- 135mm
- Material
- Aluminum
Fork
Sun SR tour XCE Disc
- Travel
- 100 mm
- Offset
- 46 mm
Drivetrain
Front
Front Derailleur
Shimano FD-TX600
Front Shifter
Shimano Tourney 2x7-Speed
Rear
Rear Derailleur
Shimano Tourney
- Gears
- 7
Rear Shifter
Shimano Tourney 2x7-Speed
Chain
KMC KMC Z8
Crank
Alloy Crank
- Length
- 170
Chainring
Ring Alloy Crank, Steel Chains
- Gears
- 2
- Ring 1
- 36 Teeth
- Ring 2
- 22 Teeth
Bottom Bracket
Sealed Cartridge Bearings
- Standard
- Square Taper
Cassette
Shimano CSHG200
Wheels
Front
Front Wheel
Double Marin Wall Rim / Forged Hub
- Rotor mount
- Disc
- Material
- Alloy
- Position
- Front
Front Tire
MTB MTB (29, 2.25")
- Size
- 29
- Width
- 2.25"
Rear
Rear Wheel
Double Marin Wall Rim / Forged Hub
- Rotor mount
- Disc
- Material
- Alloy
- Position
- Back
Rear Tire
MTB MTB (29, 2.25")
- Size
- 29
- Width
- 2.25"
Cockpit
Stem
Marin Alloy
- Length
- 45 mm
- Clamping diameter
- 31.8 mm
Grips
Marin MTB, Closed End
Handlebar
Marin 31.8 Riser
Seat
Saddle
Marin MTB
Seatpost
Marin Alloy
- Diameter
- 27.2 mm
