Marin

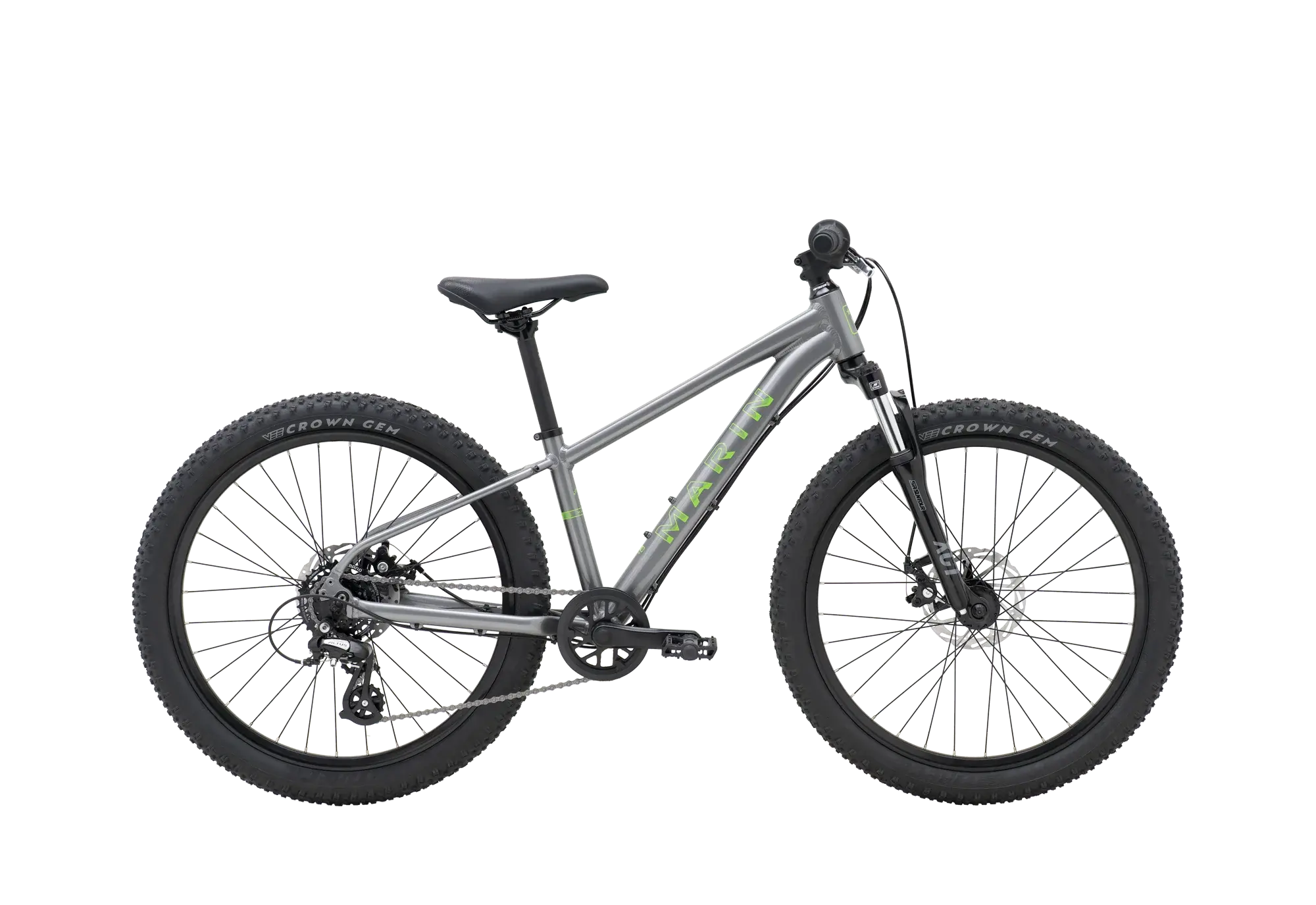

Bayview Trail 24
2025City & Touring - Hybrid
Bayview Trail 24 Data
- MSRP
- EUR 499.00
- Frame
- Aluminum
- Suspension
- Hardtail
- Travel
- Front: 50mm
- Sizes
- 24"
- Colors
- Red/ Blue, Grey/ Green
Looking for replacement tires?
View verified compatible tires for the 2025 Bayview Trail 24.
Components
Complete component specification list for this variant.
Seat
Seatpost
Marin Alloy
- Diameter
- 27.2 mm
- Material
- Alloy
Saddle
Marin Kids MTB
Brakes
Front
Front Brake
Tektro MDM280 Mechanical Disc
Front Disc
Tektro MDM280
Rear
Rear Brake
Tektro MDM280 Mechanical Disc
Rear Disc
Tektro MDM280
Accessories
Chainguard
Ring Guard
Frame
Frame
Series 1 6061
- Rear Axle Dimension
- 135mm
- Material
- Aluminum
Fork
Sun SR tour XCT Jr 24"
- Travel
- 50 mm
- Offset
- 42 mm
Pedals
Kids Specific Nylon Pedal
- Type
- Flat
Drivetrain
Bottom Bracket
Sealed Cartridge Bearings
- Standard
- Square Taper
Chain
KMC KMC Z8
- Gears
- 7
Chainring
Forged Alloy
- Gears
- 1
- Ring 1
- 30 Teeth
Rear Derailleur
Shimano Altus
- Gears
- 7
Rear Shifter
Shimano Revo Twist
Crank
Forged Alloy
- Length
- 130
Cassette
Shimano CSHG200
Wheels
Front
Front Wheel
Double Marin Wall Rim, Forged Aluminum Hub, 32H (24")
- Size
- 24"
- Material
- Alloy
- Position
- front
Front Tire
Vee Tire Crown Gem (24", 2.25")
- Size
- 24"
- Width
- 2.25"
Rear
Rear Wheel
Double Marin Wall Rim, Forged Aluminum Hub, 32H (24", 135mm)
- Size
- 24"
- Axle Dimension
- 135mm
- Material
- Alloy
- Position
- back
Rear Tire
Vee Tire Crown Gem (24", 2.25")
- Size
- 24"
- Width
- 2.25"
Cockpit
Stem
Marin Alloy
- Length
- 40 mm
- Material
- Alloy
Grips
Marin Dual Density
Handlebar
Marin Riser
