Marin

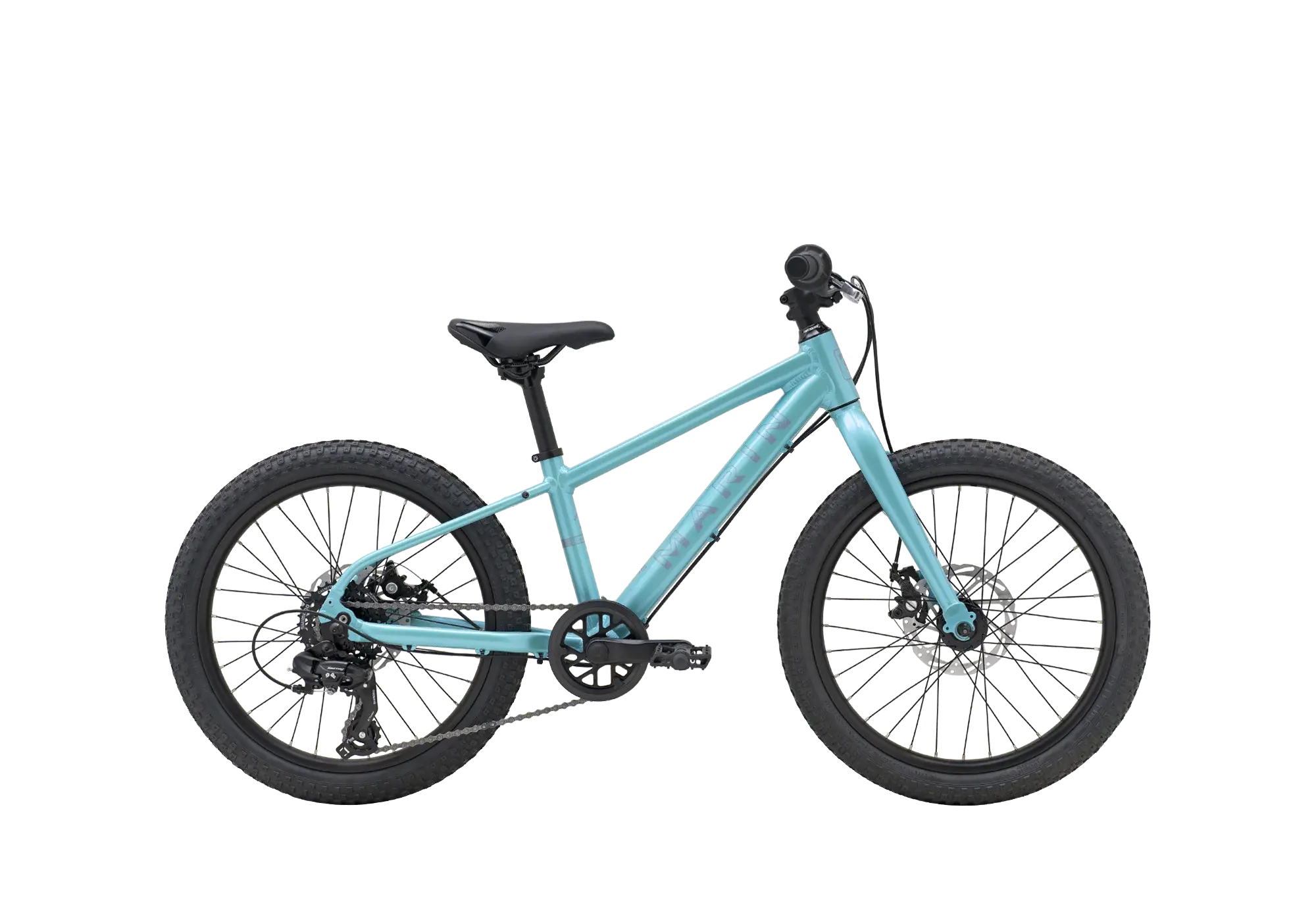

Bayview Trail 20
2025City & Touring - Hybrid
Bayview Trail 20 Data
- MSRP
- EUR 399.00
- Frame
- 6061 Aluminum
- Suspension
- None, Hardtail
- Sizes
- 20"
- Colors
- Black/ Gold, Teal/ Silver
Looking for replacement tires?
View verified compatible tires for the 2025 Bayview Trail 20.
Components
Complete component specification list for this variant.
Drivetrain
Chain
KMC KMC Z
- Gears
- 8
Bottom Bracket
Sealed Cartridge Bearings
- Standard
- Square Taper
Crank
Forged Alloy
- Length
- 115
Chainring
Forged Alloy
- Gears
- 1
- Ring 1
- 30 Teeth
Rear Derailleur
Shimano Altus
- Gears
- 7
Rear Shifter
Shimano Revo Twist
Cassette
Shimano CSHG200
Seat
Seatpost
Marin Alloy
- Diameter
- 27.2 mm
- Material
- Alloy
Saddle
Marin Kids MTB
Brakes
Front
Front Brake
Tektro MDM280 Mechanical Disc
Front Disc
Tektro MDM280 Mechanical Disc Rotor
- Diameter
- 160 mm
Rear
Rear Brake
Tektro MDM280 Mechanical Disc
Rear Disc
Tektro MDM280 Mechanical Disc Rotor
- Diameter
- 160 mm
Accessories
Chainguard
Ring Guard
Frame
Pedals
Kids Specific Nylon Pedal
- Type
- Flat
Frame
Series 1 6061 Aluminum
- Rear Axle Dimension
- 135mm
- Material
- 6061 Aluminum
Fork
Steel Rigid Fork
- Front Axle Dimension
- 100mm
- Offset
- 40 mm
Cockpit
Stem
Marin Alloy
- Length
- 40 mm
- Material
- Alloy
Grips
Marin Dual Density
Handlebar
Marin Riser
Wheels
Front
Front Wheel
Double Marin, Wall (20", 100mm)
- Size
- 20"
- Axle Dimension
- 100mm
- Rotor mount
- 6-Bolt
- Material
- Alloy
- Position
- Front
Front Tire
Multi Surface (20", 2.125")
- Size
- 20"
- Width
- 2.125"
Rear
Rear Wheel
Double Marin, Wall (20", 135mm)
- Size
- 20"
- Axle Dimension
- 135mm
- Rotor mount
- 6-Bolt
- Material
- Alloy
- Position
- Rear
Rear Tire
Multi Surface (20", 2.125")
- Size
- 20"
- Width
- 2.125"
