Marin
ALPINE TRAIL XR AXS
2025Mountain - Enduro
ALPINE TRAIL XR AXS Data
- MSRP
- EUR 5999.00
- Frame
- Aluminum
- Suspension
- Fully, Full Suspension
- Travel
- Front: 170mm, Rear: 160mm
- Gears
- 12
- Sizes
- S, M, L, Xl
- Colors
- Magenta Blue
Looking for replacement tires?
View verified compatible tires for the 2025 ALPINE TRAIL XR AXS.
Components
Complete component specification list for this variant.
Brakes
Front
Front Brake
SRAM Code Bronze
Front Disc
SRAM HSC
- Diameter
- 200 mm
Rear
Rear Brake
SRAM Code Bronze
Rear Disc
SRAM HSC
- Diameter
- 180 mm
Cockpit

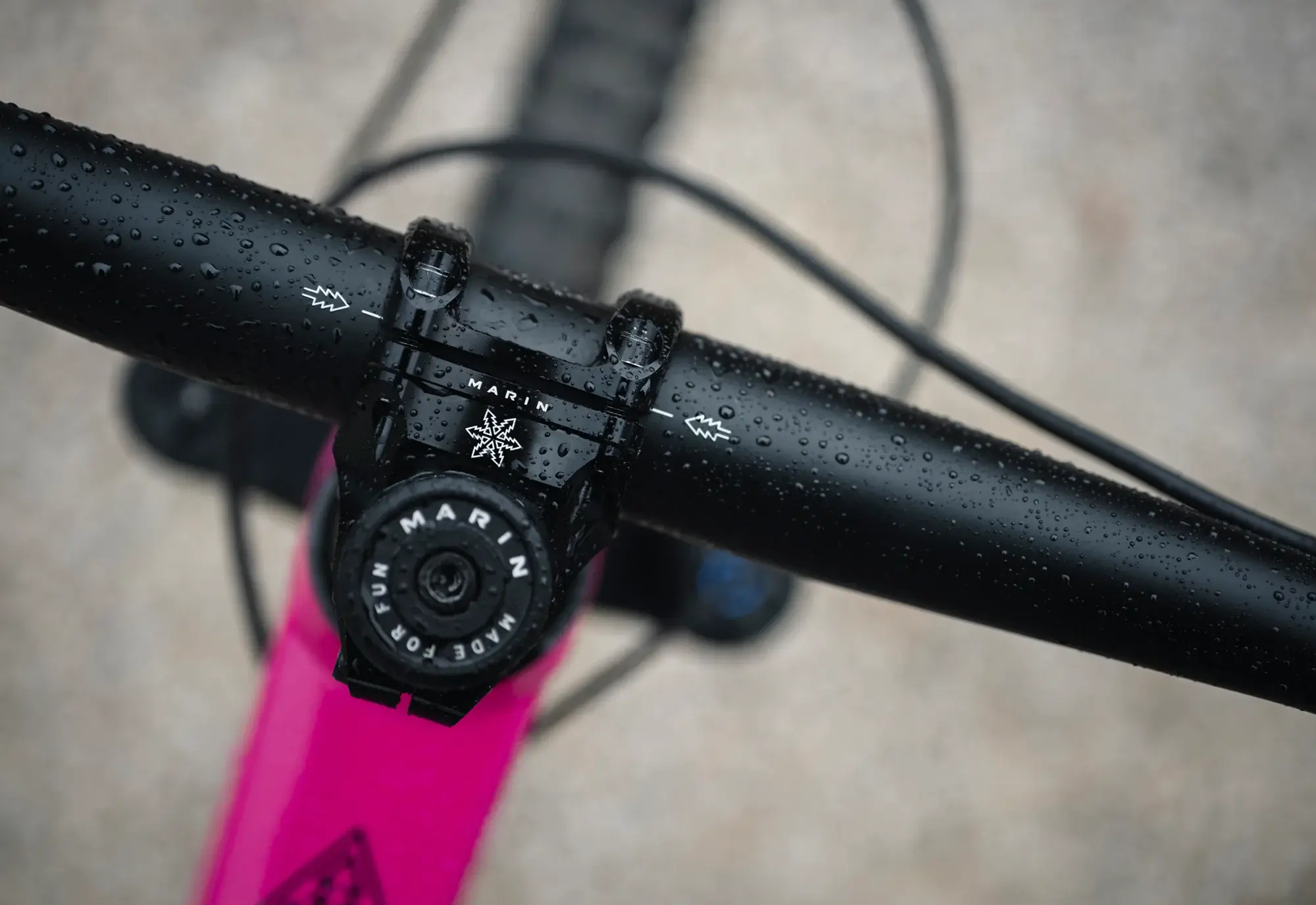

Handlebar
Marin Trail
- Width
- 800 mm
- Rise
- 20 mm
- Angle
- 8 °
- Clamping diameter
- 35 mm
- Material
- 7000 Alloy
Grips
Marin Grizzly Lock-On
Stem
Marin CNC
- Length
- 35 mm
- Clamping diameter
- 35 mm
Seat
Saddle
Marin Speed Concept
Seatpost
TranzX YSP39 x Remote
- Diameter
- 34.9 mm
- Dropper post
- 1
Drivetrain
Rear Shifter
SRAM AXS Pod MMX
Chain
SRAM GX Eagle T-Type
- Gears
- 12
Rear Derailleur
SRAM GX Eagle AXS T-Type
- Gears
- 12
Cassette
SRAM GX 75 T-Type
- Number of sprockets
- 12
- Range
- 10-52T
Bottom Bracket
SRAM DUB MTB 73
- Standard
- Threaded 73mm
Chainring
SRAM GX Eagle
Crank
SRAM GX Eagle
Wheels
Front
Front Tire
Maxxis Assegai MAXX GRIP EXO+ (29", 2.5")
- Size
- 29"
- Width
- 2.5"
Front Wheel
Double Marin Wall , Formula DC-711 Hub (29", 110x15mm)
- Size
- 29"
- Axle Dimension
- 110x15mm
- Rotor mount
- 6-Bolt Disc
- Inner width
- 29 mm
- Material
- Alloy
- Position
- Front
Rear
Rear Tire
Maxxis Assegai MAXX GRIP DoubleDown (27.5", 2.5")
- Size
- 27.5"
- Width
- 2.5"
Rear Wheel
Double Marin Wall , Formula DCL-3482 Hub (27.5", 148x12mm)
- Size
- 27.5"
- Axle Dimension
- 148x12mm
- Rotor mount
- 6-Bolt Disc
- Inner width
- 29 mm
- Material
- Alloy
- Position
- Back
Frame

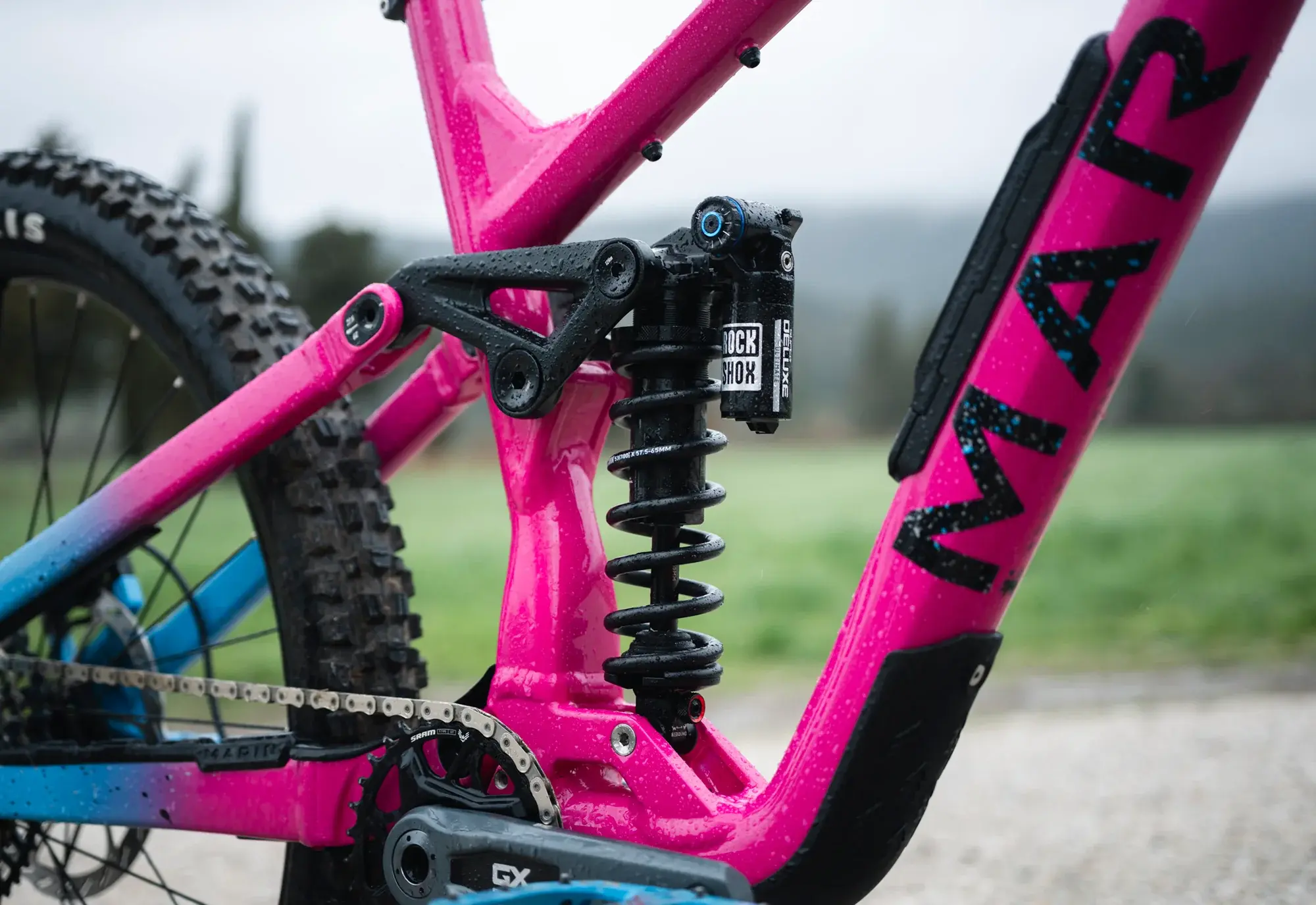

Rear Shock
RockShox Super Deluxe Coil Ultimate
- Travel
- 160 mm
Fork
RockShox Zeb Ultimate
- Travel
- 170 mm
- Front Axle Dimension
- 110x15mm
- Offset
- 44 mm
Frame
Suspension All New Series 4 6061 , MultiTrac LT Platform
- Rear Axle Dimension
- 148x12mm
- Material
- Aluminum
