Marin
Alpine Trail E1
2025 ElectricMountain - Enduro
Alpine Trail E1 Data
- MSRP
- USD 4559.00
- Suspension
- Fully, Full Suspension
- Travel
- Front: 170mm, Rear: 160mm
- Gears
- 10
- Sizes
- M, L, Xl
- Colors
- Red/Black
Looking for replacement tires?
View verified compatible tires for the 2025 Alpine Trail E1.
Components
Complete component specification list for this variant.
Drivetrain
Display
CONTROL Bosch BRC3100 Systems ler
Crank
e*thirteen e*spec Plus
- Length
- 160
Rear Derailleur
Shimano CUES RD-U6000 GS
- Gears
- 10
Rear Shifter
Shimano CUES SL-U6000-10R
Cassette
Shimano CS-LG300-
- Number of sprockets
- 10
- Range
- 11-48T

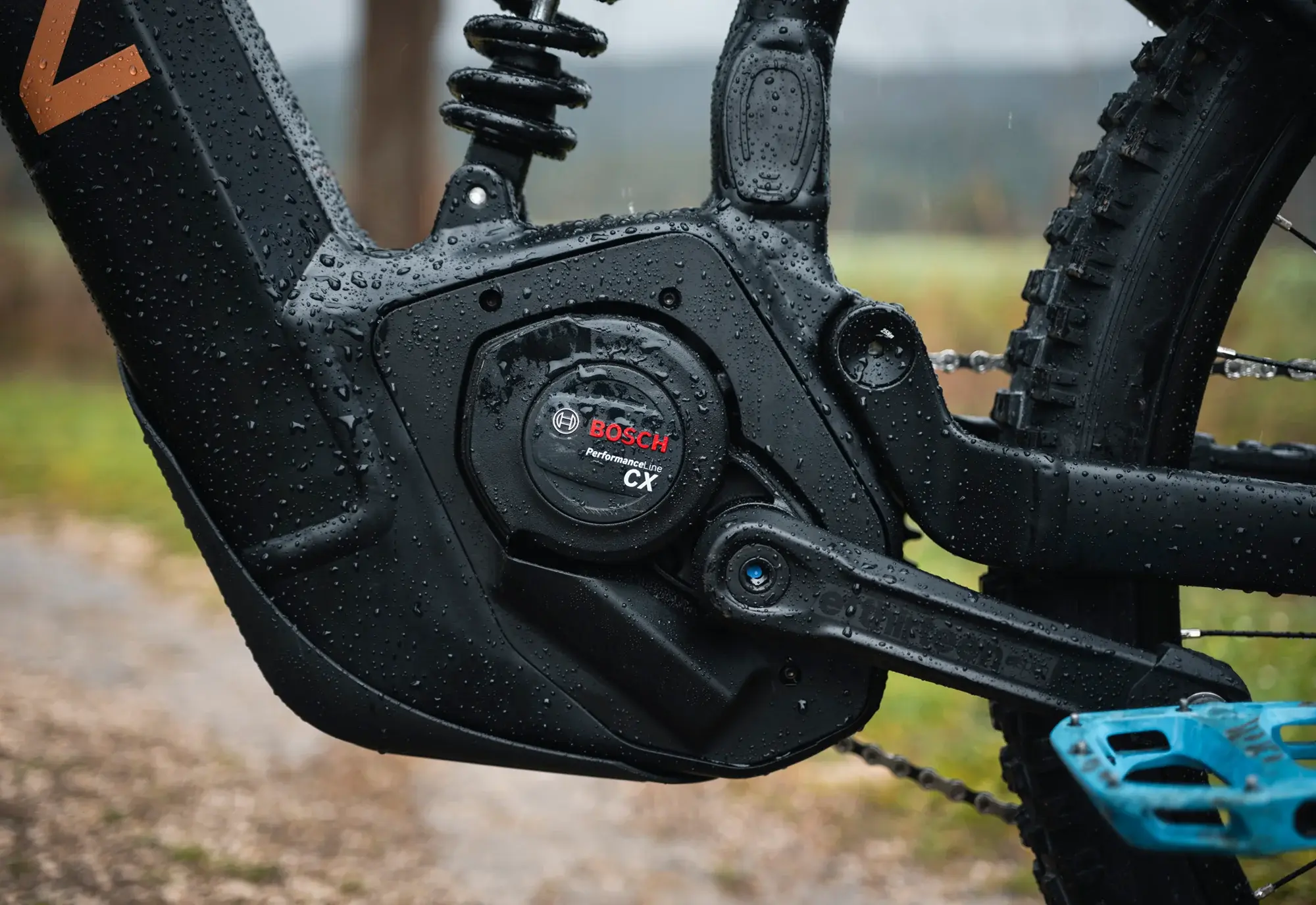

Motor
Performance Bosch CX
- Torque
- 85 Nm
Battery
Bosch PowerTube
Chain
Shimano LG500
Cockpit
Grips
Marin Grizzly Lock-On

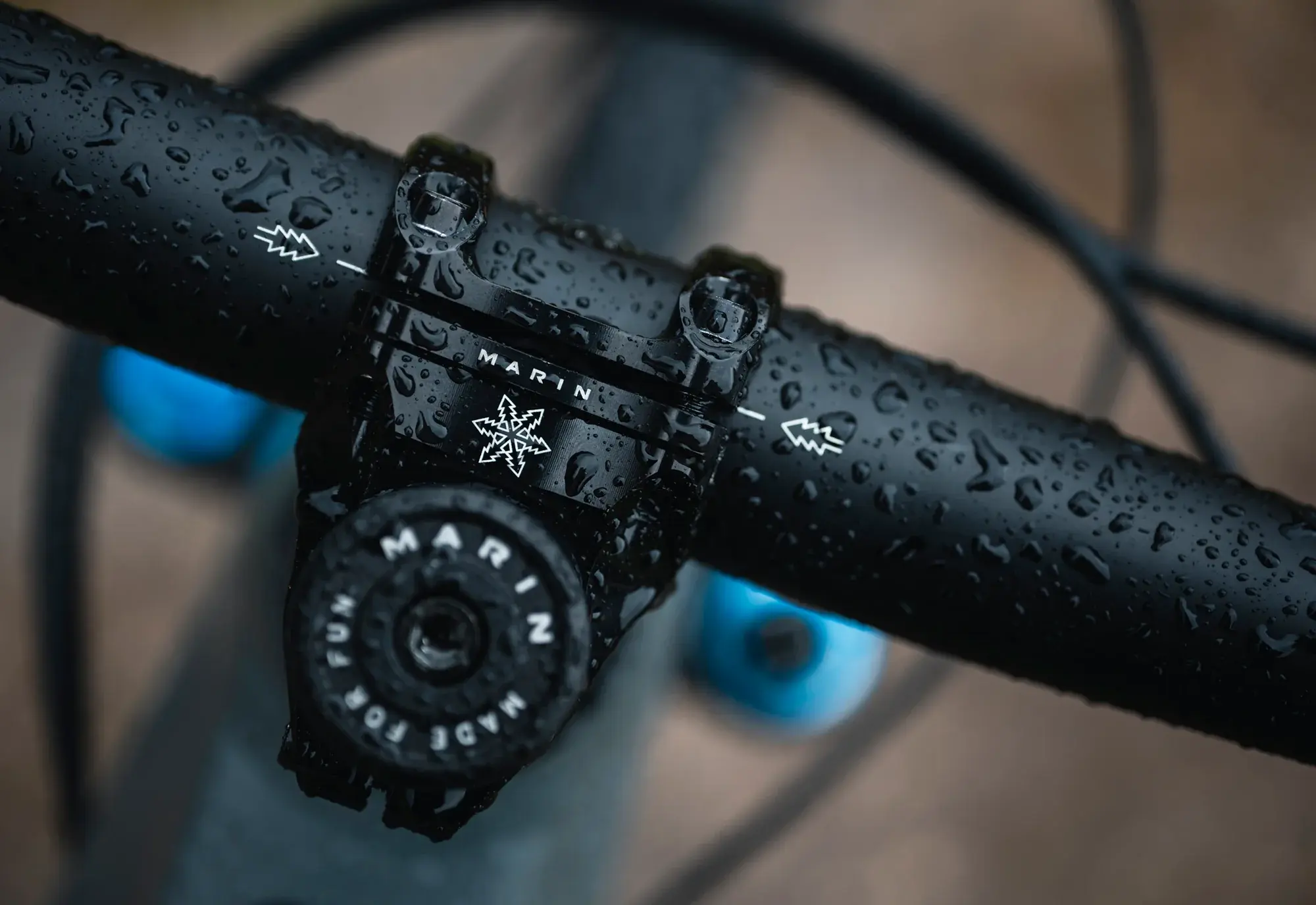

Stem
Forged Marin 3D
- Length
- 35 mm
- Material
- Alloy
Handlebar
Double Marin Mini Riser, 6061 Butted
- Width
- 780 mm
- Rise
- 28 mm
- Angle
- 9 °
- Material
- Aluminum
Seat
Saddle
Marin Speed Concept
Seatpost
TranzX YSP39
- Diameter
- 34.9 mm
- Dropper post
- 1
Brakes
Front
Front Brake
TRP Slate EVO
Front Disc
TRP Slate EVO Rotor
- Diameter
- 203 mm
- Thickness
- 2.3 mm

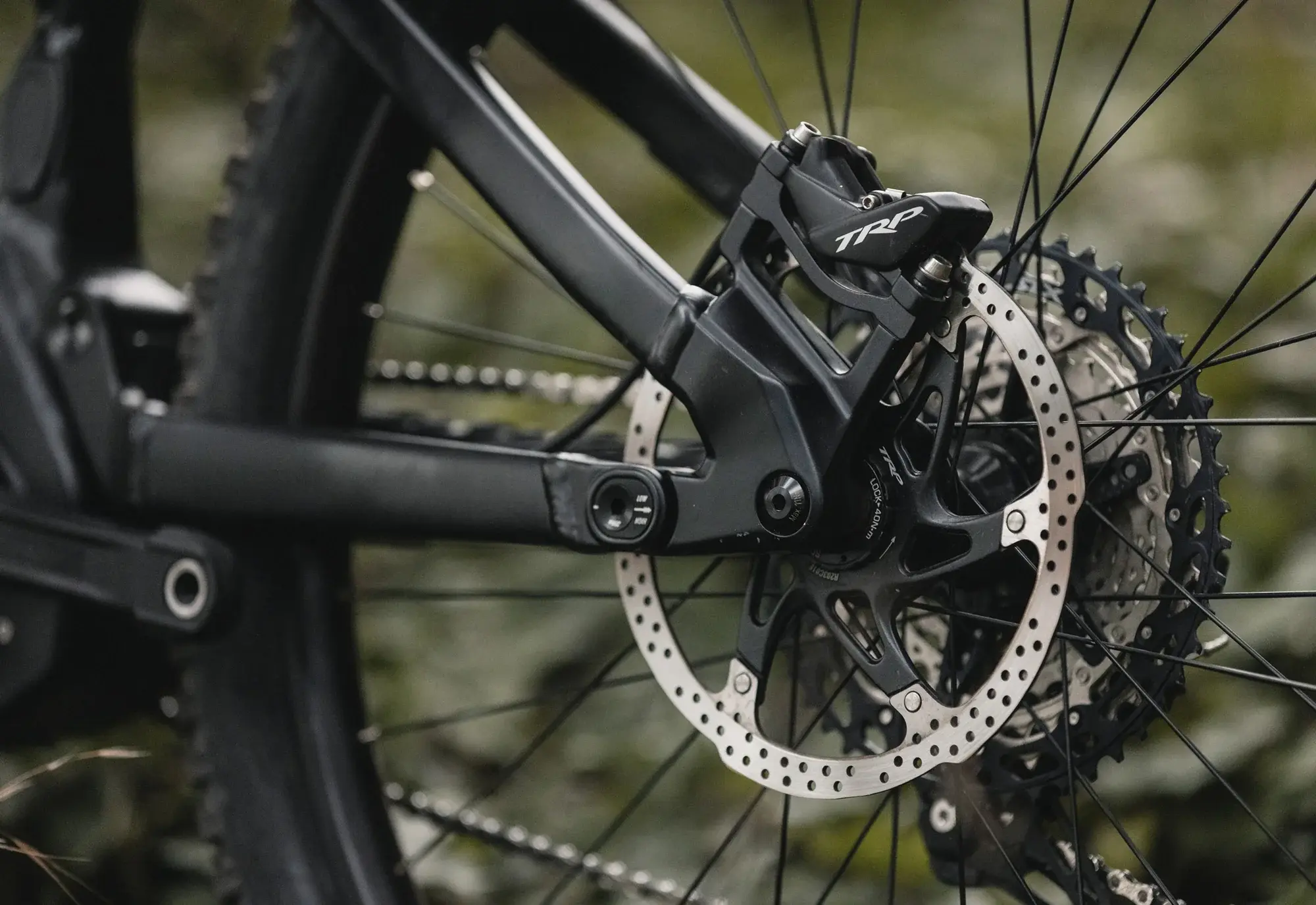

Rear
Rear Brake
TRP Slate EVO
Rear Disc
TRP Slate EVO Rotor
- Diameter
- 203 mm
- Thickness
- 2.3 mm
Wheels
Front
Front Wheel
Shimano Marin Double Wall Rim, Front Hub (29", 110x10)
- Size
- 29"
- Axle Dimension
- 110x10
- Rotor mount
- Centerlock
- Inner width
- 32 mm
- Material
- Aluminum
Front Tire
CONTROL Vee Tire Co Attack HPL, E- Compound (29", 2.5")
- Size
- 29"
- Width
- 2.5"
Rear
Rear Wheel
Shimano Marin Double Wall Rim, FHTC500 Hub (27.5", 148x12 mm)
- Size
- 27.5"
- Axle Dimension
- 148x12 mm
- Rotor mount
- Centerlock
- Inner width
- 32 mm
- Material
- Aluminum
Rear Tire
CONTROL Vee Tire Co Attack HPL, E- Compound (27.5", 2.5")
- Size
- 27.5"
- Width
- 2.5"
Frame
Rear Shock
Marzocchi CR Coil, 205x65mm, Trunnion Upper Mount
- Travel
- 160 mm
Fork
Marzocchi Marzocchi Z1
- Travel
- 170 mm
- Front Axle Dimension
- 110x15 mm
- Offset
- 44 mm
Frame
All New Series 4 Alloy
