Marin
Alcatraz 24"
2025Mountain - Dirt Jump / Slopestyle
Alcatraz 24" Data
- MSRP
- EUR 899.00
- Frame
- 6061 Aluminum
- Suspension
- None, Hardtail
- Gears
- 1
- Sizes
- Os
- Colors
- Yellow Fade
Looking for replacement tires?
View verified compatible tires for the 2025 Alcatraz 24".
Components
Complete component specification list for this variant.
Seat
Seatpost
Marin Alloy
- Diameter
- 30.9 mm
- Material
- Alloy
Saddle
Marin DJ Saddle
Drivetrain
Bottom Bracket
Sealed External Cartridge Bearings
- Standard
- 73mm Threaded
Cassette
Single 4T Speed Cog
- Number of sprockets
- 1
- Range
- 14T
Chainring
Ring Alloy T DM Chain
- Gears
- 1
- Ring 1
- 32 Teeth

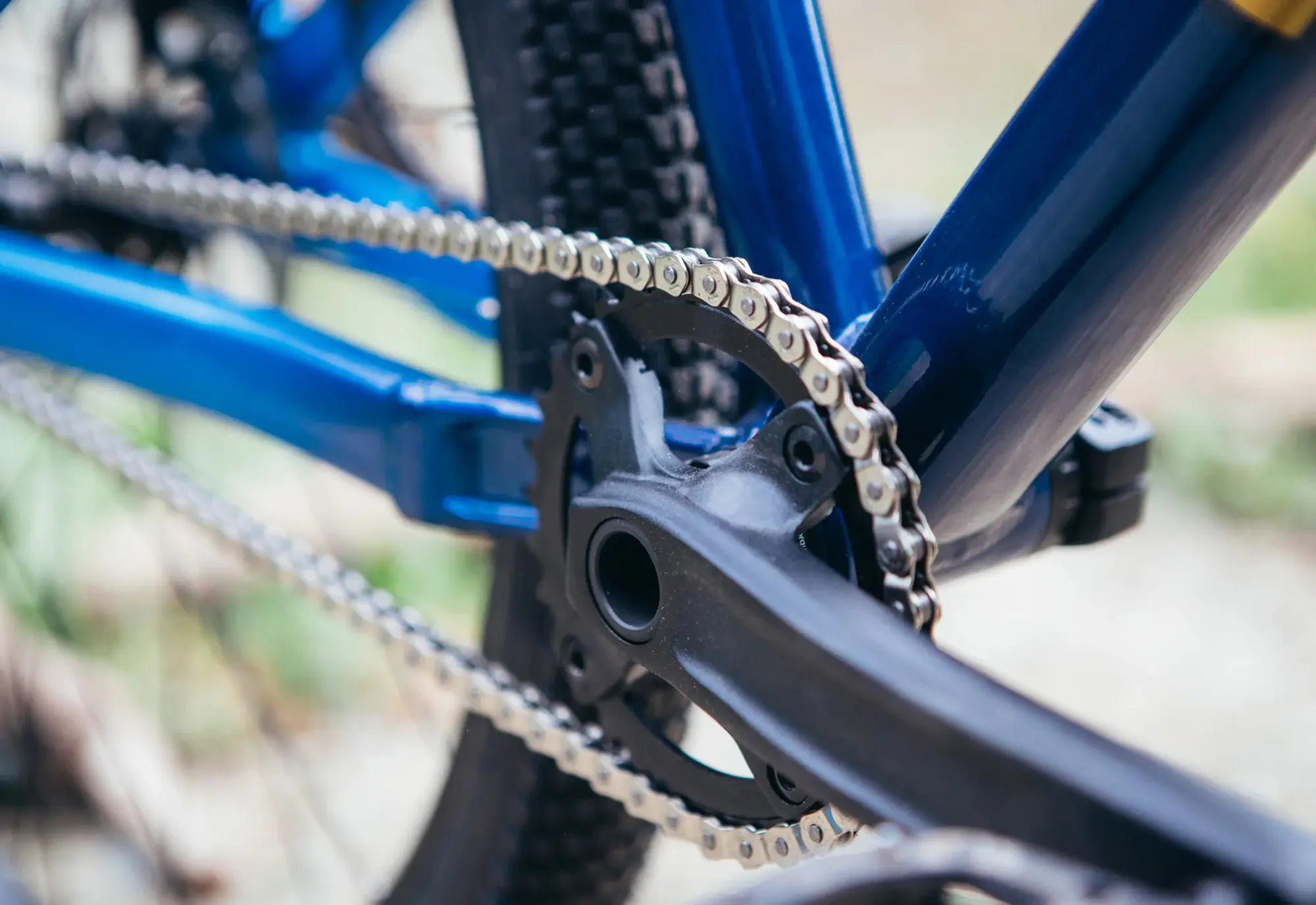

Crank
Forged Marin Alloy
- Length
- 152
Chain
KMC HL-1
Frame
Pedals
Alloy
- Type
- Platform
Frame
Series 3 6061 Aluminum
- Rear Axle Dimension
- 135x10mm
- Material
- 6061 Aluminum
Fork
Series Marin 2 Cro-Mo 24" Fork
- Front Axle Dimension
- 100x9mm
- Steer tube diameter
- 1 1/8" x 1 1/2"
- Offset
- 44 mm
Cockpit
Grips
Marin MTN, Closed End
Stem
Forged Marin 3D
- Length
- 35 mm
- Material
- Alloy
Handlebar
Marin Riser
Accessories
Chainguard
Marin Chain Tension Device
Wheels
Front
Front Wheel
Marin Custom Extrusion (24", 100x9mm)
- Size
- 24"
- Axle Dimension
- 100x9mm
- Rotor mount
- 6-Bolt
- Inner width
- 27 mm
- Material
- Aluminum
- Position
- Front
Front Tire
Vee Tire Rail
Rear
Rear Wheel
Marin Custom Extrusion (24", 135x10mm)
- Size
- 24"
- Axle Dimension
- 135x10mm
- Rotor mount
- 6-Bolt
- Inner width
- 27 mm
- Material
- Aluminum
- Position
- Rear
Rear Tire
Vee Tire Rail
Brakes
Front
Front Brake
Tektro MD-M280 Mechanical Disc
Front Disc
Tektro Rotor
Rear
Rear Brake
Tektro MD-M280 Mechanical Disc
Rear Disc
Tektro Rotor
