Cube

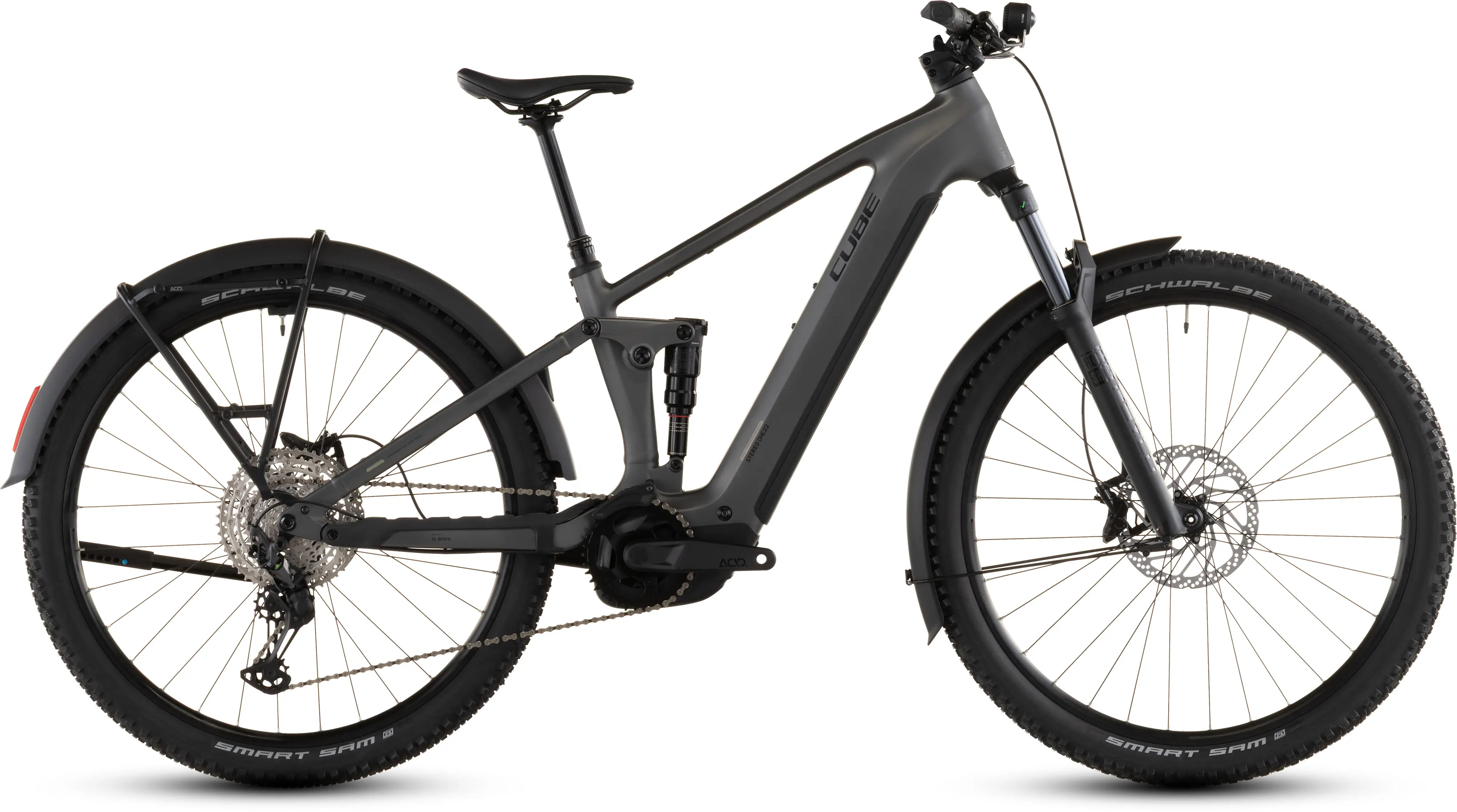

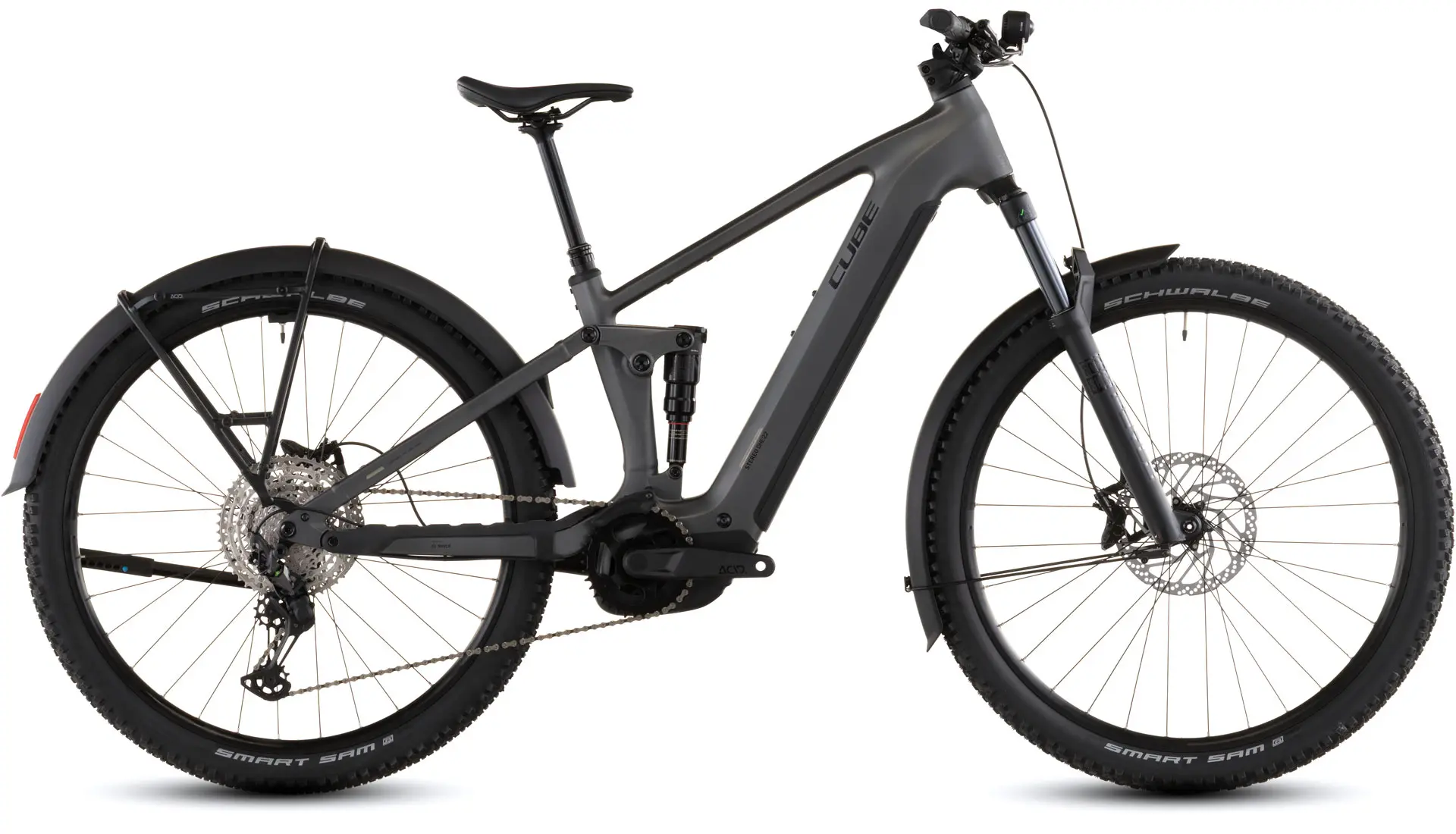

STEREO HYBRID ONE22 RACE 800 FE

2026 ElectricE-Mountain - E-Trail
STEREO HYBRID ONE22 RACE 800 FE Data
MSRP
EUR 4199.00
Frame
Aluminium
Suspension
Fully, Full Suspension
Travel
Front: 120mm, Rear: 120mm
Gears
12
Weight
28.6 kg
Sizes
S, M, L, Xl
Colors
Slapgrey´n´chrome
View on Cube

Looking for replacement tires?

View verified compatible tires for the 2026 STEREO HYBRID ONE22 RACE 800 FE.

Compare Upgrades

Components

Complete component specification list for this variant.

Drivetrain

Cassette
Shimano Deore CS-M6100
Cassette
Number of sprockets
12
Range
10-51T
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, -Speed
Back Derailleur
Gears
12
Rear Shifter
Shimano Deore SL-M6100-R, Rapidfire Plus
Back Shifter
Bottom Bracket
Integrated Bosch
Bottom bracket
Standard
ISIS
Motor
Performance Bosch Drive Unit Line CX (BDU38)
Motor
Torque
100 Nm
Chainring
ACID MTB Hybrid Pro
Front Chainring
Ring 1
38 Teeth
Crank
ACID MTB Hybrid Pro
Crank
Length
170
Display
Integrated Bosch Purion 200 with Display
Display
Battery
Bosch PowerTube 800
Chain
KMC e12

Frame

Pedals
ACID PP MTB
Pedals
Type
Flat
Frame
Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry
Frame
Rear Axle Dimension
Boost 148
Material
Aluminium
Rear Shock
RockShox Deluxe Select R, Trunnion Mount
Rear Shock
Travel
120 mm
Fork
RockShox Psylo Silver RC Air, Tapered, Lockout
Fork
Travel
120 mm
Front Axle Dimension
15x110mm

Cockpit

Stem
Performance CUBE Stem E-MTB , FPI-Link
Stem
Length
50 mm
Clamping diameter
35 mm
Handlebar
Cube Rise Trail Bar
Handlebar
Width
760 mm
Clamping diameter
35 mm
Grips
ACID Hybrid Perform
Grips

Seat

Saddle
ACID Venec EMTB Plus 145
Saddle
Seatpost
Cube Dropper Post, Handlebar Lever, Internal Cable Routing
Seatpost
Diameter
31.6 mm
Dropper post
1
Seatpost Clamp
Integrated CUBE Seatclamp
Seatpost Clamp

Accessories

Front
Front Light
ACID Front Light PRO-E X-Connect
Front Light
Lumen
150 lm
Rear
Rear Light
ACID Mudguard Rear Light PRO-E
Back Light
Charger
Bosch Bosch A
Charger
Speed
2 A

Wheels

Front
Front Wheel
ACID SLX 30 (15x110mm)
Front Wheel
Axle Dimension
15x110mm
Material
Aluminium
Position
Front
Front Tire
Schwalbe Smart Sam, Active (2.6)
Front Tire
Width
2.6
Rear
Rear Wheel
ACID SLX 30 (12x148mm)
Back Wheel
Axle Dimension
12x148mm
Material
Aluminium
Position
Back
Rear Tire
Schwalbe Smart Sam, Active (2.6)
Back Tire
Width
2.6

Brakes

Front
Front Brake
Shimano BR-MT520
Front Disc
Shimano
Rear
Rear Brake
Shimano BR-MT520
Rear Disc
Shimano
