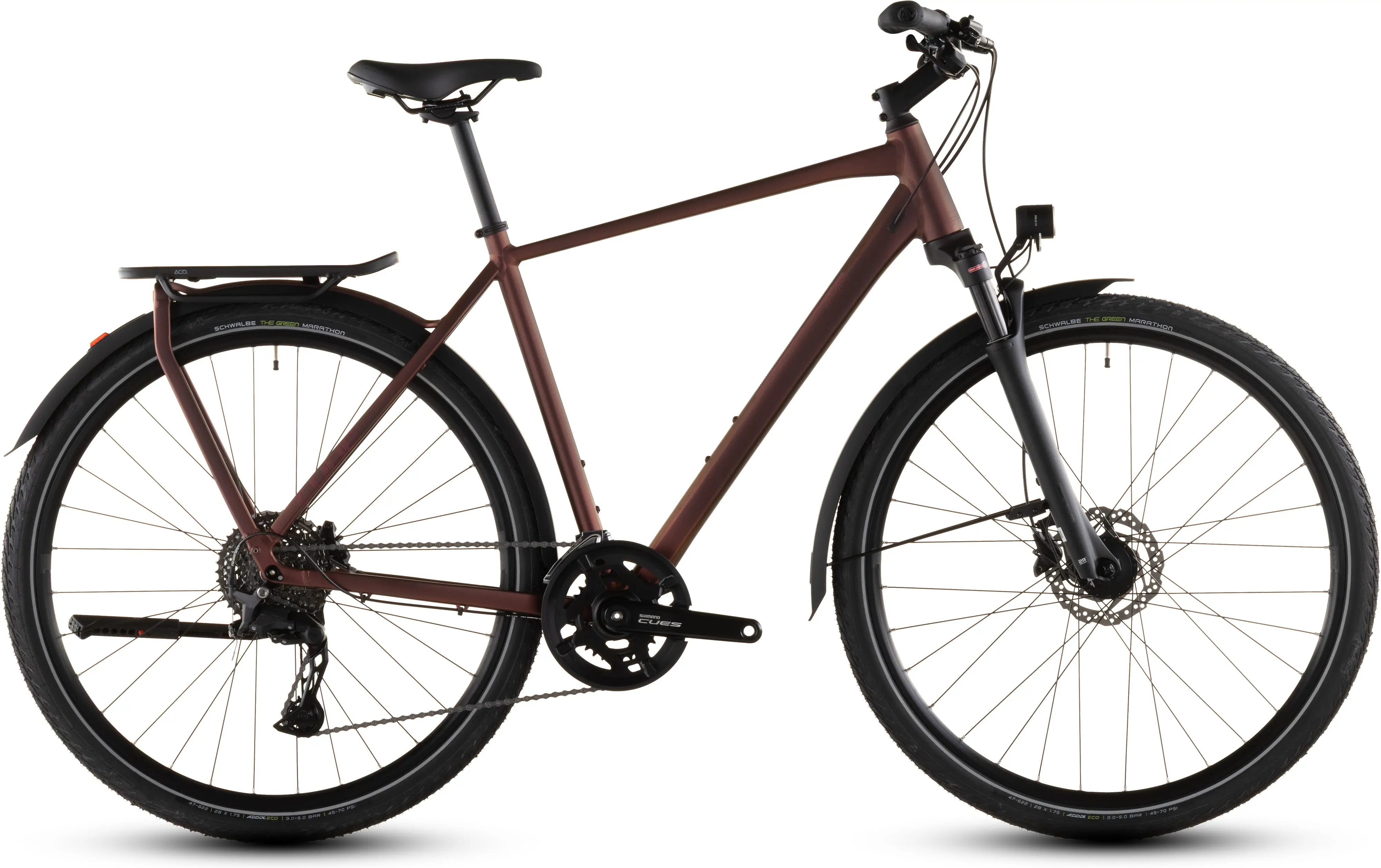

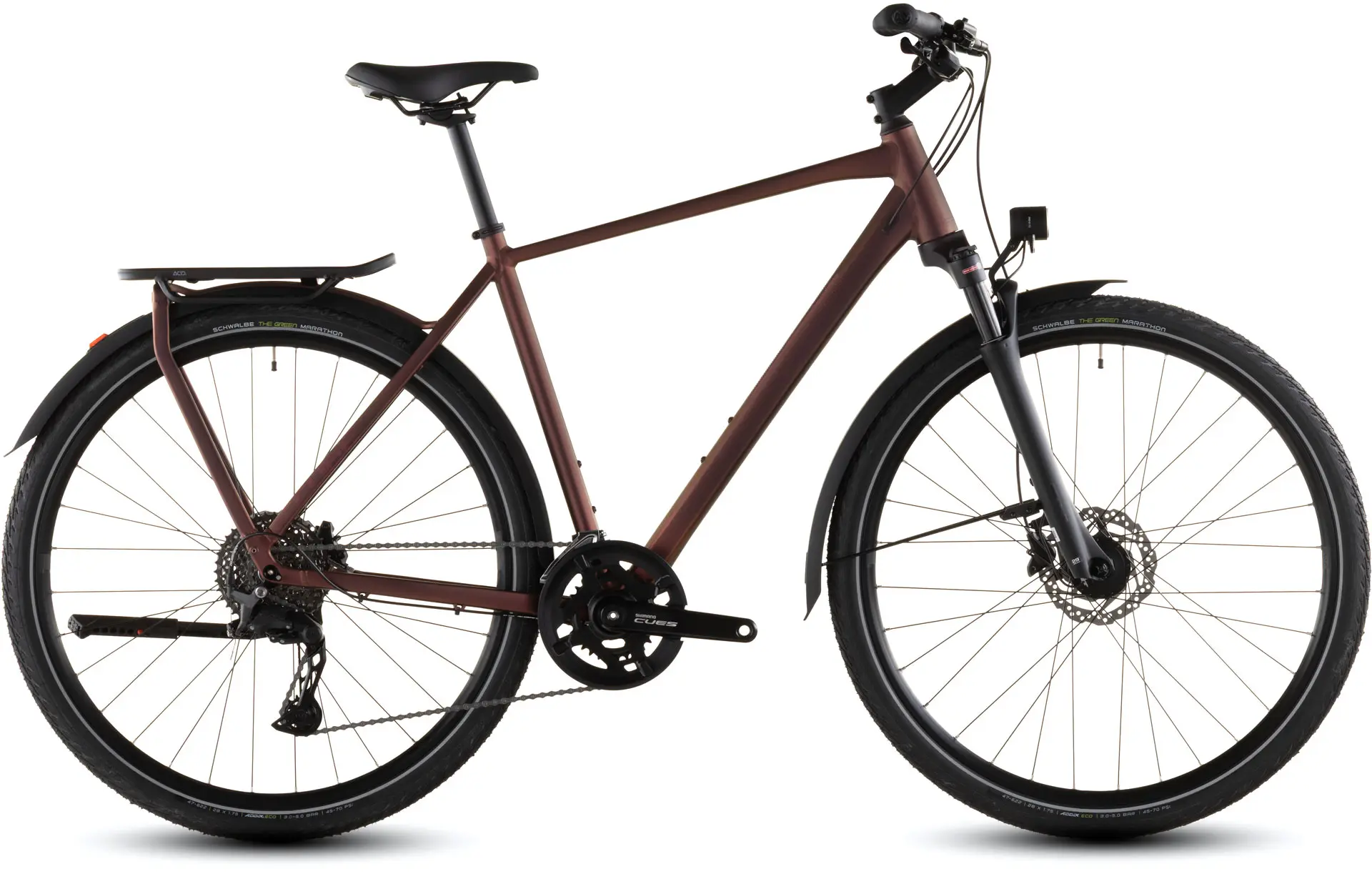

Cube
KATHMANDU PRO
2025City & Touring - Touring
KATHMANDU
PRO Data
- Frame
- Aluminium
- Suspension
- Hardtail
- Travel
- Front: 63mm
- Gears
- 20
- Weight
- 17.2 kg
- Sizes
- 50Cm, 46Cm, 62Cm, 54Cm, 58Cm
- Colors
- Sunglow´n´prizm
Looking for replacement tires?
View verified compatible tires for the 2025 KATHMANDU PRO.
Components
Complete component specification list for this variant.
Drivetrain
Front
Front Shifter
Shimano Cues SL-U6000, Rapidfire-Plus
Front Derailleur
Shimano Cues FD-U6010, Top Swing
- Gears
- 2
Rear
Rear Shifter
Shimano Cues SL-U6000, Rapidfire-Plus
Rear Derailleur
Shimano Cues RD-U6020-SGS
- Gears
- 10
Chain
KMC XGlide
- Gears
- 10
Cassette
Shimano Cues CS-LG400
- Number of sprockets
- 10
- Range
- 11-39T
Chainring
Shimano Cues FC-U4010
- Gears
- 2
- Ring 1
- 46 Teeth
- Ring 2
- 30 Teeth
Crank
Shimano Cues FC-U4010
Bottom Bracket
Shimano BB-MT501
Accessories
Rear Light
ACID Mudguard Rear Light PRO-D
Frame
Pedals
ACID PP Trekking
- Type
- Trekking
Frame
Integrated Superlite, Trekking Comfort, Carrier 3.0, Double Butted
- Rear Axle Dimension
- 12x142 mm
- Tyre clearance
- 48 65
- Material
- Aluminium
Fork
Sun SR tour NCX D LO Air
- Travel
- 63 mm
- Front Axle Dimension
- QR
- Stanchion Diameter
- 32
Cockpit
Grips
ACID Travel Comfort
Handlebar
Cube Comfort Trail Bar
- Width
- 680 mm
- Clamping diameter
- 31.8 mm
Stem
CUBE Performance Stem SLX
Seat
Saddle
ACID Sequence Pro 170
Seatpost
Performance CUBE Post
- Length
- 350 mm
- Diameter
- 27.2 mm
Wheels
Front
Front Wheel
Shimano DH-3D37 / ACID EX (28", QR)
- Size
- 28"
- Axle Dimension
- QR
- Rotor mount
- Centerlock
- Inner width
- 25 mm
- Material
- Aluminium
- Position
- front
Front Tire
Schwalbe Marathon Green, Perf (622, 47)
- Size
- 622
- Width
- 47
Rear
Rear Wheel
Shimano FH-TC500-HM / ACID EX (28", 12x142 mm)
- Size
- 28"
- Axle Dimension
- 12x142 mm
- Rotor mount
- Centerlock
- Inner width
- 25 mm
- Material
- Aluminium
- Position
- back
Rear Tire
Schwalbe Marathon Green, Perf (622, 47)
- Size
- 622
- Width
- 47
Brakes
Front
Front Brake
Shimano BR-MT200
Front Disc
Shimano
Rear
Rear Brake
Shimano BR-UR300
Rear Disc
Shimano
