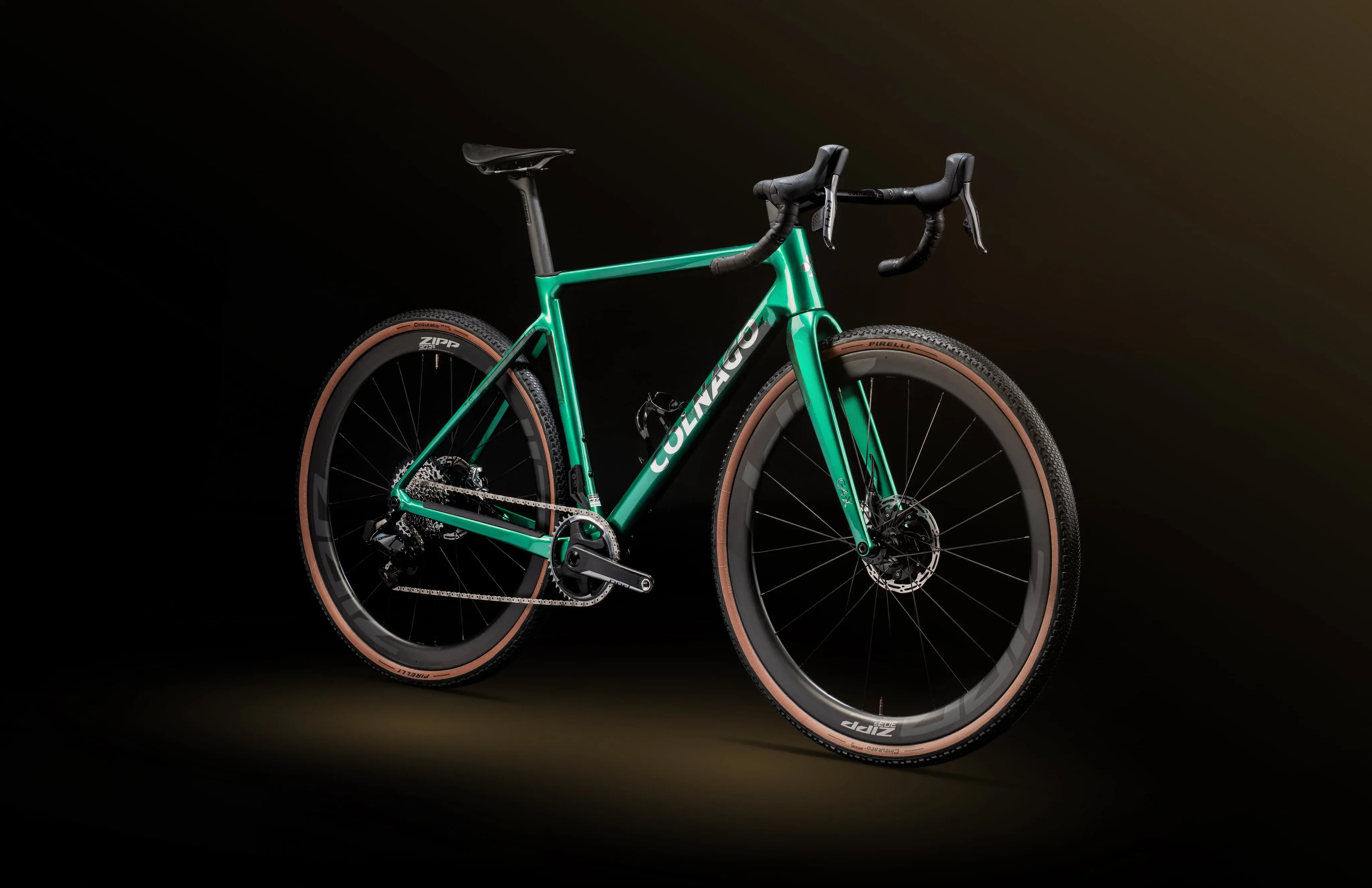

Colnago
G4-X PIGR
2026Gravel
G4-X PIGR Data
- MSRP
- USD 10435.00
- Frame
- Monocoque carbon
- Suspension
- None, Hardtail
- Sizes
- 570, 450, 480, 520, 540
- Colors
- Pigr
Looking for replacement tires?
View verified compatible tires for the 2026 G4-X PIGR.
Components
Complete component specification list for this variant.
Seat
Seatpost
Colnago Seatpost
- Material
- Carbon
Saddle
NOVUS BOOST EVO Superflow FeC
Cockpit
Grips
Colnago Grip Black
Stem
Integrated CC.01 Wide cockpit
- Material
- Carbon
Handlebar
Integrated CC.01 Wide cockpit
- Material
- Carbon
Wheels
Front
Front Wheel
Vision SC Disc (12x100 mm)
- Axle Dimension
- 12x100 mm
- Rim height
- 45 mm
- Inner width
- 21 mm
- Material
- Carbon
- Position
- Front
Front Tire
Pirelli Cinturato Gravel 40 TLR (700c, 40 mm)
- Size
- 700c
- Width
- 40 mm
Rear
Rear Wheel
Vision SC Disc (12x142 mm)
- Axle Dimension
- 12x142 mm
- Rim height
- 45 mm
- Inner width
- 21 mm
- Material
- Carbon
- Position
- Rear
Rear Tire
Pirelli Cinturato Gravel 40 TLR (700c, 40 mm)
- Size
- 700c
- Width
- 40 mm
Frame
Frame
Colnago G4-X
- Rear Axle Dimension
- 12x142 mm
- Tyre clearance
- 45 65
- Material
- Monocoque carbon
Fork
Colnago Carbon fork for disc brakes
- Front Axle Dimension
- 12x100 mm
Drivetrain
Rear Derailleur
SRAM RED XPLR eTap AXS - RD-RED-1E-E1
- Gears
- 13
Rear Shifter
SRAM Red eTap AXS HRD SHIFT-BRAKE SYSTEM
Chain
RED Chain - CN--E1
- Gears
- 13
Chainring
SRAM Red
Cassette
Sram RED XPLR
Bottom Bracket
T47 Sram DUB Road
Brakes
Front
Front Brake
SRAM Red eTap AXS HRD SHIFT-BRAKE SYSTEM
Front Disc
CenterLine XR Rotor
Rear
Rear Brake
SRAM Red eTap AXS HRD SHIFT-BRAKE SYSTEM
Rear Disc
CenterLine XR Rotor
