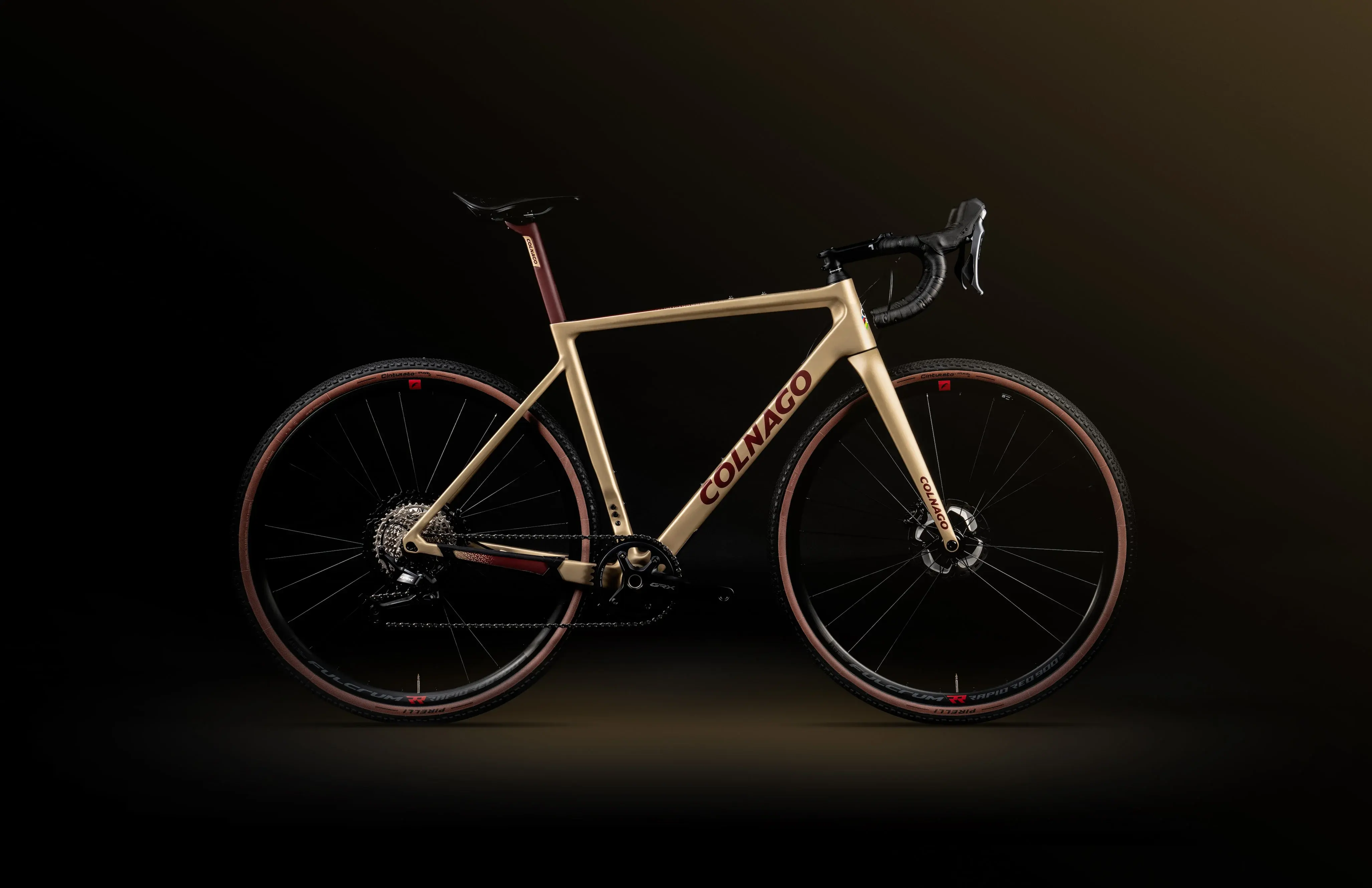

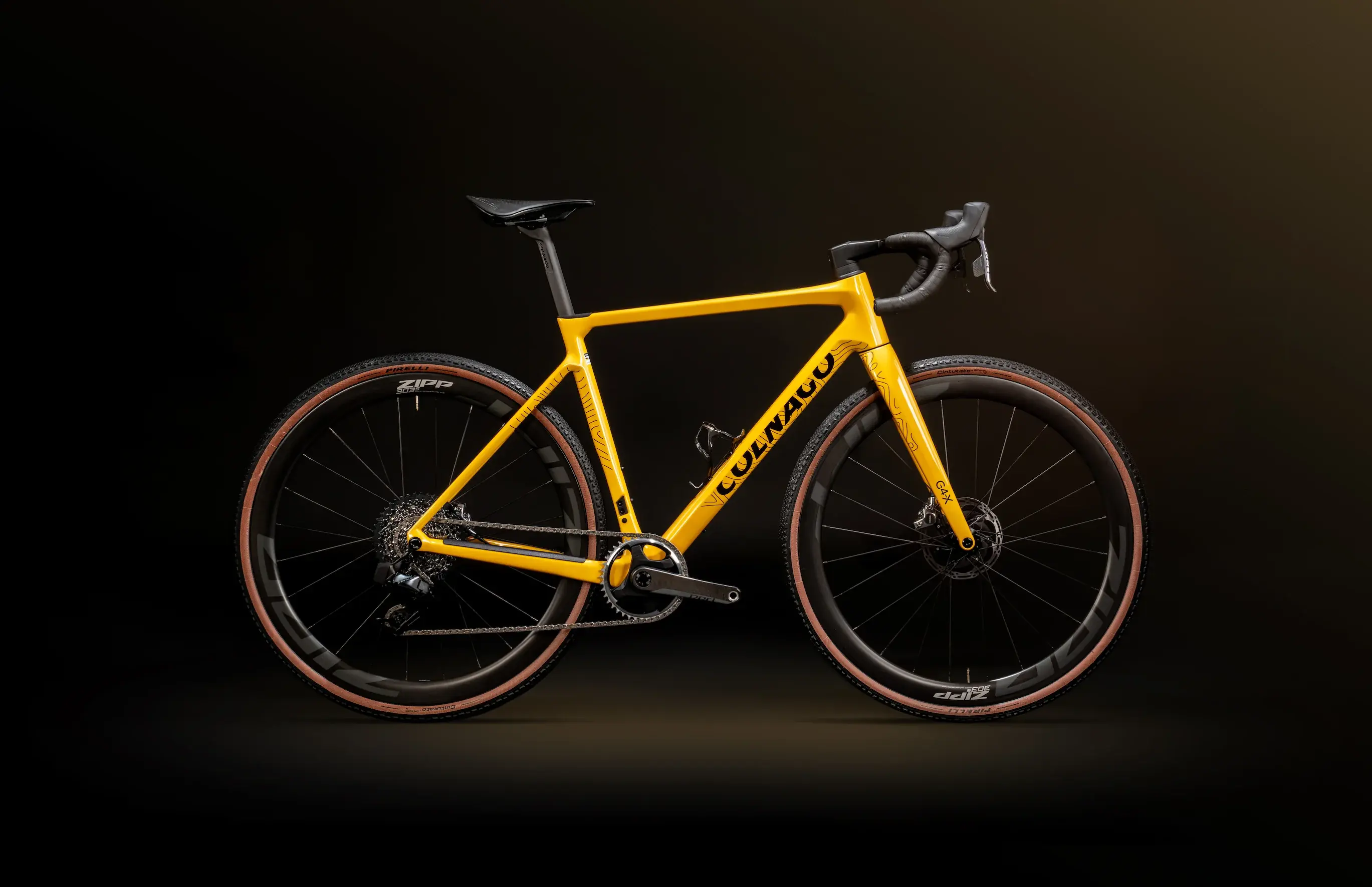

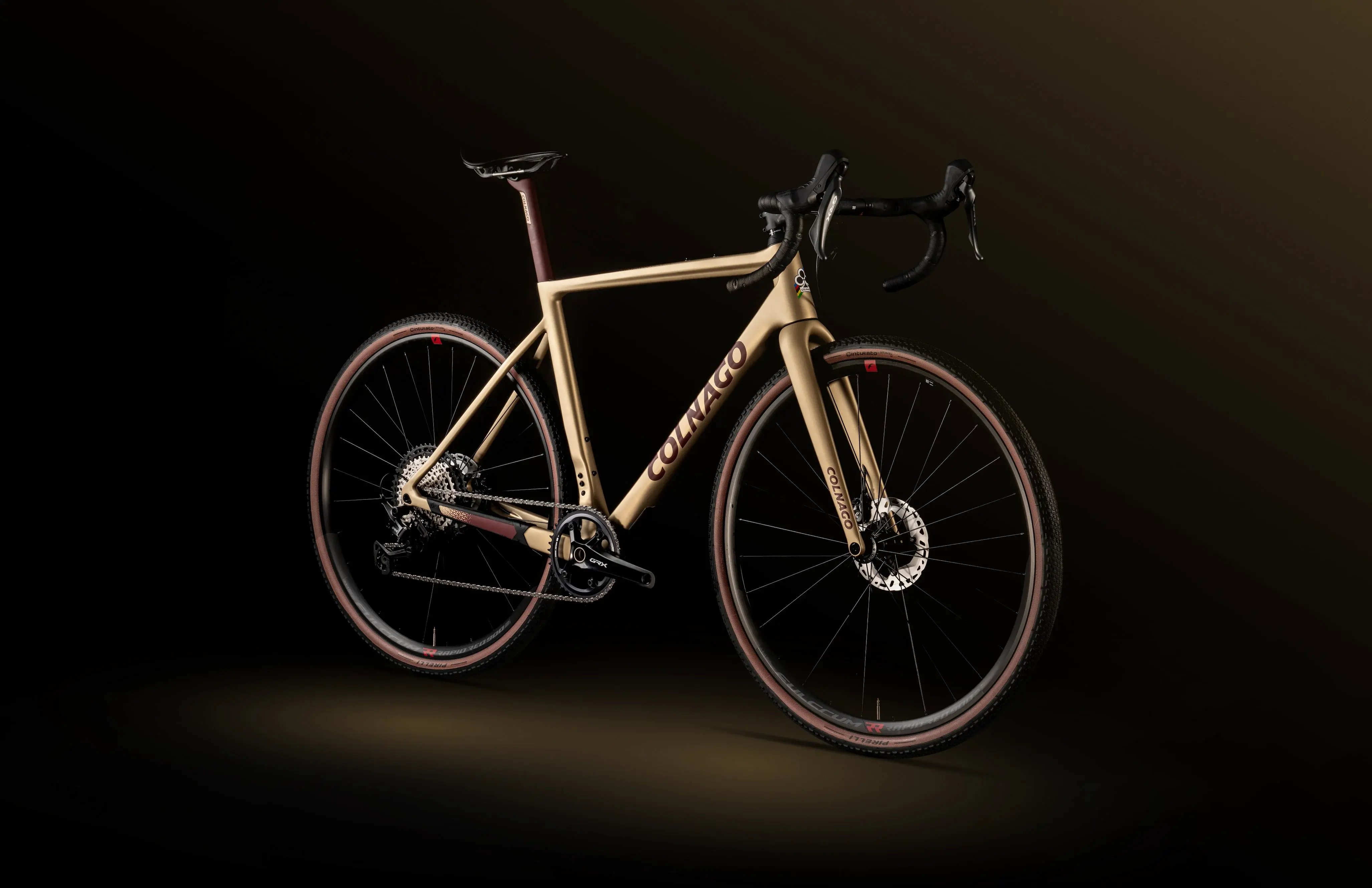

Colnago
G4-X ICBL
2026Gravel
G4-X ICBL Data
- MSRP
- USD 10435.00
- Frame
- Monocoque carbon
- Suspension
- None, Hardtail
- Gears
- 13
- Sizes
- 570, 450, 480, 520, 540
- Colors
- Icbl
Looking for replacement tires?
View verified compatible tires for the 2026 G4-X ICBL.
Components
Complete component specification list for this variant.
Frame
Frame
Colnago G4-X
- Rear Axle Dimension
- 12x142 mm
- Tyre clearance
- 45 65
- Material
- Monocoque carbon
Fork
Disc Carbon fork for brakes
- Front Axle Dimension
- 12x100 mm
Drivetrain
Rear Derailleur
SRAM RED XPLR eTap AXS - RD-RED-1E-E1
- Gears
- 13
Rear Shifter
SRAM Red eTap AXS HRD SHIFT-BRAKE SYSTEM
Chain
RED Chain - CN--E1
- Gears
- 13
Cassette
SRAM RED s
- Number of sprockets
- 13
- Range
- 10-46T
Chainring
SRAM RED
Crank
SRAM RED
Bottom Bracket
T47 Sram DUB Road
Cockpit
Stem

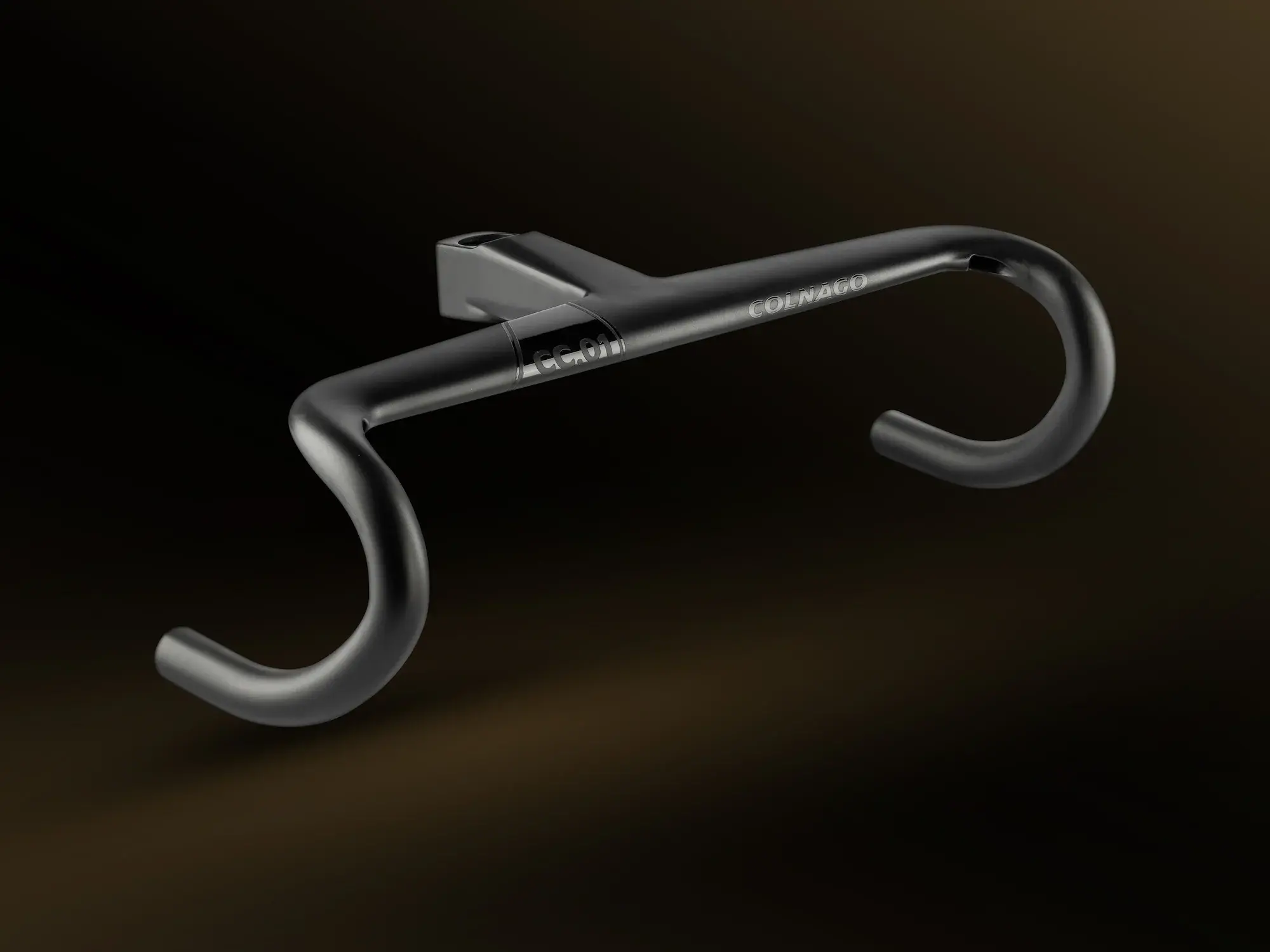

Integrated CC.01 Wide cockpit
- Material
- Carbon
Handlebar
Integrated CC.01 Wide cockpit
- Material
- Carbon
Seat
Saddle
NOVUS BOOST EVO Superflow FeC
Seatpost
Seat post, 0.15 offset, "D-Shape" section
- Material
- Carbon
Seatpost Clamp
Colnago G4-X seatpost lock
Brakes
Front
Front Brake
SRAM Red eTap AXS HRD SHIFT-BRAKE SYSTEM
Front Disc
CenterLine XR Rotor
Rear
Rear Brake
SRAM Red eTap AXS HRD SHIFT-BRAKE SYSTEM
Rear Disc
CenterLine XR Rotor
Wheels
Front
Front Wheel
Vision SC Disc (12x100 mm)
- Axle Dimension
- 12x100 mm
- Rim height
- 45 mm
- Inner width
- 21 mm
- Material
- Carbon
Front Tire
Pirelli Cinturato Gravel TLR (40)
- Width
- 40
Rear
Rear Wheel
Vision SC Disc (12x142 mm)
- Axle Dimension
- 12x142 mm
- Rim height
- 45 mm
- Inner width
- 21 mm
- Material
- Carbon
Rear Tire
Pirelli Cinturato Gravel TLR (40)
- Width
- 40
