Canyon

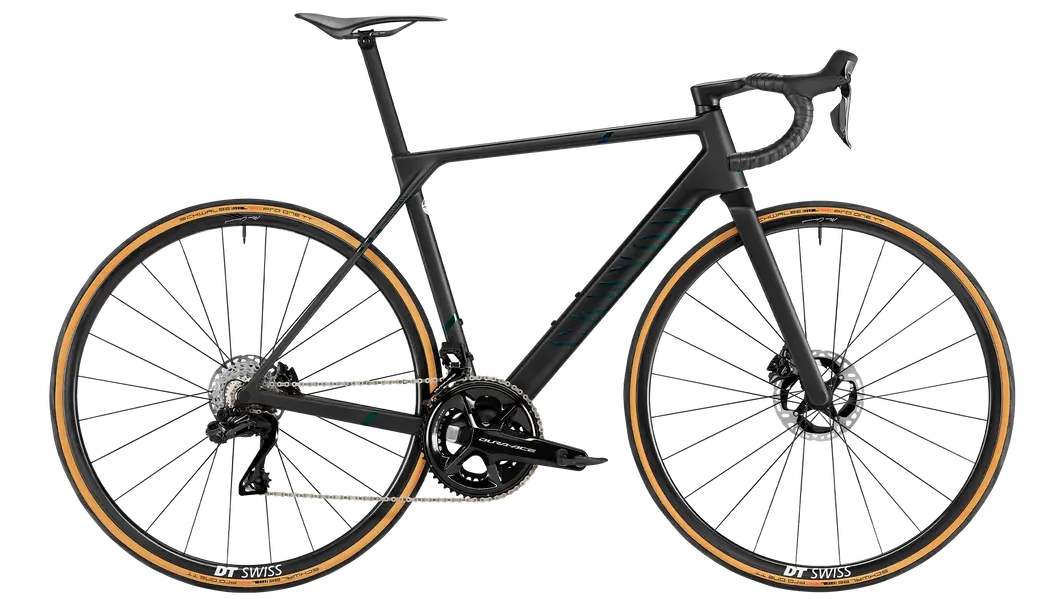

Ultimate CFR Di2
2026BMX - Race
Ultimate CFR Di2 Data
- MSRP
- EUR 8899.00
- Frame
- Carbon (CFR)
- Gears
- 24
- Weight
- 6.32 kg
Looking for replacement tires?
View verified compatible tires for the 2026 Ultimate CFR Di2.
Components
Complete component specification list for this variant.
Drivetrain
Front
Front Derailleur
Shimano Dura-Ace Di FD-R0
- Gears
- 2
- Weight
- 95 g
Front Shifter
Shimano Dura-Ace Di2 R9270, 12-speed
- Weight
- 331 g
Rear
Rear Derailleur
Shimano Dura-Ace Di2 RD-R9250, -speed
- Gears
- 12
- Weight
- 254.01 g
Rear Shifter
Shimano Dura-Ace Di2 R9270, 12-speed
- Weight
- 331 g
Cassette
Shimano Dura-Ace CS-R9200
- Number of sprockets
- 12
- Range
- 11-34T
Battery
Shimano BT-DN300 Di2 Battery
Chain
Shimano XTR
Bottom Bracket
Shimano Pressfit BB92
- Standard
- PF 86,5
- Weight
- 54 g
Chainring
Shimano Dura-Ace Di Powermeter
- Gears
- 2
Crank
Shimano Dura-Ace Di2 Powermeter
- Length
- 172.5
Cockpit
Grips
Canyon Ergospeed Gel
Stem
Canyon CP0018 Aerocockpit
- Fork steer tube diameter
- 1 1/4"
- Material
- Carbon (CF)
- Weight
- 195 g

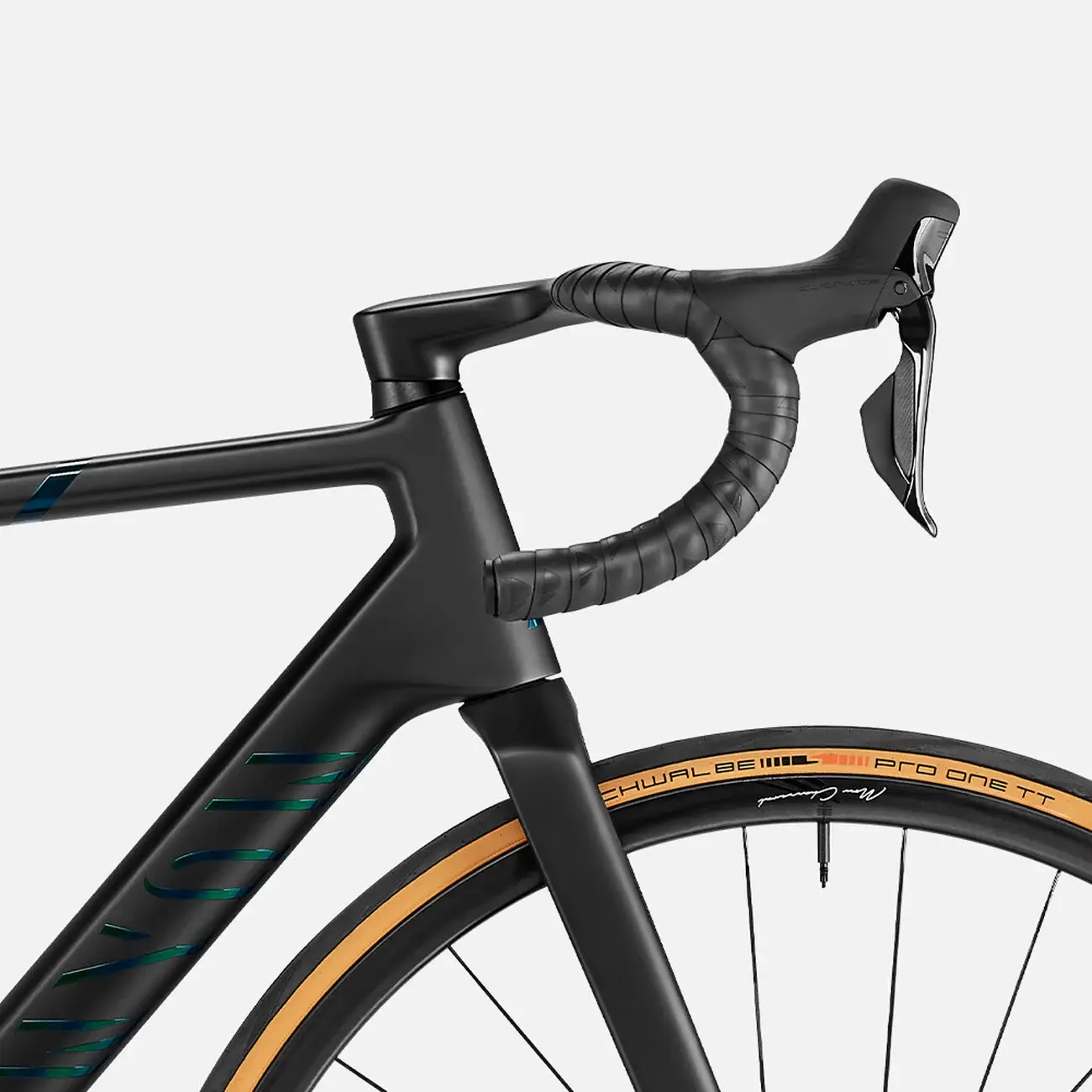

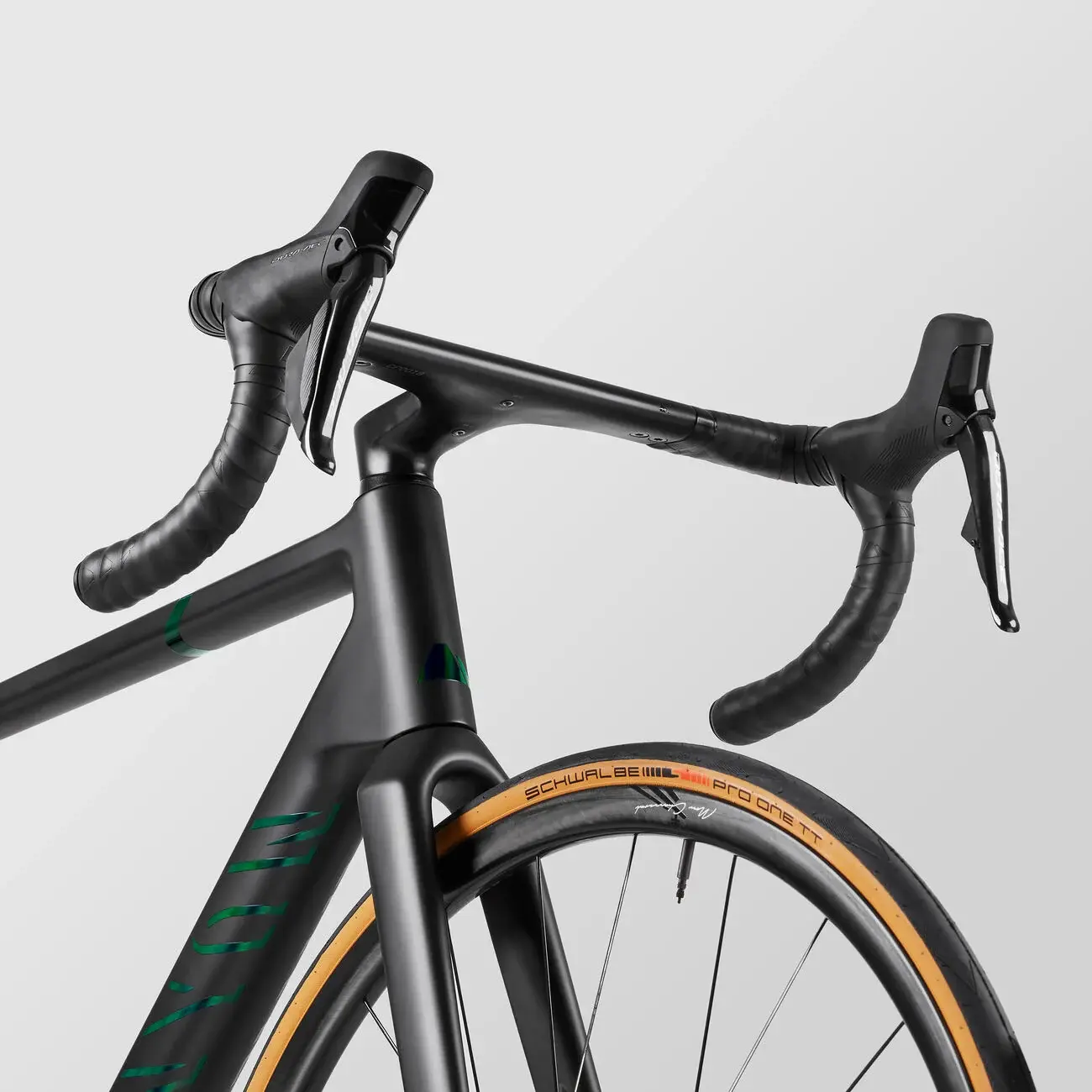

Handlebar
Canyon CP0018 Aerocockpit
- Material
- Carbon (CF)
- Weight
- 195 g
Accessories
Front
Front Light
Reflector Set
Rear
Rear Light
Reflector Set
Wheels
Front
Front Wheel
DT Swiss PRC 1100 Dicut Mon Chasseral (28", 12x100 mm)
- Size
- 28"
- Axle Dimension
- 12x100 mm
- Rotor mount
- Center Lock
- Rim height
- 24 mm
- Position
- front
- Weight
- 576 g
Front Tire
Schwalbe Pro One TT, 28mm
Rear
Rear Wheel
DT Swiss PRC1100 Dicut Mon Chasseral SH11 (28", 12x142 mm)
- Size
- 28"
- Axle Dimension
- 12x142 mm
- Rotor mount
- Center Lock
- Rim height
- 24 mm
- Position
- back
- Weight
- 689 g
Rear Tire
Schwalbe Pro One TT, 28mm
Brakes
Front
Front Brake
Shimano Dura-Ace Di2 R9270
- Weight
- 331 g
Front Disc
Shimano XTR RT-MT900
- Diameter
- 160 mm
- Weight
- 104 g
Rear
Rear Brake
Shimano Dura-Ace Di2 R9270
- Weight
- 331 g
Rear Disc
Shimano XTR RT-MT900
- Diameter
- 160 mm
- Weight
- 104 g

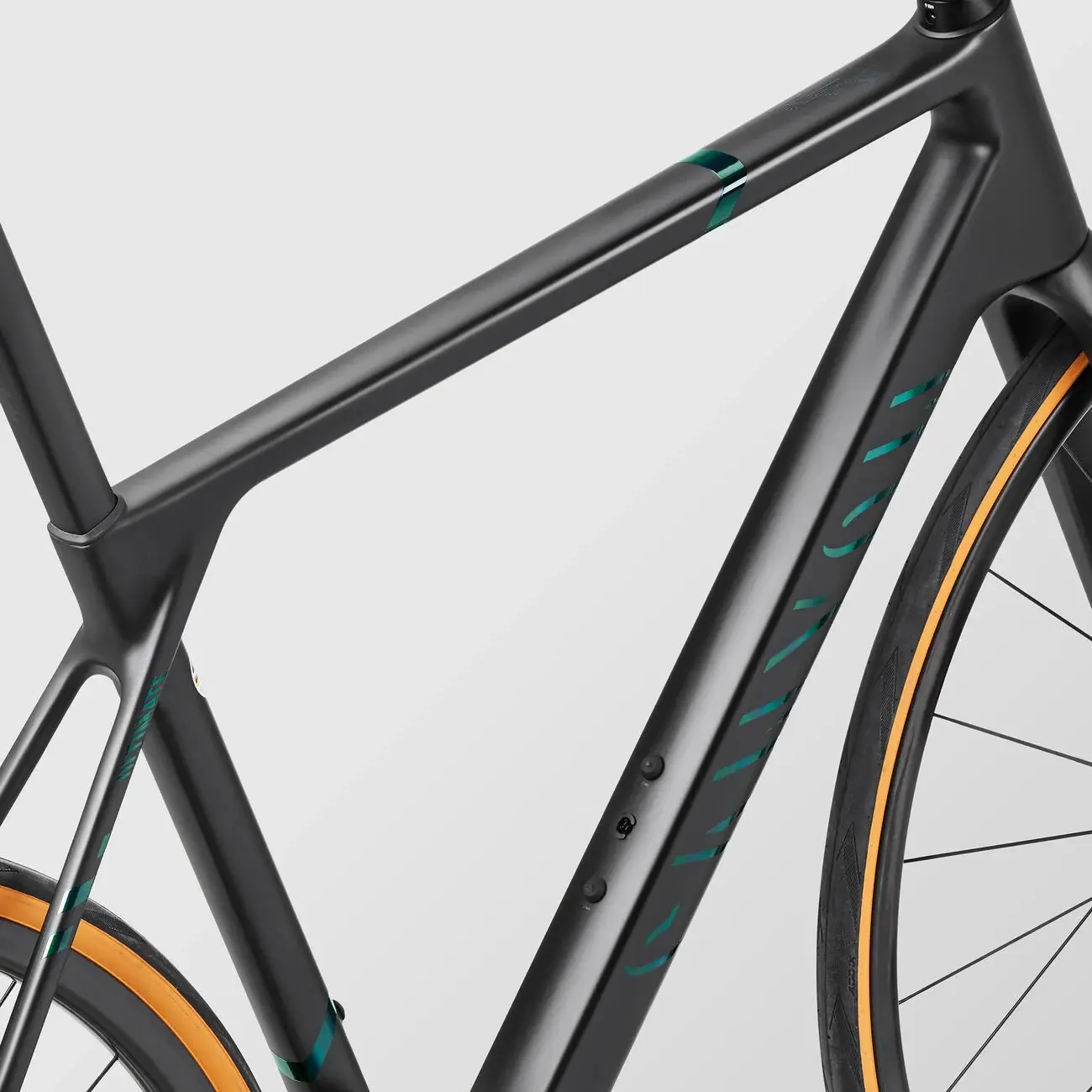

Frame
Frame
Canyon Ultimate CFR Disc
- Rear Axle Dimension
- 12x142 mm
- Tyre clearance
- 33 65
- Material
- Carbon (CFR)
- Weight
- 1202 g

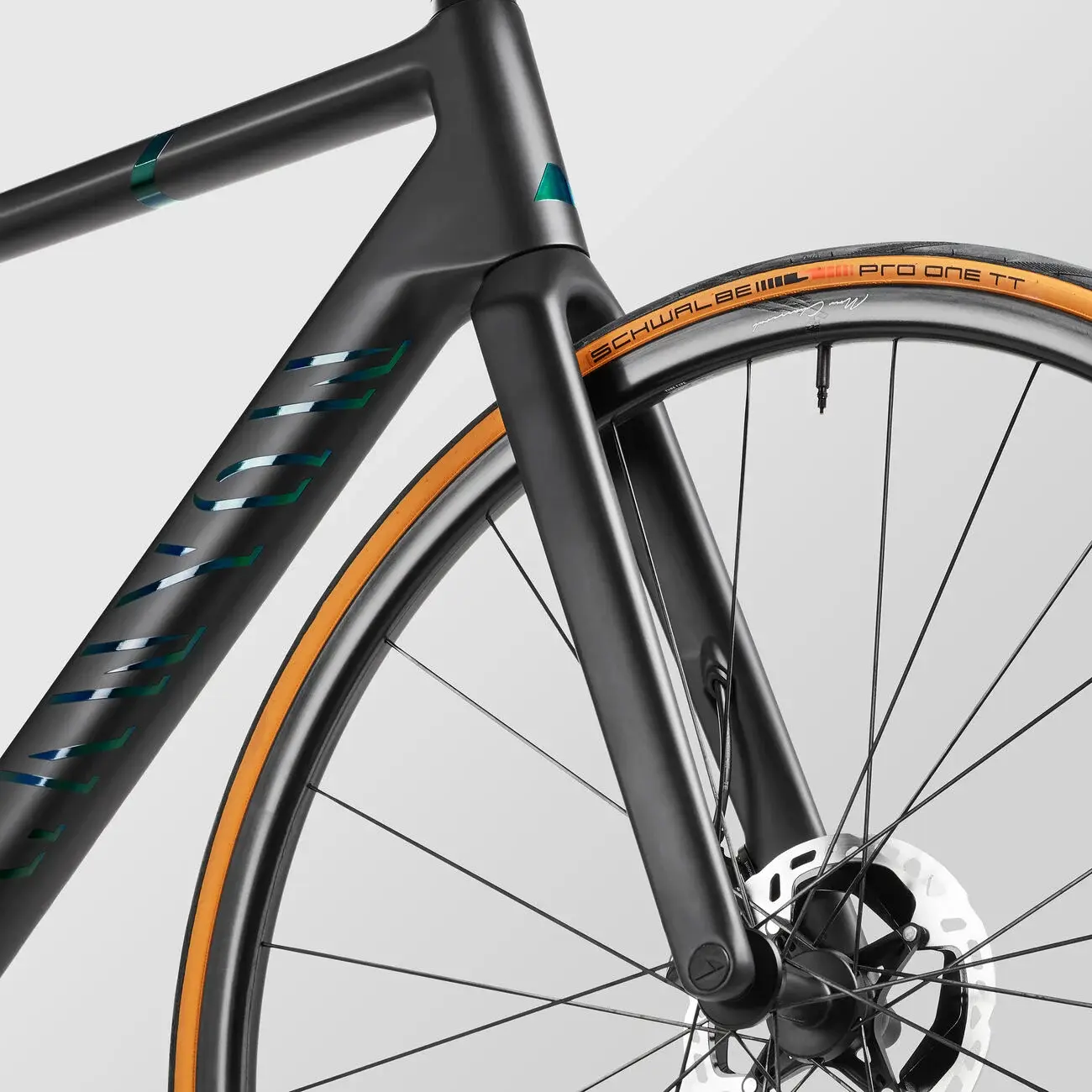

Fork
Canyon FK0108 CF Disc
- Front Axle Dimension
- 12x100 mm
- Steer tube diameter
- 1 1/4"
- Weight
- 336 g
Seat

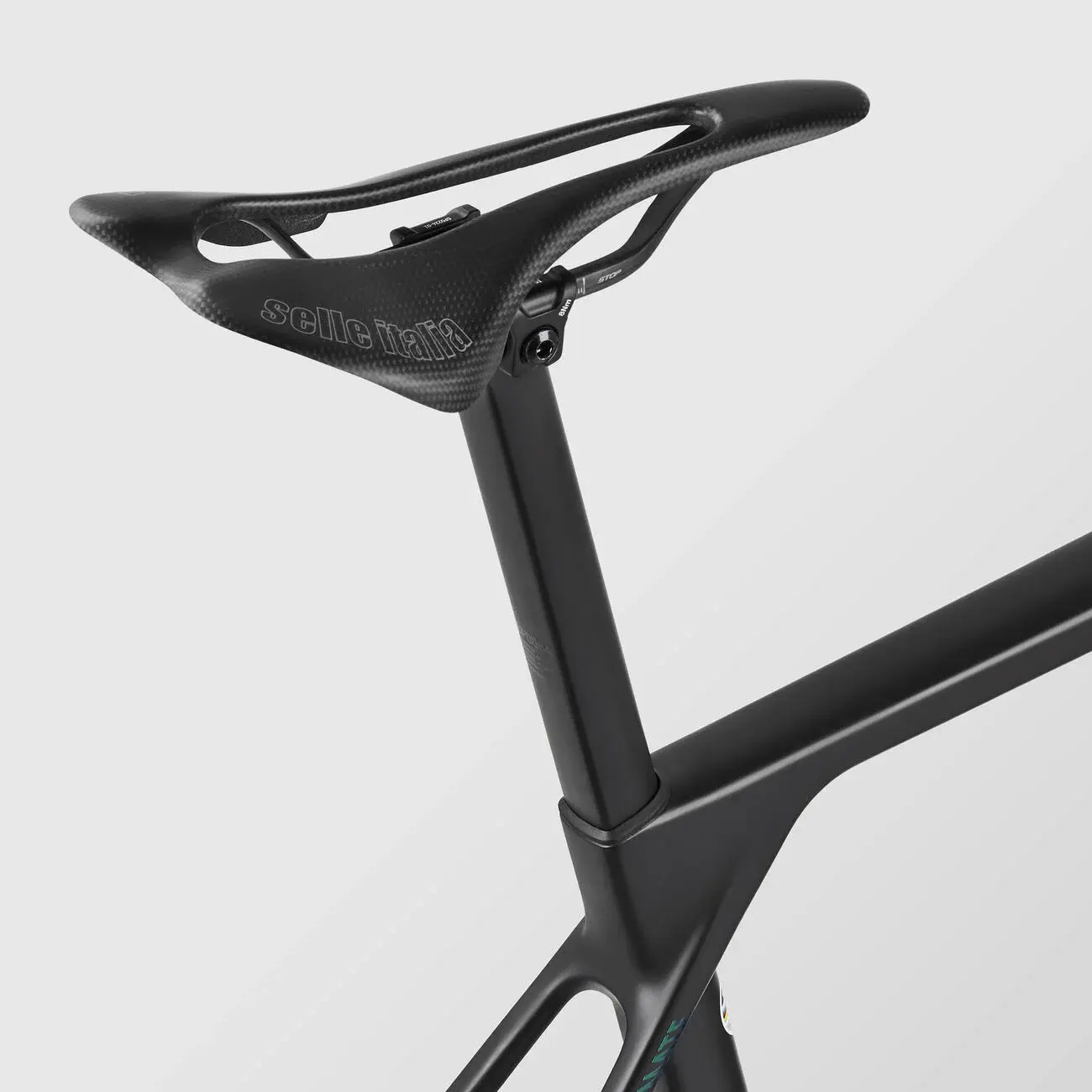

Saddle
Selle Italia SLR Boost Tekno Superflow
- Weight
- 95 g
Seatpost
Canyon SP0064
- Material
- Carbon (CF)
- Weight
- 68 g
Seatpost Clamp
Canyon GP0295-03 Seatpost Wedge
