Canyon

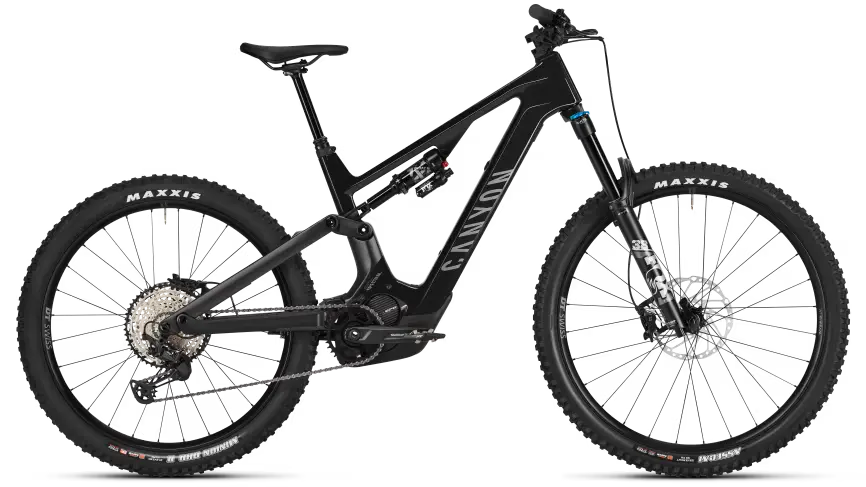

Spectral:ON CF 8
2026 ElectricE-Mountain - E-Trail
Spectral:ON CF 8 Data
- MSRP
- EUR 4499.00
- Frame
- Carbon (CF)
- Weight
- 24.73 kg
Looking for replacement tires?
View verified compatible tires for the 2026 Spectral:ON CF 8.
Components
Complete component specification list for this variant.
Cockpit
Stem
Canyon :ON ST0031 Stem
- Length
- 45 mm
- Fork steer tube diameter
- 1 1/8"
- Clamping diameter
- 35 mm
- Material
- Aluminium
Grips
Canyon Lock-On
Handlebar
Canyon :ON HB0057 Riser bar
- Rise
- 30 mm
- Clamping diameter
- 35 mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100
- Gears
- 12
Cassette
Shimano Deore SLX CS-M7100
- Number of sprockets
- 12
- Range
- 10-51
Motor
Shimano EP801
Battery
Canyon BT010
Rear Shifter
Shimano Deore SLX M7100
- Weight
- 145.1 g
Chainring
Canyon EP0-0 Chainring T
- Gears
- 1
- Ring 1
- 34 Teeth
Crank
Shimano Steps
Chain
Shimano Deore M6100
Seat
Saddle
Fizik Terra Aidon X5
- Gender
- Unisex
- Weight
- 251 g
Seatpost
Iridium Dropper Post
- Diameter
- 30.9 mm
- Material
- Aluminium (AL)
- Dropper post
- 1
- Weight
- 567 g
Seatpost Clamp
Canyon GP0279-01 Seatclamp
Accessories
Front Light
Reflector Set
Chainguard
Canyon Chainguide M091/M129
Charger
Canyon Charger
Wheels
Front
Front Wheel
DT Swiss HLN350 15x110 mm Centerlock (15x110 mm)
- Axle Dimension
- 15x110 mm
- Rotor mount
- Center Lock
- Inner width
- 30 mm
- Position
- front
- Weight
- 1025.1 g
Front Tire
Maxxis Minion DHR II 27,5" x 2.60 WT (27.5", 2.6")
- Size
- 27.5"
- Width
- 2.6"
- Weight
- 898.1 g
Rear
Rear Wheel
DT Swiss HLN350 12x142 mm Centerlock (12x142 mm)
- Axle Dimension
- 12x142 mm
- Rotor mount
- Center Lock
- Inner width
- 30 mm
- Position
- back
- Weight
- 1256.4 g
Rear Tire
Maxxis Minion DHR II 27,5" x 2.60 WT (27.5", 2.6")
- Size
- 27.5"
- Width
- 2.6"
- Weight
- 898.1 g
Brakes
Front
Front Brake
Shimano SLX M7120
Front Disc
RT SHIM EM600 CL W/LR INT
- Diameter
- 203 mm
- Weight
- 9.1 g
Rear
Rear Brake
Shimano SLX M7120
Rear Disc
RT SHIM EM600 CL W/LR INT
- Diameter
- 203 mm
- Weight
- 9.1 g
Frame
Frame
Canyon Spectral:ON CF
- Rear Axle Dimension
- 12x148 mm
- Material
- Carbon (CF)
- Weight
- 3597 g
Rear Shock
Fox Float X Performance Evolution
- Weight
- 281.2 g
Pedals
VP-536 VP-536
- Type
- flat
Fork
Fox 38 Rhythm
