Canyon

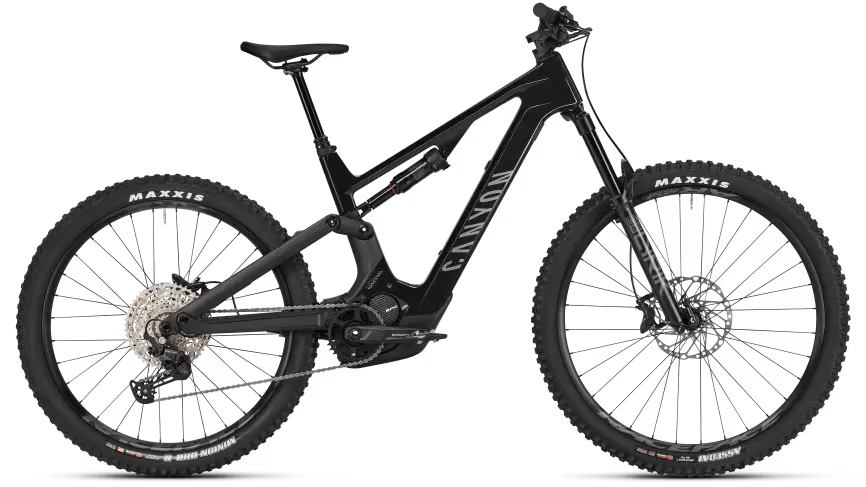

Spectral:ON CF 7
2026 ElectricE-Mountain - E-Trail
Spectral:ON CF 7 Data
- MSRP
- EUR 3899.00
- Frame
- Carbon (CF)
- Travel
- Front: 150mm
- Weight
- 24.23 kg
Looking for replacement tires?
View verified compatible tires for the 2026 Spectral:ON CF 7.
Components
Complete component specification list for this variant.
Frame
Fork
RockShox Lyrik
- Travel
- 150 mm
- Front Axle Dimension
- 15x110 mm
- Stanchion Diameter
- 35
- Steer tube diameter
- 1 1/8" - 1,5"
Pedals
VP-536 flat pedals
- Type
- flat pedals
Frame
Canyon Spectral:ON CF
- Rear Axle Dimension
- 12x148 mm
- Material
- Carbon (CF)
- Weight
- 3597 g
Rear Shock
RockShox Deluxe Select R
Cockpit
Stem
Canyon :ON ST0031 Stem
- Length
- 45 mm
- Fork steer tube diameter
- 1 1/8"
- Clamping diameter
- 35 mm
- Material
- Aluminium
Grips
Canyon Lock-On
Handlebar
Canyon :ON HB0057 Riser bar
- Rise
- 30 mm
- Clamping diameter
- 35 mm
Seat
Saddle
Fizik Terra Aidon X5
- Gender
- Unisex
- Weight
- 251 g
Seatpost
Iridium Dropper Post
- Diameter
- 30.9 mm
- Material
- Aluminium (AL)
- Dropper post
- 1
- Weight
- 567 g
Seatpost Clamp
Canyon GP0279-01 Seatclamp
Accessories
Front
Front Light
Reflector Set
Rear
Rear Light
Reflector Set
Chainguard
Canyon Chainguide M091/M129
Charger
Canyon Charger
Drivetrain
Rear Derailleur
Shimano Deore M6100, -Speed
- Gears
- 12
- Weight
- 354 g
Rear Shifter
Shimano Deore M6100, 12-Speed
- Weight
- 136 g
Motor
Shimano EP801
Battery
Canyon BT010
Chainring
Canyon EP0-0 Chainring T
- Gears
- 1
- Ring 1
- 34 Teeth
Crank
Shimano Steps
Cassette
Shimano Deore M6100
Chain
Shimano Deore M6100
Wheels
Front
Front Tire
Maxxis Minion DHR II 27,5" x 2.60 WT (27.5", 2.6")
- Size
- 27.5"
- Width
- 2.6"
- Weight
- 898.1 g
Front Wheel
Shimano RaceFace AR | MT400 (27.5", 15x110 mm)
- Size
- 27.5"
- Axle Dimension
- 15x110 mm
- Rotor mount
- Center Lock
- Inner width
- 30 mm
- Position
- front
- Weight
- 1202 g
Rear
Rear Tire
Maxxis Minion DHR II 27,5" x 2.60 WT (27.5", 2.6")
- Size
- 27.5"
- Width
- 2.6"
- Weight
- 898.1 g
Rear Wheel
Shimano RaceFace AR | MT510 (27.5", 12x148 mm)
- Size
- 27.5"
- Axle Dimension
- 12x148 mm
- Rotor mount
- Center Lock
- Inner width
- 35 mm
- Position
- back
- Weight
- 1252 g
Brakes
Front
Front Brake
Shimano Deore M6120
Front Disc
Shimano Steps RT-EM600
- Diameter
- 203 mm
Rear
Rear Brake
Shimano Deore M6120
Rear Disc
Shimano Steps RT-EM600
- Diameter
- 203 mm
