Canyon

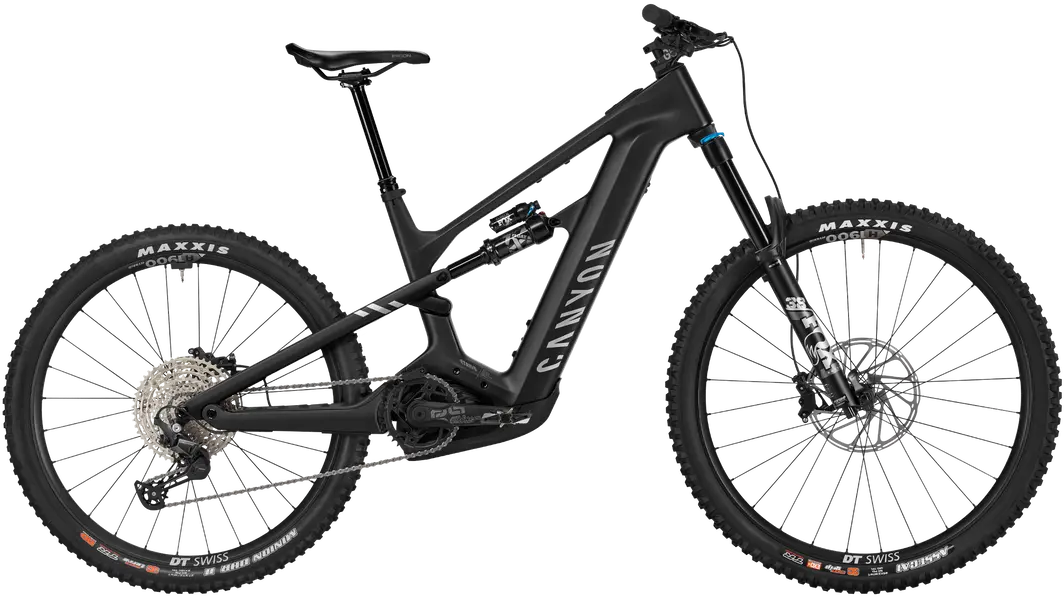

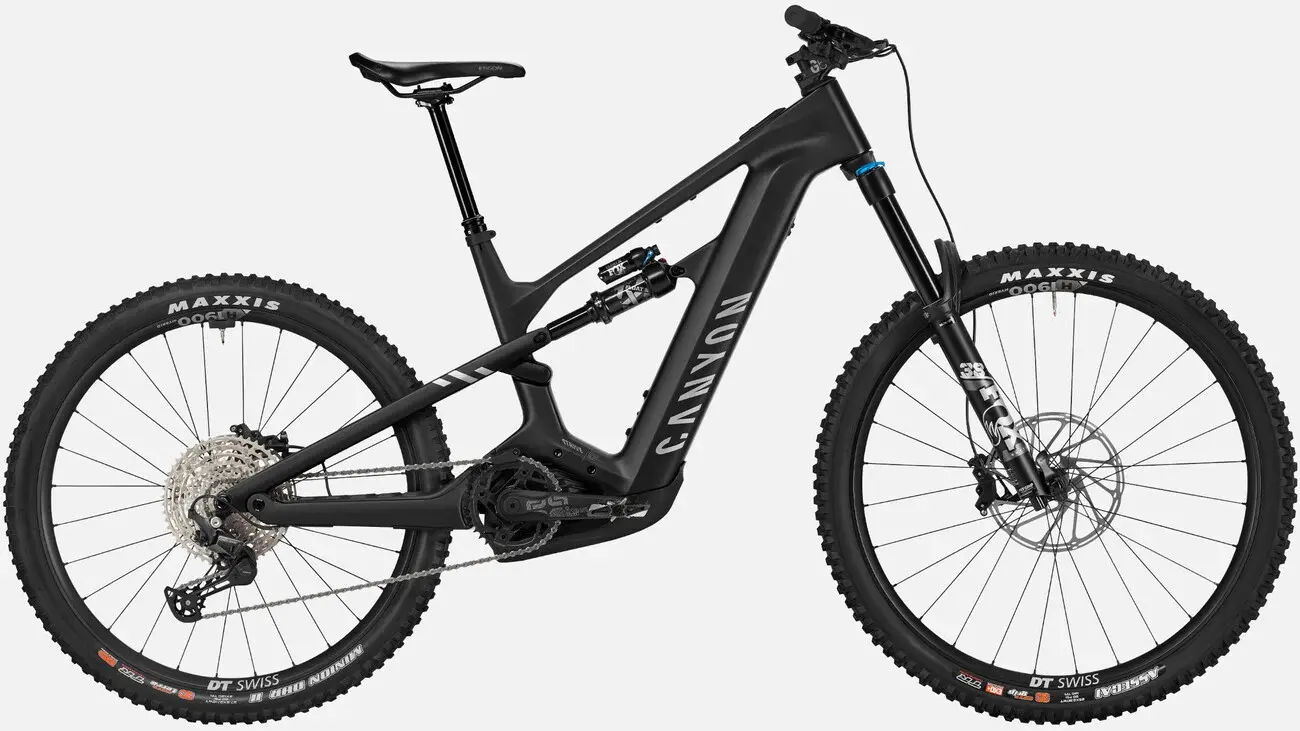

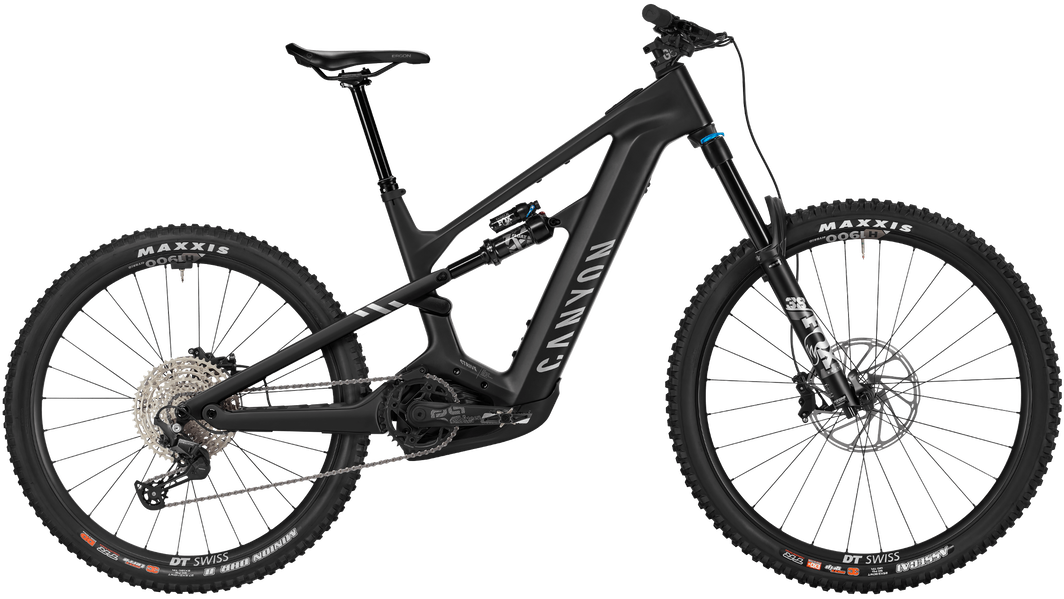

Strive:ON CFR Underdog
2026 ElectricE-Mountain
Strive:ON CFR Underdog Data
- Frame
- Carbon (CF)
- Weight
- 24.5 kg
Looking for replacement tires?
View verified compatible tires for the 2026 Strive:ON CFR Underdog.
Components
Complete component specification list for this variant.
Drivetrain
Motor
Bosch Performance Line CX GEN.5
- Torque
- 85 Nm
Battery
Bosch PowerTube Wh
- Capacity
- 625 Wh
Crank
Bosch e*thirteen E-Spec Plus
Rear Derailleur
Shimano Deore M6100, -Speed
- Gears
- 12
- Weight
- 354 g
Rear Shifter
Shimano Deore M6100, 12-Speed
- Weight
- 136 g
Cassette
Shimano Deore M6100
Chain
Shimano Deore M6100
Chainring
FSA Megatooth 36t
Accessories
Front Light
Reflector Set
Chainguard
Canyon GP0437-01 Chainguide
Charger
Bosch Bosch A
- Speed
- 4 A
Wheels
Front
Front Tire
Maxxis Assegai 3C MaxxGrip (2,5")
- Width
- 2,5"
- Weight
- 1161 g
Front Wheel
DT Swiss H1900 Spline Hybrid (29)
- Size
- 29
- Rotor mount
- IS 6-bolt
- Position
- front
- Weight
- 1025 g
Rear
Rear Tire
Maxxis Assegai 3C MaxxGrip (2,5")
- Width
- 2,5"
- Weight
- 1161 g
Rear Wheel
DT Swiss H1900 (12x148 mm)
- Axle Dimension
- 12x148 mm
- Rotor mount
- IS 6-bolt
- Inner width
- 30 mm
- Material
- Aluminium
- Position
- back
- Weight
- 1120 g
Frame
Frame
Canyon Strive:ON
- Rear Axle Dimension
- 12x148 mm
- Material
- Carbon (CF)
- Weight
- 1619 g
Rear Shock
Fox Float X Evol
- Weight
- 798 g

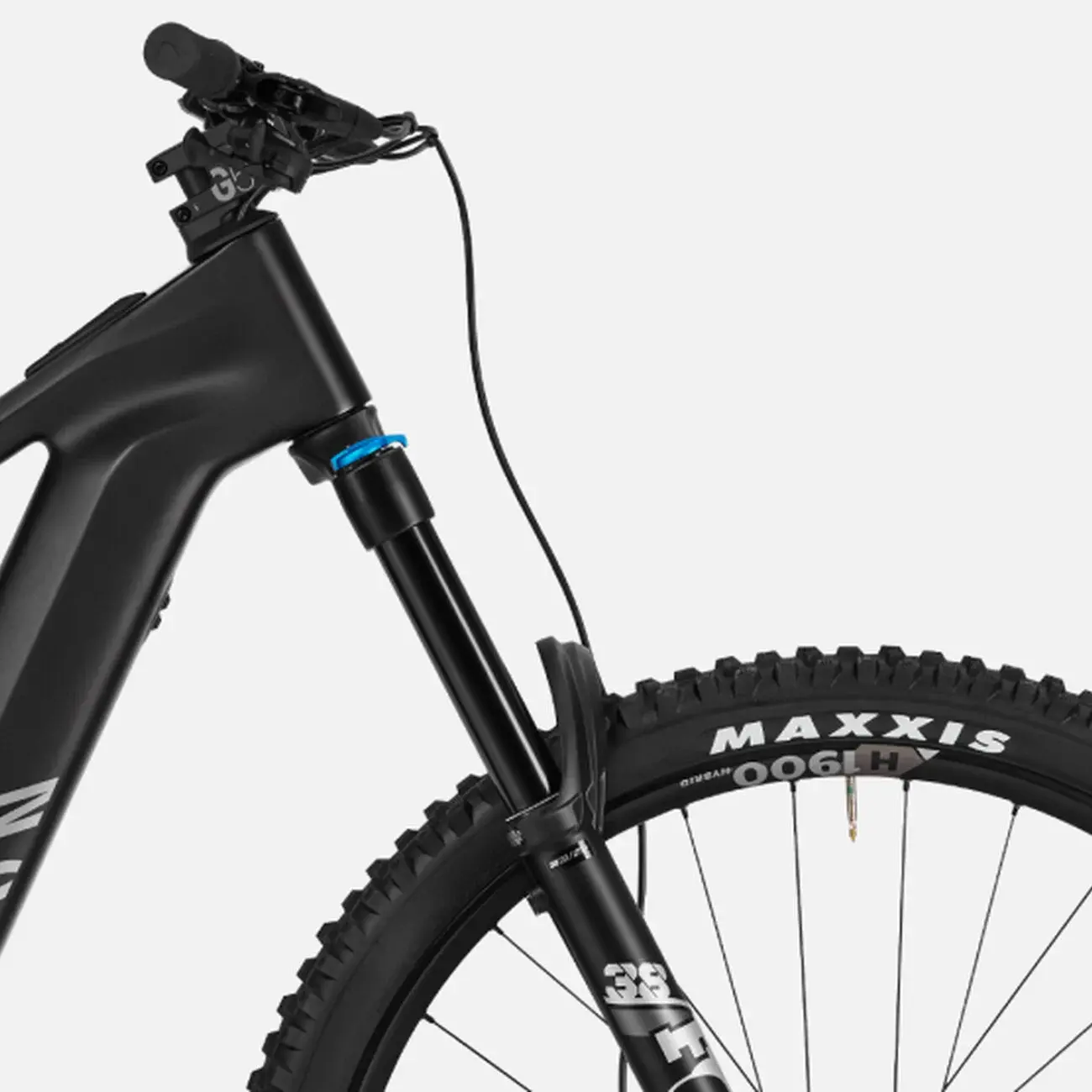

Fork
Fox 38 Rhythm Grip
Pedals
VP-536 flat pedals
Cockpit
Stem
Canyon Canyon G5
- Fork steer tube diameter
- 1 1/8"
- Clamping diameter
- 31.8 mm
- Material
- Aluminium (AL)
Handlebar
Canyon Canyon G5
- Rise
- 30 mm
- Clamping diameter
- 31.8 mm
Grips
Canyon Canyon G5
Seat
Saddle
ERGON SM10 EMTB
- Weight
- 299 g
Seatpost Clamp
Canyon SC0001
Seatpost
Iridium Dropper
- Diameter
- 30.9 mm
- Material
- Aluminium (AL)
- Dropper post
- 1
- Weight
- 603 g
Brakes
Front
Front Brake
SRAM DB8
Front Disc
SRAM Centerline
Rear
Rear Brake
SRAM DB8
Rear Disc
SRAM Centerline
