Cannondale

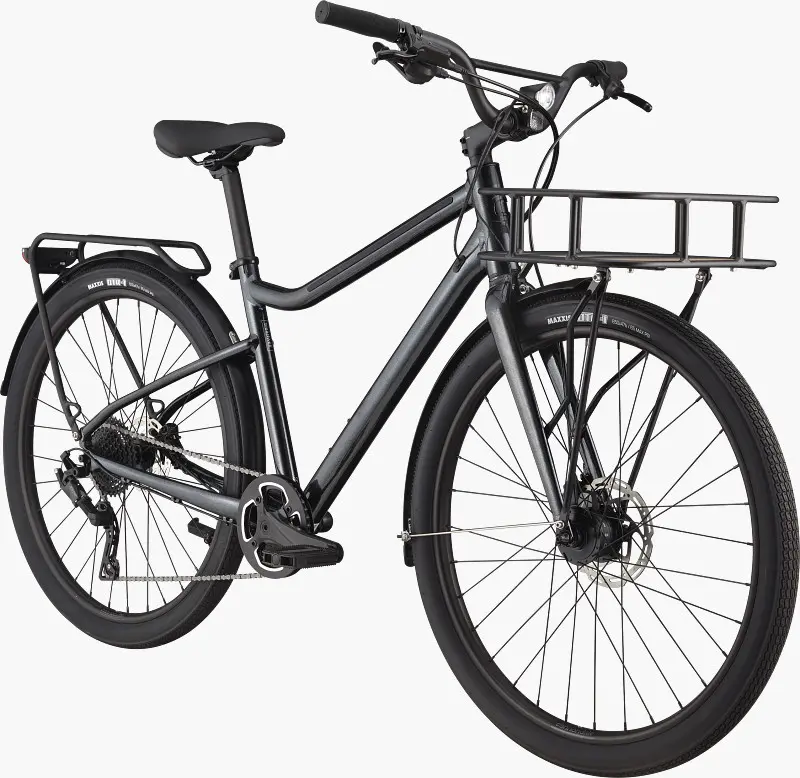

Treadwell EQ DLX
2026City & Touring - Fitness
Treadwell EQ DLX Data
- MSRP
- USD 1099.00
- Frame
- Alloy
- Suspension
- None, Hardtail
- Gears
- 9
- Sizes
- Sm, Md, Lg
- Colors
- Black Magic
Looking for replacement tires?
View verified compatible tires for the 2026 Treadwell EQ DLX.
Components
Complete component specification list for this variant.
Brakes
Front
Front Disc
Tektro Tektro
- Diameter
- 160 mm
Front Brake
Hydraulic Tektro HD-R280 disc
Rear
Rear Disc
Tektro Tektro
- Diameter
- 140 mm
Rear Brake
Hydraulic Tektro HD-R280 disc
Drivetrain
Chain
KMC KMC X
- Gears
- 9
Crank
Prowheel Prowheel
Bottom Bracket
Cartridge Cartridge
- Standard
- square taper
Chainring
Prowheel Prowheel
- Ring 1
- 38 Teeth
Cassette
microSHIFT microSHIFT
- Number of sprockets
- 9
- Range
- 11-42

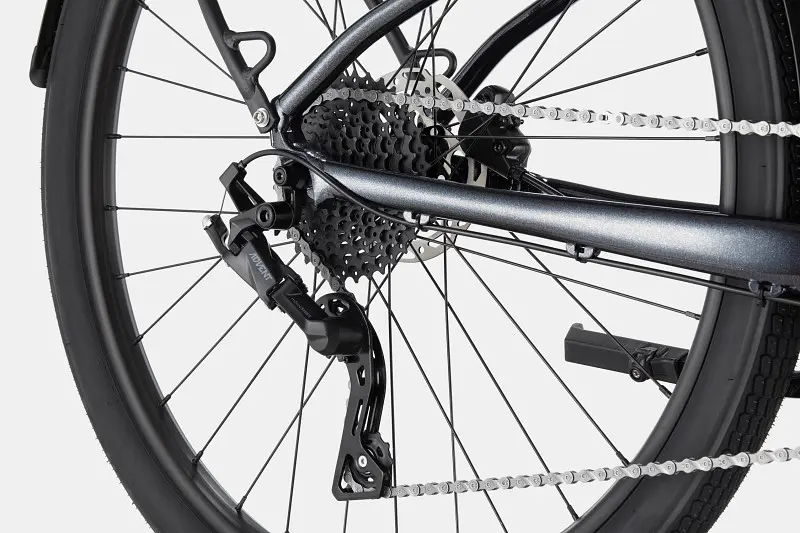

Rear Derailleur
microSHIFT Advent
Rear Shifter
microSHIFT Advent
Cockpit
Grips
Cannondale Comfort
Stem
Cannondale 3 with Intellimount
- Clamping diameter
- 31.8 mm
- Material
- Alloy

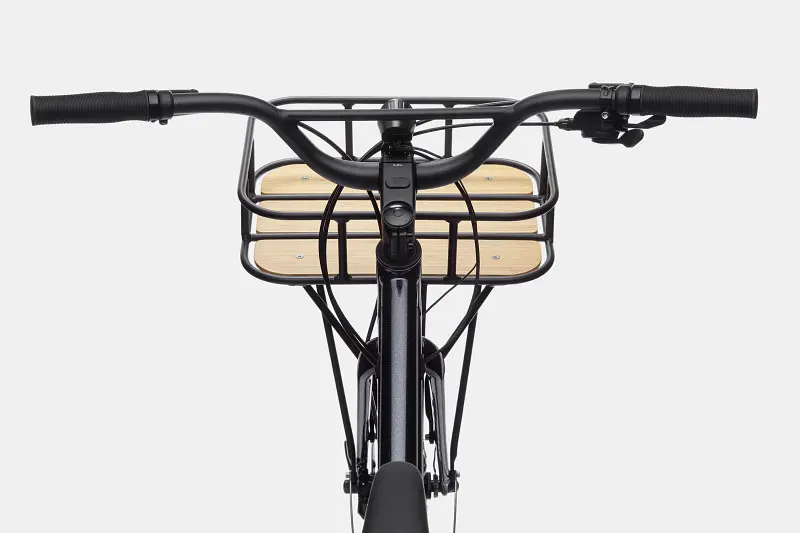

Handlebar
Cannondale Cruise Control riser
- Width
- 740 mm
- Angle
- 15 °
- Clamping diameter
- 31.8 mm
- Material
- 6061 Alloy
Wheels
Front
Front Tire
Maxxis DTR-1 (650b, 47c)
- Size
- 650b
- Width
- 47c
Front Wheel
Cannondale Disc, double wall w/eyelet, 32h, Shimano Dynamo DH-3D37 hub (650b)
- Size
- 650b
- Material
- Alloy
- Position
- front
Rear
Rear Tire
Maxxis DTR-1 (650b, 47c)
- Size
- 650b
- Width
- 47c
Rear Wheel
Cannondale Disc, double wall w/eyelet, 32h, Sealed Disc hub (650b, 5mm Hex Security QR)
- Size
- 650b
- Axle Dimension
- 5mm Hex Security QR
- Material
- Alloy
- Position
- back
Seat

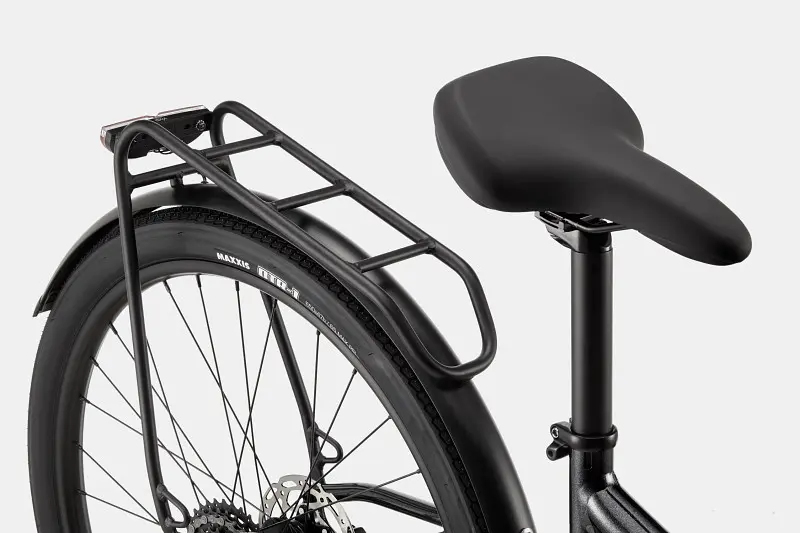

Saddle
Cannondale Treadwell
Seatpost
Alloy
Frame
Frame
SmartForm C3 Alloy
- Material
- Alloy
Fork
SmartForm C3 Alloy blades
- Steer tube diameter
- 1-1/8"
Pedals
Cannondale Comfort with deck tape
- Type
- Platform
Accessories
Front
Front Light
Spanninga Front Dynamo Light
Rear
Rear Light
Spanninga Rear Dynamo Light
