Cannondale

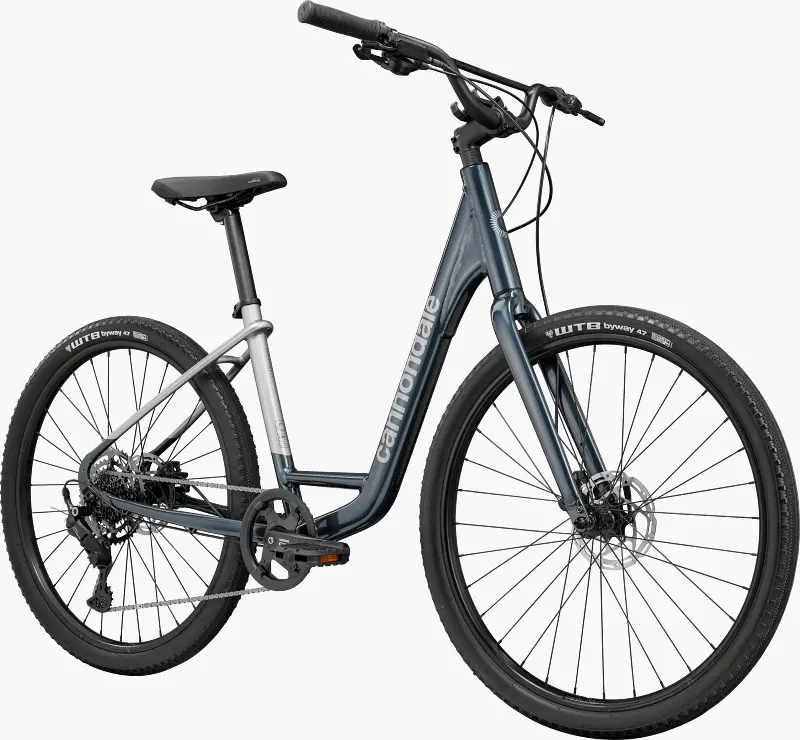

Treadwell 1 Low StepThru
2026City & Touring - Fitness
Treadwell 1 Low StepThru Data
- MSRP
- USD 899.00
- Frame
- Aluminum
- Suspension
- None
- Gears
- 9
- Sizes
- Sm, Md, Lg
- Colors
- Tungsten Blue
Looking for replacement tires?
View verified compatible tires for the 2026 Treadwell 1 Low StepThru.
Components
Complete component specification list for this variant.
Drivetrain
Chain
KMC XGlide
- Gears
- 10

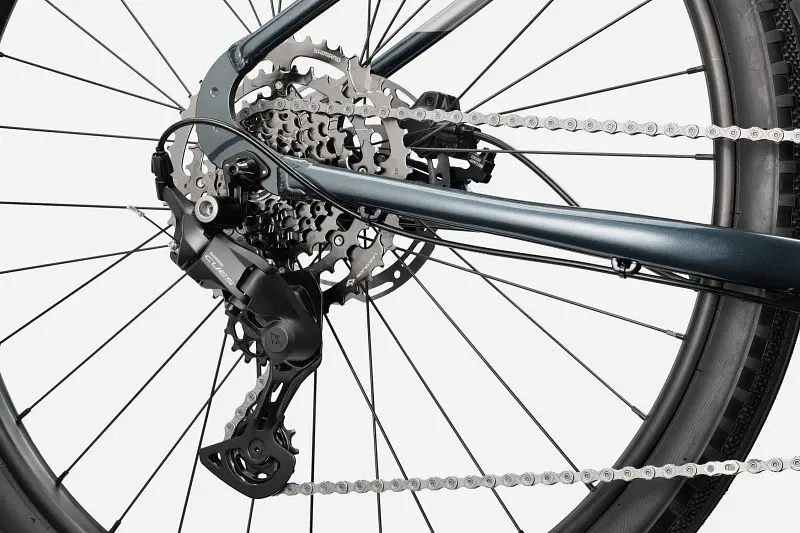

Rear Derailleur
Shimano CUES U4000
- Gears
- 9
Chainring
Shimano CUES 00
- Gears
- 1
- Ring 1
- 40 Teeth
Crank
Shimano CUES 4000
Rear Shifter
Shimano CUES U4000, RapidFire
Cassette
Shimano CUES, LinkGlide
- Number of sprockets
- 9
- Range
- 11-46
Display
Cannondale AppTag
Bottom Bracket
Shimano UN101
- Standard
- square taper
Seat
Seatpost
Cannondale Cannondale 3
- Length
- 350 mm
- Diameter
- 27.2 mm
- Material
- 6061 Alloy

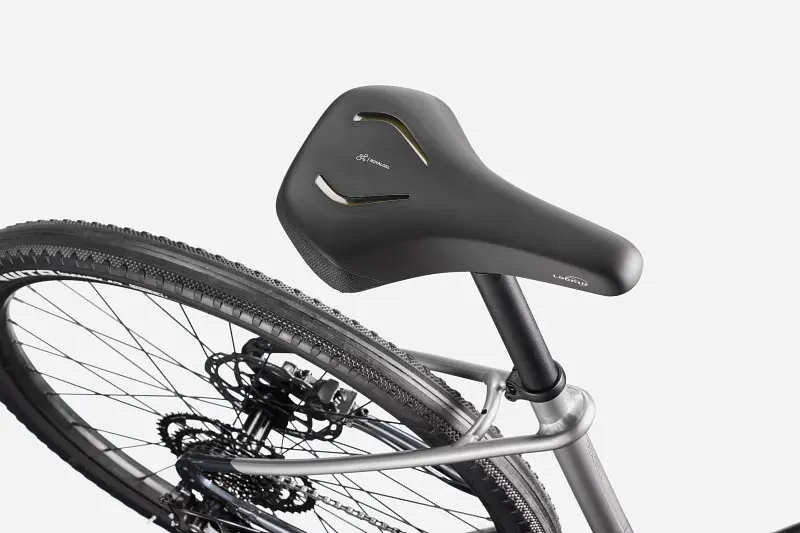

Saddle
Selle Royal Lookin, Moderate
Brakes
Front
Front Brake
Hydraulic Tektro M275 disc
Front Disc
Tektro Centerlock rotor
- Diameter
- 160 mm
Rear
Rear Brake
Hydraulic Tektro M275 disc
Rear Disc
Tektro Centerlock rotor
- Diameter
- 160 mm
Cockpit
Stem
Cannondale 3 Intellimount
- Clamping diameter
- 31.8 mm
- Material
- Alloy

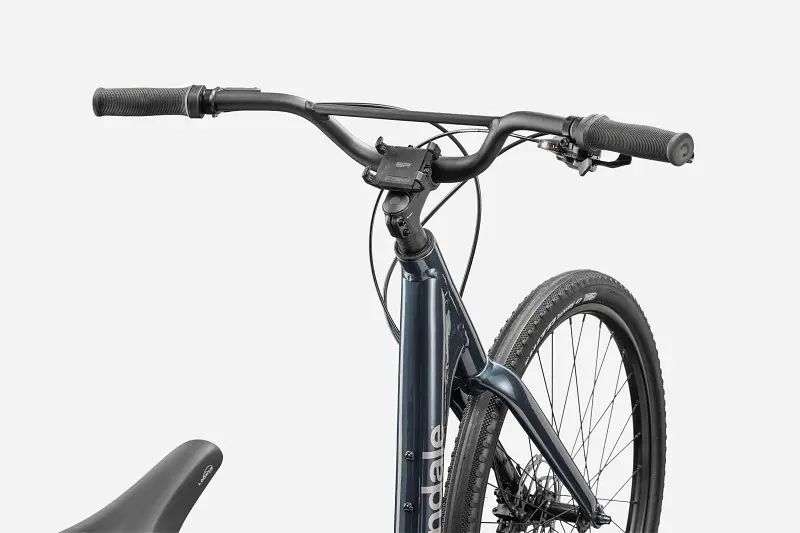

Handlebar
Cannondale Cruise Control riser
- Width
- 740 mm
- Angle
- 15 °
- Clamping diameter
- 31.8 mm
- Material
- 6061 alloy
Grips
Cannondale ParkLane
Wheels
Front
Front Wheel
Cannondale Shimano QC300 hub, Disc rim (650b, 9x100mm)
- Size
- 650b
- Axle Dimension
- 9x100mm
- Rotor mount
- Centerlock
- Material
- Alloy
Front Tire
WTB Byway (650b, 47mm)
- Size
- 650b
- Width
- 47mm
Rear
Rear Wheel
Cannondale Shimano QC300 hub, Disc rim (650b, 9x135mm)
- Size
- 650b
- Axle Dimension
- 9x135mm
- Rotor mount
- Centerlock
- Material
- Alloy
Rear Tire
WTB Byway (650b, 47mm)
- Size
- 650b
- Width
- 47mm
Frame
Frame
SmartForm C3 Alloy
- Rear Axle Dimension
- 9x135mm QR
- Material
- Aluminum
Pedals
Comfort-focused pedals
Fork
SmartForm C3 Alloy
