Cannondale
SuperX 4 AXS
2025Gravel
SuperX 4 AXS Data
- MSRP
- USD 4199.00
- Frame
- Carbon
- Suspension
- None, Hardtail
- Gears
- 12
- Sizes
- 51, 54, 56, 58, 61, 46
- Colors
- Fire Orange
Looking for replacement tires?
View verified compatible tires for the 2025 SuperX 4 AXS.
Components
Complete component specification list for this variant.

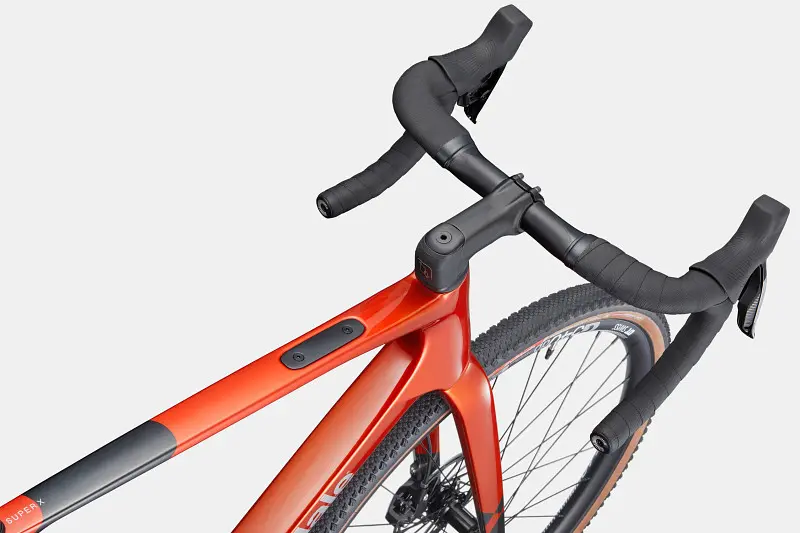

Cockpit
Grips
Cannondale Bar Tape, 3.5mm
Stem
Cannondale C1 Conceal
- Clamping diameter
- 31.8 mm
- Material
- Alloy
Handlebar
Vision Trimax Aero
- Material
- Alloy
Accessories
Charger
SRAM AXS charger
Frame
Fork
SuperX Carbon
- Front Axle Dimension
- 12x100mm
- Steer tube diameter
- 1-1/8" to 1-1/2"
- Offset
- 55 mm
Frame
SuperX Carbon
- Rear Axle Dimension
- 12x142mm
- Material
- Carbon
Wheels
Front
Front Wheel
DT Swiss G540 / Shimano TC500 (700c, 12x100mm)
- Size
- 700c
- Axle Dimension
- 12x100mm
- Rotor mount
- Centerlock
- Inner width
- 24 mm
- Position
- front
Front Tire
Vittoria Terreno T50 (700, 40c)
- Size
- 700
- Width
- 40c
Rear
Rear Wheel
DT Swiss G540 / Shimano TC500 (700c, 12x142mm)
- Size
- 700c
- Axle Dimension
- 12x142mm
- Rotor mount
- Centerlock
- Inner width
- 24 mm
- Position
- back
Rear Tire
Vittoria Terreno T50 (700, 40c)
- Size
- 700
- Width
- 40c
Brakes
Front
Front Brake
Hydraulic SRAM Apex disc
Front Disc
SRAM Centerline
Rear
Rear Brake
Hydraulic SRAM Apex disc
Rear Disc
SRAM Centerline
Drivetrain
Front

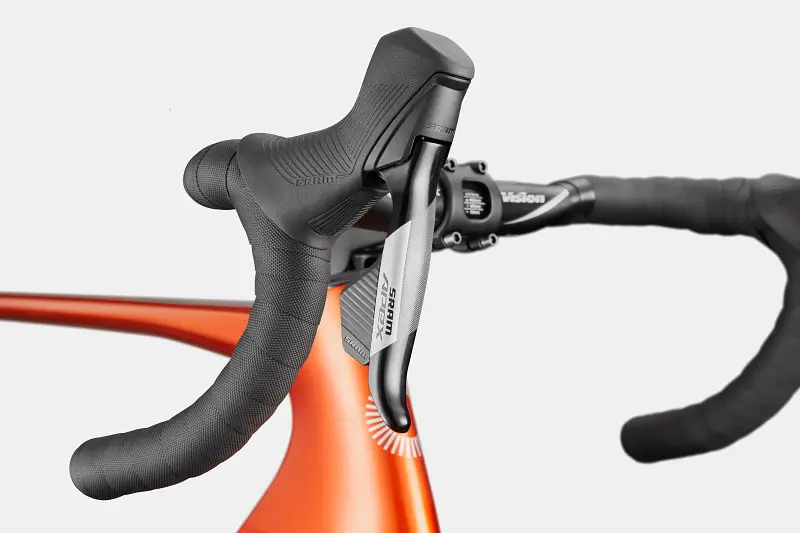

Front Shifter
SRAM Apex AXS
Rear
Rear Shifter
SRAM Apex AXS

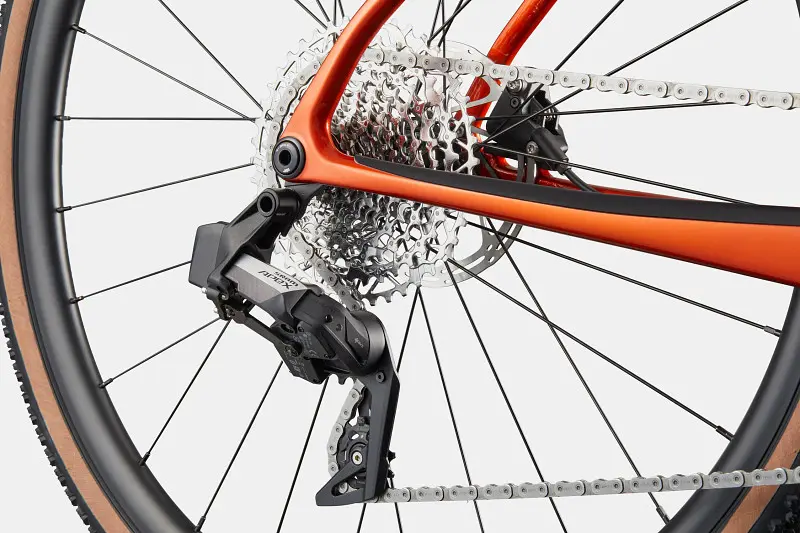

Rear Derailleur
SRAM Apex AXS XPLR
- Gears
- 12
Cassette
SRAM Apex XPLR PG-31
- Number of sprockets
- 12
- Range
- 11-44
Bottom Bracket
SRAM DUB Road 68 Wide
- Standard
- BSA

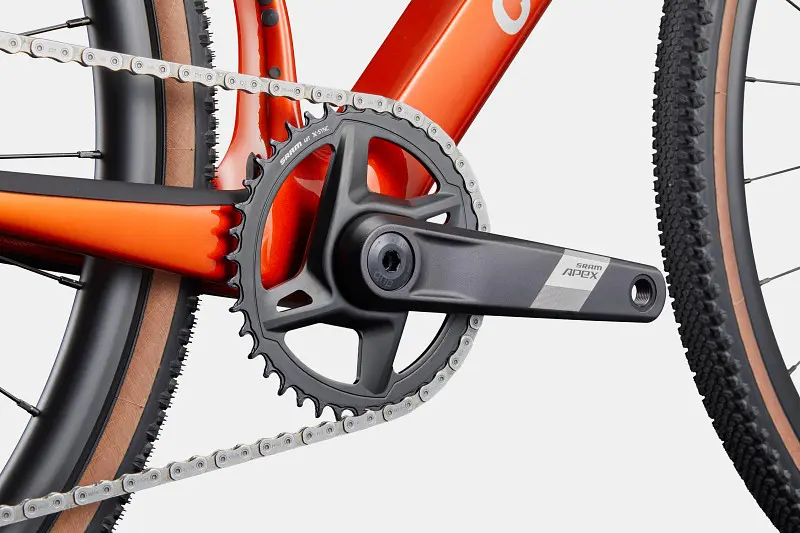

Chainring
SRAM Apex 1 Wide
Chain
SRAM Apex
Crank
SRAM Apex 1 Wide
Seat
Saddle
Fizik Vento Argo X5
Seatpost
Cannondale C1 Aero 27 Carbon
