Cannondale

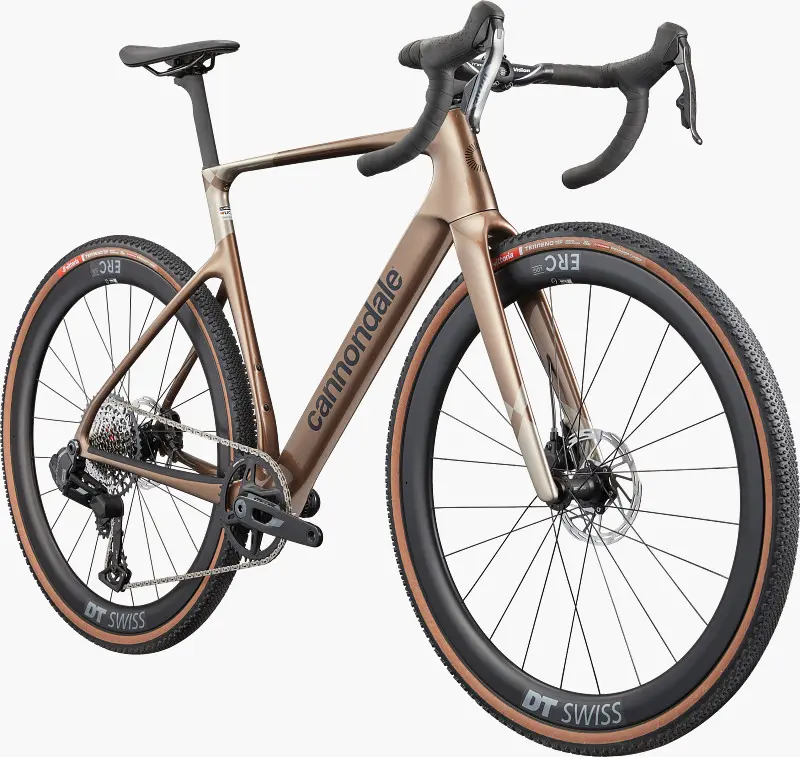

SuperX 3
2025Gravel
SuperX 3 Data
- MSRP
- USD 5499.00
- Frame
- Carbon
- Suspension
- None, Hardtail
- Gears
- 13
- Sizes
- 51, 54, 56, 58, 61, 46
- Colors
- Burnt Oxide
Looking for replacement tires?
View verified compatible tires for the 2025 SuperX 3.
Components
Complete component specification list for this variant.
Drivetrain
Rear Shifter
Rival SRAM AXS
Bottom Bracket
SRAM DUB BSA Road 68 Wide
- Standard
- BSA 68mm threaded
Rear Derailleur
Rival SRAM AXS XPLR
- Gears
- 13
Chainring
Rival SRAM XPLR Wide
- Gears
- 1
- Ring 1
- 42 Teeth
Cassette
Rival SRAM XPLR XG-51
- Number of sprockets
- 13
- Range
- 10-46
Chain
Rival SRAM
- Gears
- 13
Crank
Rival SRAM XPLR Wide
Cockpit
Grips
Cannondale Bar Tape, 3.5mm
Stem
Cannondale C1 Conceal
- Clamping diameter
- 31.8 mm
- Material
- Alloy
Handlebar
Vision Trimax Aero
- Material
- Alloy
Accessories
Charger
SRAM AXS charger
Brakes
Front
Front Disc
SRAM PaceLine centerlock rotor
- Diameter
- 160 mm
Front Brake
Hydraulic SRAM Rival disc
Rear
Rear Disc
SRAM PaceLine centerlock rotor
- Diameter
- 160 mm
Rear Brake
Hydraulic SRAM Rival disc
Wheels
Front
Front Wheel
DT Swiss ERC LOG / 370 hub (700c, 12x100mm)
- Size
- 700c
- Axle Dimension
- 12x100mm
- Rotor mount
- Centerlock
- Rim height
- 45 mm
- Inner width
- 22 mm
- Material
- Carbon
- Position
- Front
Front Tire
Vittoria Terreno T50 (700c, 40c)
- Size
- 700c
- Width
- 40c
Rear
Rear Wheel
DT Swiss ERC LOG / 370 LN hub (700c, 12x142mm)
- Size
- 700c
- Axle Dimension
- 12x142mm
- Rotor mount
- Centerlock
- Rim height
- 45 mm
- Inner width
- 22 mm
- Material
- Carbon
- Position
- Back
Rear Tire
Vittoria Terreno T50 (700c, 40c)
- Size
- 700c
- Width
- 40c
Frame
Frame
SuperX , Proportional Response construction
- Rear Axle Dimension
- 12x142mm
- Tyre clearance
- 48 65
- Material
- Carbon
Fork
SuperX Carbon
- Front Axle Dimension
- 12x100mm
- Steer tube diameter
- 1-1/8" to 1-1/2"
- Offset
- 55 mm
Seat
Saddle
Fizik Vento Argo X5
Seatpost
Cannondale C1 Aero 27 Carbon
