Cannondale

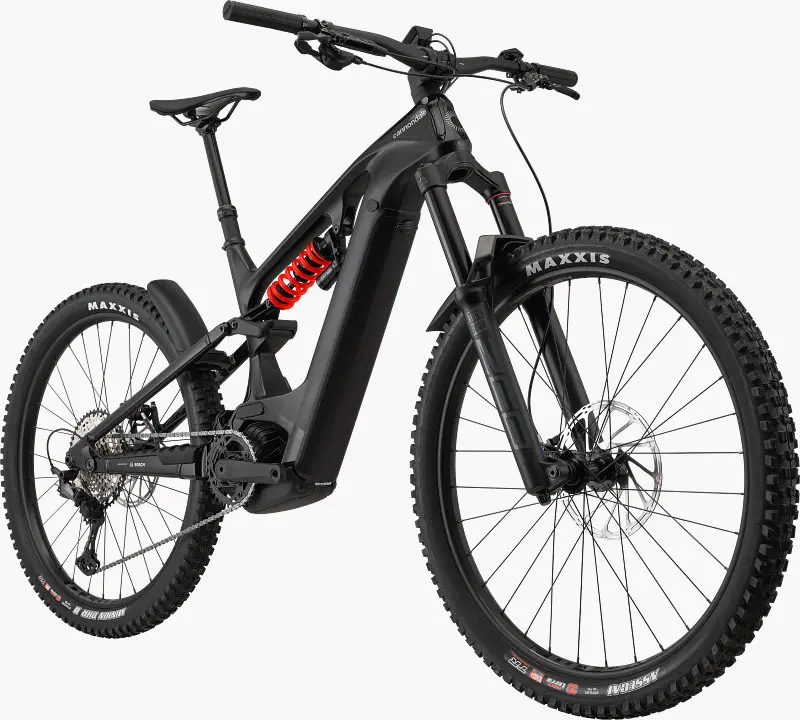

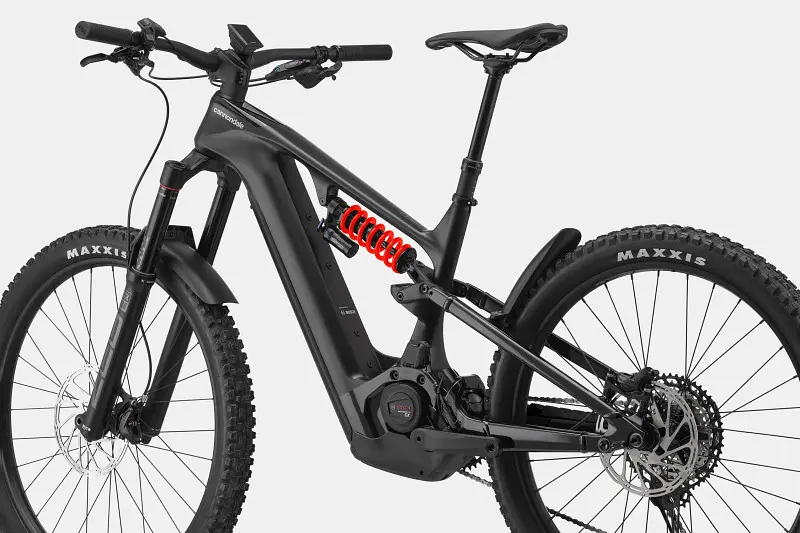

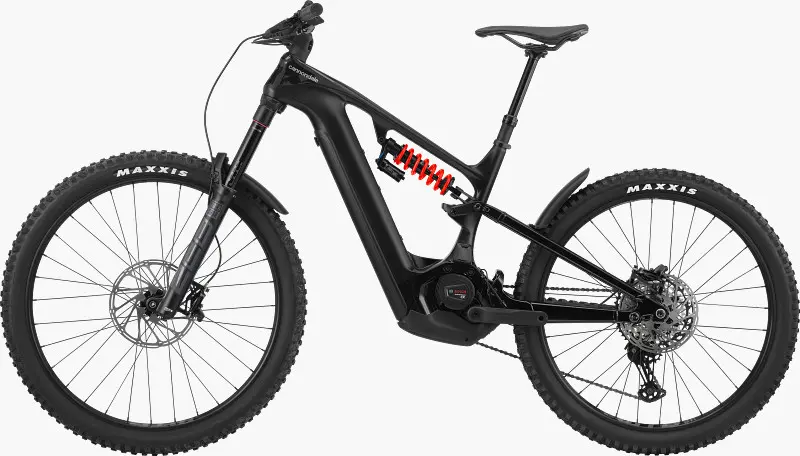

Moterra Neo Carbon Lt 2 C25572U
2026 Electric
Moterra Neo Carbon Lt 2 C25572U Data
- MSRP
- USD 7000.00
- Frame
- Carbon/Alloy
- Suspension
- Fully, Full Suspension
- Travel
- Front: 170mm, Rear: 165mm
- Sizes
- Xl, Sm, Md, Lg
- Colors
- Matte Black
Looking for replacement tires?
View verified compatible tires for the 2026 Moterra Neo Carbon Lt 2 C25572U.
Components
Complete component specification list for this variant.
Accessories
Charger
Bosch Bosch A
- Speed
- 4 A
Drivetrain
Chainring
Bosch FSA E-bike
- Ring 1
- 34 Teeth
Crank
Bosch FSA E-bike
- Length
- 160
Display
Bosch Kiox 300 w/ LED remote

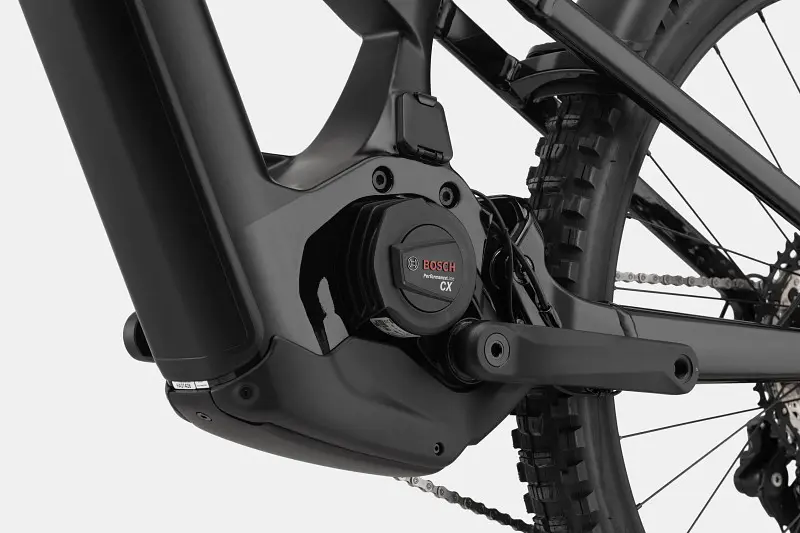

Motor
Bosch Performance Line CX
Battery
Bosch PowerTube

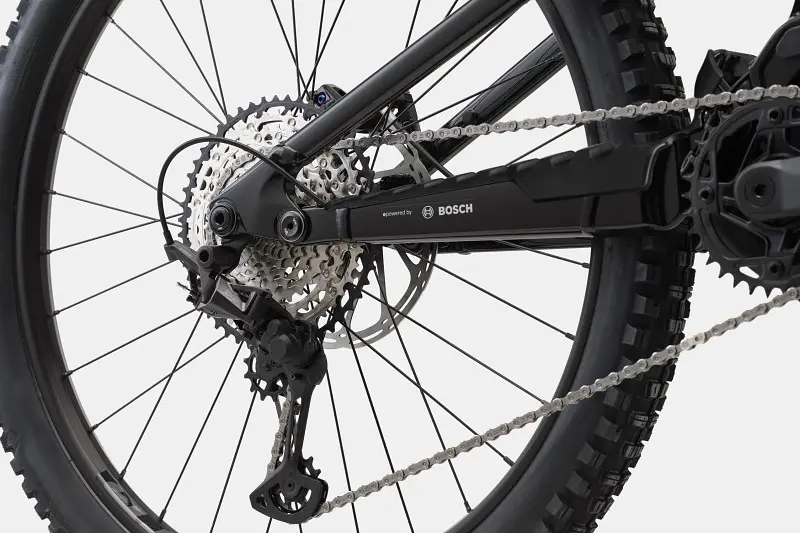

Rear Derailleur
Shimano XT
Rear Shifter
Shimano SLX
Cassette
Shimano SLX
Chain
Shimano SLX
Cockpit
Stem
Cannondale 2, 6061
- Length
- 35 mm
- Material
- Alloy

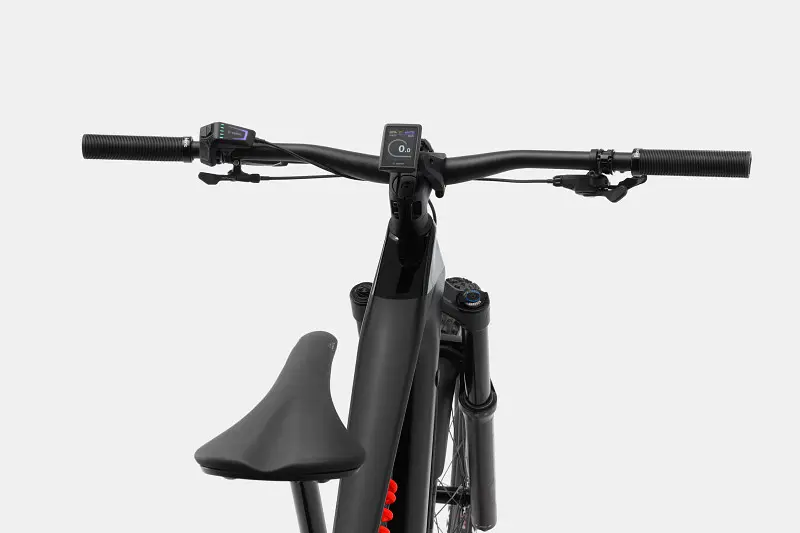

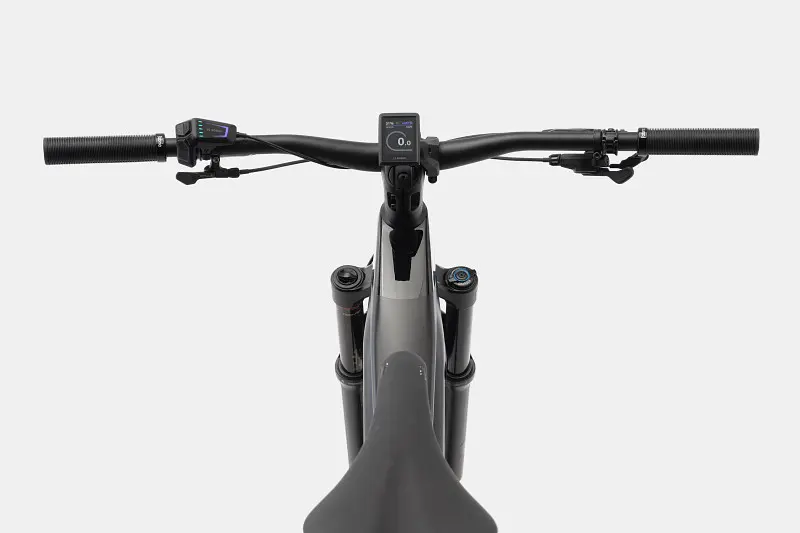

Handlebar
Cannondale 3 Riser, 6061
- Width
- 800 mm
- Rise
- 25 mm
- Angle
- 8 °
- Material
- Alloy
Grips
Fabric FunGuy
Wheels
Front
Front Wheel
Formula WTB ST i TCS rim, hub (29, 15x110mm)
- Size
- 29
- Axle Dimension
- 15x110mm
- Inner width
- 30 mm
- Position
- Front
Front Tire
Maxxis Assegai, 3C, EXO+, tubeless ready (29, 2.6")
- Size
- 29
- Width
- 2.6"
Rear
Rear Wheel
Shimano WTB ST i TCS rim, MT410 hub (27.5, 12x148mm)
- Size
- 27.5
- Axle Dimension
- 12x148mm
- Inner width
- 30 mm
- Position
- Back
Rear Tire
Maxxis DHR II, 3C, EXO+, tubeless ready (27.5, 2.6")
- Size
- 27.5
- Width
- 2.6"
Brakes
Front
Front Brake
Hydraulic SRAM Code R disc
Front Disc
SRAM Centerline
Rear
Rear Brake
Hydraulic SRAM Code R disc
Rear Disc
SRAM Centerline
Frame
Frame
SmartForm Moterra Carbon Front Triangle, C1 Alloy Swingarm
- Rear Axle Dimension
- 148x12mm
- Material
- Carbon/Alloy

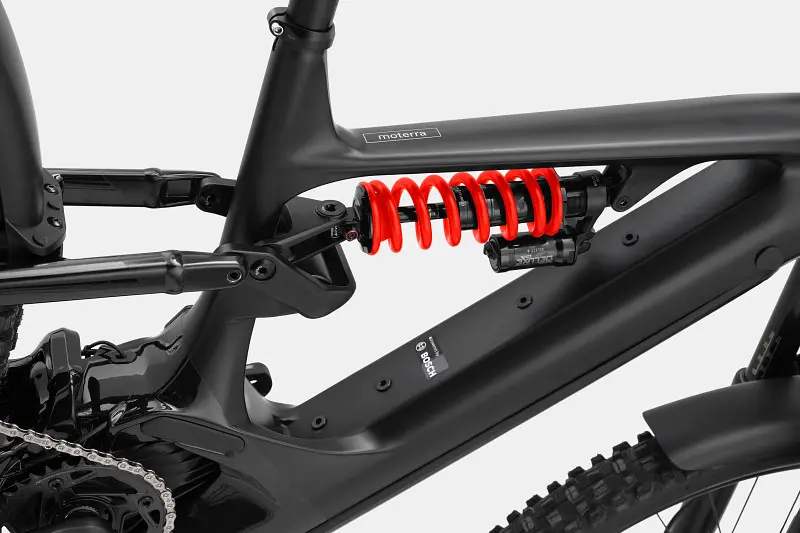

Rear Shock
RockShox Deluxe Select+, Coil, 2-Pos mode adjust
- Travel
- 165 mm
Fork
RockShox Zeb Select, Charger RC, DebonAir
- Travel
- 170 mm
- Front Axle Dimension
- 15x110mm
- Offset
- 44 mm
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
Cannondale DownLow Dropper, internal routing
- Diameter
- 31.6 mm
- Dropper post
- 1
