Cannondale
CAAD14 3
2026BMX - Race
CAAD14 3 Data
- MSRP
- USD 2499.00
- Frame
- SmartForm C1 Premium Alloy
- Suspension
- None, Hardtail
- Gears
- 24
- Sizes
- 51, 54, 56, 58, 61, 48
- Colors
- Chalk
Looking for replacement tires?
View verified compatible tires for the 2026 CAAD14 3.
Components
Complete component specification list for this variant.
Cockpit
Grips
Cannondale Bar Tape, 3.5mm

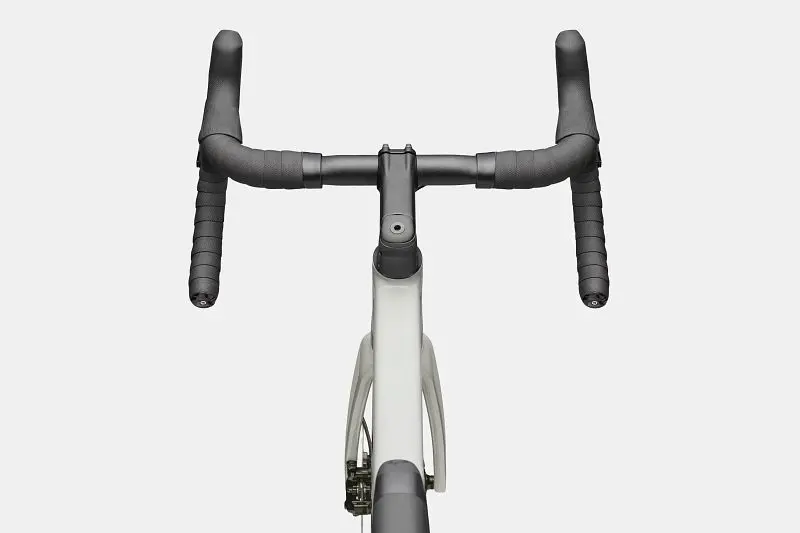

Handlebar
Vision Trimax Compact
Stem
Cannondale C1 Conceal
- Clamping diameter
- 31.8 mm
- Material
- Alloy
Seat
Saddle
Nago RS STN
Seatpost
Cannondale Cannondale 3
- Length
- 350 mm
- Diameter
- 27.2 mm
- Material
- 6061 Alloy
Frame
Frame
CAAD14 CAAD14
- Rear Axle Dimension
- 12x142 mm
- Tyre clearance
- 32 65
- Material
- SmartForm C1 Premium Alloy
Fork
CAAD14 full carbon
- Front Axle Dimension
- 12x100 mm
- Steer tube diameter
- 1-1/8" to 1-1/2"
Drivetrain
Front
Front Derailleur
Shimano 105 7100
- Gears
- 2
Front Shifter
Shimano 105 R7100
Rear

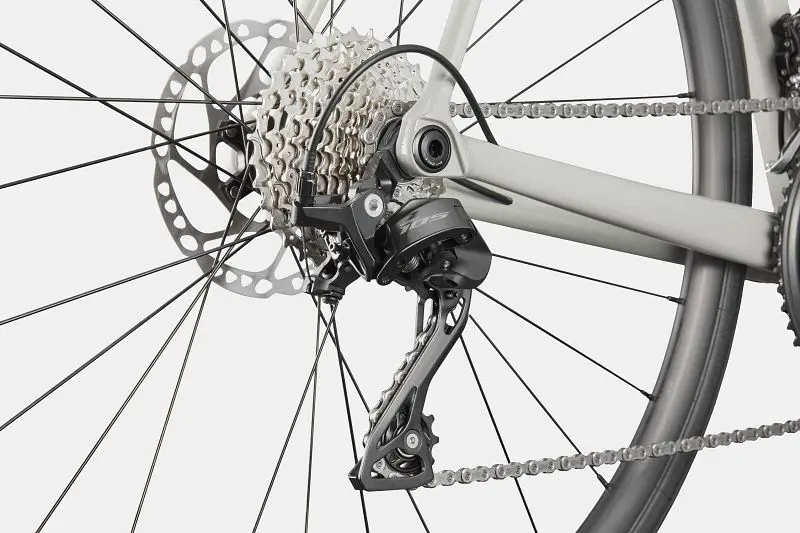

Rear Derailleur
Shimano 105 7100
- Gears
- 12
Rear Shifter
Shimano 105 R7100

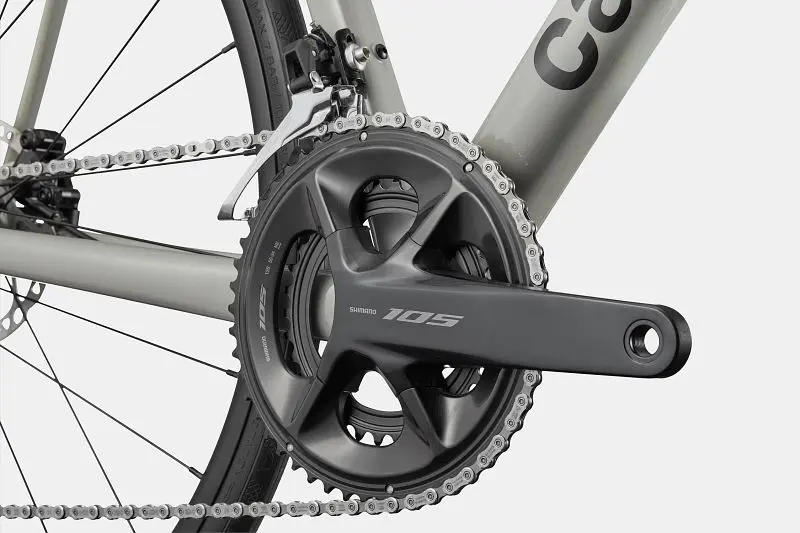

Chainring
Shimano 105 R7100
- Ring 1
- 50 Teeth
- Ring 2
- 34 Teeth
Cassette
Shimano 105 R7100
- Number of sprockets
- 12
- Range
- 11-34
Chain
Shimano 105 7100
- Gears
- 12
Bottom Bracket
Shimano BB-RS500
Brakes
Front
Front Brake
Hydraulic Shimano 105 R7170 disc
Front Disc
RT70 RT70
- Diameter
- 160 mm
Rear
Rear Brake
Hydraulic Shimano 105 R7170 disc
Rear Disc
RT70 RT70
- Diameter
- 160 mm
Wheels
Front
Front Wheel
Cannondale RD 2.0 Disc (700c)
- Size
- 700c
Front Tire
Vittoria Zaffiro (700, 28c)
- Size
- 700
- Width
- 28c
Rear
Rear Wheel
Cannondale RD 2.0 Disc (700c)
- Size
- 700c
Rear Tire
Vittoria Zaffiro (700, 28c)
- Size
- 700
- Width
- 28c
